With Summit's exclusive assortment of refrigerated wine and beer systems, you can find the ideal all-in-one solution for your home entertainment needs. Our versatile built-in options are perfect for both indoor and outdoor kitchens.

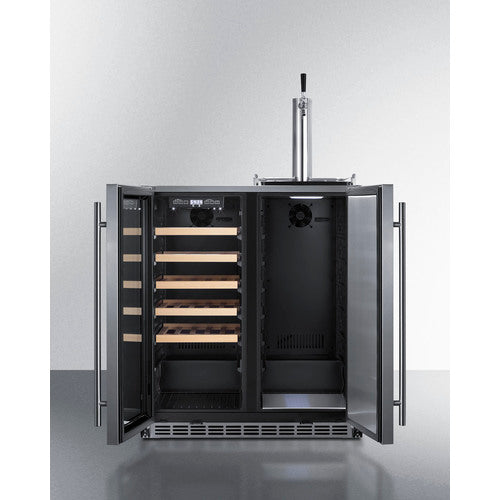

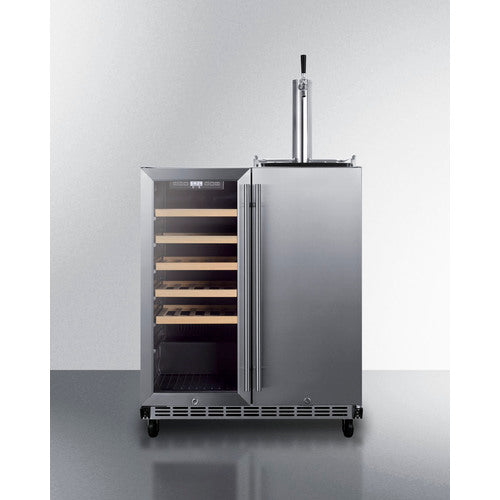

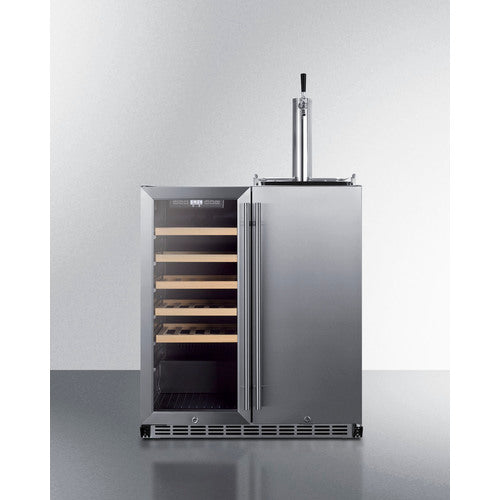

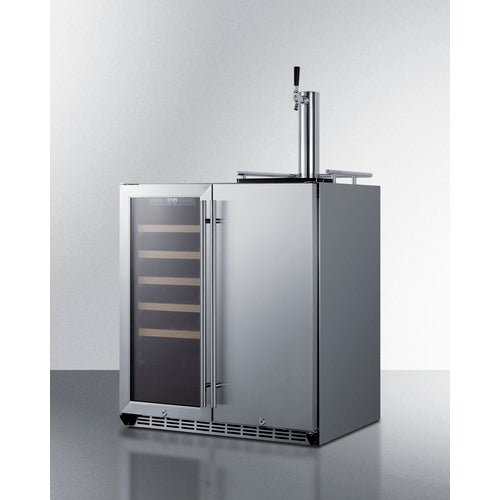

The SWBC3041 model is a french door fridge that serves as a wine cellar and kegerator, with two separate sections for storing and showcasing wine while also offering beer on tap. The front-breathing design allows for built-in installation under counters, and the stainless steel cabinet is fully finished for possible freestanding use.
And for added convenience, we include a set of casters (two with locking feature) for portable installation. With a sealed rear and weatherproof exterior, this cooler is suitable for use in outdoor kitchens, ensuring safety and durability.

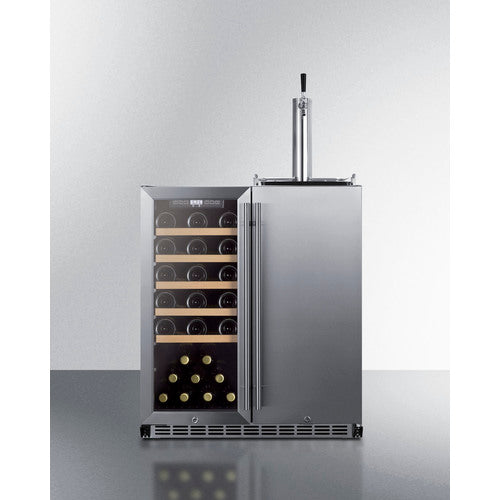

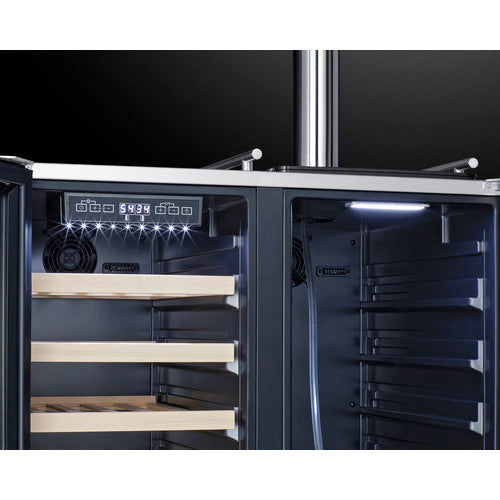

On one side, this product showcases a wine cellar zone with a stainless steel trimmed double tempered glass door that displays your bottles elegantly. Illuminated by white LED lighting, your bottles will be presented in an efficient and attractive manner.
The other side features a fully equipped kegerator, specifically designed for serving beer from 1/6 (sixtel) sized kegs. All necessary tapping equipment, including a stainless steel draft tower and faucet, CO2 tank, and regulator, is included. For easy cleaning, a removable guard rail and two-piece drip tray are also provided.
The intuitive digital controls on both units have wide temperature ranges, making it easy to store a variety of wine and beer styles. Additionally, each door features a pro-style handle and factory-installed lock for added security.
The SWBC3041 model can be used indoors or outdoors, making it a versatile choice for home bars looking to cater to different beverage preferences.
FEATURES
Single compressor operation with two distinct temperature zones allows you to preserve and display wine on the left while tapping draft beer on the right
Includes all the tapping equipment you need to serve beer from a sixtel keg, with a stainless steel tower and faucet, CO2 tank, and regulator
Durable, weatherproof construction designed to hold up to the elements
Front-breathing design allows the unit to be built-in under counters
Each compartment features a wide range, allowing you to find the right temperature for a variety of wine and beer
Keyed lock on each door provides security as needed
Cabinet, kegerator door, and wine cellar door trim feature stainless steel construction for a professional look with lasting durability
No-frost operation for minimal user maintenance
Internal fans ensure both interiors have a consistent temperature from top to bottom
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
White LED offers an attractive and efficient presentation
Wine cellar includes five slide-out wooden shelves to accommodate your bottles
Stainless steel handles add style to any setting

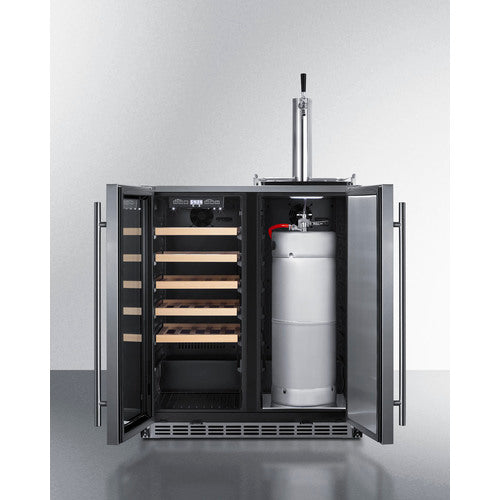

Right side is designed to accept a 1/6 (sixtel) barrel keg or corny keg

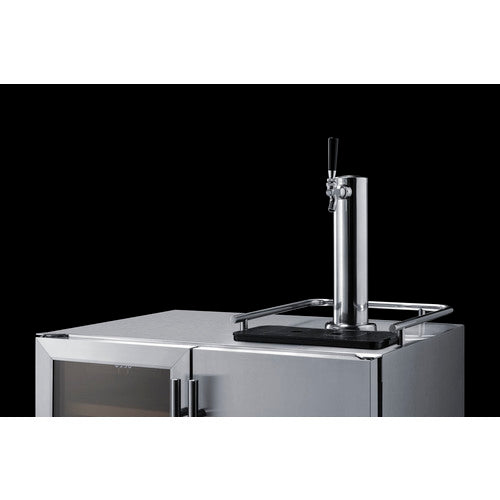

Attractive chrome guard rail helps to neaten service
Two-piece plastic drip tray included to help catch spills
Kegerator interior includes steel cover to protect the floor when loading kegs
Space-saving and makes for quick cleaning of the unit’s exterior
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

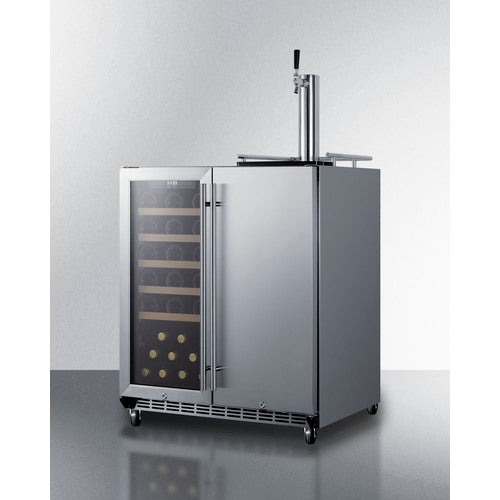

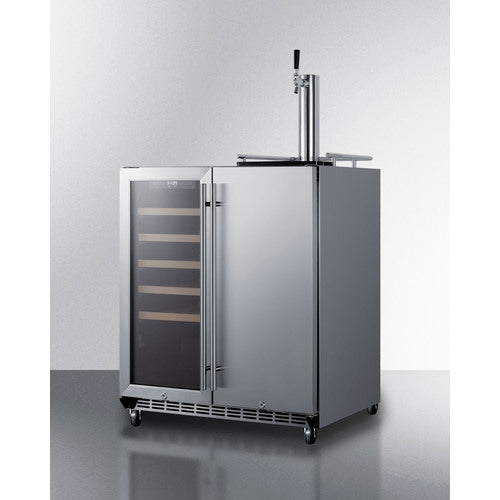

Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed
Allows you to lock the control panel to prevent accidental adjustments
Allows the unit to be used freestanding
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
SPECIFICATIONS
| Overview |
| Height of Cabinet | 34.25"" (87 cm) |
| Width | 29.5"" (75 cm) |
| Width with Door Open | 30.0"" (76 cm) |
| Depth | 23.38"" (59 cm) |
| Depth with Handle | 25.13"" (64 cm) |
| Depth with door at 90° | 36.5"" (93 cm) |
| Capacity | 6.3 cu.ft. (178 L) |
| Bottles | 24 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/SS |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101081571 |
|
Beverage Kegerator
|
|
|---|---|
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat | Digital |
| Interior Light | Yes |
| Fan | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.78 oz. |
| High Side PSI | 220.0 |
| Low Side PSI | 43.0 |
| Level Legs | 4 |
| Wheel | 4 |
| Temperature Range | Left side: 39ºF to 72ºF; Right side: 32ºF to 72ºF |
| Sound Level | 34.1 dB |
| Interior Height 1 | 26.75"" (68 cm) |
| Interior Width 1 | 12.25"" (31 cm) |
| Interior Depth 1 | 18.5"" (47 cm) |
| Interior Height 2 | 26.75"" (68 cm) |
| Interior Width 2 | 12.25"" (31 cm) |
| Interior Depth 2 | 18.5"" (47 cm) |
| Compressor Step Height | 3.75"" (10 cm) |
| Compressor Step Width | 12.25"" (31 cm) |
| Compressor Step Depth | 5.0"" (13 cm) |
| Tap Kit | Yes |
| Number of Taps | 1 |
| Height with Tap | 40.0"" (102 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWBC3041.pdf |
| TECHNICAL DRAWING (.dwg) | -_SWBC3041_BEER_DISPENSER__A-C__2023_.dwg |
| ASSEMBLY DRAWING | |
| USE & CARE |
"
