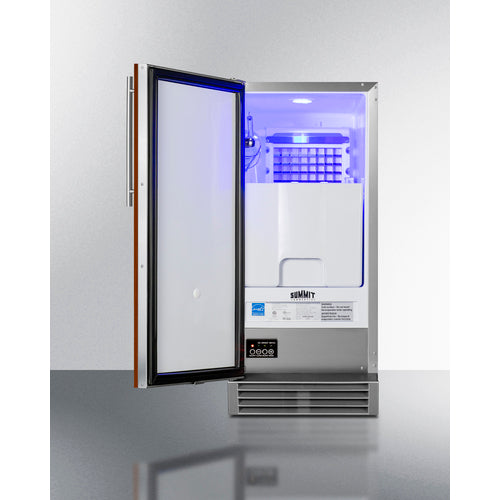

Keep the clear ice coming with Summit Appliance's 15" wide built-in icemaker. ENERGY STAR certified for commercial use, it's perfect for any kitchen. Complete with a stainless steel exterior, it's durable and versatile (ADA compliant, too!). Front-breathing design allows built-in or freestanding use, while panel overlays let you customize.
Get your ice game on point with the Summit Appliance 15" Built-In Icemaker! Featuring a touch control panel, indicator lights, and a 50 lb. production capability, this ADA compliant unit is perfect for any setting. Easily scoop out cubes with the included stainless steel scoop, while an interior light and automatic defrost make maintenance a breeze. Plus, it has an internal pump and adjustable leveling legs. Ice, ice, baby!
Get ready to chill out with the Summit Appliance 15" wide Built-In 50 lb. Clear Icemaker, ADA Compliant! This ETL-S listed icemaker is perfect for foodservice settings or your home kitchen or wet bar. And with panel not included, you'll have complete control over its sleek design. (No ice puns intended!)
FEATURES
ETL-S listed to NSF-12 commercial standards
32 3/8" height fits under lower ADA compliant counters
Make the best use of space by installing your icemaker under the counter
Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
Efficient performance saves on energy use and costs
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Internal pump affords more flexibility in placing the unit
Reduced maintenance with auto defrost system
Produces 7/8" x 7/8" x 7/8" clear ice cubes
Provides easy operation of the unit with indicator lights for each stage of the production process
Ice stays solid longer in this cold-protected bin
Lighting in a soft blue hue for easy viewing of the interior
Interior wall includes brackets to hang for easy storage
Allows the unit to be used freestanding
Space saving design for easier cleanability
Four leveling legs help to keep the unit level on uneven surfaces
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.38" (82 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 37.0" (94 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077048 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Factory Reversible |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM44GCSSIFADA.pdf
|
| TECHNICAL DRAWING (.dwg) | IF_Instructions_-_General.pdf |
| USE & CARE |
