Introducing the Summit Appliance 15" Wide 25 lb. Drain-Free Icemaker - the perfect combination of convenience and luxury. Made with high-quality 304-grade stainless steel, this undercounter icemaker boasts a compact 15" width and can be built-in or used freestanding. With a lowered height option to fit ADA-compliant spaces, this unit also comes with a smaller kickplate for a seamless finish. (Panel not included.)
Get the perfect fit with the Summit Appliance 15" Icemaker. Its panel-ready door and stainless steel frame make it easy to match your kitchen's style. And with a sealed back and optional water filter, installation is a breeze. Just add your own panel and handle for a truly customized look. (Panel and handle not included)
Keep cool and get your daily dose of crescent-shaped ice with the Summit Appliance 15" Icemaker. Producing up to 25 lbs of ice per day, it offers flexible placement with no drain or pump needed. Enjoy solid ice for longer with the static manual defrost cooling system, and stay organized with the included ice bucket, scoop, and holder.
Effortlessly complete your undercounter kitchen space with the Summit Appliance 15" Wide 25 lb. Drain-Free Icemaker. Customize the exterior to fit your style and enjoy the sleek stainless steel cabinet. With its low maintenance design, this icemaker provides an endless supply of ice while reducing waste.
FEATURES
No drain is required for more flexibility in placing the icemaker indoors or outside
This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic

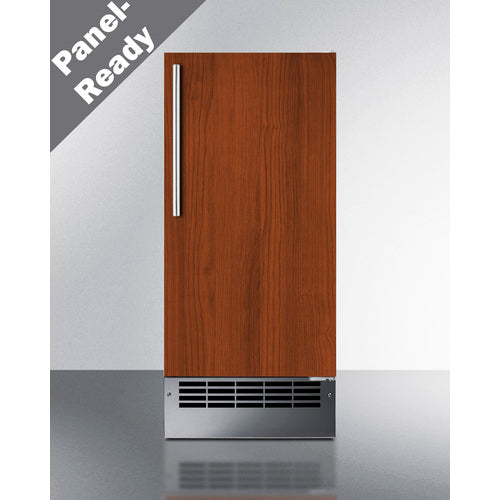

Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Produces and stores more than 20 lbs of ice per day cycle
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
304-grade stainless steel allows the icemaker to be used freestanding
Make the best use of space by installing your ice maker under the counter
User-reversible door swing for flexible placement
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line

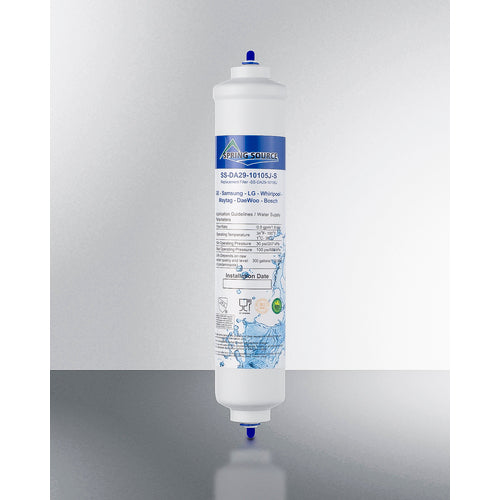

Water filter is included for optional use
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 14.88" (38 cm) |
| Depth | 20.13" (51 cm) |
| Depth with door at 90° | 34.38" (87 cm) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108438 761101108445 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
|---|
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM26H32IF.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
