Introducing the Summit Appliance 15" Drain-Free Icemaker. Crafted with convenience and luxury in mind, this undercounter icemaker is made of complete 304-grade stainless steel. Its slim design allows for built-in or freestanding use, while also being ADA-compliant with adjustable height. Get ready to elevate your ice game!

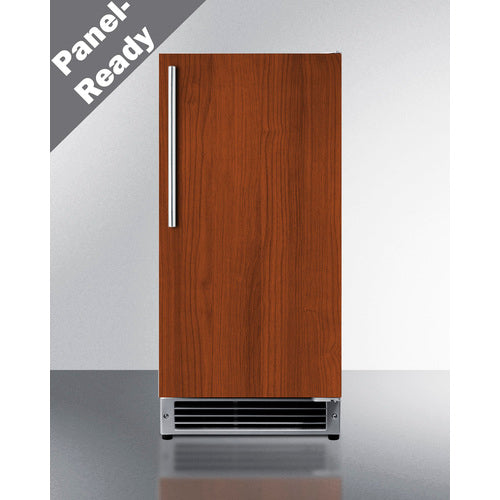

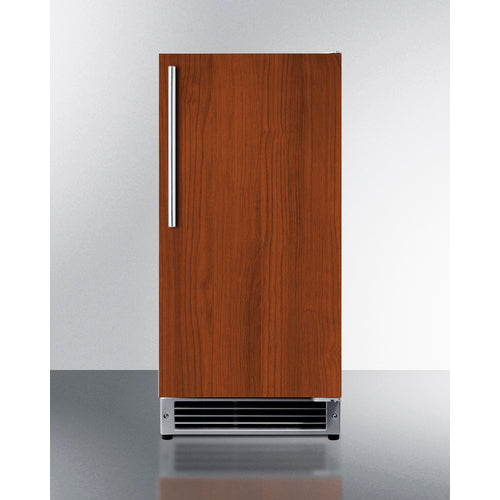

Looking for an easy and stylish way to keep your drinks cold? Look no further than the Summit Appliance 15" Icemaker! Its panel-ready door and stainless steel frame make it a perfect fit for any kitchen. Plus, with the option for a water filter, it's the perfect choice for both convenience and aesthetics. (Panel and handle not included.)

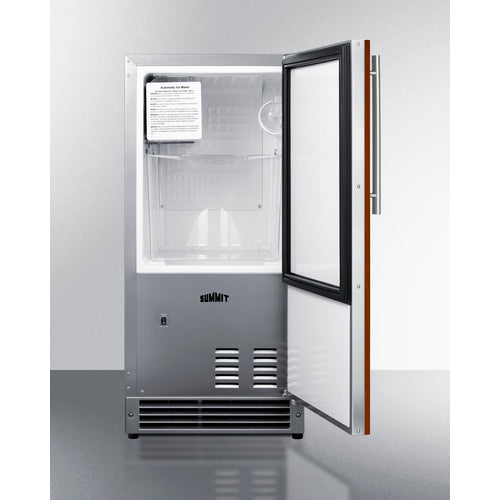

Get ready to make some ice with the Summit Appliance 15" Icemaker! With a daily production capacity of 25 lbs, this ADA compliant machine is perfect for any small space. No pump or drain needed, and the connection hose is already installed. Comes with an ice bucket, scoop, and holder for added convenience.

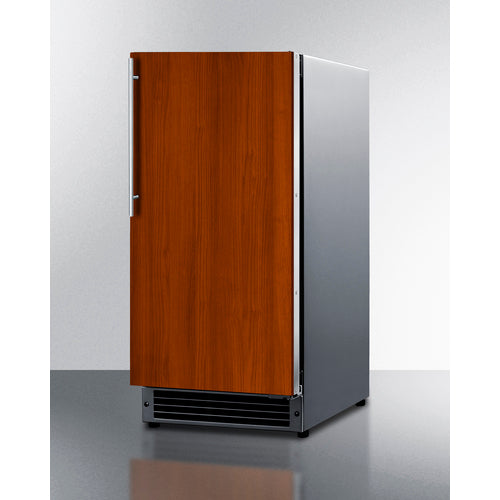

Add a sleek and customizable ice solution to your undercounter kitchen with the Summit BIM26H32IF ADA-compliant icemaker. Its stainless steel cabinet and drain-free design means less maintenance and less waste, making it both practical and stylish. Explore other size and color options in the Summit product line.
FEATURES
No drain is required for more flexibility in placing the icemaker indoors or outside
31.75" height allows installation under lower ADA-compliant counters
This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Produces and stores more than 20 lbs of ice per day cycle
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
304-grade stainless steel allows the icemaker to be used freestanding
Make the best use of space by installing your ice maker under the counter
User-reversible door swing for flexible placement
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line

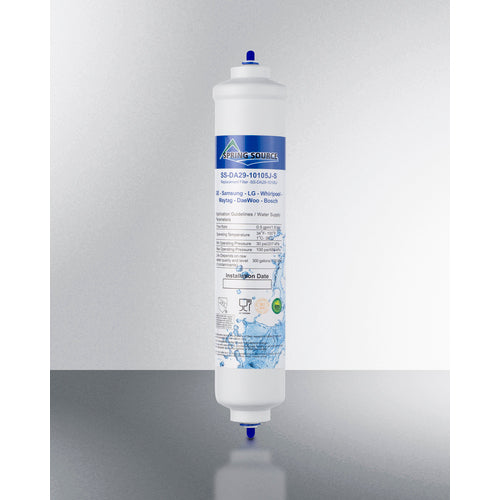

Water filter is included for optional use
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.75" (81 cm) |
| Width | 14.88" (38 cm) |
| Depth | 20.13" (51 cm) |
| Depth with door at 90° | 34.38" (87 cm) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108407 761101108414 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
|---|
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM26H32IF.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
