Summit Appliance 15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
Summit Appliance 15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
Couldn't load pickup availability
Introducing the Summit BIM26IF - a compact and versatile icemaker perfect for any space. With a customizable door front, front-breathing design for built-in installation, and a fully finished cabinet for freestanding use, this 15 lb. icemaker is ideal for kitchen islands, home bars, and even boat kitchens. Say goodbye to messy drains and hello to effortless ice production!

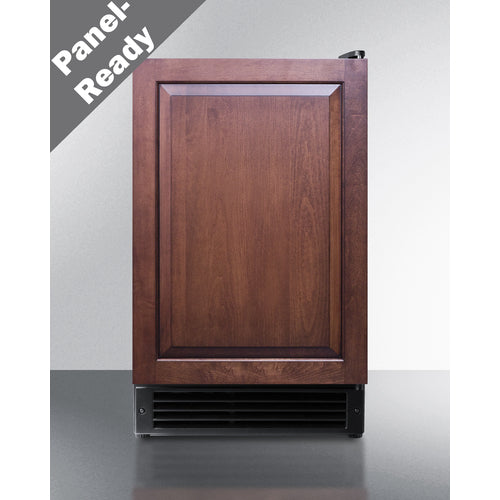

Customize your kitchen with the Summit Appliance Built-In Icemaker. Designed for a sleek and seamless appearance, this icemaker accepts overlay panels and comes with a stainless steel frame for easy installation. No drain or pump is required and the static manual defrost system keeps ice solid longer.
With pre-installed connection hose and accessories included, this icemaker produces 15 lbs of ice per day. Quirky and convenient, just add your own handle for a truly unique touch.
Finish off your kitchen or home bar with the Summit Appliance 15 lb. Drain-Free Built-In Icemaker. With its sleek stainless steel door and low maintenance design, this undercounter icemaker is the perfect addition for any space. Enjoy a constant supply of fresh ice, without wasting any with the BIM26IF. Check out the full Summit product line for even more options!
FEATURES
Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.
Make the best use of space by installing your icemaker under the counter
Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 20 1/2" H x 14 15/16" H and at least 3/4" thick; maximum weight: 10 lbs.)
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice

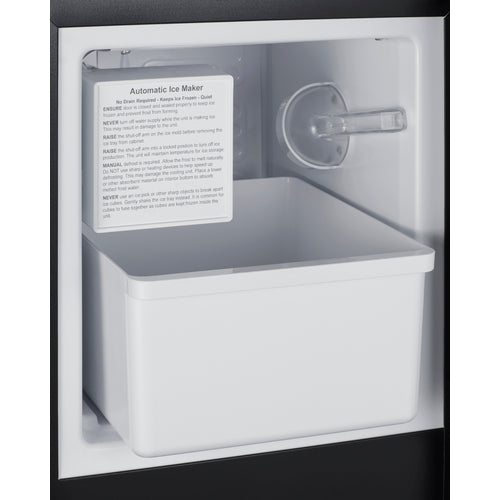

Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 24.5" (62 cm) |
| Height to Hinge Cap | 25.0" (64 cm) |
| Width | 14.88" (38 cm) |
| Width with Door Open | 15.13" (38 cm) |
| Depth | 16.75" (43 cm) |
| Depth with door at 90° | 32.25" (82 cm) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 50.0 lbs. (23 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101144801 761101144818 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | No |
| Daily Ice Production | 15.0 lbs. (7 kg) |
| Ice Storage Capacity | 12.0 lbs. (5 kg) |
| Ice Shape | Crescent |
| Size of Cube | 7/8" x 7/8" x 2-3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.69 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 12.25" (31 cm) |
| Interior Width | 11.0" (28 cm) |
| Interior Depth | 12.25" (31 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
|---|
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM26IF.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING | |
| REVIT MODEL |
