Summit Appliance 15 inchh Wide Built-In Beverage Center (Panel Not Included)
Summit Appliance 15 inchh Wide Built-In Beverage Center (Panel Not Included)
Couldn't load pickup availability

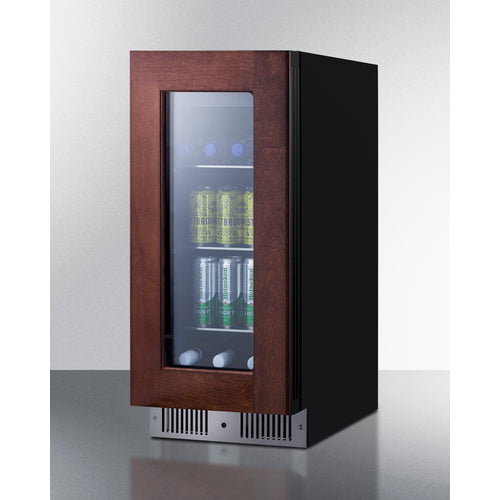

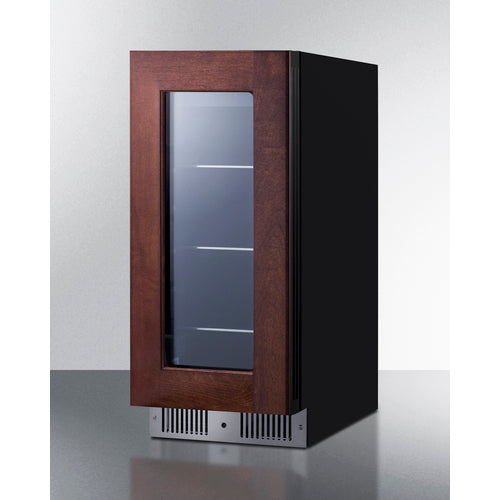

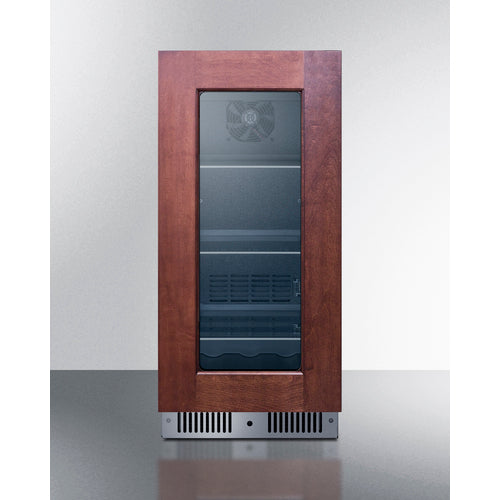

Summit's 15" wide CL156BV1PNRLHD beverage center delivers exceptional versatility for both residential and commercial environments. The front-breathing design enables seamless built-in installation, while the finished black cabinet accommodates freestanding placement. Premium features include 304 grade stainless steel trim, tinted glass door, and fully articulating European hinges. The unit's sealed rear and right-angle cord ensure optimal flush fitting. A 2-piece bracket kit facilitates custom door panel installation, while the kickplate-integrated lock provides discreet security. This sophisticated unit combines functionality with refined aesthetics.
The CL156BV1PNRLHD model employs sophisticated fan-forced cooling technology, ensuring optimal temperature uniformity and rapid recovery throughout the cabinet. Its premium LED interior lighting elegantly showcases stored beverages, while three adjustable glass shelves and a specialized slotted floor provide exceptional storage versatility for various container sizes. The intuitive digital control panel features a dual-scale temperature display (Celsius/Fahrenheit) for precise monitoring. Advanced functionality includes sabbath mode for religious observance periods and a temperature memory function that restores settings after power interruptions. The integrated alert system provides audible notifications for door ajar conditions and temperature deviations, ensuring beverage preservation integrity.
The CL156BV1PNRLHD combines sophisticated design with premium functionality, elevating any kitchen environment. For expanded capacity, consider the 24" variant (CL24BV1PNRLHD). Create a coordinated beverage suite by pairing with Summit's complementary wine cellars—the 15" CL155WC1PNRLHD or 24" CL244WC2PNRLHD. This left-hand swing model has a right-hand counterpart available (CL156BV1PNR). Safety is prioritized with the included anti-tip bracket, essential for proper installation. The comprehensive Summit portfolio offers extensive beverage storage solutions, with complete specifications available at summitappliance.com.

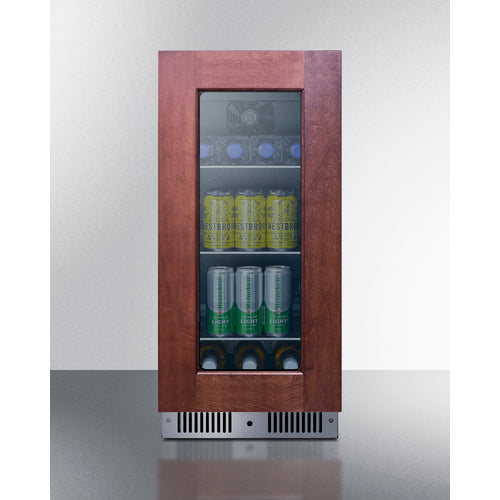

Undercounter glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter

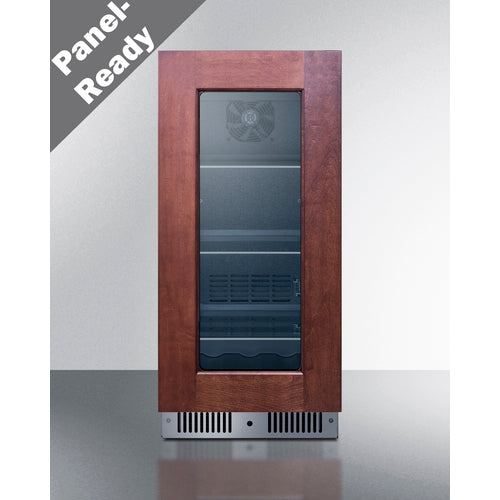

Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" inner frame
European style hinge design ensures a flush fit and allows for a smoother opening
Single-piece 304 grade stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances
Keyed lock located in the kickplate for added security as needed

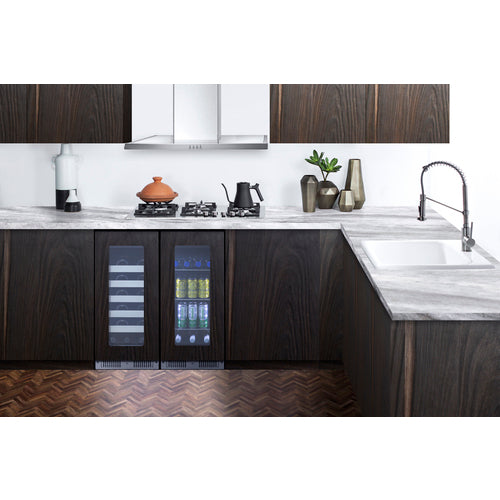

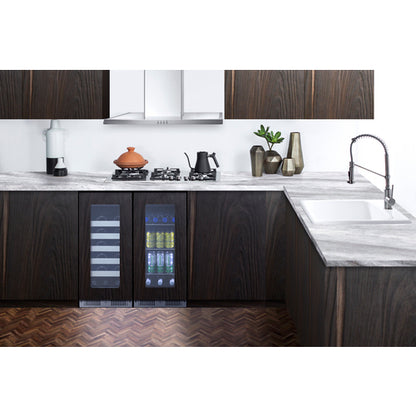

Universal collection design allows you to pair this unit with our 24" wide deluxe wine cellar, model CL244WC2PNR, or our 15" wide wine cellar, model CL155WC1PNR, depending on your needs

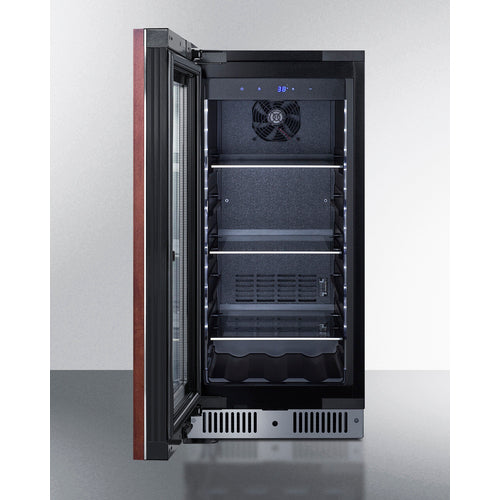

Three easy-to-clean glass shelves for flexible storage
Floor includes slots to hold bottles in place
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Efficient lighting with a convenient on/off switch on the control panel
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL156BV1PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|

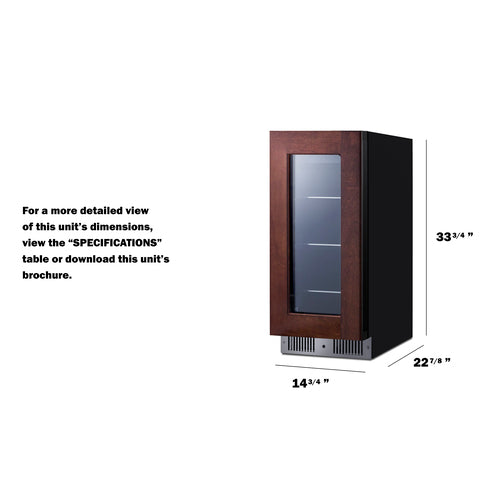

Nominal Height | 34.0" (86 cm) |
Height of Cabinet | 33.75" (86 cm) |
Nominal Width | 15.0" (38 cm) |
Width | 14.75" (37 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 22.88" (58 cm) |
Depth with door at 90° | 37.5" (95 cm) |
Capacity | 2.6 cu.ft. (74 L) |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 280.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 73.0 lbs. (33 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101156132 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | LHD |
Reversible | No |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.86oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Interior Light | Yes |
Temperature Range | 36° F to 43°F |
Drawer Dimensions
|
|
Interior Height 1 | 3.75" (10 cm) |
Interior Width 1 | 11.5" (29 cm) |
Interior Depth 1 | 5.0" (13 cm) |
Dimensions
|
|
Interior Height | 25.0" (64 cm) |
Interior Width | 11.5" (29 cm) |
Interior Depth | 16.75" (43 cm) |
AVAILABLE UPGRADES
Door |
T1 Door Tint | T4 Door Tint |
T2 Door Tint | T3 Door Tint |
T1 Door Tint |
DOWNLOADS
BROCHURE | CL156BV1PNRLHD.pdf |
TECHNICAL DRAWING (.dwg) | CL156BV1PNR.dwg |
ASSEMBLY DRAWING | CL156BV1PNR-Assembly(2).pdf |
USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
ENERGY GUIDE | https://www.summitappliance.com/energy_guide/8729.pdf |
