Summit Appliance 15 inch Wide Built-In Wine Kegerator
Summit Appliance 15 inch Wide Built-In Wine Kegerator
Couldn't load pickup availability
Summit's built-in wine kegerator/dispenser line meets NSF-7 and UL-471 commercial standards while being residential-approved. The SBC15WK's 15" width and front-breathing design allow for under-counter installation, while its finished cabinet permits freestanding use.
Features include a stainless steel door with matching handle, black cabinet, sealed back for easy maintenance, removable stainless steel drip tray, chrome guard rail, user-reversible door, and four casters (two locking). Security is enhanced with a factory-installed lock.
The 2.9 cu. ft. interior accommodates a 1/6 wine keg (sixtel) or mini keg, while two adjustable chrome shelves with six position options convert the unit to a beverage refrigerator. Temperature management is simplified with a digital thermostat featuring an external display in Celsius or Fahrenheit.
Maintenance is minimized through automatic defrost. The included commercial-grade tap kit features a stainless steel draft tower, regulator, and empty Nitrogen/Co2 tank (optimal for 75% Nitrogen/25% Co2 mixture). Wine stays perfectly chilled through the tap cool system, while a Velcro strap secures the tank. The stainless steel floor plate provides keg protection. For beer dispensing, consider the SBC15BEER model. Installation note: Allow an additional 1/4" width clearance for full 90° door opening.
Slim-fit design complements smaller commercial and residential spaces
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require an extra ¼” of space due to the door design. For more information, see the user manual
Commercially approved tap kit includes a stainless steel tower, Nitrogen/Co2 tank, and regulator
5 lb. Nitrogen/Co2 tank included (ships empty)

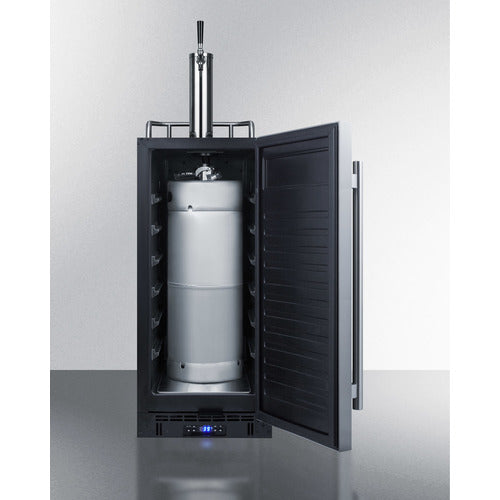

2.9 cu.ft. interior can accept a 1/6 (sixtel) wine keg
Reduced user maintenance with auto defrost operation
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Keeps cold air flowing to the tower for consistently chilled wine
Interior includes steel cover to protect the floor when loading kegs
Attractive chrome guard rail helps to reduce spills and neaten service

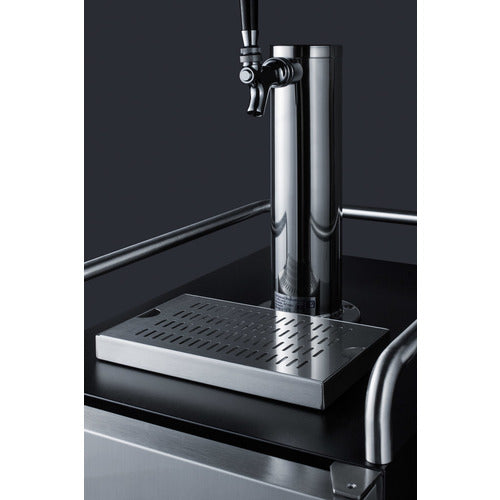

Removable two-piece drip tray catches spills to help contain the mess
Operates between 34º and 50ºF to keep a variety of white and blush wine chilled

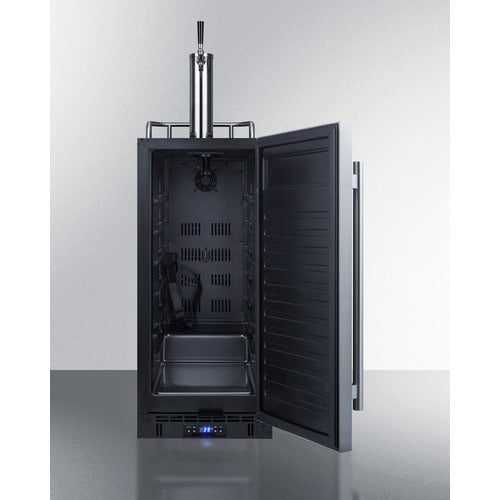

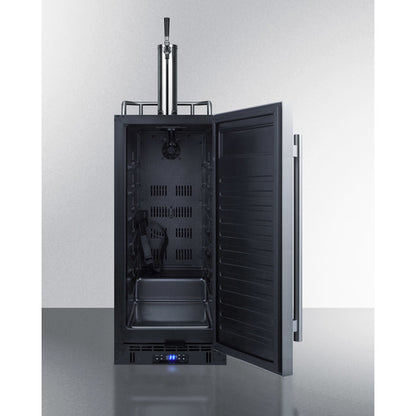

2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator
User-reversible door swing for added flexibility
Keyed lock for a secure interior, with 2 keys included
To make the wine dispenser portable, install this set of 4 1/2" high casters (2 locking)
Stainless steel handle adds style to any setting
Allows the wine dispenser to be used freestanding
Space saving design with easier cleanability
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 35.0" (89 cm) |
Height of Cabinet | 34.25" (87 cm) |
Nominal Width | 15.0" (38 cm) |
Width | 15.0" (38 cm) |
Width with Door Open | 15.25" (39 cm) |
Nominal Depth | 23.0" (58 cm) |
Depth | 22.5" (57 cm) |
Depth with Handle | 24.5" (62 cm) |
Depth with door at 90° | 36.5" (93 cm) |
Capacity | 2.9 cu.ft. (82 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 280.0kWh/year |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 78.0 lbs. (35 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101067896 |
Kegerator
|
|
Door Swing | RHD |
Reversible | Yes |
Tap Kit | Yes |
Height with Tap | 49.75" (126 cm) |
Number of Taps | 1 |
Adjustable Shelves | Yes |
Shelf Type | Chrome |
Shelf Qty | 2 |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 1.06 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Inter Height | 26.75" (68 cm) |
Interior Width | 11.75" (30 cm) |
Interior Depth | 17.5" (44 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 11.75" (30 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs Qty | 4 |
Wheel Qty | 4 |
Temperature Range | 34º to 50º F |
AVAILABLE UPGRADES
Exterior | |
---|---|
LHD - Left hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
BROCHURE w/ DRAWINGS | SBC15WK.pdf |
TECHNICAL DRAWING (.dwg) | SBC15NK_BEER_DISPENSER__A-C_2018_.dwg |
USE & CARE | SBC_Wine_Dispensing_Tap_Kit.pdf |
MSDS INFORMATION | R600a_K.pdf |
ENERGY GUIDE | https://www.summitappliance.com/energy_guide/6398.pdf |
USE & CARE | SBC15_Kegerator_Use_and_Care.pdf |
