Summit's collection of built-in undercounter wine cellars delivers exceptional functionality and sophisticated design for any kitchen environment. The CL155WC1PNR model, measuring 15" wide, offers versatile single-zone storage suitable for both residential and commercial applications. Its front-breathing system enables seamless built-in installation, while the finished black cabinet accommodates freestanding placement.
The unit features premium 304 grade stainless steel trim complementing the subtly tinted glass door for a refined aesthetic. Engineered with a sealed rear and right-angle cord for optimal positioning, this cellar includes fully articulating European hinges and a 2-piece bracket kit for custom panel installation. Security is enhanced with a conveniently positioned lock in the kickplate.

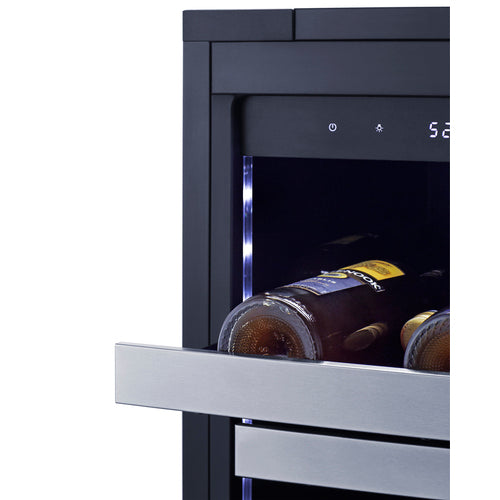

The CL155WC1PNR interior showcases sophisticated white LED side-wall illumination with adjustable brightness settings for customized display ambiance. Its intuitive digital control panel allows precise temperature regulation between 41° and 68°F, accommodating various wine varieties. The fan-forced cooling system ensures temperature uniformity and rapid recovery after door openings.
Five specialized jet black steel shelves, elegantly trimmed with 304 grade stainless steel, feature a versatile flat design suitable for wine bottles and alternative beverages. The unit efficiently houses up to 20 standard 750ml Bordeaux or Burgundy bottles, with additional capacity for three specialty bottles on the slotted floor (under 10¾" height), though actual capacity varies by bottle configuration. Advanced functionality includes temperature memory for power interruption recovery and Sabbath mode for
Important: This unit includes an anti-tip bracket that requires installation to enhance operational safety and prevent potential tipping hazards. The CL155WC1PNR exemplifies sophisticated design and comprehensive functionality, bringing exceptional refinement to contemporary kitchen environments.

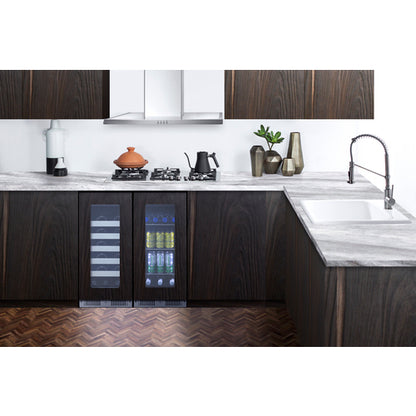

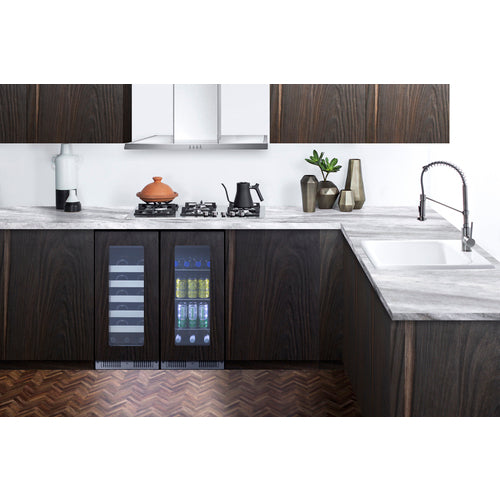

For dual-zone storage requirements, consider the CL244WC2PNR alternative model. Create a coordinated appliance ensemble by pairing with Summit's complementary 15" CL156BV1PNR or 24" CL24BV1PNR beverage centers. Discover Summit's complete collection of premium wine storage and beverage refrigeration solutions at summitappliance.com.
FEATURES
15" Wide Wine Cellar
Single zone glass door wine cellar for residential or commercial storage
Built-in undercounter design
Front-breathing design lets you make the best use of space by installing your appliance under the counter

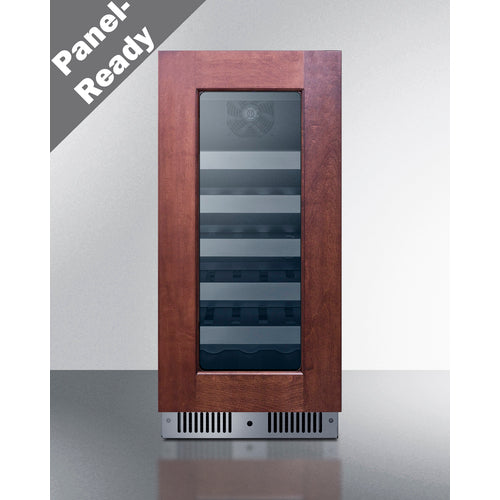

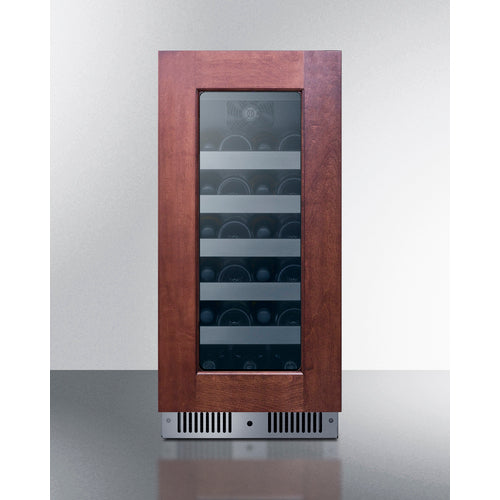

Custom style
Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Easy panel installation with included 2-piece bracket kit
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" inner frame

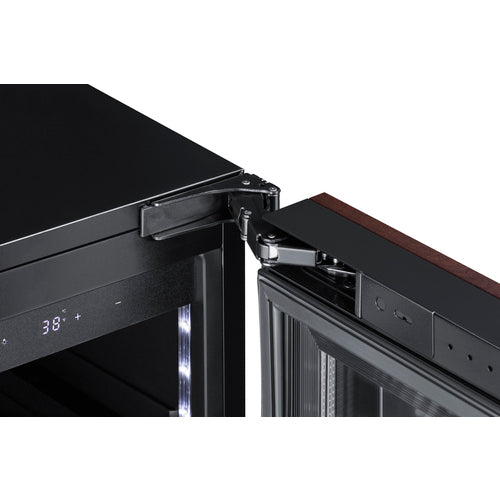

Fully articulating door hinge
European hinge design ensures a flush fit and allows for a smoother opening
Seamless 304 grade stainless steel door trim
Single-piece stainless steel door trim offers a more deluxe look
Gently tinted glass door
Attractive tinted glass door provides a complete but protected display of stored contents
Unbranded exterior
Allows for seamless integration with other appliances
Matching sets
Universal collection design allows you to pair this unit with our 15" wide beverage center, model CL156BV1PNR, or our 24" wide beverage center, model CL24BV1PNR, depending on your needs

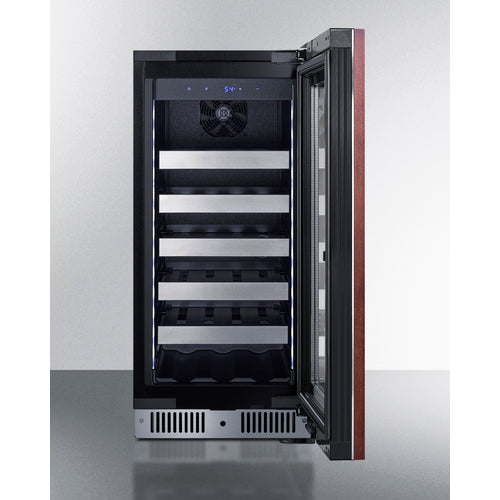

Deluxe wine shelving
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Flat shelf design
Shelf design makes it easier to store cans and other styles of beverages
Large bottle capacity
Shelves can comfortably hold 20 Bordeaux or Burgundy style wine bottles, with a slotted floor to also store three shorter wine bottles (max 10 3/4" height). Shelves can be removed to stack larger bottles if needed
Automatic defrost
No-frost operation for minimum user maintenance
Digital controls
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Wide temperature range
Interior can be set between 41 and 68ºF to accommodate your choice of red, white, or sparkling wine
Digital temperature display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Efficient lighting with a convenient on/off switch on the control panel
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours
Factory-installed lock
Keyed lock located in the kickplate for added security as needed
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
| Nominal Height |
34.0" (86 cm) |
| Height of Cabinet |
33.75" (86 cm) |
| Nominal Width |
15.0" (38 cm) |
| Width |
14.75" (37 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
22.88" (58 cm) |
| Depth with door at 90° |
37.5" (95 cm) |
| Bottles |
20 bottles |
| Defrost Type |
Automatic |
| Door |
Glass/Panel-Ready Frame |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101156149 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Adjustable Shelves |
Yes |
| Shelf Type |
Steel |
| Shelf Qty |
5 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.64 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
25.0" (64 cm) |
| Interior Width 1 |
11.5" (29 cm) |
| Interior Depth 1 |
16.75" (43 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
11.5" (29 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Temperature Range |
41°F to 68°F |
| Sabbath Mode |
Yes |
AVAILABLE UPGRADES
| Exterior |
|
| LHD - Left hand door swing |
|
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
|
