Summit Appliance 15 inch Wide Built-In Wine Cellar (Panel Not Included)
Summit Appliance 15 inch Wide Built-In Wine Cellar (Panel Not Included)
Couldn't load pickup availability
Summit's premium CL155WC1PNRLHD is a sophisticated 15" wide single-zone wine cellar engineered for versatile installation. The front-breathing system enables built-in placement, while the finished black cabinet accommodates freestanding applications. Distinguished by 304 grade stainless steel trim and tinted glass, this cellar features articulating European hinges and a bracket kit for custom panel integration.
Temperature control ranges from 41-68°F with precision digital management, while dimmable white LED lighting enhances display aesthetics. Fan-forced cooling technology ensures optimal temperature consistency throughout the cabinet, making it ideal for preserving various wine varieties in both residential and commercial environments.
The CL155WC1PNRLHD features five precision-engineered steel shelves in sleek jet black, accented with premium 304 grade stainless steel trim for sophisticated aesthetics. These flat-profile shelves accommodate up to 20 standard Bordeaux/Burgundy bottles plus 3 specialty wines on the slotted floor (capacity varies by bottle configuration).
Advanced functionality includes temperature memory restoration after power interruptions and Sabbath mode for religious observance periods. The integrated alarm system monitors door closure and temperature fluctuations, while the included anti-tip bracket ensures installation safety. This left-hand swing model can be paired with Summit's complementary beverage centers (CL156BV1PNRLHD or CL24BV1PNRLHD) for a coordinated ensemble. For right-hand door configuration, the CL155WC1PNR is available, while the CL244WC2PNRLHD offers dual-zone temperature control in the same design aesthetic.
Single zone glass door wine cellar for residential or commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter

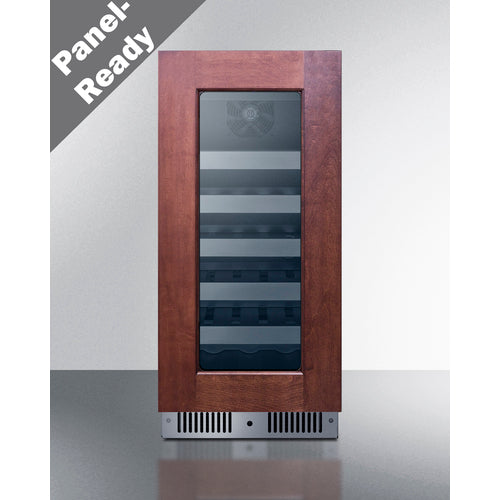

Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" inner frame
European hinge design ensures a flush fit and allows for a smoother opening
Single-piece stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances
Universal collection design allows you to pair this unit with our 15" wide beverage center, model CL156BV1PNR, or our 24" wide beverage center, model CL24BV1PNR, depending on your needs
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Shelf design makes it easier to store cans and other styles of beverages
Shelves can comfortably hold 20 Bordeaux or Burgundy style wine bottles, with a slotted floor to also store three shorter wine bottles (max 10 3/4" height). Shelves can be removed to stack larger bottles if needed
No-frost operation for minimum user maintenance
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Interior can be set between 41 and 68ºF to accommodate your choice of red, white, or sparkling wine
Temperature readout can be shown in Celsius or Fahrenheit
Efficient lighting with a convenient on/off switch on the control panel
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 96 hours
Keyed lock located in the kickplate for added security as needed
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL155WC1PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 37.5" (95 cm) |
| Bottles | 20 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156156 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | LHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.0" (64 cm) |
| Interior Width 1 | 11.5" (29 cm) |
| Interior Depth 1 | 16.75" (43 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 11.5" (29 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE | CL155WC1PNRLHD.pdf |
| TECHNICAL DRAWING | CL155WC1PNR.dwg |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| ASSEMBLY DRAWING | CL155WC1PNR-Assembly.pdf |
