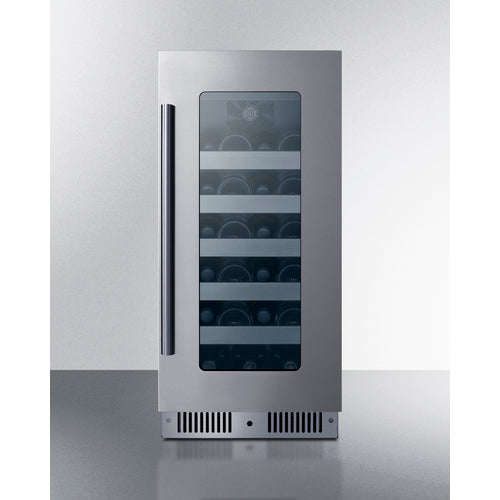

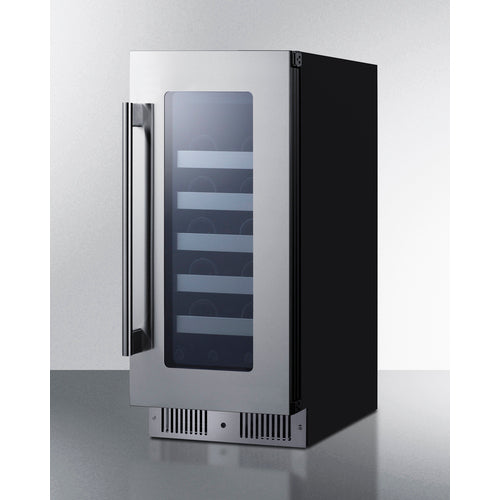

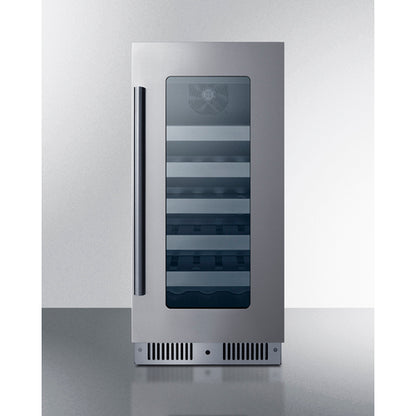

Summit's integrated undercounter wine cellar portfolio delivers comprehensive functionality, operational efficiency, and architectural elegance to contemporary culinary environments. The CL155WC1, a precision-engineered 15" single-zone preservation system, accommodates both residential and commercial applications with equal sophistication. Its front-ventilation architecture enables flush installation capabilities, while the complete black cabinet finish provides standalone placement versatility.
The unit features premium 304-grade stainless steel trim that integrates seamlessly with UV-protective tinted glass, complemented by professional-grade handle hardware. Engineering refinements include a sealed posterior design and right-angle power configuration for optimized installation parameters. The fully articulating European hinge mechanism ensures precision operation, while the discreet kickplate-integrated locking system enhances security without compromising aesthetics. Interior illumination is provided through strategically positioned side-wall LED systems with variable intensity controls for customized display presentation. The intuitive digital interface facilitates precise temperature management between 41° and 68°F, accommodating diverse wine varietals. The advanced fan-forced cooling technology ensures thermal uniformity throughout the cabinet and rapid temperature stabilization following access events.
The storage system comprises five precision-engineered steel shelving units in sophisticated jet black finish, enhanced with premium 304-grade stainless steel frontal trim that reinforces the unit's architectural integrity. The shelves feature a specialized planar design optimized for versatile storage applications, accommodating traditional wine bottles while providing flexibility for alternative beverage containers. The calculated storage capacity supports up to 20 standard 750ml Bordeaux or Burgundy format bottles with supplementary accommodation for three specialized wine bottles in the dedicated floor compartment (maximum height 10¾"). Storage capacity variations may occur based on specific bottle geometries.
Advanced operational features include temperature recovery programming that maintains pre-established settings following power interruption and Sabbath mode functionality that suspends specific operations during religious observance periods. The comprehensive monitoring system incorporates dual-function audible notification for door closure verification and temperature parameter deviation. Installation note: The included anti-tip stabilization bracket requires proper installation to ensure operational safety and prevent unit displacement.
With its distinctive aesthetic profile and comprehensive feature integration, the CL155WC1 establishes a new benchmark for sophisticated wine preservation in residential culinary environments. For applications requiring segregated temperature zones, consider the CL244WC2 dual-zone configuration.
Create a coordinated appliance ensemble by integrating this unit with the complementary 15" CL156BV1 beverage center or the expanded 24" CL24BV1 model. Explore Summit's complete portfolio of specialized climate-controlled preservation systems at summitappliance.com for comprehensive solution options.
FEATURES
15" Wide Wine Cellar
Single zone glass door wine cellar for residential or commercial storage
Built-in undercounter design
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Unbranded exterior
Allows for seamless integration with other appliances
Seamless 304 grade stainless steel door trim
Single-piece stainless steel door trim offers a more deluxe look
Gently tinted glass door
Attractive tinted glass door provides a complete but protected display of stored contents

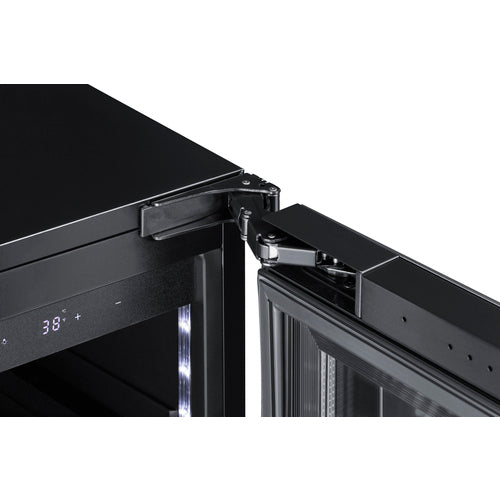

Fully articulating door hinge
European hinge design ensures a flush fit and allows for a smoother opening
Professional handle
Stainless steel look for added elegance

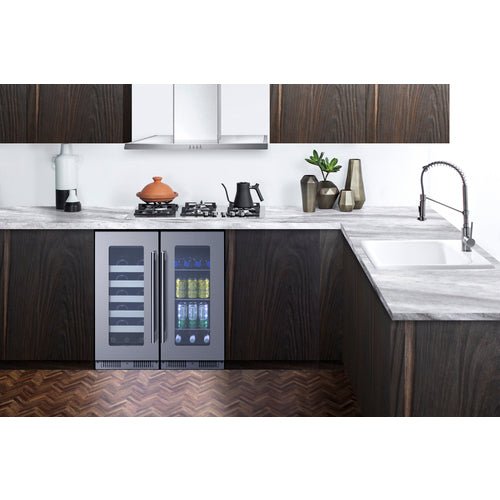

Matching sets
Universal collection design allows you to pair this unit with our 15" wide beverage center, model CL156BV1, or our 24" wide beverage center, model CL24BV1, depending on your needs

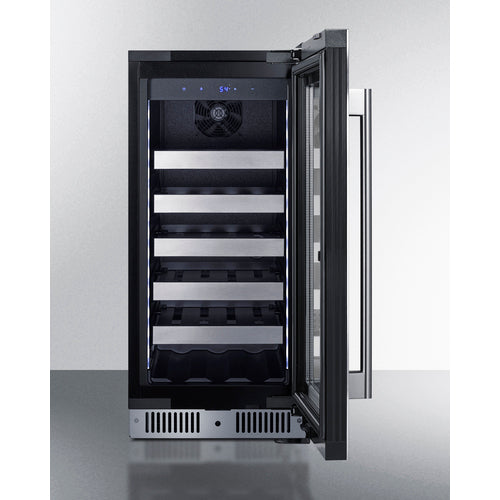

Deluxe wine shelving
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Flat shelf design
Shelf design makes it easier to store cans and other styles of beverages
Large bottle capacity
Shelves can comfortably hold 20 Bordeaux or Burgundy style wine bottles, with a slotted floor to also store three shorter wine bottles (max 10 3/4" height). Shelves can be removed to stack larger bottles if needed
Automatic defrost
No-frost operation for minimum user maintenance
Digital controls
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Wide temperature range
Interior can be set between 41 and 68ºF to accommodate your choice of red, white, or sparkling wine
Digital temperature display
Temperature readout can be shown in Celsius or Fahrenheit

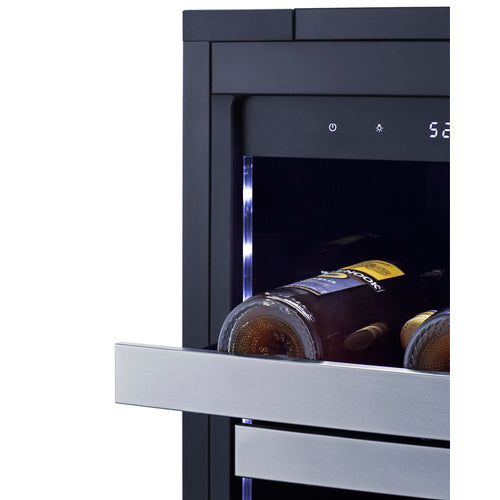

LED lighting
Efficient lighting with a convenient on/off switch on the control panel
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours
Factory-installed lock
Keyed lock located in the kickplate for added security as needed
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
| Nominal Height |
34.0" (86 cm) |
| Height of Cabinet |
33.75" (86 cm) |
| Nominal Width |
15.0" (38 cm) |
| Width |
14.75" (37 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
22.88" (58 cm) |
| Depth with Handle |
24.63" (63 cm) |
| Depth with door at 90° |
37.5" (95 cm) |
| Bottles |
23 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
74.0 lbs. (34 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101145228 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Adjustable Shelves |
Yes |
| Shelf Type |
Steel |
| Shelf Qty |
5 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.64 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
25.0" (64 cm) |
| Interior Width 1 |
11.5" (29 cm) |
| Interior Depth 1 |
16.75" (43 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
11.5" (29 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Temperature Range |
41°F to 68°F |
| Sabbath Mode |
Yes |
AVAILABLE UPGRADES
| Exterior |
|
| LHD - Left hand door swing |
|
| Door |
|
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
