Summit Appliance 15 inch Wide Built-In Wine/Beverage Center With Seamless Stainless Steel Trimmed Low-E Glass Door
Summit Appliance 15 inch Wide Built-In Wine/Beverage Center With Seamless Stainless Steel Trimmed Low-E Glass Door
Couldn't load pickup availability
The SUMMIT Classic Collection presents refined undercounter solutions engineered for sophisticated residential environments. With its compact 15" profile, the CL151WBV delivers an optimized dual-storage solution for wine and craft beer enthusiasts, perfectly complementing residential bar installations.
The unit's front ventilation system facilitates seamless undercounter integration, while the complete jet black exterior finish allows for versatile freestanding placement. Premium design elements include precision-crafted stainless steel door framing that transitions elegantly into low-emissivity tinted glass, enhanced by the architectural stainless steel handle and designer kickplate. The interior showcases strategic white LED illumination against a contrasting black backdrop, creating an optimal display environment for beverage collections.
The CL151WBV features a sophisticated dual-storage configuration, integrating specialized shelving systems to maximize storage efficiency. Premium wine storage is achieved through stainless steel-accented shelves with refined black wooden finishes, while distinctive frosted glass shelving provides optimal craft beer presentation.
The intuitive digital control interface offers precise temperature management with dual-scale temperature display capabilities in both Celsius and Fahrenheit. Advanced functionality includes field-reversible door installation, an energy conservation operating mode, and temperature memory technology that maintains programmed settings during power interruptions. The comprehensive monitoring system incorporates audible alerts for door closure verification and temperature deviation notification. This meticulously engineered compact solution delivers exceptional storage versatility and sophisticated climate control technology, establishing a new benchmark for premium beverage management in space-constrained environments.
Make the best use of space by installing your appliance under the counter
Allows the unit to be used freestanding
Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass

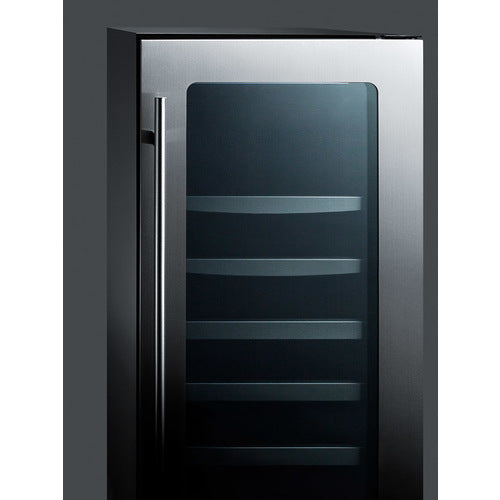

Glass is framed by seamless 304 grade stainless steel
Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit

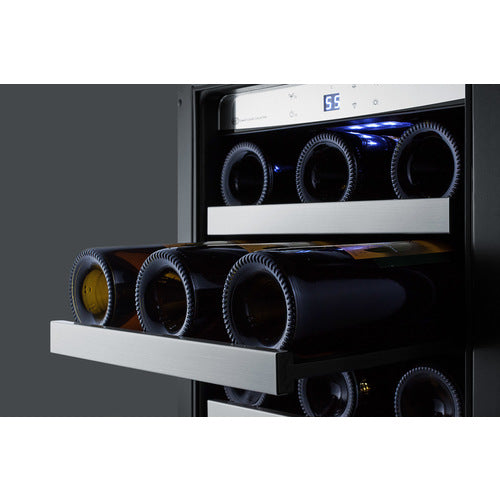

Black wooden shelves feature stainless steel trim for an added touch of elegance
Spill-proof glass shelves make it easy to store and display craft beer bottles and cans
Unique white light offers elegant illumination for the jet black interior
Vertically mounted handle in brushed stainless steel features a sleek 16mm diameter that suits many popular styles of cabinetry
User-reversible door swing allows for more flexibility in placing the unit
Completes the professional look down to the toe kick
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Audible alarm will sound if the door is left ajar
Internal fan ensures the interior is evenly cooled from top to bottom
Reduced maintenance and steady temperature performance
Space saving design with easier cleanability
Lets you disable some of the electrical features to save on energy use
Unit will retain its last settings when power is restored in the event of power loss
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.5" (88 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 15.0" (38 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 37.25" (95 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Bottles | 34 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 77.0 lbs. (35 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056142 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wire and Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 277.0 |
| Low Side PSI | 103.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 12.0" (30 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.0" (30 cm) |
| Compressor Step Depth | 5.75" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41°F to 64°F |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
| LHD - Left hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS | CL151WBV.pdf |
| TECHNICAL DRAWING | CL15WCWINECELLARA-C2000.dwg |
| USE & CARE | CL24WC2CLFD24WCCL15WCCL241BVSummitEnglishFrenchmanual131205.pdf |
