Summit Appliance 15 inch Wide Built-In Beverage Center With Seamless Stainless Steel Door Trim
Summit Appliance 15 inch Wide Built-In Beverage Center With Seamless Stainless Steel Door Trim
Couldn't load pickup availability

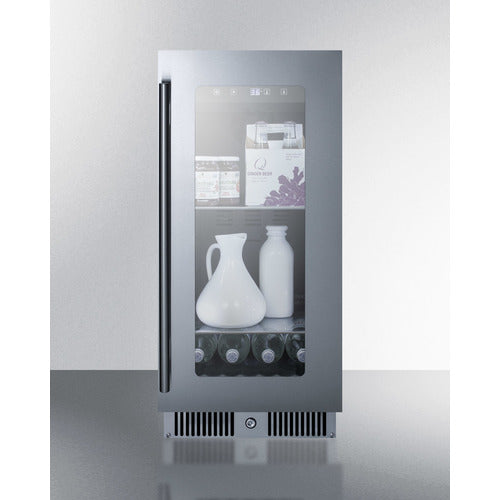

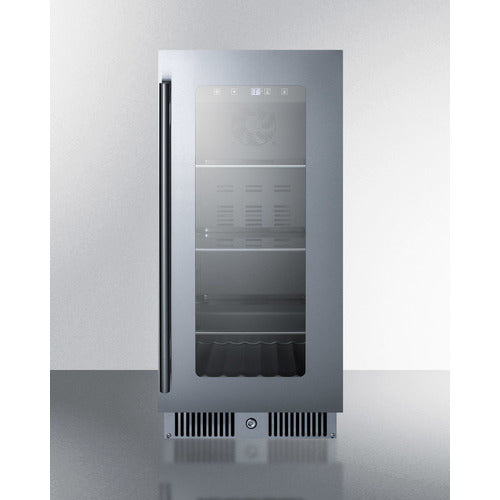

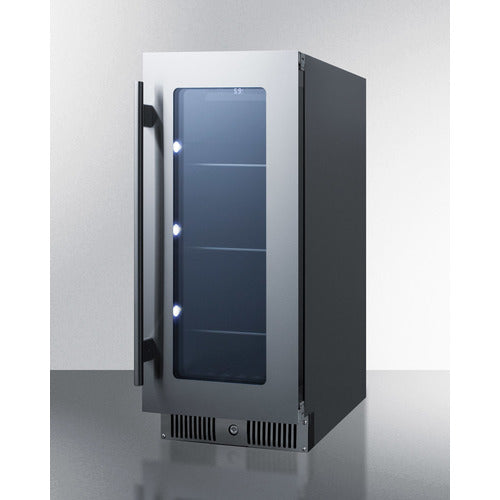

The SUMMIT Classic Collection's CL156BV is a sophisticated 15" beverage center merging functionality with elegance. This versatile unit features front-breathing technology for seamless built-in installation, while its jet black cabinet accommodates freestanding placement. Distinguished by seamless stainless steel door trim, pro-style handle, and designer kickplate, this right-hand swing model offers security through a front lock. Pair with the CL155WC wine cellar for a coordinated side-by-side arrangement. For left-hand configuration, the CL156BVLHD is available.
The CL156BV features three adjustable slide-out glass shelves accommodating various container sizes. Its automatic defrost system ensures minimal maintenance, while fan-forced cooling delivers consistent temperature throughout. The digital control panel offers intuitive operation with Celsius/Fahrenheit display options, complemented by white LED lighting that elegantly illuminates the black interior.
Advanced functionality includes temperature memory for power outage recovery, Sabbath mode for religious observance, and built-in alarms for door ajar and temperature deviation scenarios. Two-level legs provide stability on uneven surfaces. This ETL-S listed unit meets NSF-7 commercial standards, UL-471 requirements, and current Department of Energy regulations. Includes essential anti-tip bracket for enhanced safety in both residential and commercial undercounter applications.
ETL-S listed to NSF-7 Standards for use in commercial establishments
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Provides a fully display of stored contents
Single-piece door trim offers a more deluxe look
Keyed lock for a secure interior (2 keys included)
Stainless steel look for added elegance
Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Elegant lighting with a convenient on/off switch on the control panel
Three slide-out shelves offer attractive and convenient storage for beverages
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Audible alarm will sound if the door is left open longer than one minute\
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Space-saving design that offers easier cleanability
Allows the unit to be used freestanding
Optional setting lets you disable the lighting and alarm for up to 48 hours
This unit comes with a right-hand door swing. (Note: the door is not user reversible; for a left hand version, see the CL156BVLHD)
Bracket (included) helps prevent tipping for added safety
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 34.0" (86 cm) |
Height of Cabinet | 34.0" (86 cm) |
Nominal Width | 15.0" (38 cm) |
Width | 14.88" (38 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 23.38" (59 cm) |
Depth with door at 90° | 38.38" (97 cm) |
Capacity | 2.8 cu.ft. (79 L) |
Defrost Type | Automatic |
Door | Glass/SS |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 280.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 72.0 lbs. (33 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101058542 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | RHD |
Reversible | No |
Shelf Type | Glass |
Shelf Qty | 3 |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.84oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 2 |
Interior Light | Yes |
Temperature Range | 36-43°F |
Dimensions
|
|
Interior Height | 23.0" (58 cm) |
Interior Width | 12.25" (31 cm) |
Interior Depth | 17.25" (44 cm) |
Compressor Step Height | 3.25" (8 cm) |
Compressor Step Width | 12.25" (31 cm) |
Compressor Step Depth | 5.25" (13 cm |
AVAILABLE UPGRADES
Door |
T1 Door Tint | T4 Door Tint |
T2 Door Tint | T3 Door Tint |
DOWNLOADS
BROCHURE w/ DRAWINGS |
CL156BV.pdf |
MSDS INFORMATION | R600a_K.pdf |
ENERGY GUIDE | https://www.summitappliance.com/energy_guide/5881.pdf |
USE & CARE |
