Summit Appliance 15 inch Wide Built-In Beverage Center With Seamless Stainless Steel Door Trim
Summit Appliance 15 inch Wide Built-In Beverage Center With Seamless Stainless Steel Door Trim
Couldn't load pickup availability
Summit's CL156BV1LHD is a sophisticated 15" wide beverage center engineered for versatile installation in both residential and commercial environments. The front-breathing design enables seamless built-in placement, while the finished black cabinet accommodates freestanding applications. Premium features include 304 grade stainless steel trim, tinted glass door, and professional handle for elevated aesthetics.

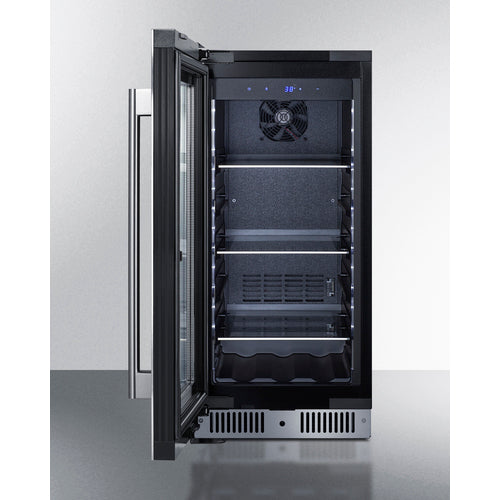

The unit boasts a fully articulating European hinge system, convenient kickplate lock, and fan-forced cooling technology ensuring optimal temperature consistency. Interior LED lighting illuminates three adjustable glass shelves and a slotted floor, providing exceptional storage flexibility for various beverage containers.
The advanced interior control panel features an intuitive digital thermostat with Celsius/Fahrenheit display options, complemented by sabbath mode functionality and temperature memory that restores settings after power interruptions. Safety features include an audible alarm system that activates when the door remains open or temperature deviates from optimal range.
The elegantly designed CL156BV1LHD enhances kitchen spaces with both luxury aesthetics and practical convenience. For wider applications, consider the 24" CL24BV1LHD model. Create coordinated beverage storage by pairing with Summit's matching wine cellars—the 15" CL155WC1LHD or 24" CL244WC2LHD. This left-hand door swing unit includes an essential anti-tip bracket for enhanced safety. Right-hand configuration available as model CL244WC2. Discover Summit's complete beverage storage solutions at summitappliance.com.
Undercounter glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Single-piece 304 grade stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
European style hinge design ensures a flush fit and allows for a smoother opening
Stainless steel look for added elegance
Keyed lock located in the kickplate for added security as needed
Allows for seamless integration with other appliances
Universal collection design allows you to pair this unit with our 24" wide deluxe wine cellar, model CL244WC2, or our 15" wide wine cellar, model CL155WC1, depending on your needs
Three easy-to-clean glass shelves for flexible storage
Floor includes slots to hold bottles in place
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Efficient lighting with a convenient on/off switch on the control panel
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL156BV1
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.5" (95 cm) |
| Capacity | 2.6 cu.ft. (74 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 73.0 lbs. (33 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101152479 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.86oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Light | Yes |
| Temperature Range | 36° F to 43°F |
|
Drawer Dimensions
|
|
| Interior Height 1 | 3.75" (10 cm) |
| Interior Width 1 | 11.5" (29 cm) |
| Interior Depth 1 | 5.0" (13 cm) |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 11.5" (29 cm) |
| Interior Depth | 16.75" (43 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
DOWNLOADS
| BROCHURE | CL156BV1LHD.pdf |
| TECHNICAL DRAWING (.dwg) | CL156BV1(2).dwg |
| ASSEMBLY DRAWING | CL156BV1-Assembly.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| ENERGY GUIDE | https://www.summitappliance.com/energy_guide/8722.pdf |
