Summit Appliance 15 inch Wide Built-In Beverage Center With Panel-Ready Glass Door
Summit Appliance 15 inch Wide Built-In Beverage Center With Panel-Ready Glass Door
Couldn't load pickup availability

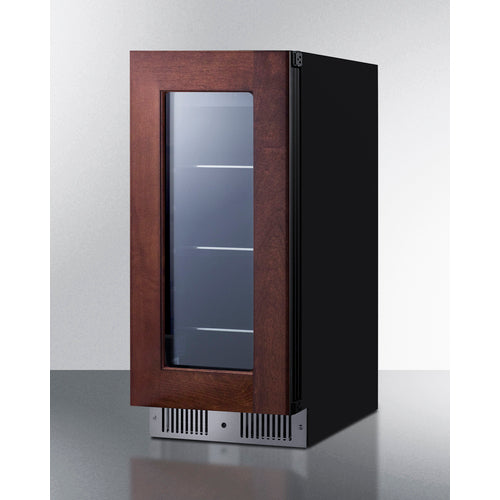

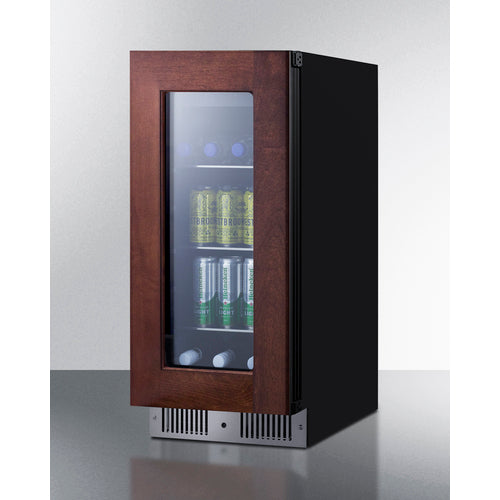

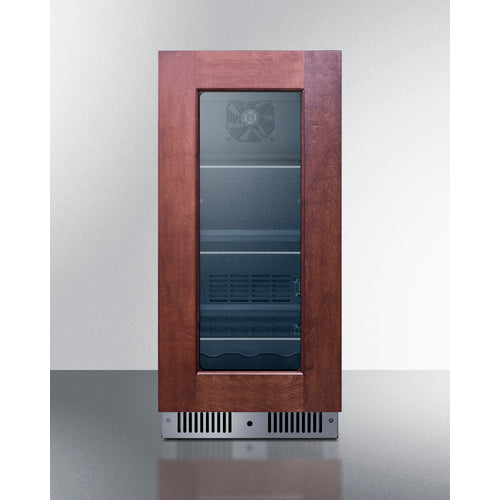

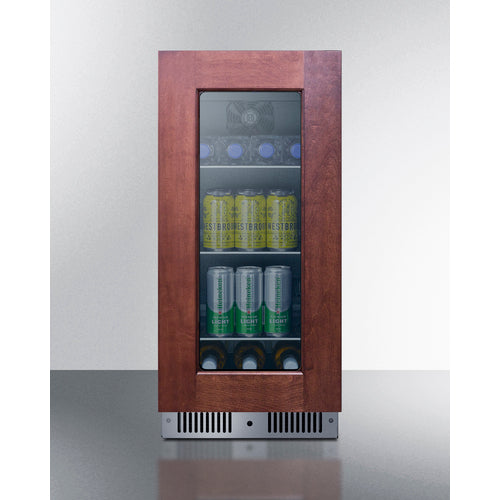

Summit's CL156BV1PNR is a sophisticated 15" wide beverage center engineered for versatility in both residential and commercial environments. The front-breathing design enables seamless built-in installation, while the black cabinet accommodates freestanding placement. Premium features include 304 grade stainless steel trim, tinted glass door, and a fully articulating European hinge system.
The unit offers practical advantages with a user-reversible door, kickplate lock, and custom panel compatibility. Interior performance is enhanced by fan-forced cooling technology ensuring optimal temperature regulation, while three adjustable glass shelves and LED lighting provide flexible, elegant storage for beverages of all dimensions.
The CL156BV1PNR features an intuitive interior control panel with a digital thermostat displaying in both Celsius and Fahrenheit. Advanced functionality includes a user-reversible door, sabbath mode for religious observance, and temperature memory function for power outage recovery. The unit's built-in alarm system provides audible notifications for door ajar conditions and temperature deviations.
This elegantly designed beverage center delivers premium aesthetics and functionality to enhance kitchen spaces. For wider applications, consider the 24" CL24BV1 model, or create a coordinated ensemble with Summit's matching wine cellars (15" CL155WC1PNR or 24" CL244WC2PNR). Installation includes an essential anti-tip bracket for enhanced safety. Discover Summit's complete beverage storage solutions at summitappliance.com.
Undercounter glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter

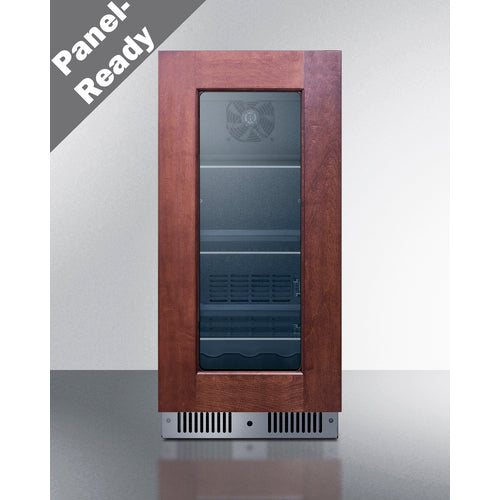

Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" inner frame

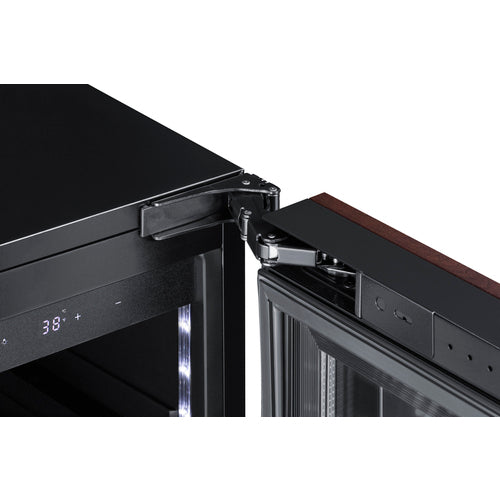

European style hinge design ensures a flush fit and allows for a smoother opening
Single-piece 304 grade stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances
Keyed lock located in the kickplate for added security as needed

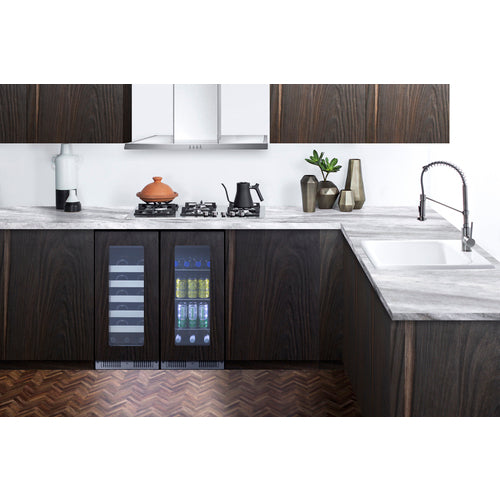

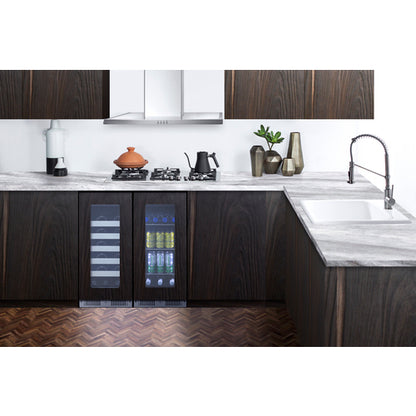

Universal collection design allows you to pair this unit with our 24" wide deluxe wine cellar, model CL244WC2PNR, or our 15" wide wine cellar, model CL155WC1PNR, depending on your needs

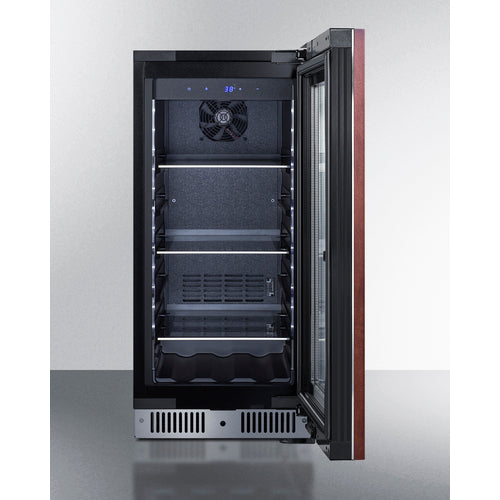

Three easy-to-clean glass shelves for flexible storage
Floor includes slots to hold bottles in place
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom

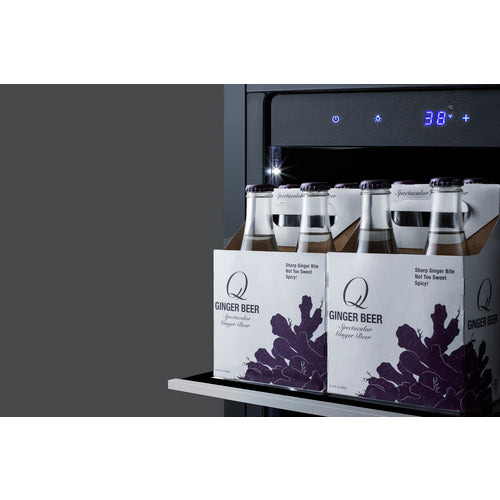

Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Efficient lighting with a convenient on/off switch on the control panel
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Bracket (included) helps prevent tipping for added safety
User-reversible door swing for added flexibility to best accommodate your setting
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 37.5" (95 cm) |
| Capacity | 2.6 cu.ft. (74 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 73.0 lbs. (33 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156125 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.86oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Light | Yes |
| Temperature Range | 36° F to 43°F |
|
Drawer Dimensions
|
|
| Interior Height 1 | 3.75" (10 cm) |
| Interior Width 1 | 11.5" (29 cm) |
| Interior Depth 1 | 5.0" (13 cm) |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 11.5" (29 cm) |
| Interior Depth | 16.75" (43 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE | CL156BV1PNR.pdf |
| TECHNICAL DRAWING (.dwg) | CL156BV1PNR.dwg |
| ASSEMBLY DRAWING | CL156BV1PNR-Assembly.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| ENERGY GUIDE | https://www.summitappliance.com/energy_guide/8718.pdf |
