Summit Appliance 15 inch Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)
Summit Appliance 15 inch Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)
Couldn't load pickup availability

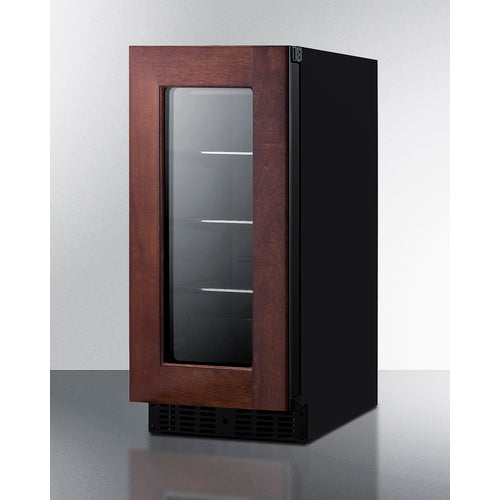

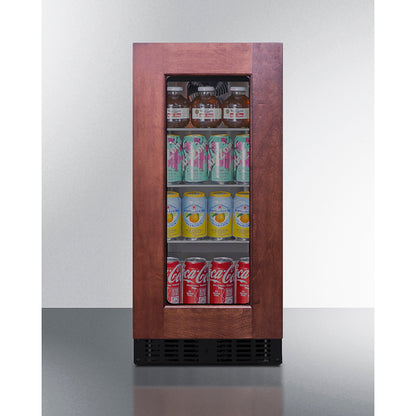

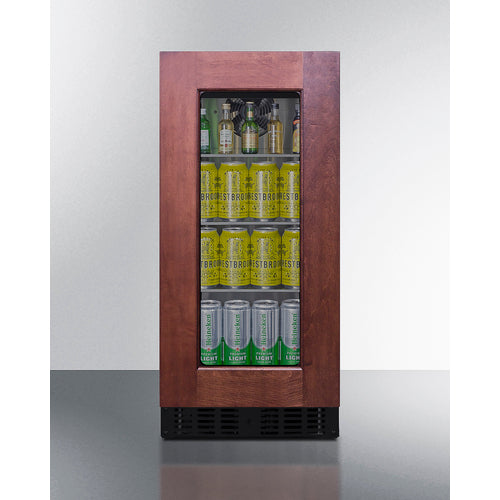

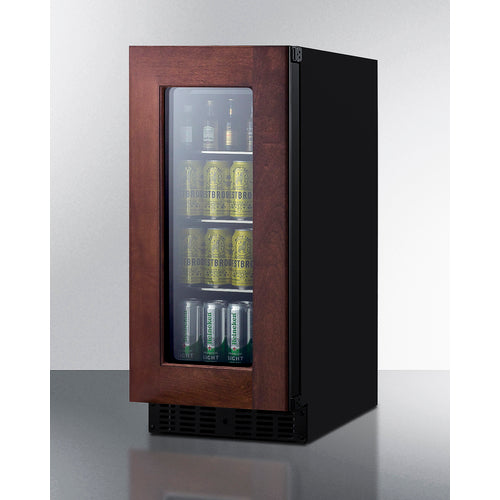

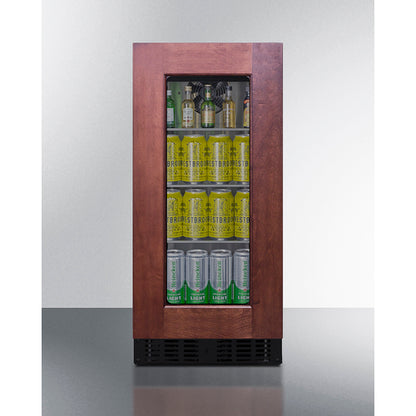

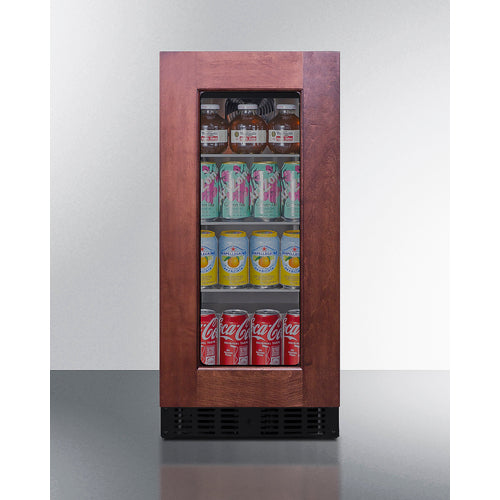

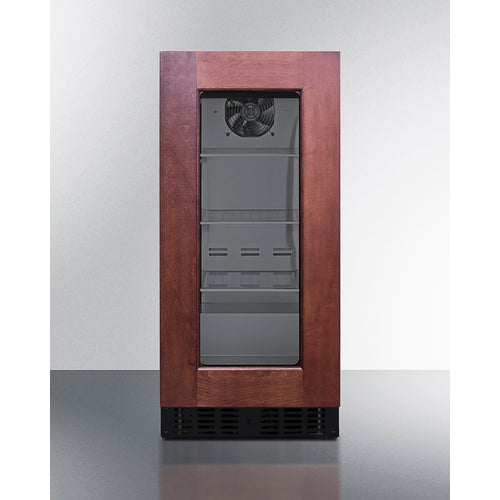

Summit's shallow depth built-in undercounter beverage center maximizes functionality in space-constrained environments like kitchen islands and wet bars. The ASDG1521PNRLHD model features a compact 15" width and under 18" depth, with height adjustability from 32" (ADA compliant) to 34" (standard counter height) via adjustable legs and sliding kickplate.
Its front-breathing design enables built-in installation, while the finished black cabinet supports freestanding placement. The European fully articulating hinge accommodates custom door panels to match existing cabinetry. Additional features include a sealed rear, right angle cord for improved fit, left-hand door swing, and front lock for security.
The ASDG1521PNRLHD features robust stainless steel interior construction, enhancing durability and hygienic conditions. Its fan-forced cooling system ensures temperature uniformity and rapid recovery. Dual LED strips with adjustable brightness levels in soft white illuminate the contents perfectly. The commercial-grade cantilevered glass shelving system offers versatile storage configurations for items of various dimensions. Safety and convenience features include open door and high temperature alerts, plus a Sabbath mode for disabling electrical components during religious observances.
While ETL-S listed to NSF-7 commercial standards, this unit is equally suitable for residential use. Its premium design, user-centric features, and compact depth deliver exceptional value across diverse applications. Consider pairing with the ASDW1522PNR wine cellar for a coordinated setup. Additional 18" deep options are available in various widths, including outdoor refrigerators, refrigerator drawers, and wine storage solutions.
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
1.8 cu.ft. interior for residential or commercial cold storage
Sized at 32" high for use under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Elegant design offers a clear but protected view of your interior

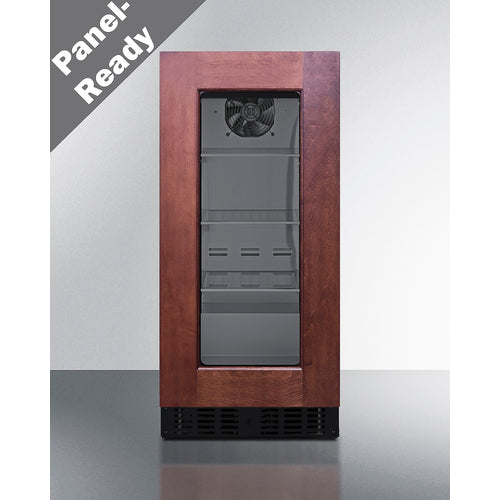

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior (2 keys included)
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

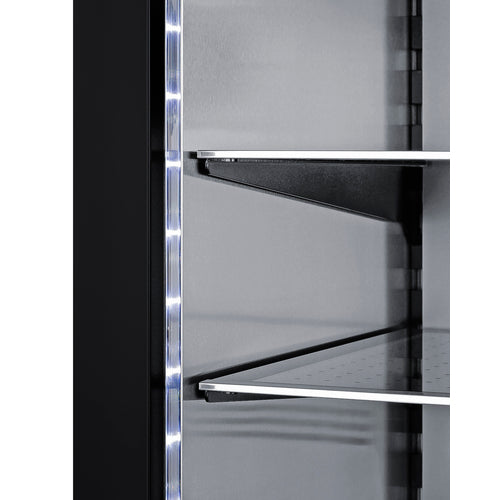

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

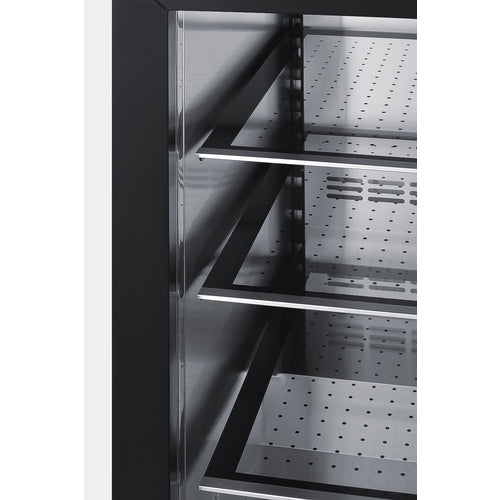

Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the interior temperature rises out of set range
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
Smoother opening and a better fit with an integrated European hinge
For this unit with the door opening from the other side, see model ASDG1521PNR
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077093 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.4 dB |
|
Dimensions
|
|
| Interior Height | 22.5" (57 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE | ASDG1521PNRLHD.pdf |
| USE & CARE | |
| MSDS INFORMATION | |
| Energy Guide | https://www.summitappliance.com/energy_guide/8418.pdf |
