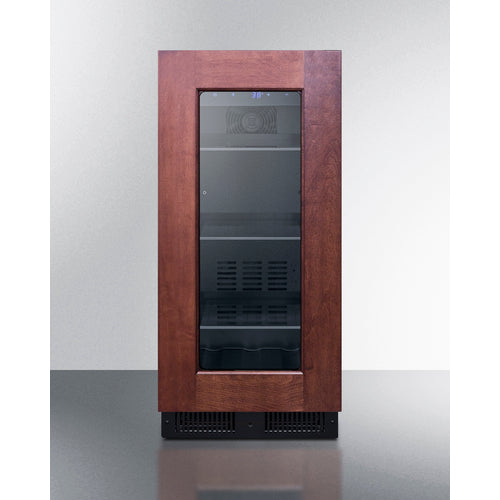

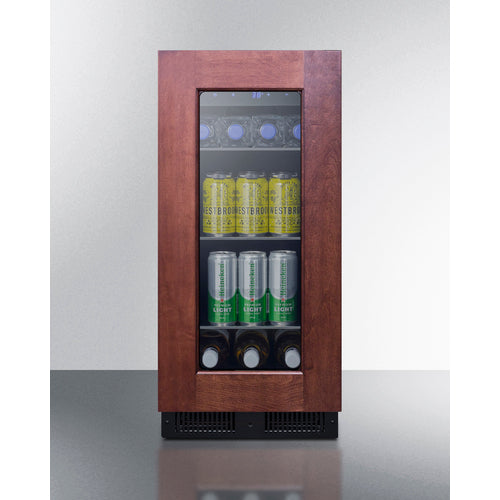

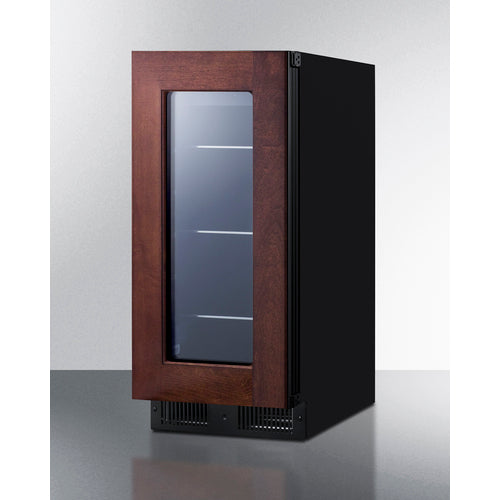

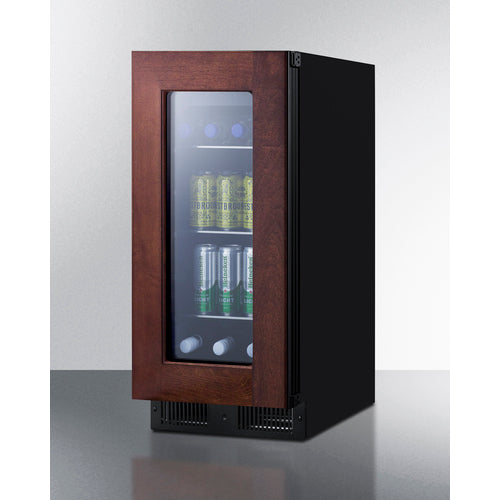

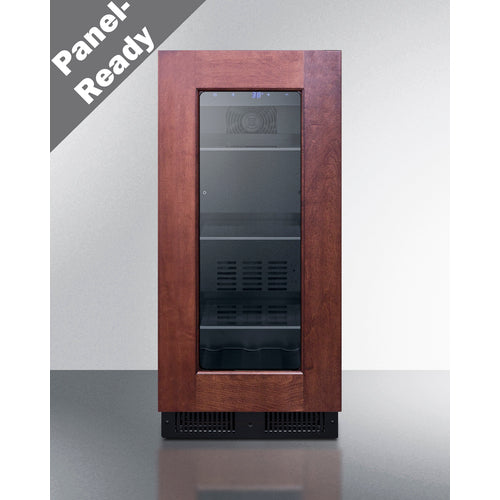

Summit Appliance 15 inch Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)
Summit Appliance 15 inch Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)
Couldn't load pickup availability
Summit's ADA compliant 15-inch beverage center combines versatility with sophisticated design. This 32-inch high unit fits seamlessly under lower counters with front-breathing technology for built-in installation, while its finished black cabinet allows freestanding placement.
Features include a European-style articulating hinge with panel overlay capability, double-pane tempered glass door with security lock, and space-saving sealed back with right-angle cord. Height-adjustable leveling legs with an additional kickplate provide up to 3 inches of elevation adjustment for perfect positioning in any setting.
Featuring three adjustable glass shelves with elegant black trim, this beverage center delivers versatile, spill-proof storage with coordinated aesthetics. Advanced functionality includes automatic defrost technology, an internal circulation fan for temperature consistency, and intelligent alarm systems that activate when the door remains open or temperatures deviate from optimal ranges.
The unit incorporates Sabbath mode functionality, allowing electrical features to be disabled during religious observances. Perfectly proportioned for space-limited ADA compliant environments.
FEATURES
Built-in or freestanding glass door refrigerator sized to fit in ADA compliant spaces
Sized at 32" high for use under lower ADA compliant counters
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Provides a full display of stored contents with a heat-safe double tempered design
Keyed lock for a secure interior, with two keys included
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
Flexible storage with spill-proof convenience
Floor includes slots to hold bottles in place
Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space
Stainless steel look for added elegance
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Audible alarm sounds if the interior temperature rises out of set range
Alarm sounds if the door is left open for more than 60 seconds
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design makes it easier to install flush against the wall
Smoother opening and a better fit with an integrated European hinge
Pair with the ALWC15PNR for a perfectly matched set
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.63" (60 cm) |
| Depth with door at 90° | 39.0" (99 cm) |
| Capacity | 2.3 cu.ft. (65 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091471 |
|
Refrigerator Features
|
|
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 - 43ºF |
| Sound Level | 33 dB |
|
Dimensions
|
|
| Interior Height | 21.25" (54 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE | ALBV15PNRLHD.pdf |
| MSDS INFORMATION | R600a_K.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| Energy Guide |
