Summit Appliance 15 inch Wide ADA Compliant Built-In Undercounter Beverage Center
Summit Appliance 15 inch Wide ADA Compliant Built-In Undercounter Beverage Center
Couldn't load pickup availability
Summit's ADA compliant beverage center offers versatile installation in compact 15" spaces. The ALBV15CSS fits under 32" counters with a front-breathing system for built-in placement or freestanding use in its stainless steel cabinet.
Features include a reversible double pane glass door with stainless trim, European hinge, professional handle, and front lock for security. Space-saving design incorporates a sealed back, integrated hinge, and right angle cord, while height-adjustable legs with an extra kickplate allow up to 3" additional elevation.

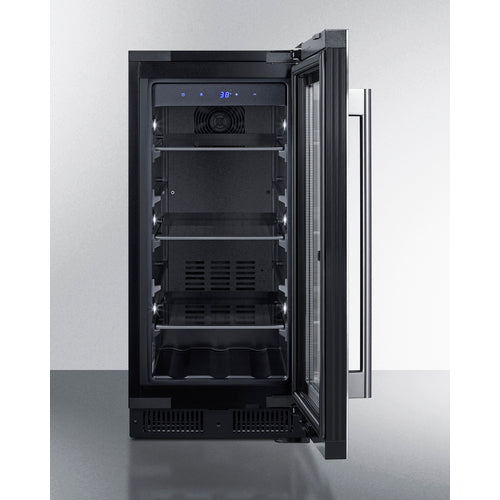

The unit features three adjustable glass shelves with black trim, providing versatile, spill-proof storage with aesthetic coordination. An automatic defrost system minimizes maintenance, while an internal fan ensures temperature uniformity throughout. Advanced safety features include audible alerts for prolonged door openings and temperature deviations.
The ALBV15CSS incorporates Sabbath mode functionality, allowing electrical component deactivation during religious observances. This compact beverage center is ideally suited for ADA compliant environments with limited space. For wine storage needs, the complementary ALWC15CSS model is available.
FEATURES
Slim-fitting glass door refrigerator sized for undercounter installation in ADA compliant spaces
Sized at 32" high for use under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Provides a full display of stored contents with a heat-safe double tempered design
Exterior cabinet is finished in stainless steel for added luxury and lasting durability
Cleaner openings with a fully extended hinge system
Keyed lock for a secure interior, with two keys included
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
Flexible storage with spill-proof convenience
Floor includes slots to hold bottles in place
User-reversible door swing on the refrigerator for added flexibility
Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space
Stainless steel look for added elegance
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Audible alarm sounds if the interior temperature rises out of set range
Alarm sounds if the door is left open for more than 60 seconds
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design makes it easier to install flush against the wall
Pair with the ALWC15 for a perfectly matched set
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.63" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 37.13" (94 cm) |
| Capacity | 2.3 cu.ft. (65 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101073224 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 - 43ºF |
|
Dimensions
|
|
| Interior Height | 21.25" (54 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
| Exterior |
| LHD - Left hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE | ALBV15CSS.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| MSDS INFORMATION | R600a_K.pdf |
