Summit Appliance 15 inch Wide Built-In Beverage Center
Summit Appliance 15 inch Wide Built-In Beverage Center
Couldn't load pickup availability

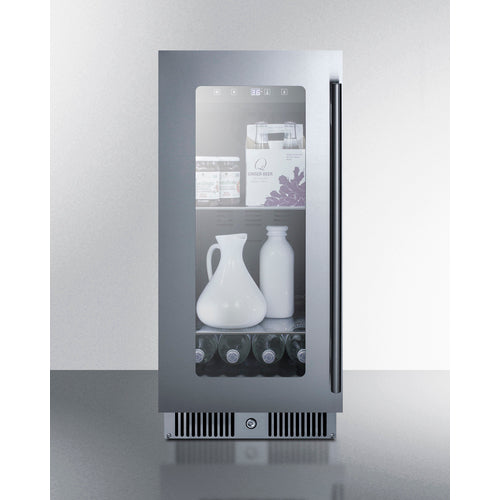

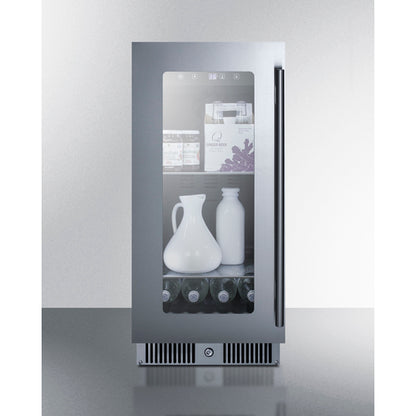

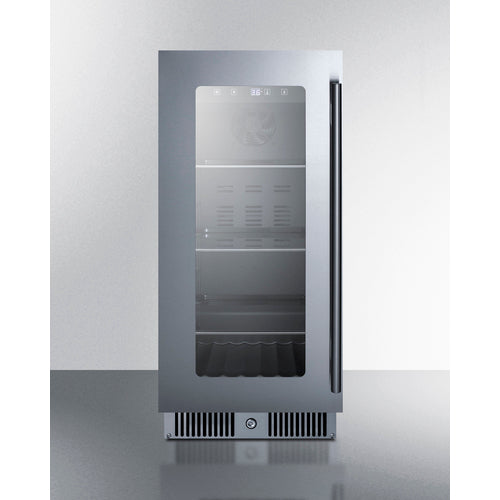

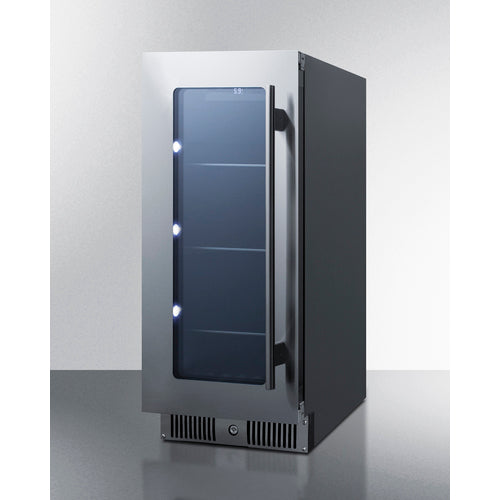

The SUMMIT Classic Collection's CL156BVLHD is a sophisticated 15" beverage center engineered for versatility in both residential and commercial settings. Its front-breathing construction enables seamless built-in installation, while the fully finished jet black exterior accommodates freestanding placement.
Distinguished by a glass door with seamless stainless steel trim and professional-style handle, this unit features a designer kickplate and secure front lock. Available with left-hand door swing, it can be paired with the CL155WC/LHD wine cellar for an elegant side-by-side configuration. For right-hand swing requirements, the CL156BV model is available.
The CL156BVLHD features three adjustable slide-out glass shelves accommodating various container sizes. Its automatic defrost system ensures minimal maintenance, while fan-forced cooling delivers consistent temperature throughout the cabinet. The sophisticated digital control panel incorporates an intuitive thermostat with Celsius/Fahrenheit display options. Premium white LED lighting elegantly illuminates the black interior, enhancing visibility and presentation.
Advanced functionality includes temperature memory for power outage recovery and Sabbath mode for religious observance periods. The unit's integrated alarm system alerts users to ajar doors or temperature fluctuations outside optimal ranges. Adjustable leveling legs compensate for uneven surfaces. ETL-S listed to NSF-7 commercial standards and UL-471 compliant, this beverage center meets Department of Energy efficiency requirements. Includes essential anti-tip hardware for enhanced safety in both residential and commercial applications.
ETL-S listed to NSF-7 Standards for use in commercial establishments
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Provides a fully display of stored contents
Single-piece door trim offers a more deluxe look
Keyed lock for a secure interior (2 keys included)
Stainless steel look for added elegance
Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Elegant lighting with a convenient on/off switch on the control panel
Three slide-out shelves offer attractive and convenient storage for beverages
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Audible alarm will sound if the door is left open longer than one minute\
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Space-saving design that offers easier cleanability
Allows the unit to be used freestanding
Optional setting lets you disable the lighting and alarm for up to 48 hours
This unit comes with a left-hand door swing. (Note: the door is not user reversible; for a right hand version, see the CL156BV)
Bracket (included) helps prevent tipping for added safety
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.0" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with door at 90° | 38.38" (97 cm) |
| Capacity | 2.8 cu.ft. (79 L) |
| Defrost Type | Automatic |
| Door | Glass/SS |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 72.0 lbs. (33 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101075747 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.84oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 36-43°F |
|
Dimensions
|
|
| Interior Height | 23.0" (58 cm) |
| Interior Width | 12.25" (31 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 12.25" (31 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
DOWNLOADS
| BROCHURE | CL156BVLHD.pdf |
| USE & CARE | CL156BV_CL186BV_CL24BY_User_Manual_07.29.20__2_.pdf |
| MSDS INFORMATION | R600a_K.pdf |
| ENERGY GUIDE | https://www.summitappliance.com/energy_guide/6951.pdf |
