Summit Appliance 15 inch Wide Built-In Beverage Center
Summit Appliance 15 inch Wide Built-In Beverage Center
Couldn't load pickup availability

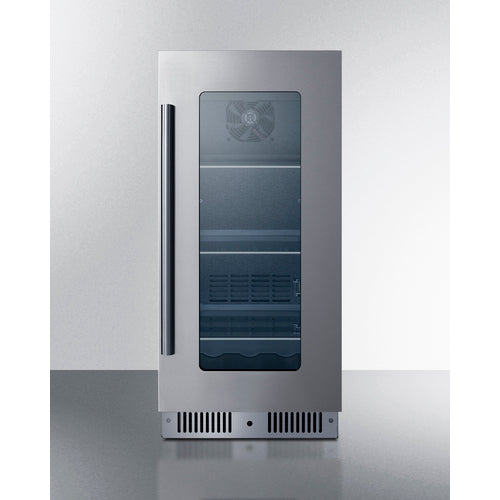

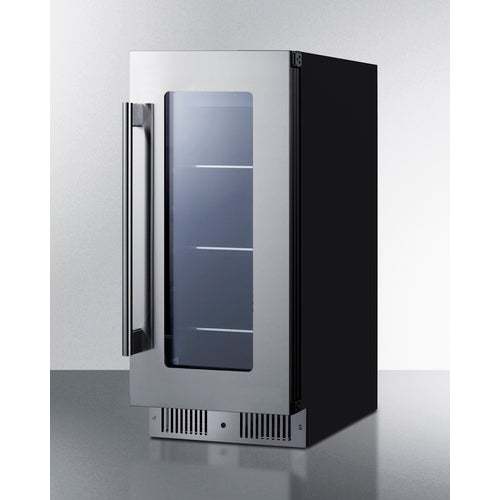

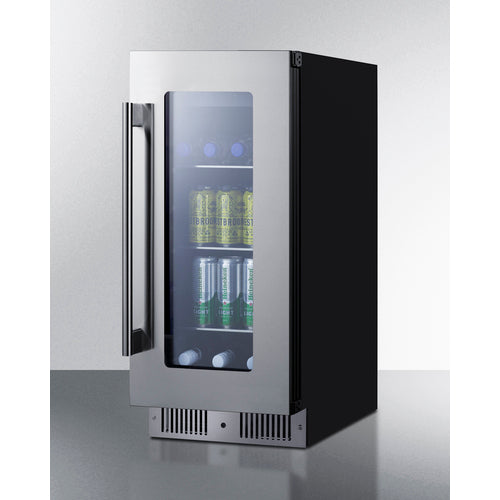

Summit's CL156BV1 is a versatile 15" wide beverage center suitable for both residential and commercial environments. The unit features a front-breathing system for built-in installation while maintaining freestanding capability with its finished black cabinet. Premium design elements include 304 grade stainless steel trim, tinted glass door, and professional handle.

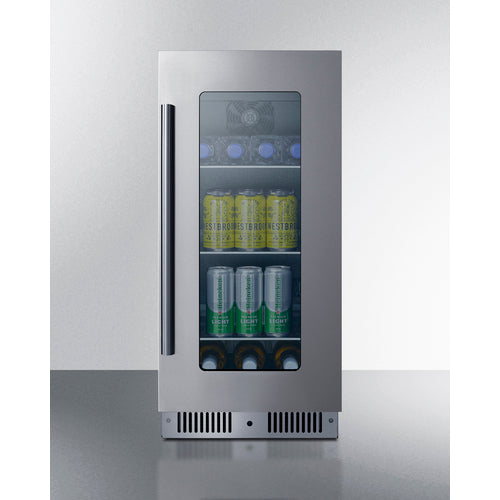

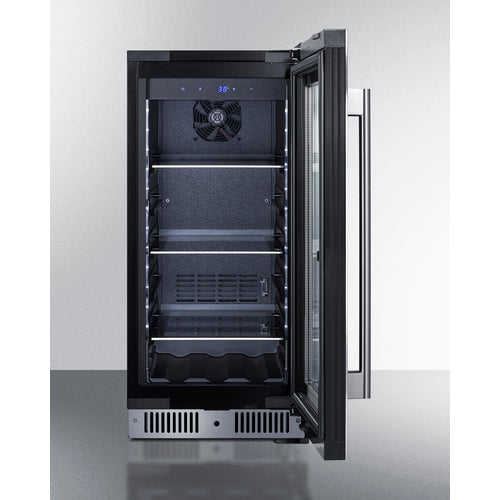

The beverage center boasts practical features like a right-angle cord for flush installation, European-style articulating hinges, and a convenient kickplate lock. Inside, fan-forced cooling ensures optimal temperature consistency, while LED lighting showcases contents stored on three adjustable glass shelves and a slotted floor, accommodating various bottle and can sizes.
The sophisticated control panel features an intuitive digital thermostat with Celsius/Fahrenheit display options. Practical enhancements include a user-reversible door, sabbath mode for religious observance, and temperature memory function that restores settings after power interruptions. Safety features comprise door-ajar and temperature deviation alarms.

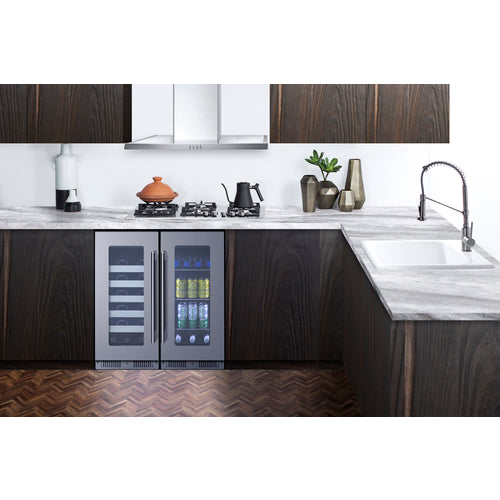

The CL156BV1 delivers both elegant aesthetics and functionality to kitchen environments. For wider applications, consider the 24" CL24BV1 model. Create coordinated installations by pairing with Summit's matching wine cellars—the 15" CL155WC1 or 24" CL244WC2. Installation includes an essential anti-tip bracket for enhanced safety. Discover Summit's complete beverage storage solutions at summitappliance.com.
Undercounter glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Allows for seamless integration with other appliances
Single-piece 304 grade stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents

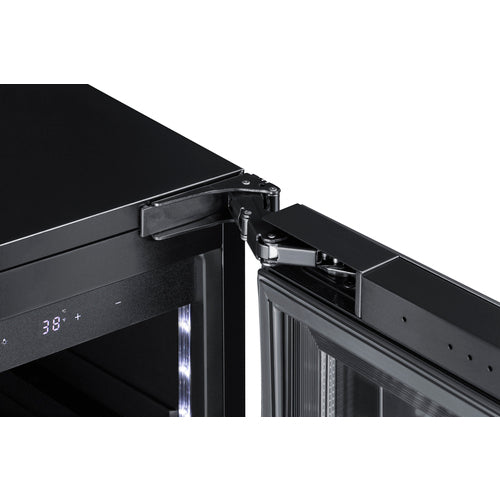

European style hinge design ensures a flush fit and allows for a smoother opening
Stainless steel look for added elegance
Keyed lock located in the kickplate for added security as needed
Universal collection design allows you to pair this unit with our 24" wide deluxe wine cellar, model CL244WC2, or our 15" wide wine cellar, model CL155WC1, depending on your needs
Three easy-to-clean glass shelves for flexible storage
Floor includes slots to hold bottles in place
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom

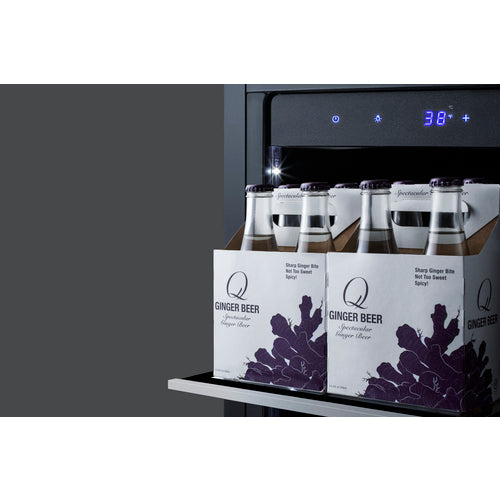

Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Efficient lighting with a convenient on/off switch on the control panel
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Bracket (included) helps prevent tipping for added safety
User-reversible door swing for added flexibility to best accommodate your setting
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.5" (95 cm) |
| Capacity | 2.6 cu.ft. (74 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 73.0 lbs. (33 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145235 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.86oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Light | Yes |
| Temperature Range | 36° F to 43°F |
|
Drawer Dimensions
|
|
| Interior Height 1 | 3.75" (10 cm) |
| Interior Width 1 | 11.5" (29 cm) |
| Interior Depth 1 | 5.0" (13 cm) |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 11.5" (29 cm) |
| Interior Depth | 16.75" (43 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE | CL156BV1.pdf |
| TECHNICAL DRAWING (.dwg) | CL156BV1.dwg |
| ASSEMBLY DRAWING | CL156BV1-Assembly.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| ENERGY GUIDE | https://www.summitappliance.com/energy_guide/8695.pdf |
