Summit Appliance 15 inch Wide ADA Compliant Built-In Undercounter Beverage Center With Panel-Ready Door
Summit Appliance 15 inch Wide ADA Compliant Built-In Undercounter Beverage Center With Panel-Ready Door
Couldn't load pickup availability
Summit's ADA compliant 15-inch beverage center combines accessibility with sophisticated design. This 32-inch high unit fits seamlessly under ADA counters with a front-breathing system for built-in installation, while the finished black cabinet allows freestanding placement.
Features include a European-style articulating hinge with panel overlay capability, double-pane tempered glass door with security lock, and space-saving sealed back with right-angle cord. Height adjustability via leveling legs and an additional kickplate provides up to 3 inches of elevation customization.
Featuring three adjustable glass shelves with elegant black trim, this beverage center delivers versatile, spill-proof storage with coordinated aesthetics. The automatic defrost system minimizes maintenance while an internal circulation fan ensures temperature consistency throughout.
Advanced monitoring includes an audible alert system for open doors and temperature fluctuations outside optimal ranges. Sabbath mode functionality allows electrical feature deactivation during religious observances. The ALBV15PNR's compact footprint makes it ideal for ADA compliant environments where space efficiency is paramount. Consider pairing with the ALWC15PNR wine cellar for a complete beverage storage solution.
FEATURES
Built-in or freestanding glass door refrigerator sized to fit in ADA compliant spaces
Sized at 32" high for use under lower ADA compliant counters

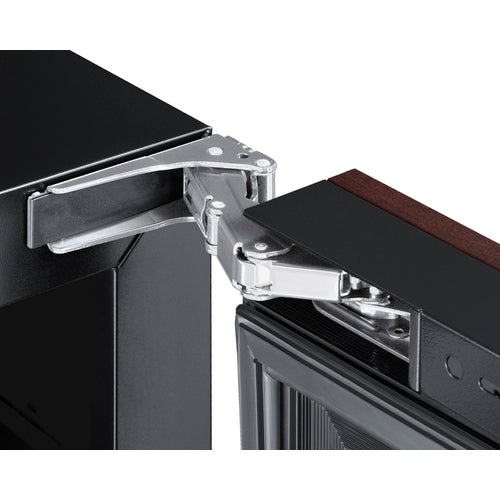

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Provides a full display of stored contents with a heat-safe double tempered design
Keyed lock for a secure interior, with two keys included
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
Flexible storage with spill-proof convenience
Floor includes slots to hold bottles in place
User-reversible door swing on the refrigerator for added flexibility
Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space
Stainless steel look for added elegance
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Audible alarm sounds if the interior temperature rises out of set range
Alarm sounds if the door is left open for more than 60 seconds
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design makes it easier to install flush against the wall
Smoother opening and a better fit with an integrated European hinge
Pair with the ALWC15PNR for a perfectly matched set
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.63" (60 cm) |
| Depth with door at 90° | 39.0" (99 cm) |
| Capacity | 2.3 cu.ft. (65 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101082899 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 - 43ºF |
| Sound Level | 33 dB |
|
Dimensions
|
|
| Interior Height | 21.25" (54 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
| Exterior |
| LHD - Left hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS | ALBV15PNR.pdf |
| TECHNICAL DRAWING (.dwg) | ALBV15PNR.dwg |
| ASSEMBLY DRAWING | ALBV15PNR-Assembly.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
|
MSDS INFORMATION |
R600a_K.pdf |
| Energy Guide |
https://www.summitappliance.com/energy_guide/8407.pdf |
