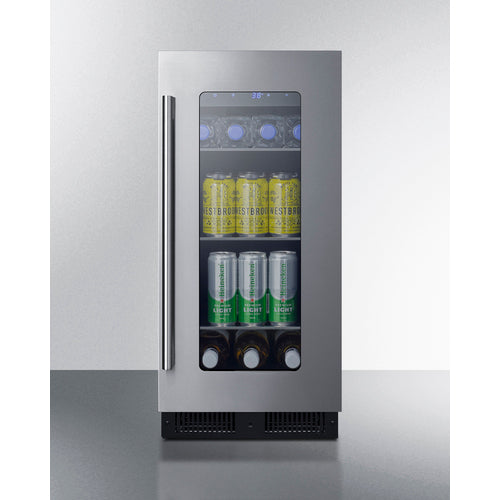

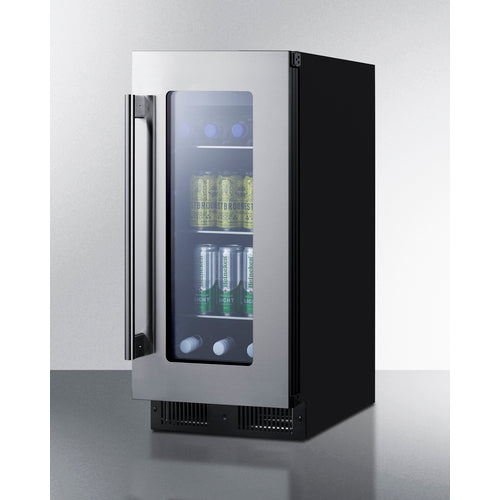

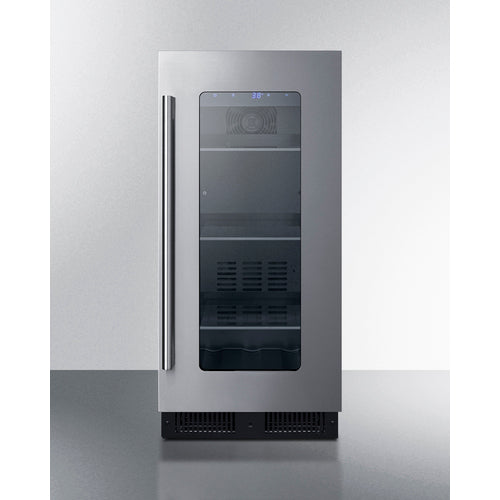

Summit Appliance 15 inch Wide Built-In Beverage Center, ADA Compliant
Summit Appliance 15 inch Wide Built-In Beverage Center, ADA Compliant
Couldn't load pickup availability
The Summit ALBV15 exemplifies specialized engineering within the industry's most comprehensive collection of ADA compliant 32" high appliances. Precisely dimensioned at just under 15" wide, this beverage center integrates seamlessly beneath ADA compliant counters. Its front-breathing ventilation system facilitates built-in installation while maintaining freestanding capability with its finished black cabinet.
The unit features a technically advanced double pane tempered glass door with user-reversible configuration, stainless steel trim, European fully articulating hinge mechanism, and professional-grade handle. Security is enhanced with an integrated front lock. Space optimization is achieved through the sealed back design, integrated hinge architecture, and right-angle power cord configuration. Height customization is possible via adjustable leveling legs and supplementary kickplate, allowing vertical extension up to an additional 3 inches.

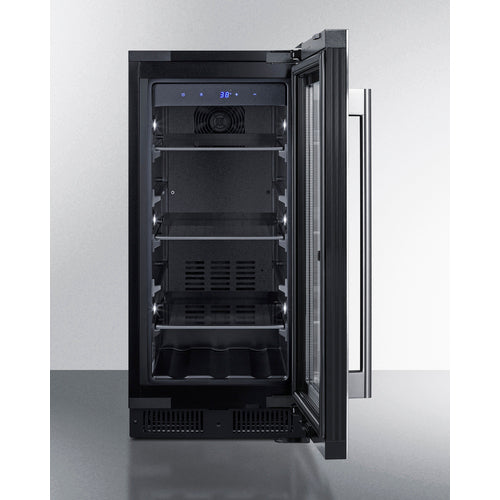

The Summit ALBV15 incorporates three adjustable glass shelves with spill-containment design, complemented by color-coordinated black trim for aesthetic cohesion. Temperature management is optimized through automatic defrost technology and an integrated circulation fan that ensures thermal uniformity throughout the cabinet.
Advanced monitoring features include a dual-function alarm system that activates upon extended door openings (exceeding one minute) or when internal temperatures deviate from optimal storage parameters. The unit's electronic control system includes Sabbath mode functionality, allowing selective deactivation of electrical operations during religious observances.
This 15-inch beverage center represents an optimal solution for ADA-compliant environments with spatial constraints. For comprehensive beverage storage solutions, the ALWC15 wine cellar offers compatible design and functionality for specialized wine storage applications.
FEATURES
Slim-fitting glass door refrigerator sized for undercounter installation in ADA compliant spaces
Sized at 32" high for use under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments

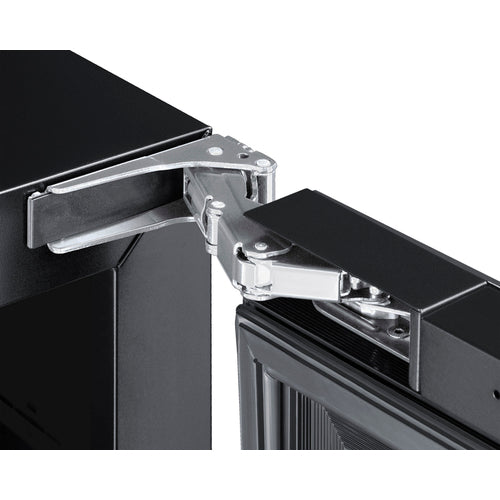

Cleaner openings with a fully extended hinge system
Provides a full display of stored contents with a heat-safe double tempered design
Keyed lock for a secure interior, with two keys included
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
Flexible storage with spill-proof convenience
Floor includes slots to hold bottles in place
User-reversible door swing on the refrigerator for added flexibility
Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space
Stainless steel look for added elegance
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Audible alarm sounds if the interior temperature rises out of set range
Alarm sounds if the door is left open for more than 60 seconds
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design makes it easier to install flush against the wall
Pair with the ALWC15 for a perfectly matched set
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.63" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 38.25" (97 cm) |
| Capacity | 2.3 cu.ft. (65 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056388 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 - 43ºF |
| Sound Level | 33 dB |
|
Dimensions
|
|
| Interior Height | 21.25" (54 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit | LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | ALBV15.dwg |
| ASSEMBLY DRAWING | |
| REVIT MODEL | |
| USE & CARE | |
| MSDS INFORMATION |
