Summit Appliance 15 Inch Wide 18 Inch Deep Undercounter ADA Height Beverage Center
Summit Appliance 15 Inch Wide 18 Inch Deep Undercounter ADA Height Beverage Center
Couldn't load pickup availability

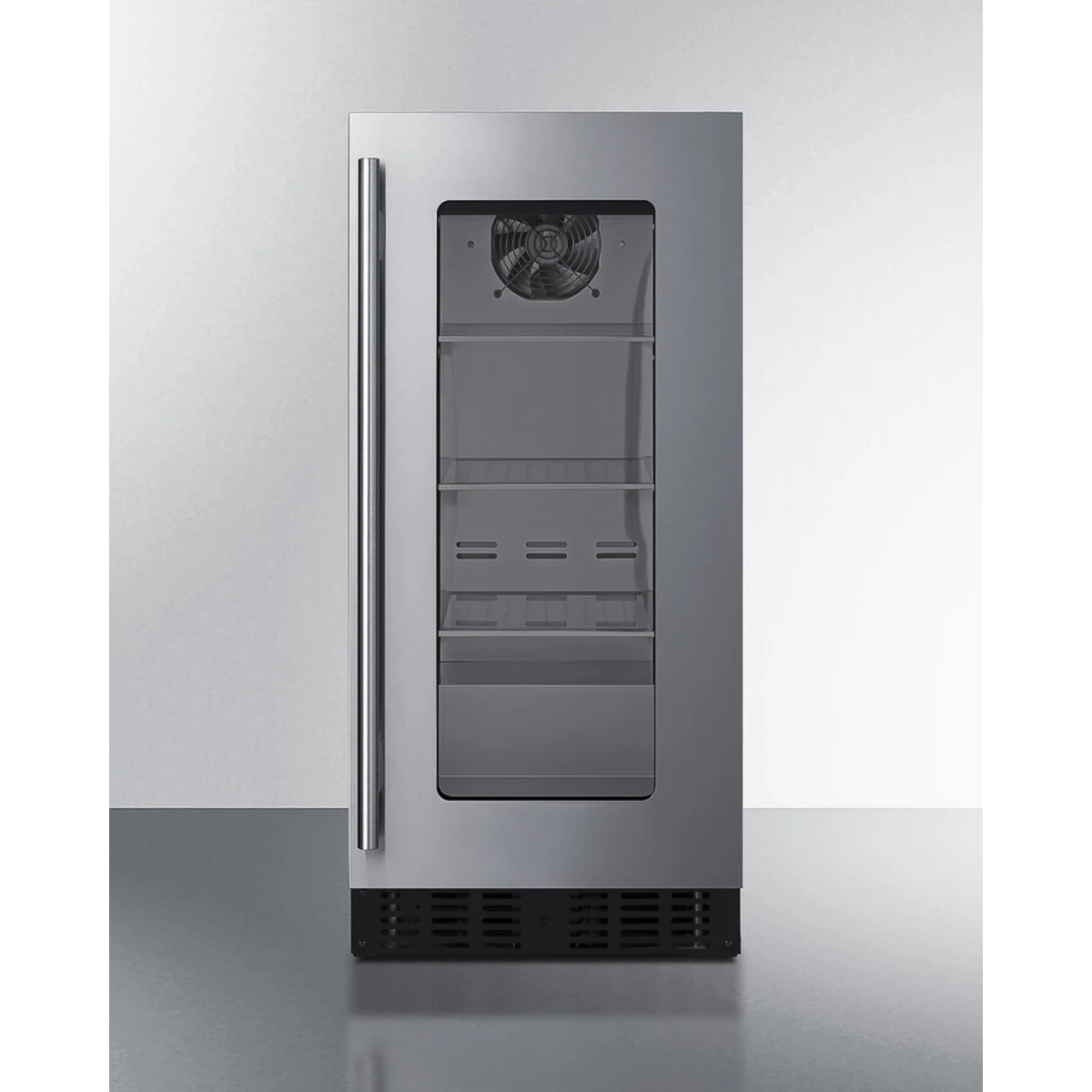

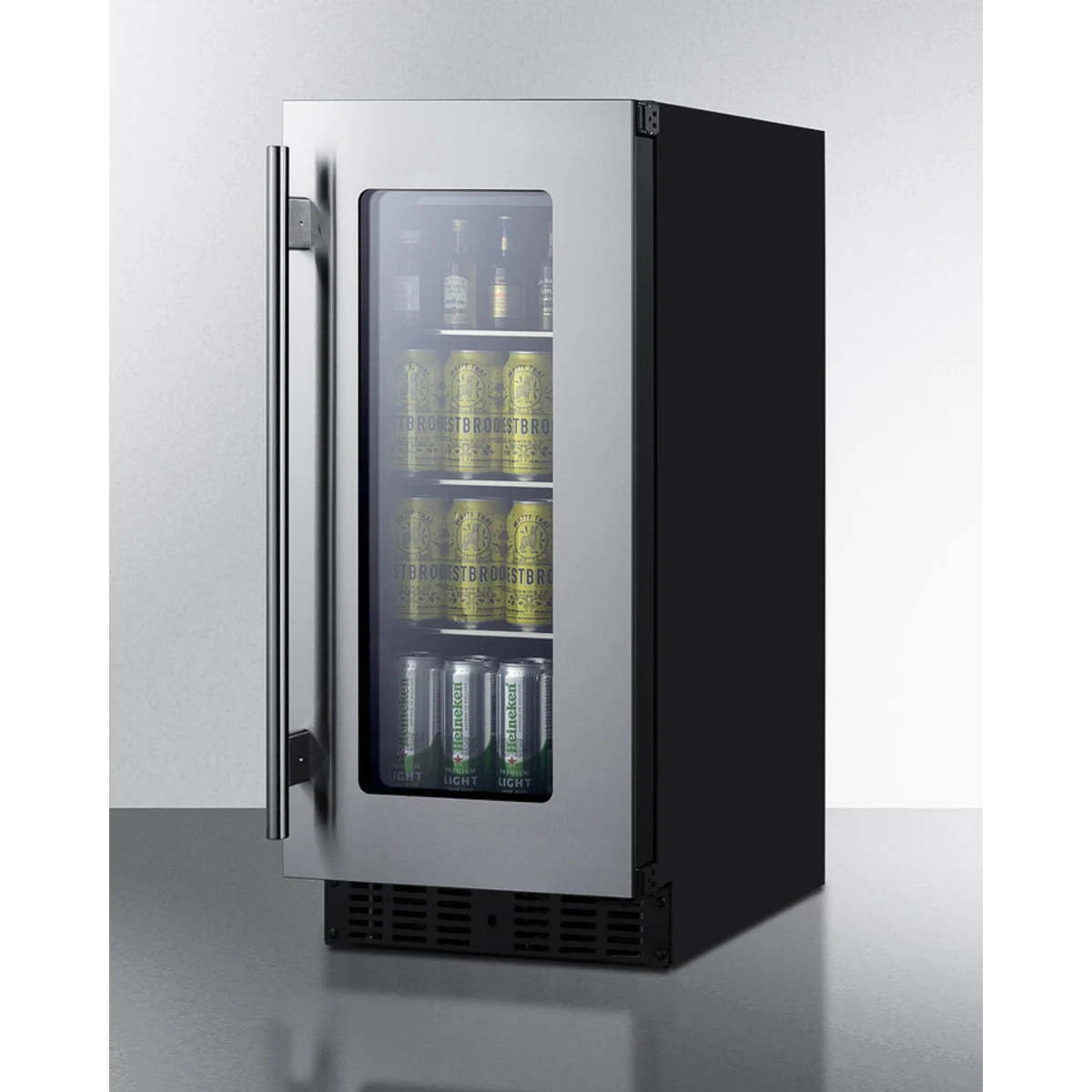

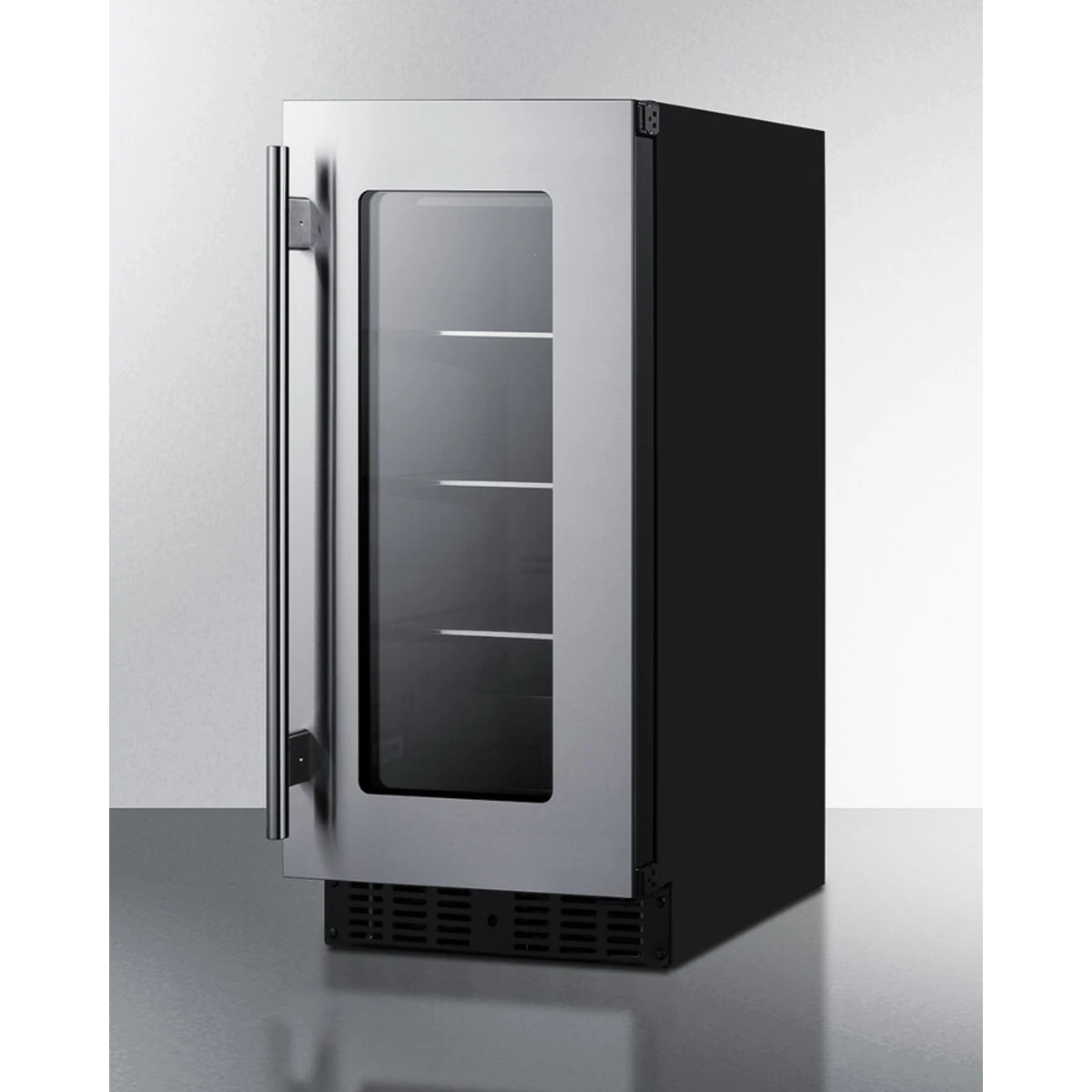

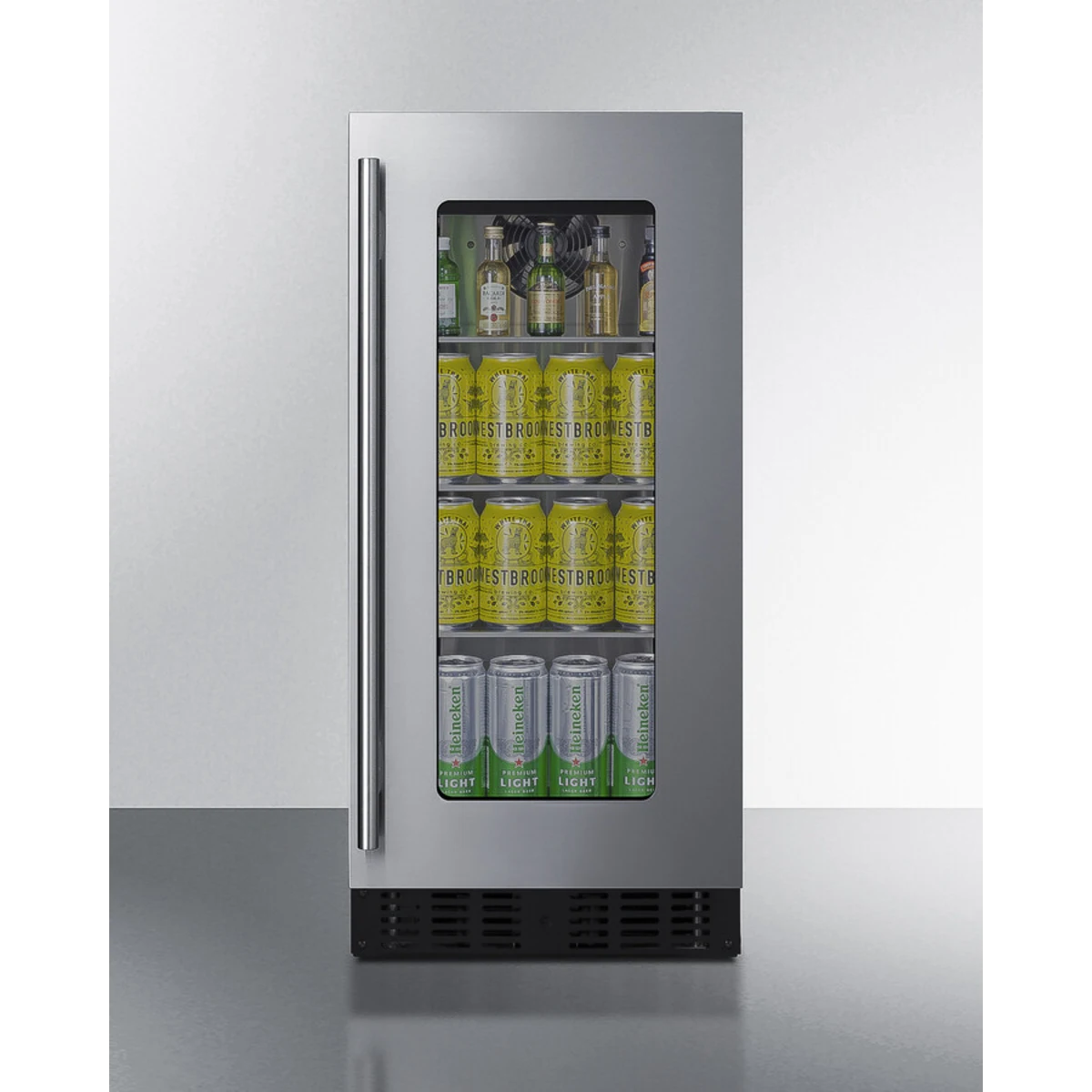

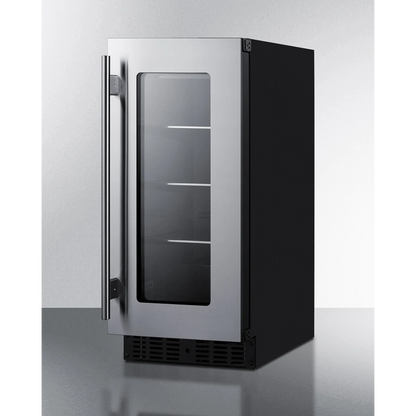

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDG1521LHD is a 15" Beverage Refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA Compliant counters, with adjustable legs and a sliding kickplate cover that allows you to raise the overall height to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and has a front lock.

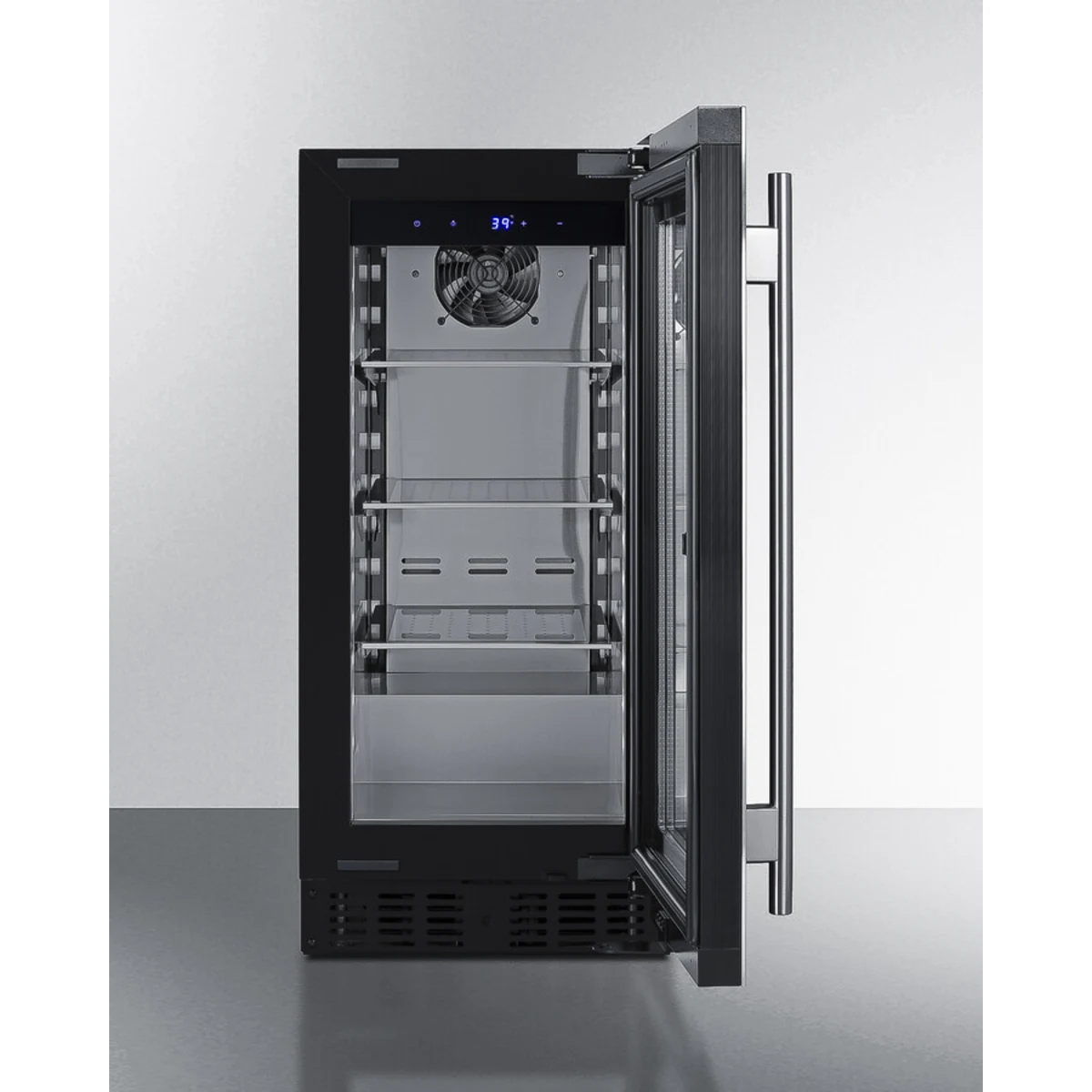

The ASDG1521LHD boasts robust stainless steel interior construction with fan-forced cooling technology for optimal temperature management. Dual LED strips with adjustable brightness provide customizable display illumination, while the commercial-grade cantilevered glass shelving system accommodates various storage needs.
Advanced features include high-temperature and door alarms, plus Sabbath mode functionality. ETL-S listed to NSF-7 commercial standards yet suitable for residential use, this ADA-compliant beverage center delivers exceptional versatility with its compact 18" depth. Complement with the ASDW1522 wine cellar or explore additional 18" deep options in various widths for a complete cooling solution.
FEATURES
- 1.8 cu. ft. interior for residential or commercial cold storage

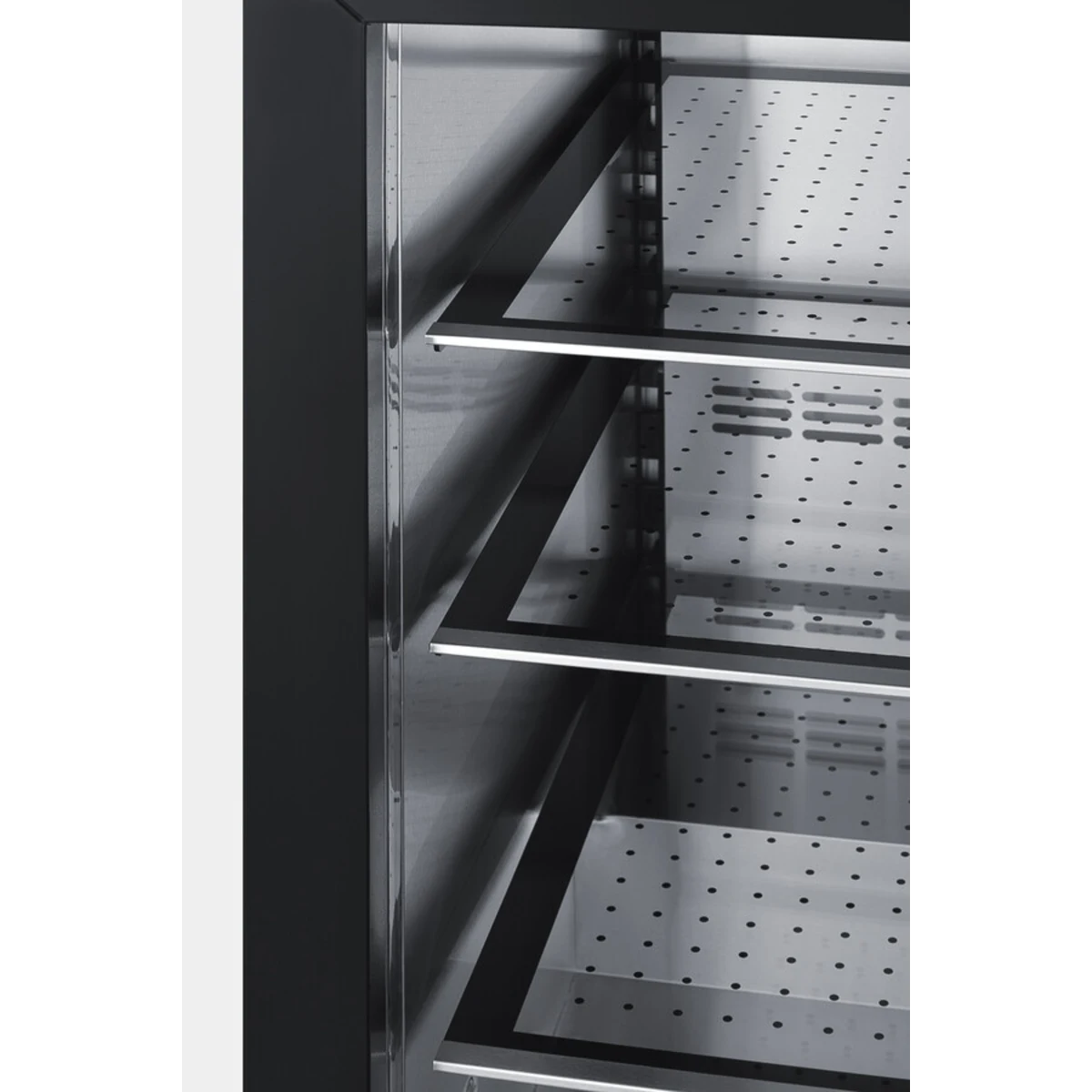

- Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
- Elegant design offers a clear but protected view of your interior

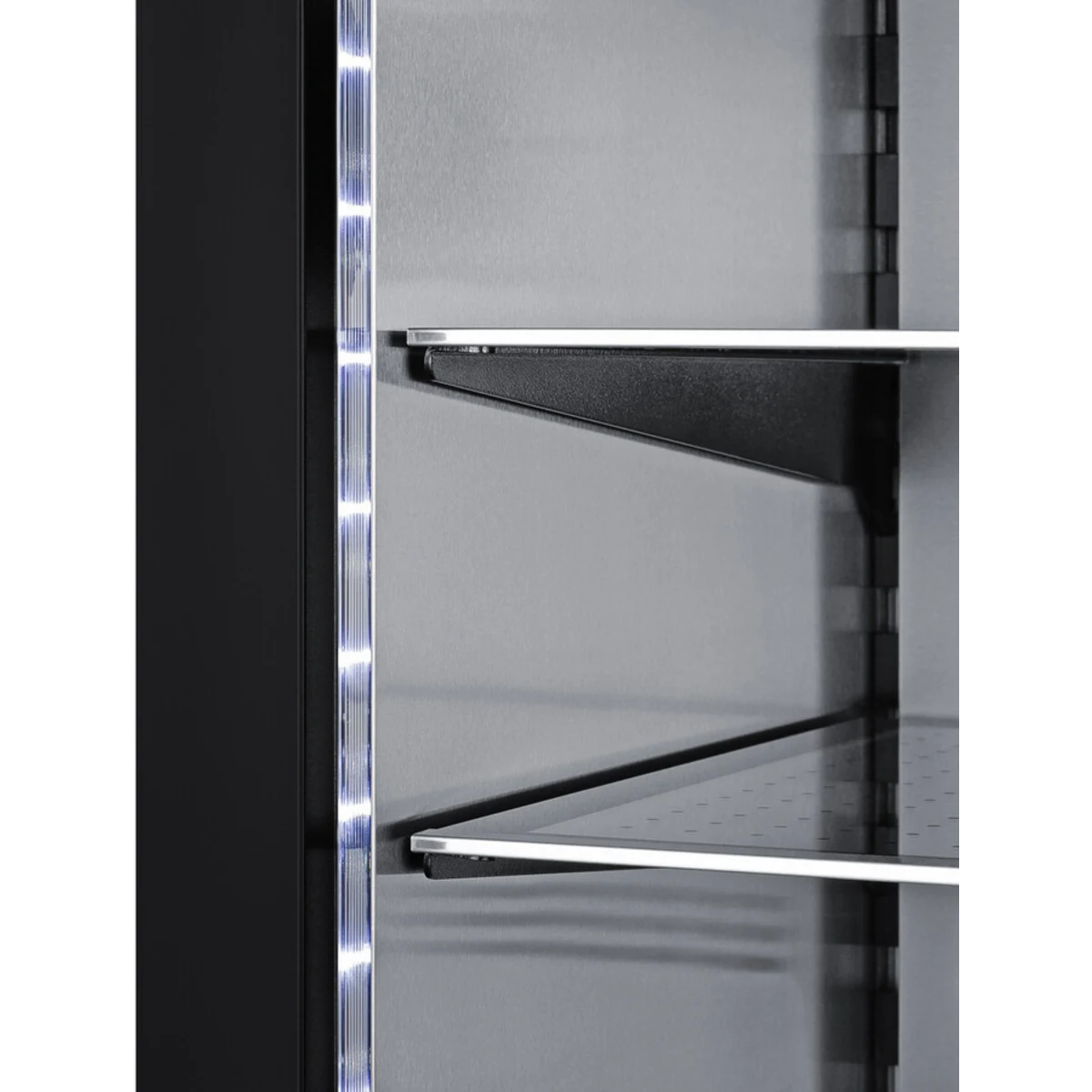

- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
- Alarm sounds if the door is left open for more than 60 seconds
- Audible alarm sounds if the interior temperature rises out of set range
- Unit will retain its last settings when power is restored in the event of power loss
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
- Keyed lock for a secure interior (2 keys included)
- Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
- User-reversible door swing on the refrigerator for added flexibility
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Flat hinge ensures no added height is needed when installing under a counter
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Frost-free Operation
- Seamless Stainless Steel Door Trim

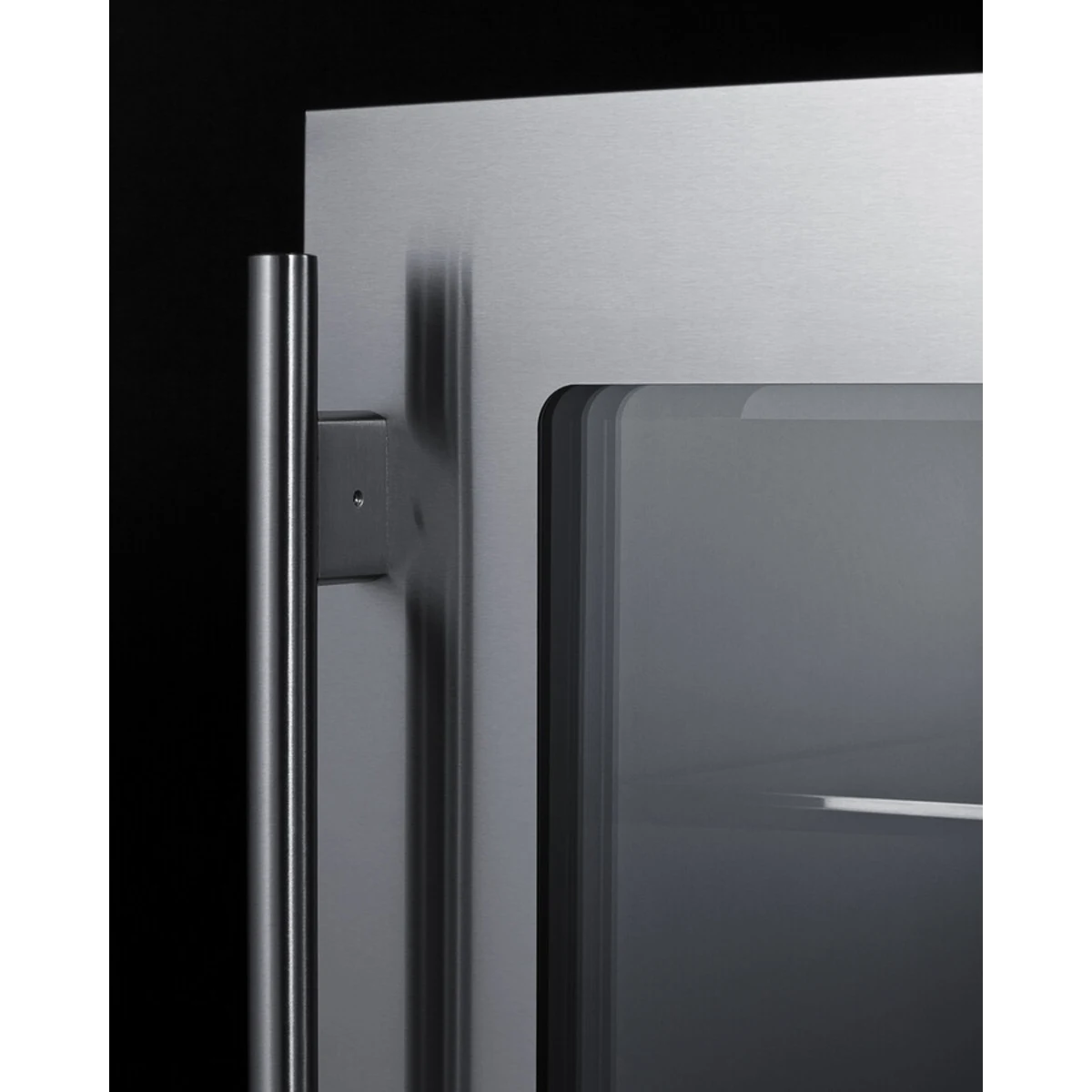

- Professional Stainless Steel Handle
- Right Angle Plug
- Sealed Back
- Fully Finished Black Cabinet
- ADA Compliant
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Capacity |
1.8 cu. ft.
|
|
Defrost Type
|
Frost-Free |
| Door | Glass |
| Cabinet | Black |
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43°F |
| Sound Level | 33.4 dB |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Height of Cabinet | 32" |
| Width | 14 3/4" |
| Depth | 17 3/4" |
| Depth with Handle | 19 5/8" |
| Depth with door at 90° | 31" |
| Weight | 68 lbs. |
| Shipping Weight | 95 lbs. |
| Interior Height | 22 1/2" |
| Interior Width | 10 3/4" |
| Interior Depth | 12 3/8" |
| Compressor Step Height | 3 3/4" |
| Compressor Step Width | 10 3/4" |
| Compressor Step Depth | 5 1/2" |
| US Electrical Safety | ETL |
| Sanitation |
ETL-C
|
| Energy Usage/Year |
270.0kWh/year
|
| CARB Compliant: | Yes |
| Commercially Approved | ETL-S Listed to NSF-7 Standards |
