Summit Appliance 14 inch 220 lb. Ice + Water Dispenser
Summit Appliance 14 inch 220 lb. Ice + Water Dispenser
Couldn't load pickup availability

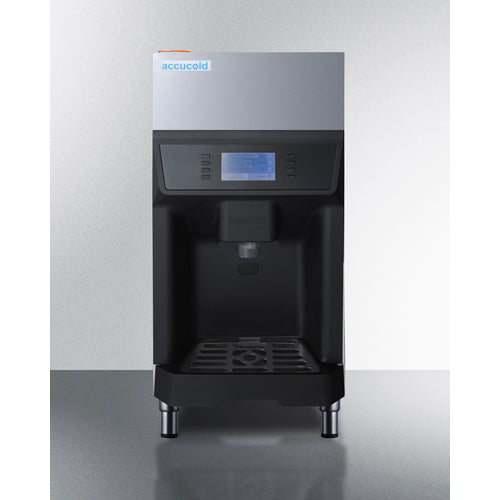

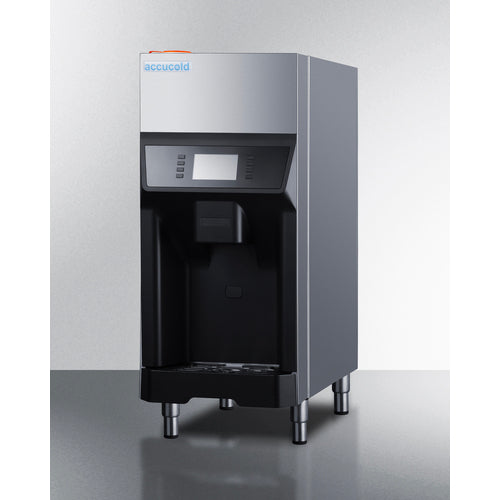

The Accucold AIWD220FLTR represents commercial ice technology at its finest, combining robust performance with operational efficiency. This countertop ice and water dispenser carries ENERGY STAR certification and ETL-S listing to NSF-12 standards, ensuring commercial compliance.
With impressive production capacity of up to 220 lbs of nugget ice daily and internal storage for 6.2 lbs, this 14-inch unit delivers professional-grade functionality while maintaining the compact footprint essential for commercial environments.
The Summit Appliance dispenser delivers exceptional versatility with its triple-function operation—dispensing ice, water, or both simultaneously. Its user interface combines illuminated displays with digital controls for intuitive operation, while the included filter kit ensures pristine output quality.
Featuring adjustable legs for custom height positioning and professional-grade stainless steel facing, this unit incorporates practical design elements including a removable cleaning tray, sealed back panel, and hygienic UV dispenser lighting.
With top-venting configuration and impressive production capacity in a countertop format, the AIWD220FLTR represents an optimal solution for healthcare facilities, corporate environments, and commercial spaces requiring a sophisticated, high-performance ice and water system.
FEATURES

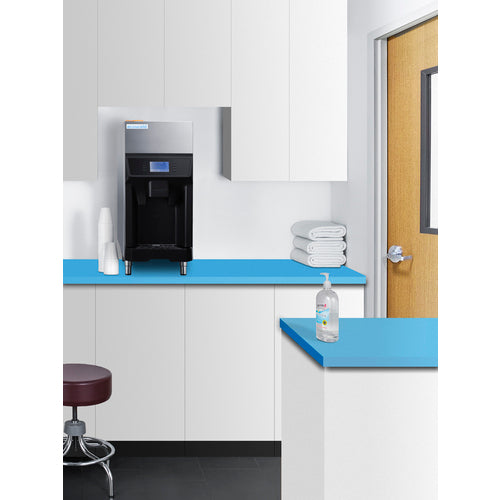

Commercially approved clear cube countertop ice+water dispenser ideal for use in hospitals, clinics, break rooms, and similar settings
Efficient performance for commercial use
ETL-S listed to NSF-12 commercial standards
Commercial grade two-stage filtration kit included to improve the quality and taste of the unit's output
Makes it the perfect fit for countertops and similar surfaces
Sides and top are constructed from 304 grade stainless steel for lasting durability
Large capacity productivity capable of 220 lbs. of ice in a day cycle
Stores up to 6.2 lbs. of nugget ice
Produces nugget ice which is slow-melting and easy to chew

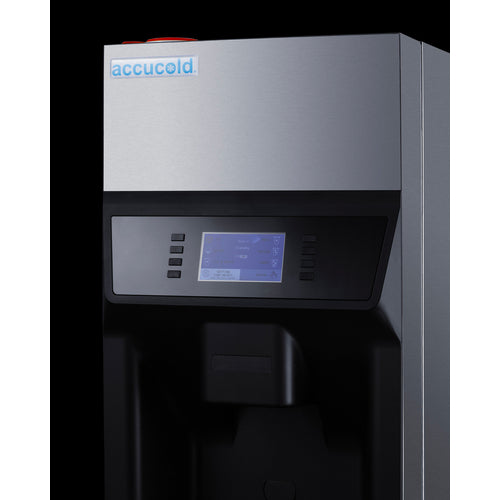

LCD screen with clear readout of functions and easy touch-button operation
Illuminated display panel for easy use between dispenser functions
Allows for a more sanitary experience (buttons also function if preferred)
Included leg set allows you to clean the space below the icemaker
Self-contained design ensures cleaner production
Can be removed for fast and efficient cleaning.
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
Overview
|
|
---|---|

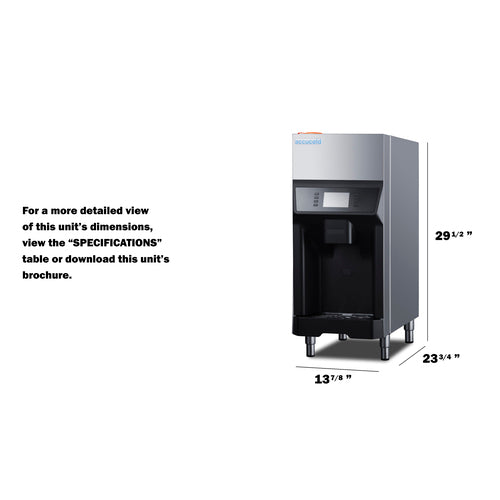

Nominal Height | 30.0" (76 cm) |
Height of Cabinet | 33.5" (85 cm) |
Nominal Width | 14.0" (36 cm) |
Width | 13.88" (35 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 23.75" (60 cm) |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 4.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 103.0 lbs. (47 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101154664 |
Icemaker
|
|
Drain Required | Yes |
Daily Ice Production | 220.0 lbs. (100 kg) |
Ice Storage Capacity | 6.2 lbs. (3 kg) |
Ice Shape | Nugget |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R290 |
Refrigerant Amount | 3.17 oz. |
High Side PSI | 295.0 |
Low Side PSI | 135.0 |
DOWNLOADS
BROCHURE | AIWD220FLTR.pdf |
TECHNICAL DRAWING (.dwg) | AIWD220.dwg |
USE & CARE | AIWD160_AIWD450_AIWD282_SCIWD282_User_Manual_4-28-22.pdf |
ASSEMBLY DRAWING | AIWD220-Assembly.pdf |
