Summit offers a unique variety of large-capacity wine cellars designed for easy storage in homes. The SWC1127BLHD, SWC1127B is a 24" wide wine cellar that can be installed as a built-in or used freestanding, with a fully finished black exterior.
With a depth of just under 27 inches, this unit has a sealed back and angled plug for space-saving convenience. The exterior features a double pane tempered glass door with stainless steel trim, complemented by a stainless steel kickplate and pro-style handle for a touch of sophistication.
For added security, a keyed lock is included, and the powerful magnetic gaskets ensure a proper seal in busy commercial settings. Please note that this unit has a left-hand door swing and is not user-reversible.
This unit, the SWC1127BLHD, SWC1127B, is equipped with 11 wooden shelves that can slide out by 50% for easy loading and unloading. It has an optimal storage capacity that can hold up to 127 standard 750ml Bordeaux bottles. Please note that the actual capacity may vary depending on the size of the bottles. For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWC1127B can accommodate up to 116 bottles.
It features a single temperature zone with digital controls that can be adjusted from 41-65°F to best suit the needs of your red or white wine collection. The top of the unit is illuminated with white LED lighting, providing an attractive display for your collection. The internal fan helps ensure proper cooling in both zones, while a charcoal filtration system keeps the interior free of any unwanted odors. This unit also includes an open-door alarm and a high/low-temperature alarm.
Enhance your home bar or kitchen with the SWC1127BLHD, and SWC1127B wine cellar. Designed with a compact size, sophisticated features, and stylish appearance, it offers the ultimate combination of full-capacity wine storage and contemporary aesthetics.
FEATURES
The front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 55.75" H x 23.88" W x 28" D)

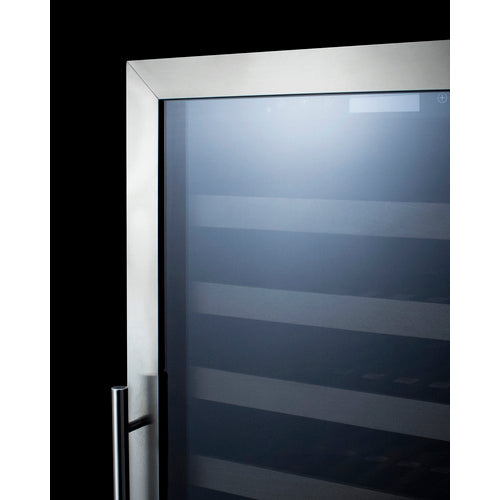

Provides a full display of the interior, with two levels of glass for added protection

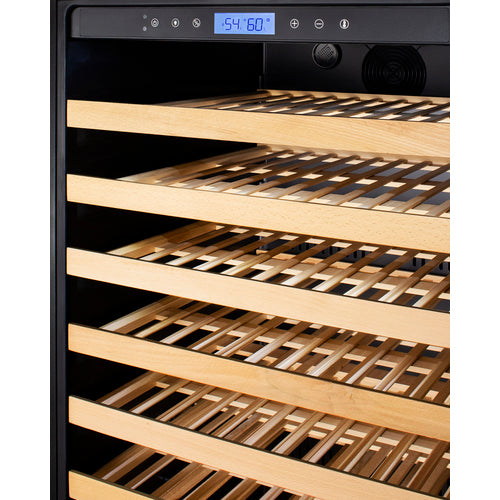

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

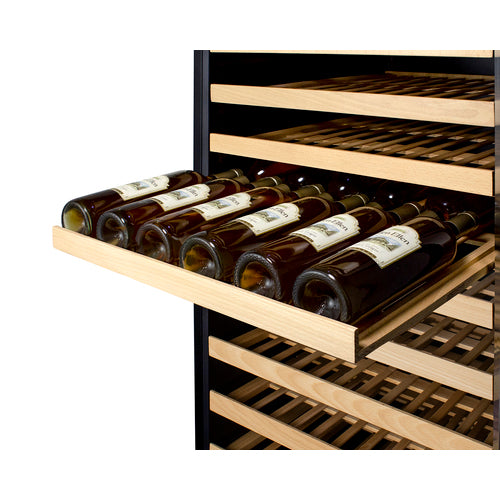

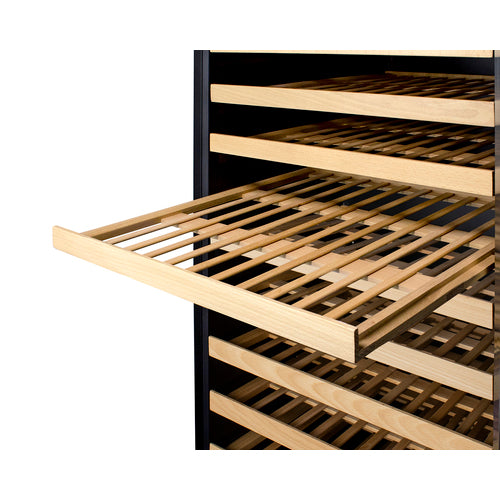

11 shelves slide out 50% for easier loading and optimum capacity

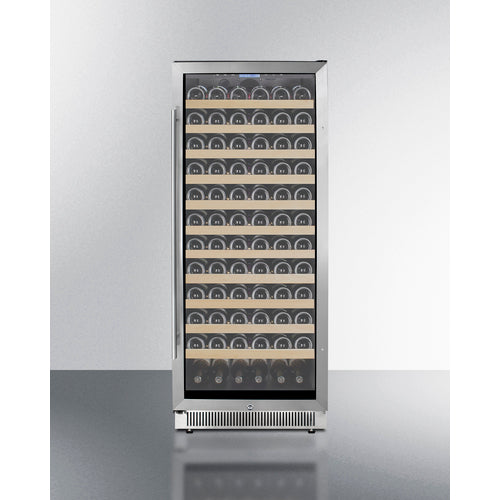

Interior can hold up to 127 standard 750ml Bordeaux style bottles (11 bottles per shelf and 6 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (11 on shelves 2-11 and 6 on the slotted floor)
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
LED lighting located at the top of the unit provides an attractive and energy-efficient illumination of your collection in a gentle white hue
Keyed lock secures both zones (2 keys included)
Temperature range of 41-65°F for storing your collection under the proper conditions
Allows for front ventilation in an elegant design
Helps to purify the air for an odor-free interior
Audibly sounds if the interior rises or falls out of the recommended range
Alerts if the unit door is ajar for more than 5 minutes
Ensures a tight seal for energy savings and improved performance
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
The flush back allows for a better fit and easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 55.25" (140 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.5" (67 cm) |
| Depth with Handle | 28.25" (72 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Bottles | 127 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 161.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101066394 761101079226 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wood |
| Shelf Qty | 11 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 46.0" (117 cm) |
| Interior Width 1 | 20.38" (52 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Level Legs | 2 |
| Temperature Range | 41-65°F |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T3F Door Tint | T1SF Door Tint |
| T4F Door Tint | T2F Door Tint |
