Summit Appliance 12 inch Wide Built-In Undercounter Wine Cellar With Digital Thermostat And LED Lighting
Summit Appliance 12 inch Wide Built-In Undercounter Wine Cellar With Digital Thermostat And LED Lighting
Couldn't load pickup availability

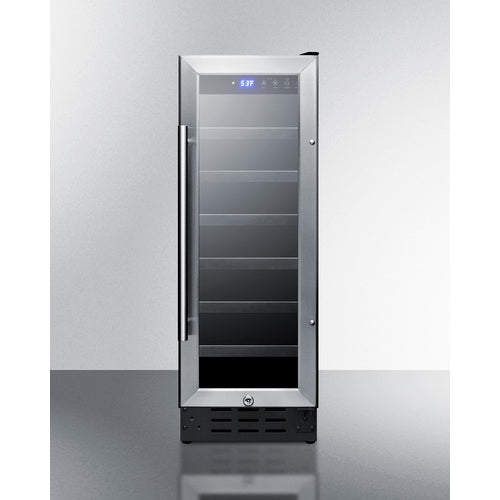

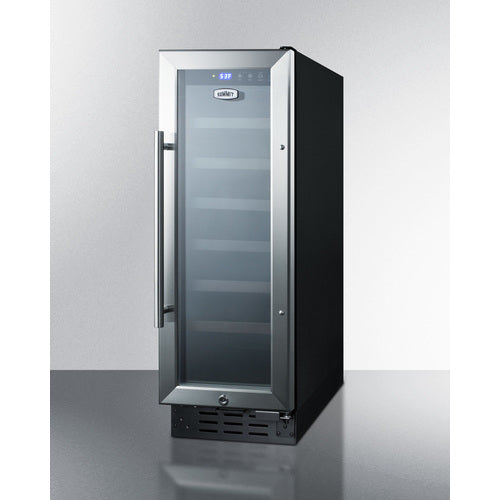

SUMMIT's SWC1224B wine cellar delivers premium storage in a compact 12" profile. This versatile unit features a front-breathing system enabling seamless undercounter integration, while its fully finished exterior allows for freestanding placement. The thoughtfully designed interior accommodates 21 bottles—whether standard Bordeaux or wider Burgundy styles.

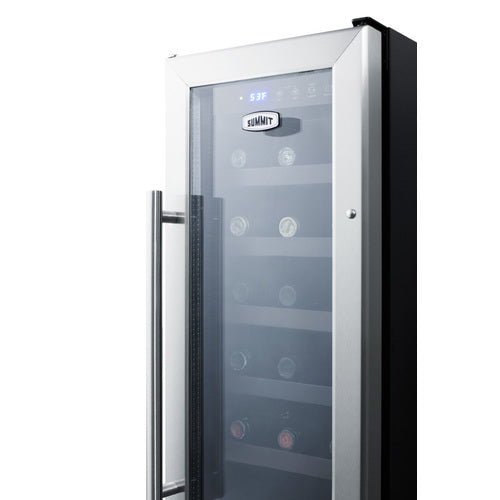

Precision climate control is complemented by sophisticated LED illumination, showcasing your collection through a reversible glass door with elegant stainless steel accents and professional handle. Security is assured with an integrated lock system, protecting your valuable wines from unauthorized access while maintaining the cellar's refined aesthetic.

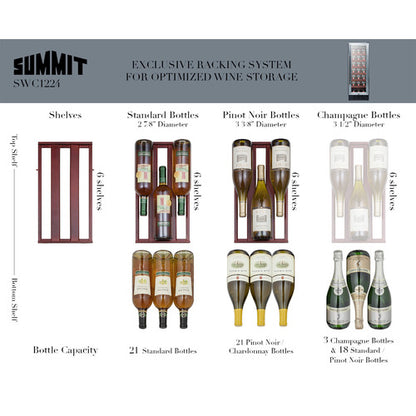

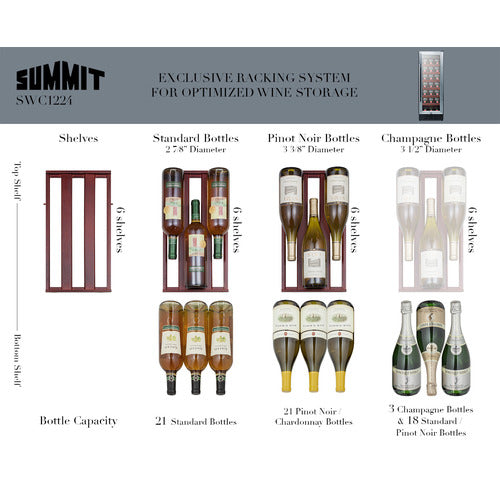

The SWC1224B features six jet black wooden shelves complemented by a specially designed floor rack, maximizing storage efficiency. Sophisticated recessed LED lighting illuminates your collection with precision while conserving energy.
Temperature management is effortlessly controlled via the digital thermostat, offering both Celsius and Fahrenheit readings with intuitive indicator lights for optimal red, white, or sparkling wine storage conditions.

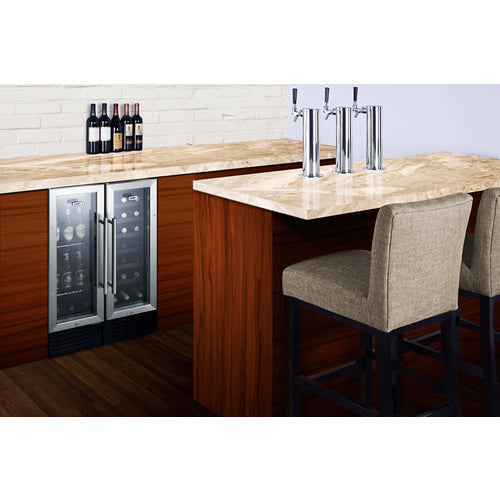

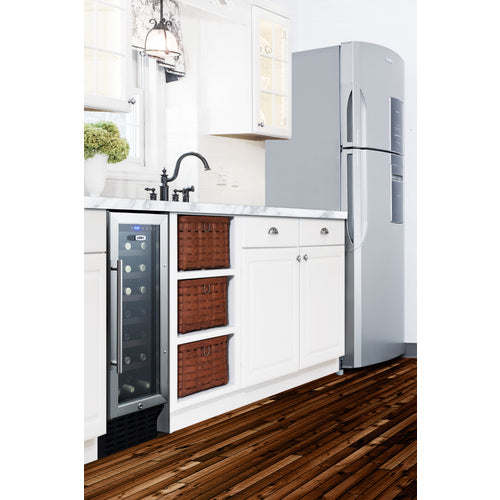

This compact 12" unit integrates seamlessly into wet bars or kitchen installations, meeting rigorous ETL-S listed NSF-7 standards and UL-471 certification requirements. For comprehensive beverage storage solutions, consider pairing with the complementary SCR1225B beverage center.
FEATURES
Make the best use of space by installing your appliance under the counter
Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards
Provides a full display of your stored collection with a heat-safe double tempered design
Keyed security on the wine cellar door

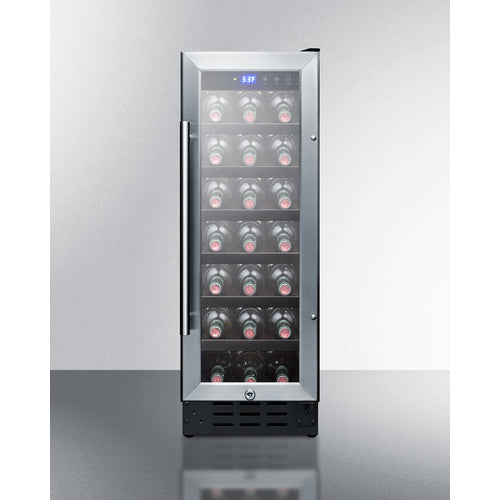

Interior can hold 21 bottles in standard Bordeaux style or wider Burgundy style
Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Temperature readout can be shown in Celsius or Fahrenheit
Slide-out shelves offer the perfect storage for bottles
On/off button to illuminate your collection
Reduced maintenance and steady temperature performance
Stainless steel look for added elegance
Space saving design with easier cleanability
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.38" (87 cm) |
| Nominal Width | 12.0" (30 cm) |
| Width | 11.88" (30 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.38" (57 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 33.0" (84 cm) |
| Bottles | 21 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 66.0 lbs. (30 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059501 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.88 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 25.0" (64 cm) |
| Interior Width 1 | 9.13" (23 cm) |
| Interior Depth 1 | 17.0" (43 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 9.13" (23 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 68ºF |
AVAILABLE UPGRADES
| Door | |
| T4 Door Tint | T3 Door Tint |
| T2 Door Tint | T1S Door Tint |
| T1 Door Tint | |
| Exterior | |
| LHD - Left hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC1224B.pdf |
| REVIT MODEL | QF_Summit_SWC1224B_12_Wide_Built_In_Undercounter.rfa |
| USE & CARE | SWC1224B_User_Manual-180611.pdf |
| SUPPORT | SWC1224_Shelving_Guide.pdf |
