Summit Appliance 12 inch Wide Built-In Undercounter Commercial Beverage Center With Lock, Digital Thermostat, And LED Lighting
Summit Appliance 12 inch Wide Built-In Undercounter Commercial Beverage Center With Lock, Digital Thermostat, And LED Lighting
Couldn't load pickup availability

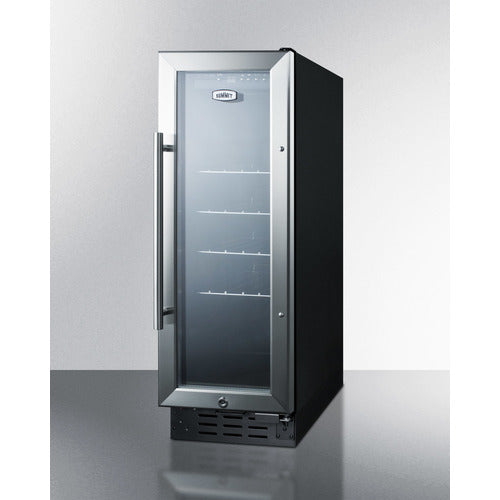

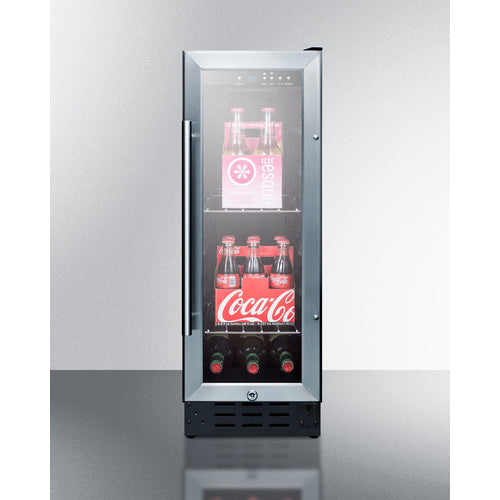

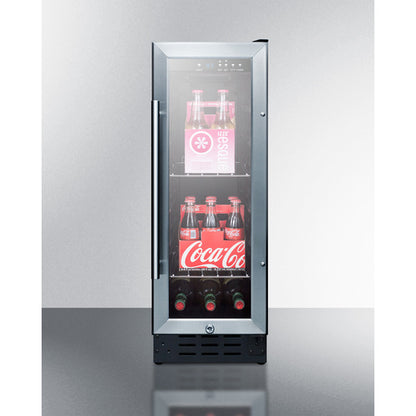

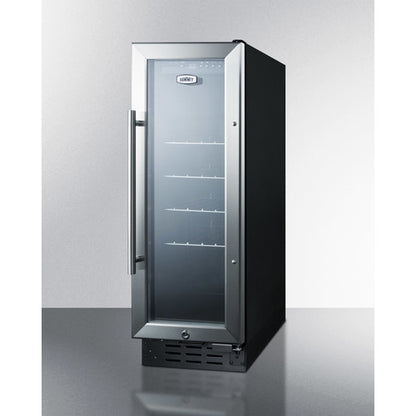

SUMMIT's SCR1225B built-in beverage center offers an optimal under-counter storage solution in a compact 12" width, ideal for limited spaces. This versatile unit features front-breathing construction for seamless counter integration, while maintaining freestanding capability with its finished black cabinet.

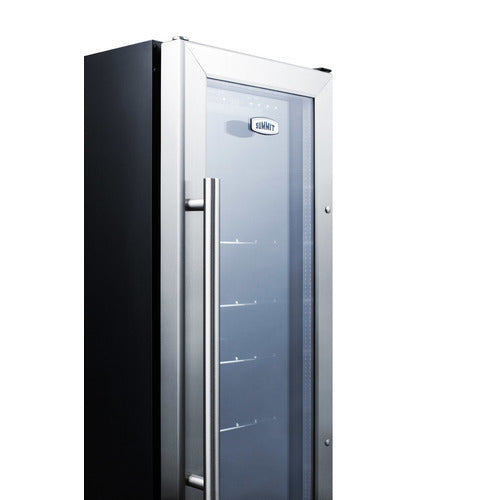

The sophisticated design includes a reversible triple pane glass door with stainless steel accents and professional handle, complemented by security features through an integrated lock system to control access.

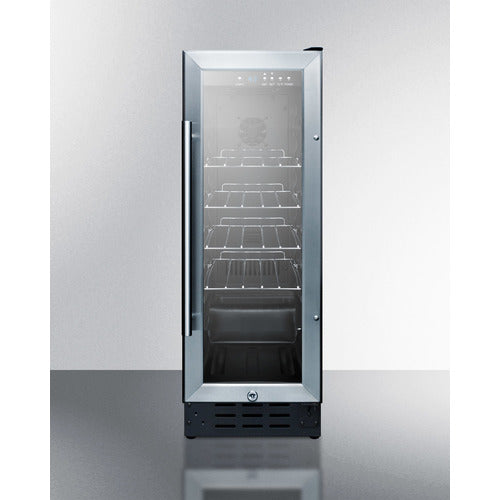

The SCR1225B interior features four removable chrome shelves and a specialized floor design with slots for wine bottle storage. Energy-efficient recessed LED lighting enhances product visibility while maintaining an elegant display.

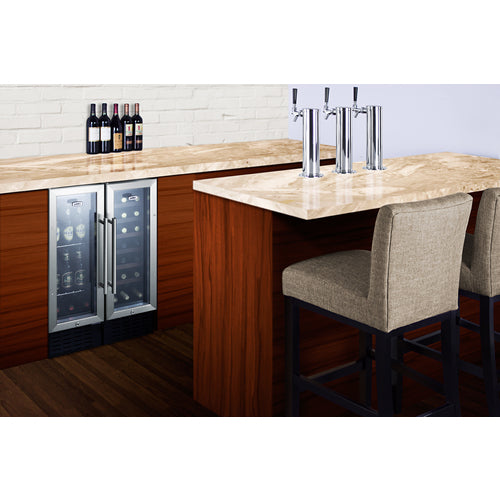

Temperature control is precisely managed through a digital thermostat with dual Celsius/Fahrenheit readout capability. Engineered to fit 12" cutouts perfectly, this unit combines space efficiency with functionality. The model meets rigorous commercial standards with ETL-S listing to NSF-7 and UL Commercial Standard 471 certification. For complementary wine storage, consider pairing with the SWC1224B model.
FEATURES

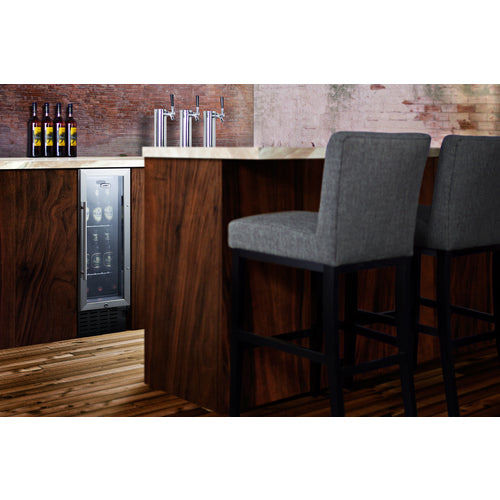

Make the best use of space by installing your appliance under the counter
Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards
Provides a full display of stored contents with a heat-safe triple pane tempered design
Keyed security on the door
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
Slide-out shelves offer attractive and convenient storage for beverages
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Stainless steel look for added elegance
Space saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.38" (87 cm) |
| Nominal Width | 12.0" (30 cm) |
| Width | 11.88" (30 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.38" (57 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 33.0" (84 cm) |
| Capacity | 2.2 cu.ft. (62 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 66.0 lbs. (30 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101049762 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.88oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 9.13" (23 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 9.13" (23 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
AVAILABLE UPGRADES
| Exterior | |
| Latch - Factory-installed door latch requires manual release to open unit | LHD - Left hand door swing |
| Door | |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE |
SCR1225B.pdf |
| REVIT MODEL | QF_Summit_SCR1225B_Commercial_Glass_Door_Beverage.rfa |
| USE & CARE | SCR1225B_manual.pdf |
| MSDS INFORMATION | R600a_K.pdf |
