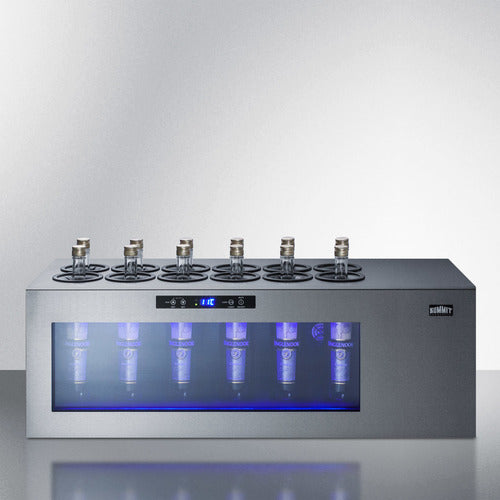

Summit Commercial offers a series of open-bottle wine coolers, the STC series, that provide unique solutions for wine storage. Designed for commercial use, the STC12 is a countertop wine chiller that meets NSF-7 commercial standards and is ETL-S listed. Its compressor-based cooling system allows for quick temperature pull-down, making it ideal for bars, tasting rooms, and restaurants.
With twelve slots, you can store standard Bordeaux-style bottles upright, while the tinted glass window provides an illuminated display of the front bottles' labels. The soft blue LED lighting comes with three levels of brightness that can be adjusted to suit your specific setting.
This product is designed with digital controls that allow for convenient temperature regulation. The temperature range can be adjusted between 41 and 68ºF to suit both red and white wine. Users can easily switch between Fahrenheit and Celsius by pressing a button on the display.
Additionally, an internal fan ensures even cooling of stored bottles, and an audible temperature alarm signals if the cooler exceeds the recommended range. The STC12 boasts a stainless steel exterior for a sleek and durable appearance, making it perfect for busy commercial environments. For a version with larger slots for champagne or Burgundy bottles, consider the STC6.
FEATURES
ETL-S listed to NSF-7 commercial standards for use in food service settings
Interior can hold up to 12 Bordeaux-style bottles in an upright position
The cabinet is wrapped in brushed stainless steel for a professional look with heavy-duty durability
Quality commercial design ensures rapid temperature pull-down and more stabilized performance to keep bottles properly chilled

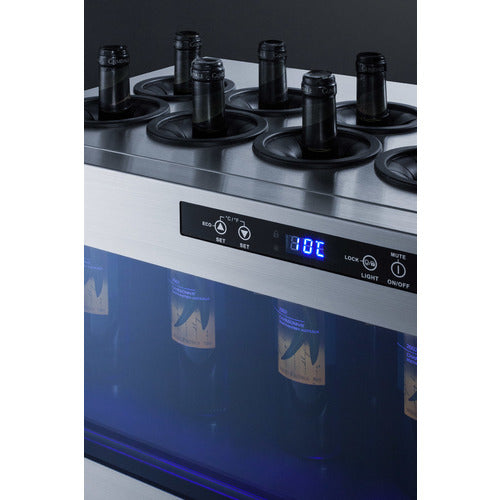

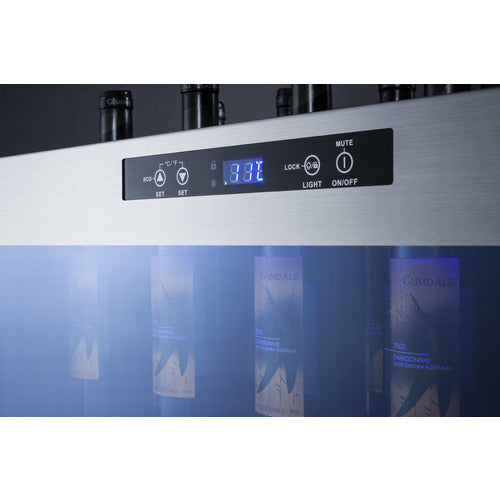

Electronic controls for precise temperature management, with a readout switchable from Fahrenheit to Celsius for added flexibility
The thermostat can be set between 41º and 68ºF for proper storage of white, blush, or red wine
Illuminated window lets you display bottle labels
Three light settings and off mode let you access the perfect display conditions for every venue
Fan-forced cooling helps to better circulate the temperature to keep each bottle stored under the right conditions
Audible and visual alarms warn if the temperature rises or falls out of the suggested range
In the event of power loss, the unit will recover its last setting once power is restored
Allows you to freeze the control panel to avoid accidental temperature adjustments
Easy user maintenance with an auto defrosting system, with a control panel setting included for defrosting if the cooler is used in areas of high heat or humidity
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 12.5" (32 cm) |
| Width | 35.75" (91 cm) |
| Depth | 15.38" (39 cm) |
| Bottles | 12 bottles |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 73.0 lbs. (33 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101061436 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Temperature Range | 41 to 68ºF |
DOWNLOADS
| BROCHURE w/ DRAWINGS | STC12.pdf |
| TECHNICAL DRAWING (.dwg) | STC12_WINE_COOLER__A-C_2010_.dwg |
| REVIT MODEL | |
| USE & CARE |
