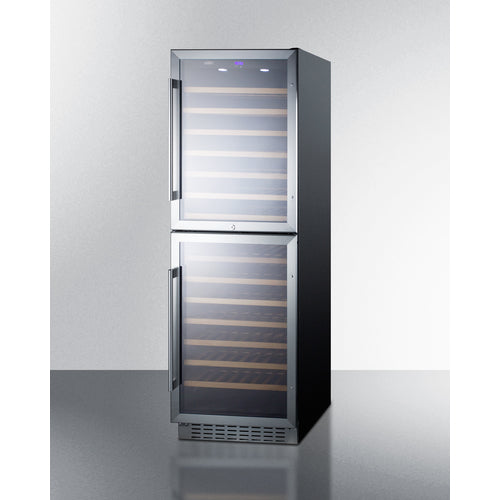

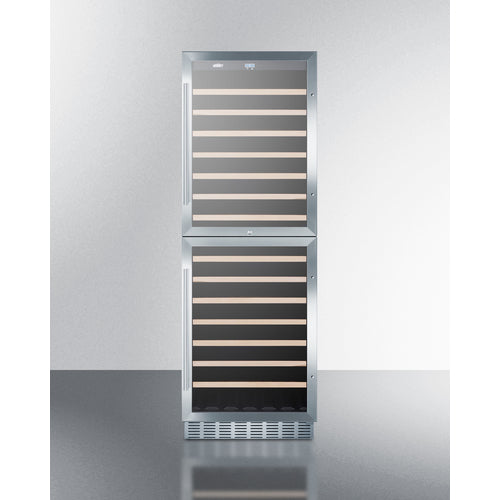

The Summit SWC1875BCSS, SWC1875B wine cellar can accommodate 118 bottles and is built-in capable with a 24" footprint and a front-breathing system for easy installation. It features a stainless steel wrapped cabinet for a modern and professional aesthetic, and can also be used as a freestanding unit.
The two temperature zones have reversible glass doors with pro-style handles and front locks for security. A stainless steel kickplate adds to the overall professional design . The SWC1875BCSS, SWC1875B model features 14 slide-out wooden shelves for optimal bottle storage.
The upper compartment is suitable for white and sparkling wines, while the lower compartment maintains a slightly warmer temperature for reds.

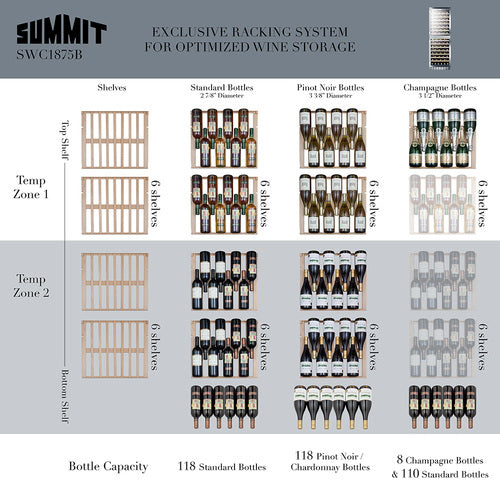

This wine cellar can hold up to 118 standard 750ml Bordeaux-style bottles or 118 wider Burgundy-style bottles (typically used for Chardonnay or Pinot Noir). For champagne storage, the top shelf can accommodate 8 bottles. The recessed LED lighting adds an attractive and energy-efficient display, while the digital thermostat makes temperature management a breeze. Choose between Celsius or Fahrenheit settings for added convenience.
With its user-friendly features and elegant design, the SWC1875BCSS, SWC1875B is the ideal solution for preserving and showcasing your wine collection.
Built-in capable
The front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top

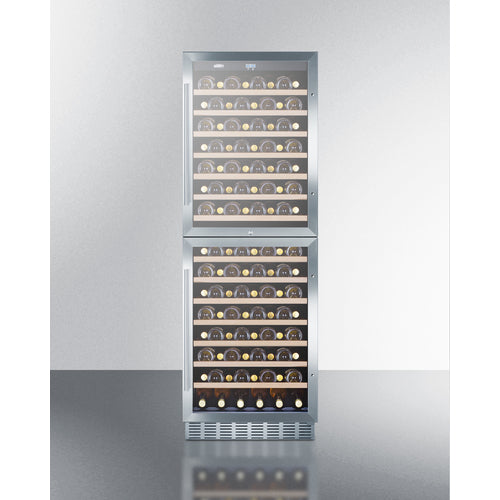

Large capacity
Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles
Two temperature zones
Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below
Commercial design
Meets UL-471 commercial standards

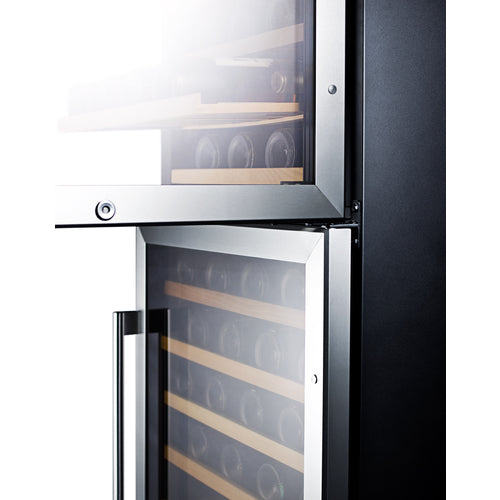

Two reversible glass doors
Elegant tint with user-reversible convenience and stainless steel trim
Digital thermostat
Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
Factory installed lock
The keyed lock secures both sections

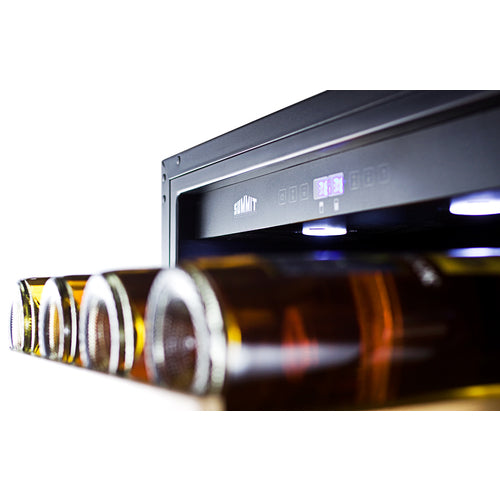

Recessed LED lighting
Attractive and energy-efficient illumination for your collection
Slide-out wooden shelving
14 easy gliding shelves
Automatic defrost
Reduced maintenance with auto defrost system
Professional handles
Sturdy chrome handles add a professional look
Sabbath mode setting
The optional setting lets you disable the lighting and alarm for up to 48 hours
Stainless steel kickplate
An added touch of elegance
Temperature range
40ºF to 72ºF; the Upper zone is ideal for white and sparkling wine served at a cooler temperature; the Lower compartment is better suited for holding reds at a warmer temperature
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
| Height of Cabinet |
69.63" (177 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.75" (58 cm) |
| Depth with Handle |
24.63" (63 cm) |
| Depth with door at 90° |
44.75" (114 cm) |
| Bottles |
118 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.7 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
191.0 lbs. (87 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101030746 761101059228
|
|
Wine Cellar
|
| Number of Zones |
2 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wood |
| Shelf Qty |
14 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.07 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
27.75" (70 cm) |
| Interior Width 1 |
20.0" (51 cm) |
| Interior Depth 1 |
17.5" (44 cm) |
| Temperature Range |
41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
| Interior Height 2 |
31.0" (79 cm) |
| Interior Width 2 |
20.0" (51 cm) |
| Interior Depth 2 |
17.5" (44 cm) |
| Sabbath Mode |
Yes |
| Exterior |
Latch - Factory-installed door latch requires manual release to open unit
|
LHD - Left-hand door swing |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| Door |
| T1SF Door Tint |
T2F Door Tint
|
| T3F Door Tint |
T4F Door Tint |
