The Summit Appliance SWCP2116LHD features 10 full-extension black wire shelves positioned on ball bearing glides for easy loading. With stainless steel fronts, this wine cellar adds a contemporary touch to any room. Its impressive storage capacity can hold up to 116 standard 750ml Bordeaux bottles (capacity may vary depending on bottle style) or up to 86 wider Burgundy style bottles. White LED lights located on the sides and top of the unit provide an elegant display of your collection.
Plus, an internal fan ensures proper cooling for both zones, while a charcoal filtration system eliminates odors. Additional features include an open door alarm and high/low temperature alarm to alert you of any temperature fluctuations.
The SWCP2116LHD is ideal for establishments that require ample wine storage and a contemporary design. Its dimensions, advanced capabilities, and luxurious appearance make it a top choice for restaurants, bars, wineries, and residential settings.
FEATURES
ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 55.75" H x 23.88"W x 28" D)

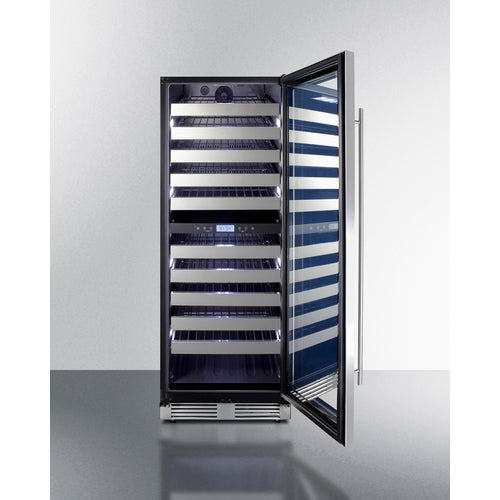

Provides a full display of the interior, with two levels of glass for added protection

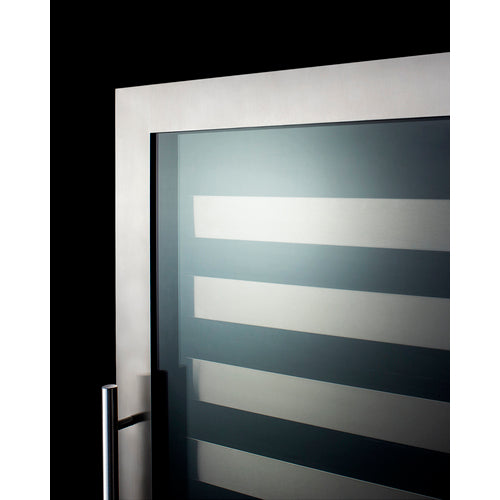

Single-piece door trim offers a more deluxe look
Chill white wine in the upper zone while preserving your reds at a warmer temperature below

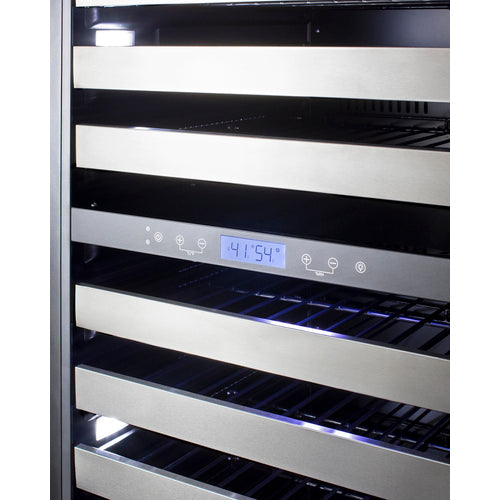

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

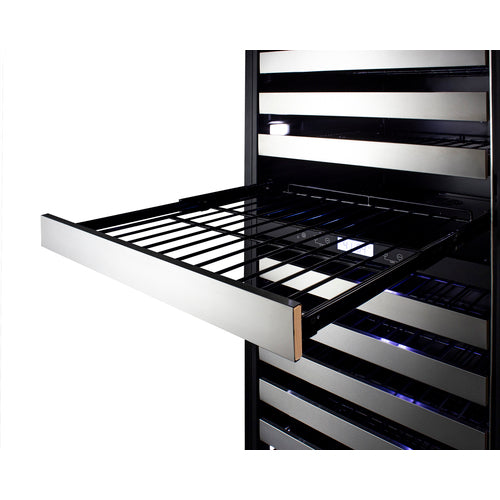

10 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Fronts feature a stainless steel accent to elevate your presentation

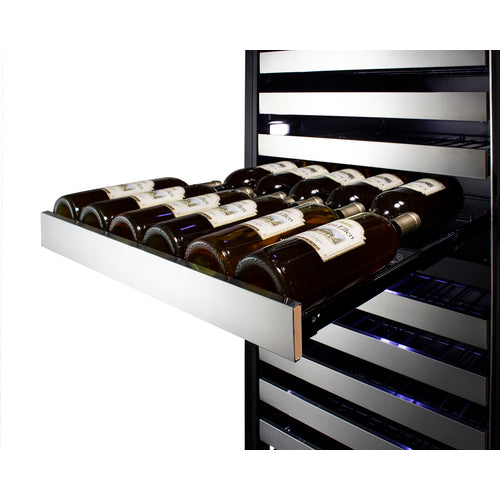

Interior can hold up to 116 standard 750ml Bordeaux style bottles (11 bottles per shelf and 6 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 86 bottles (8 per shelf and 6 on the the slotted floor)
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue
Keyed lock secures both zones (2 keys included)
Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
Allows for front ventilation in an elegant design
Helps to purify air for an odor-free interior
Audibly sounds if the interior rises or falls out of recommended range
Alerts if unit door is ajar for more than 5 minutes
Ensures a tight seal for energy savings and improved performance
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
This unit comes with a left-hand door swing. (Note: the door is not user-reversible; for a right-hand door swing, see the SWCP2116)
Flush back allows for a better fit and easier cleanability
Uses environmentally friendly R600a refrigerant to comply with current regulations
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 55.25" (140 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.5" (67 cm) |
| Depth with Handle | 28.25" (72 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Bottles | 116 bottles |
| Defrost Type | Automatic |
| Door | Glass/SS |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 213.0 lbs. (97 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079271 761101066400 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Wire |
| Shelf Qty | 10 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 22.63" (57 cm) |
| Interior Width 1 | 20.38" (52 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Level Legs | 2 |
| Temperature Range | 41-54°F (upper zone); 54-65°F (lower zone) |
| Interior Height 2 | 24.25" (62 cm) |
| Interior Width 2 | 20.38" (52 cm) |
| Interior Depth 2 | 21.0" (53 cm) |
| Door |
| T2F Door Tint | T4F Door Tint |
| T1SF Door Tint | T3F Door Tint |
| Exterior | LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) |
