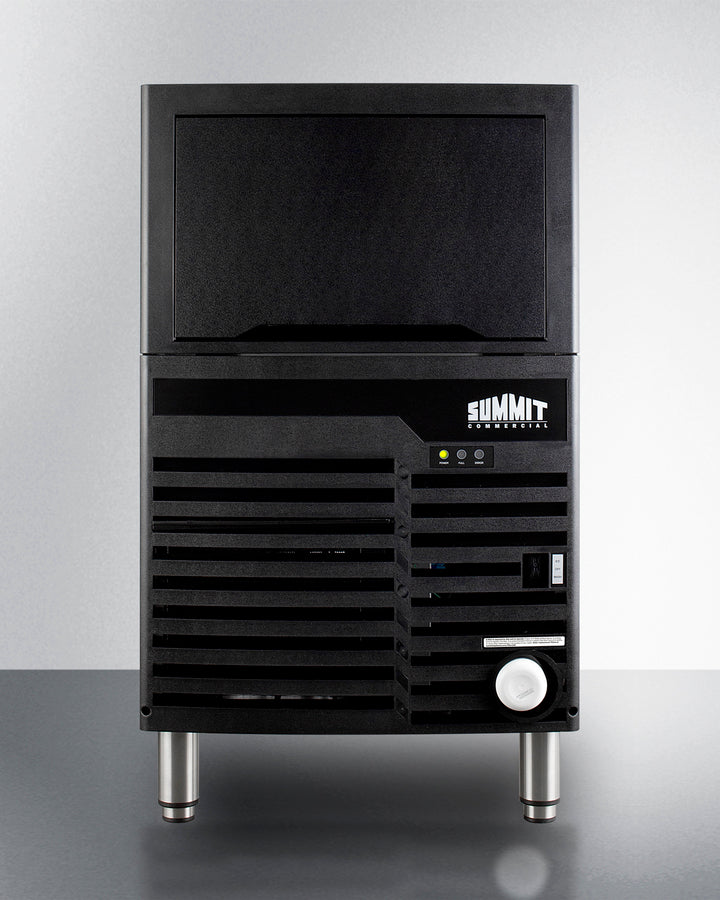

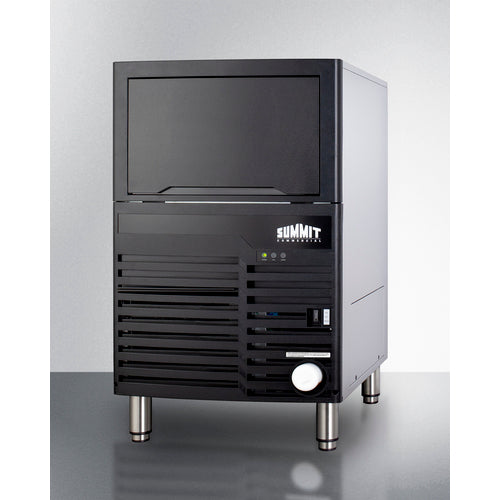

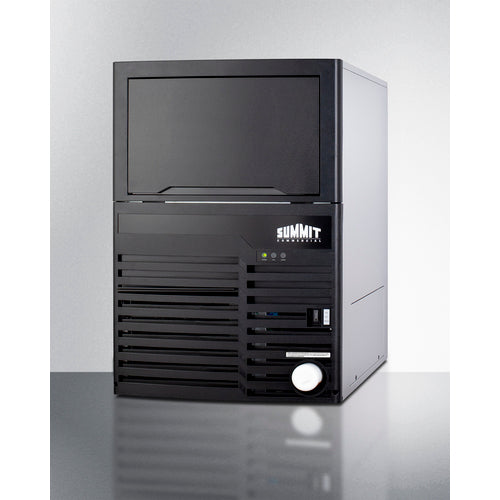

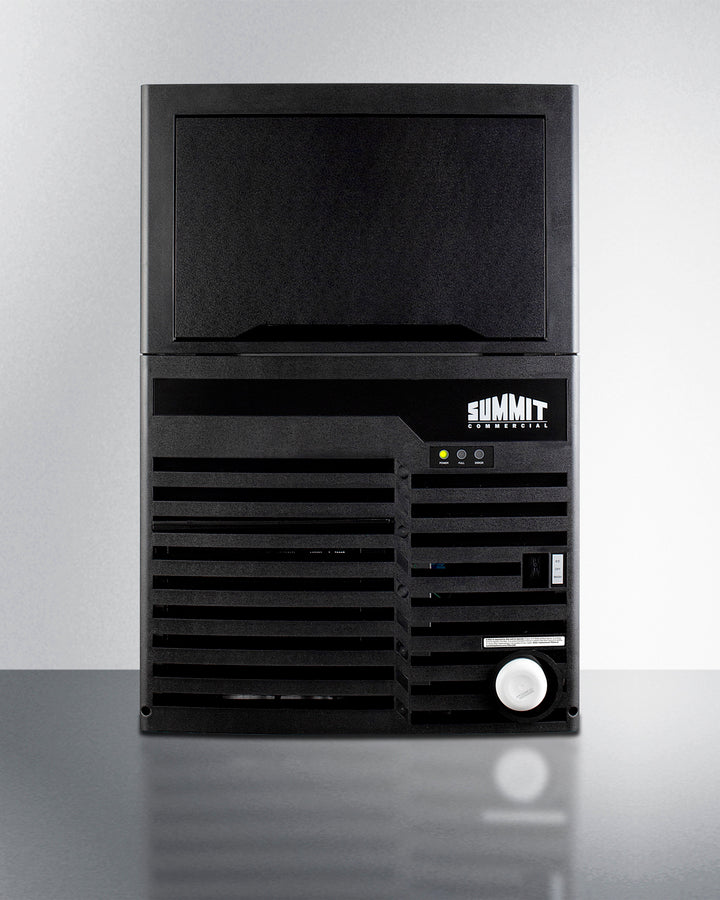

The Summit Appliance 100 lb. Commercial Icemaker is a compact and efficient addition to any commercial kitchen. With a 30" high cabinet and a set of 4.5" high commercial legs, it can easily fit in tight spaces while still providing a standard counter height. Its front controls and removable mesh filter make maintenance a breeze, and a built-in ice scoop adds convenience. Its quiet operation, internal wash setting, and flexible placement options make it a must-have for any busy establishment.
Professional installation is required for this unit, which also features a sealed stainless steel back for added space savings and easy cleaning. (Note: Drain size: 3/4"; water supply/inlet size: 3/8")
Create delicious and clean-tasting ice with the Summit Appliance 100 lb. Commercial Icemaker. The included water purification filter guarantees great tasting ice every time and only needs to be replaced every six months. Its high capacity output and sleek design make it perfect for any bar, restaurant, or office space. Visit summitappliance.com/filter100 for replacements.
FEATURES
ETL-S listed to NSF-12 commercial standards
Produces up to 100 lbs. of clear ice in a day cycle

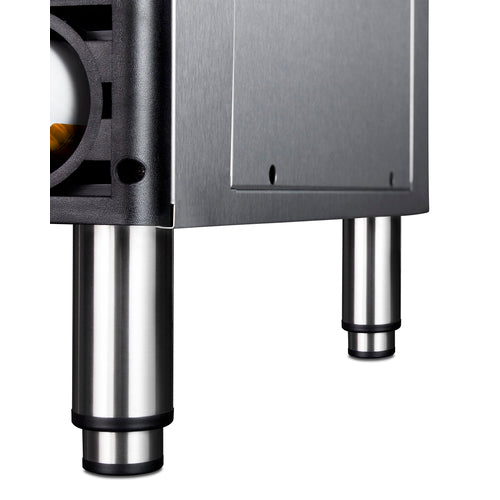

30" high cabinet to fit under lower counters, with four included 4.5" high commercial legs to raise the unit to standard counter height
Included leg set allows you to clean the space below the icemaker
Front-breathing design allows this unit to be installed under counters
Efficient, low noise fan for a quiet performance

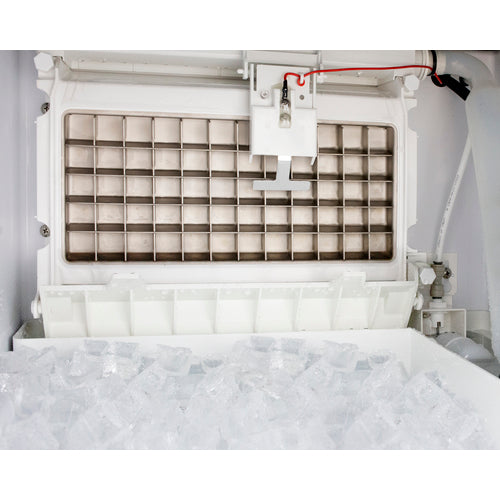

Produces clear 1" x 1" dice cubes

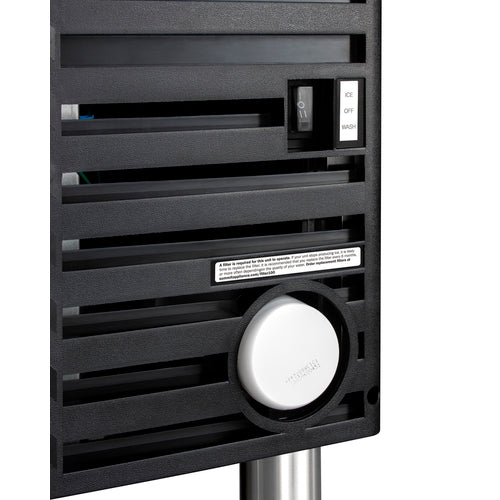

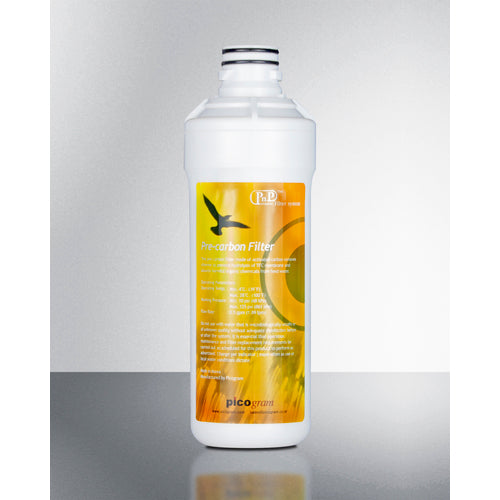

Helps maintain great tasting ice. A purification filter is required for operation (1 is included with your initial purchase); To order replacement filters, visit summitappliance.com/filter100

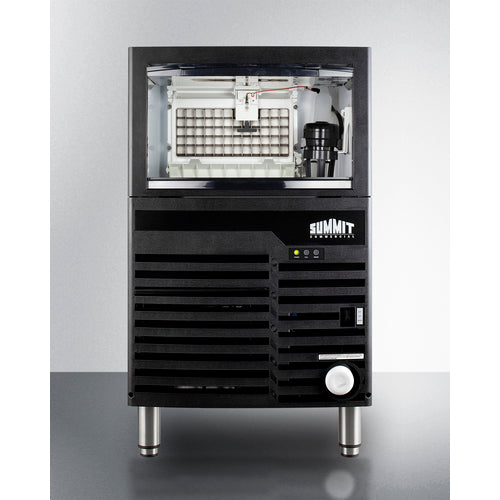

Top lid is on lift-up glides for easy access to the ice bin
Automatic sensor alerts when bin is full and stops ice production to prevent overfill
Removable mesh filter located in the front of the icemaker makes it easy to keep the condenser clean
Auto clean mode allows you to periodically clean the system as needed with a neutral detergent
Interior holds up to 27 lbs. of ice
Ice scoop included for added convenience
Space-saving design with easier cleanability
Durable finish allows the unit to be used freestanding
Extra long pre-installed power cord allows more flexibility in placing the unit
Gravity drain system
Environmentally friendly design with no ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.5" (88 cm) |
| Width | 20.5" (52 cm) |
| Depth | 22.25" (57 cm) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 3.75 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101066080 |
|
Icemaker
|
|
| Door Swing | Lift-Up |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 100.0 lbs. (45 kg) |
| Ice Storage Capacity | 27.0 lbs. (12 kg) |
| Ice Shape | Cube |
| Size of Cube | 1" x 1" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 8.5 oz. |
| High Side PSI | 190.0 |
| Low Side PSI | 133.0 |
| Interior Height | 10.25" (26 cm) |
| Interior Width | 18.0" (46 cm) |
| Interior Depth | 17.0" (43 cm) |
| Level Legs | 4 |
