From cool to cold, two temperature zones give you tons of flexibility when storing red and white and pink wines. Brisas is designed for busy families who want all their favorites at their fingertips, and our PreciseTemp™ temperature control, Active Cooling Technology for even cooling and Vibration Dampening System are the features that make it the absolute best, most-versatile cooler in its price category. Features also include blue LED lighting, 304-grade stainless steel, and a dual-pane, 304-grade stainless steel, field-reversible door.
Product Details
| Product Status | Active |
| Brand |
Brisas by Zephyr |
| Model # |
BWN24C02AG
|
|
MSRP ($)
|
$1399
|
| Short Description |
Brisas Wine Cooler, 24in UC, SS+Gls, Rvs Dr, 2Z
|
| Collection |
Brisas |
| UPC |
646328007903
|
| Category |
Wine Cooler |
| Installation Type |
Built-In or Freestanding |
| Refrigerant Type | R600a |
| Bottle Capacity (750 ml) | 46 |
|
Can Capacity (12 oz)
|
0 |
| Cooling Zones | 2 |
| Maximum Temperature (Fahrenheit) | 65 |
| Minimum Temperature (Fahrenheit) | 40 |
| For Outdoor Use | No |
| Door Finish |
Stainless Steel + Glass |
| Cabinet Finish |
Black |
| Interior Finish |
Black |
|
Number Of Shelves
|
5 |
|
Shelf Material Type
|
Metal
|
| Controls Type |
Capacitive Touch |
|
Lighting Type
|
LED |
|
Lights Quantity
|
7 |
|
Sound Level (dBA)
|
40 |
| Voltage | 115 |
|
Maximum Amperage
|
1 |
| Color |
Stainless Steel + Glass |
|
Watts Per Bulb
|
3 |
|
Lights Levels
|
1 |
|
Compatible Appliances
|
Z0F-C004, PRHAN-C001, PRHAN-C102, PRHAN-C104, PRHAN-C004, PRHAN-C003
|
|
Country of Origin
|
China |
|
CEC Title 20 Compliant
|
Yes |
|
ADA Compliant
|
No |
Product Dimensions
|
Maximum Height (IN)
|
34.875
|
|
Minimum Height (IN)
|
33.875
|
|
Depth; Door Open 90 Degrees (IN)
|
23.875
|
|
Depth; Excluding Door (IN)
|
21.875
|
|
Depth; Excluding Handle (IN)
|
23.5
|
|
Depth; Including Handle (IN)
|
25.5
|
|
Net Height; IN
|
33.875
|
|
Net Width; IN
|
23.875
|
|
Nominal Width; IN
|
24 |
|
Net Depth; IN
|
23.5 |
|
Volume (Cu/Ft)
|
5.3
|
|
Interior Height In.
|
30
|
|
Interior Width In.
|
20
|
|
Weight; LBS
|
128 |
|
Cutout Depth in.
|
23.5
|
|
Cutout Height in.
|
34
|
|
Cutout Width in.
|
24 |
Features
|
Feature 1
|
PreciseTemp
|
|
Feature 1 Definition
|
Multiple internal sensors help maintain accurate temperatures and increase overall performance.
|
|
Feature 2
|
Active Cooling Technology
|
|
Feature 2 Definition
|
An on-board computer controls an active cooling fan to provide temperature stability and even cooling.
|
|
Feature 3
|
Vibration Dampening System
|
|
Feature 3 Definition
|
Enhanced technology ensures noise and vibration is reduced to minimize wine disturbance.
|
|
Feature 4
|

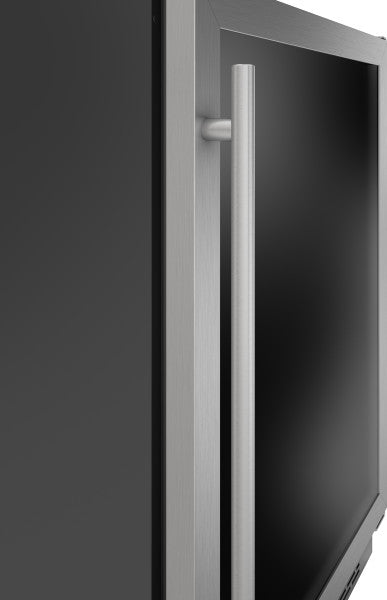

Dual-Pane, Field-Reversible Door
|
|
Feature 4 Definition
|
Dual-Pane glass door improves insulation to minimize heat exchange. The Reversible Door Hinge allows anyone to conveniently change the door hinge location from Left or Right to better accommodate your space.
|
|
Feature 5
|

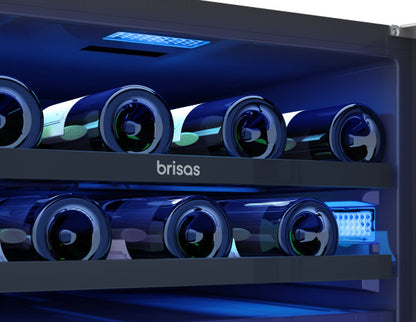

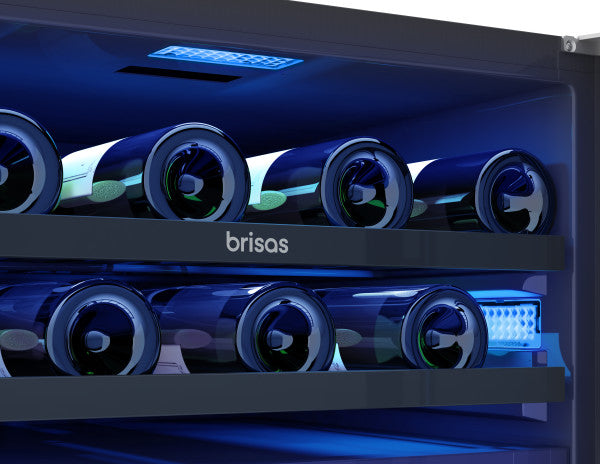

Blue LED Lighting
|
|
Feature 5 Definition
|
LED lighting in Deep Blue.
|
|
Feature 6
|
Black Wire Racks With Black Trim
|
|
Feature 6 Definition
|
Black wire racks to accommodate multiple bottle types.
|
|
Feature 7
|

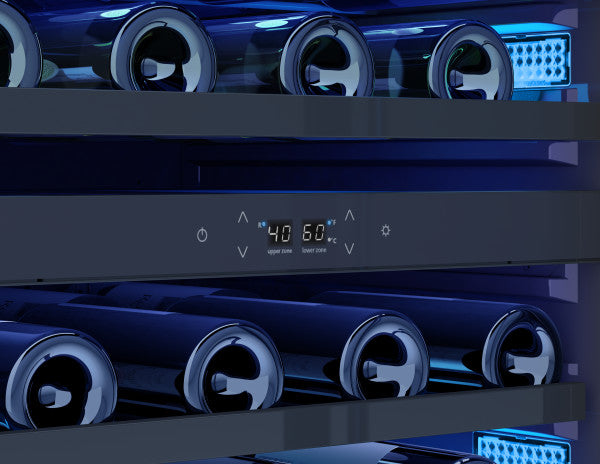

Capacitive Touch Controls
|
|
Feature 7 Definition
|
Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
|
|
Door Open Alarm
|
Yes
|
|
Sabbath Mode
|
Yes |
|
Zero Clearance Door Hinge
|
Yes |
|
Reversible Door
|
Yes |
|
Air Filtration
|
Yes |
|
Adjustable Racks
|
Yes |
|
Energy Star CertifiedesNo
|
No |
|
Star-K Certified
|
Yes |
Warranty
| Warranty Parts / Labor | 5 Years Compressor, 2 Years Parts, 1 Years Labor |
Shipping Dimensions
| Shipping Height; IN |
44
|
| Shipping Length; IN | 28 |
| Shipping Width; IN | 31 |
| Shipping Weight; LBS | 151 |
Optional Accessories
|
Optional Accessory 1
|
Presrv Pro Handle Kit x1, Stainless Steel
|
|
Optional Accessory 2
|
Presrv Contemporary Handle x1, Brushed Gold
|
|
Optional Accessory 3
|
 |
|
Optional Accessory 4
|
Presrv™ Charcoal Filter Replacement
|
|
Optional Accessory 5
|
Presrv Pro Handle x1, Matte Black, Compact
|
|
Optional Accessory 6
|
Presrv Pro Handle x1, Brushed Gold, Compact
|
Documents:
| Specifications Sheet |  |
| Installation Manual |  |
|
Warranty Document Energy Guide |

|
| Exploded View Diagram |  |
