Product Dimensions
| Maximum Height (IN) | 70.75 |
| Minimum Height (IN) | 69.25 |
| Depth; Door Open 90 Degrees (IN) | 50 |
| Depth; Excluding Door (IN) | 25.625 |
| Depth; Excluding Handle (IN) | 27.375 |
| Depth; Including Handle (IN) | 29.375 |
| Net Height (IN) | 69.25 |
| Net Width (IN) | 23.875 |
| Nominal Width (IN) | 24 |
| Net Depth (IN) | 29.375 |
| Volume (Cu/Ft) | 14.9 |
| Interior Height (IN) | 62.625 |
| Interior Width (IN) | 20.875 |
| Weight (LBS) | 212 |
| Cutout Depth (IN) | 28.5 |
| Cutout Height (IN) | 69.75 |
| Cutout Width (IN) | 24 |
Features
| Feature 1 | PreciseTemp™ |
| Feature 1 Definition | Multiple internal sensors help maintain accurate temperatures and increase overall performance. |
| Feature 2 | Active Cooling Technology |
| Feature 2 Definition | An on-board computer controls an active cooling fan to provide temperature stability and even cooling. |
| Feature 3 | Vibration Dampening System |
| Feature 3 Definition | Enhanced technology ensures noise and vibration is reduced to minimize wine disturbance. |
| Feature 4 | Dual-Pane, Low-e Argon-Filled Glass Door |
| Feature 4 Definition | Dual-pane, argon-filled glass improves insulation to minimize heat exchange and increases sound proofing characteristics. The Low-E coating helps minimize the amount of UV and infrared light that passes through the glass door. |

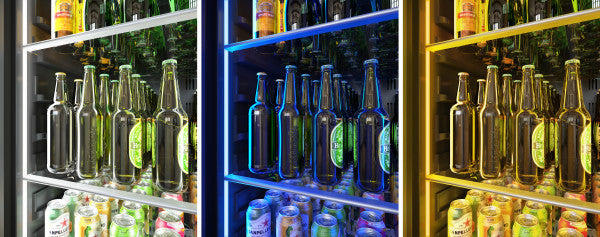

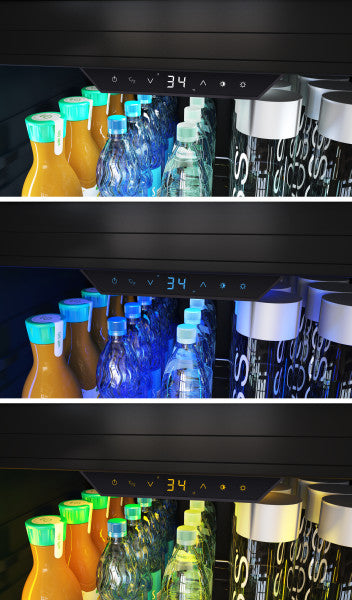

| Feature 5 | 3 Color LED Lighting |
| Feature 5 Definition | LED strip lighting in Cloud White, Deep Blue and Amber. |
Warranty
| Warranty Parts / Labor | 5 Years Compressor, 2 Years Parts, 2 Years Labor |
Shipping Dimensions
| Shipping Height; IN | 76.8 |
| Shipping Length; IN | 30.5 |
| Shipping Width; IN | 26 |
| Shipping Weight; LBS | 243 |
Optional Accessories
| Optional Accessory 1 |
|
| Optional Accessory 2 |
|
Documents:
| Specifications Sheet | ![]() |
| Installation Manual | ![]() |
| Warranty Document | ![]() |
| Energy Guide | ![]() |
| Exploded View Diagram | ![]() |
