KingsBottle Ultimate Wine & Beverage Upright Refrigerator Combo with Low-E Borderless Black Glass door
KingsBottle Ultimate Wine & Beverage Upright Refrigerator Combo with Low-E Borderless Black Glass door
Couldn't load pickup availability

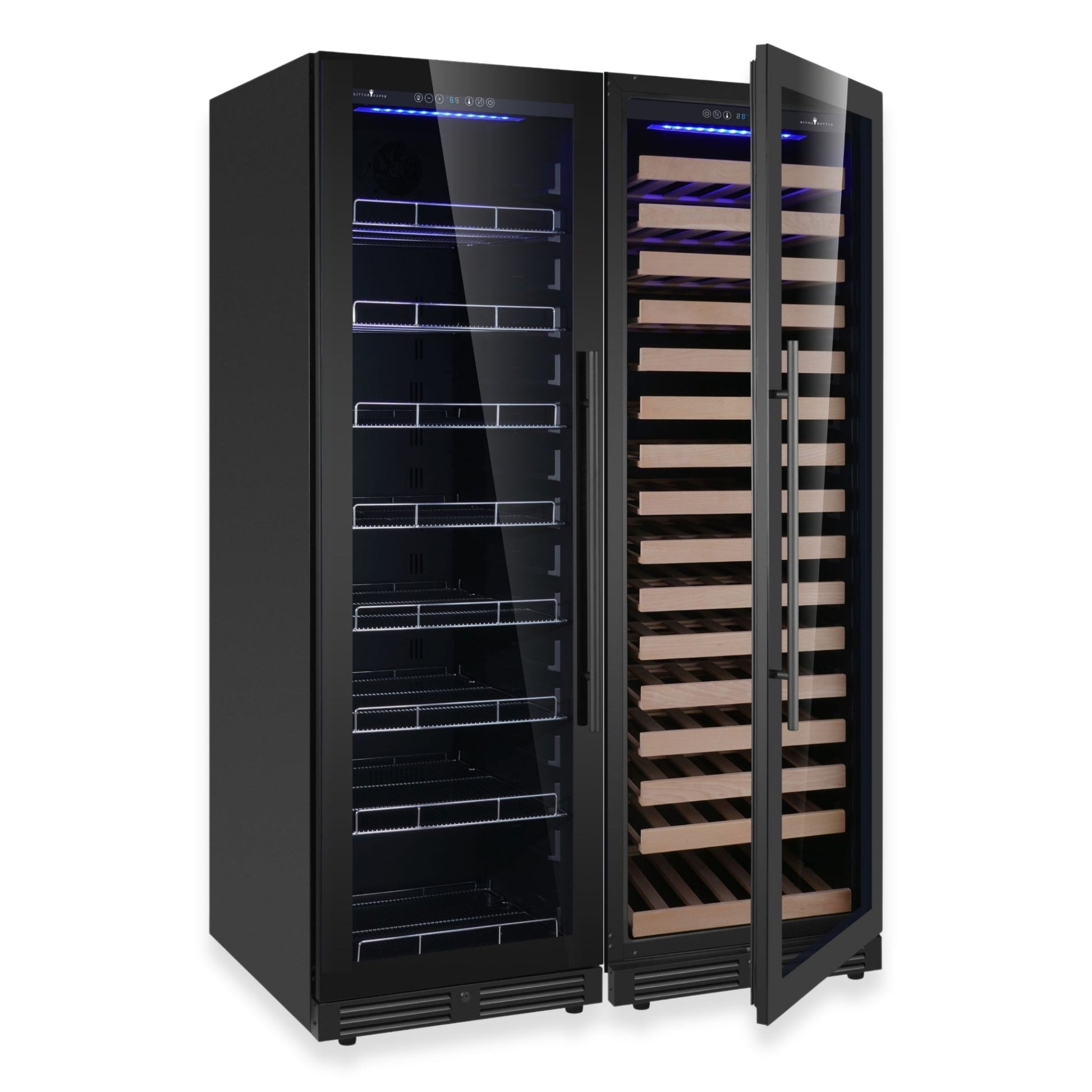

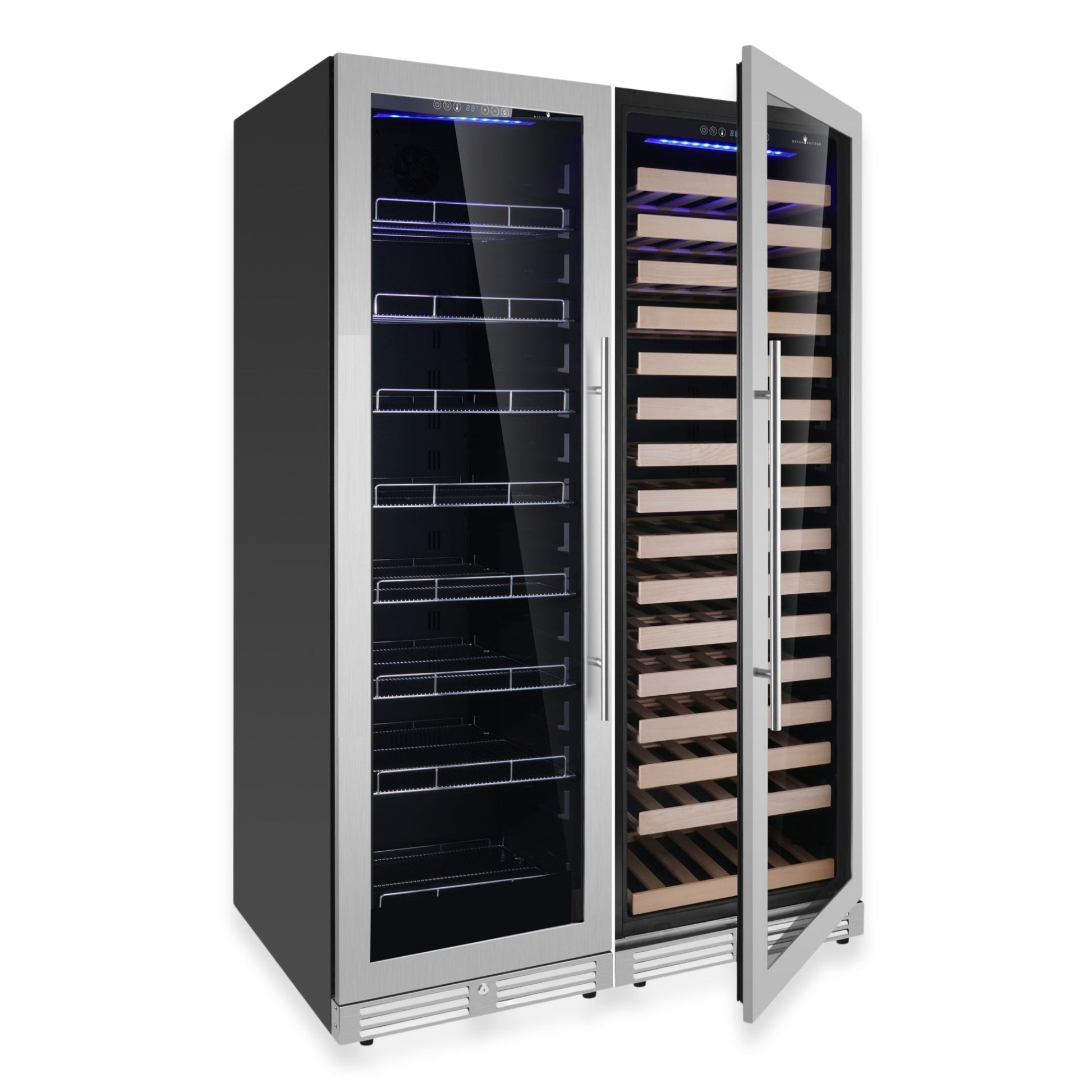

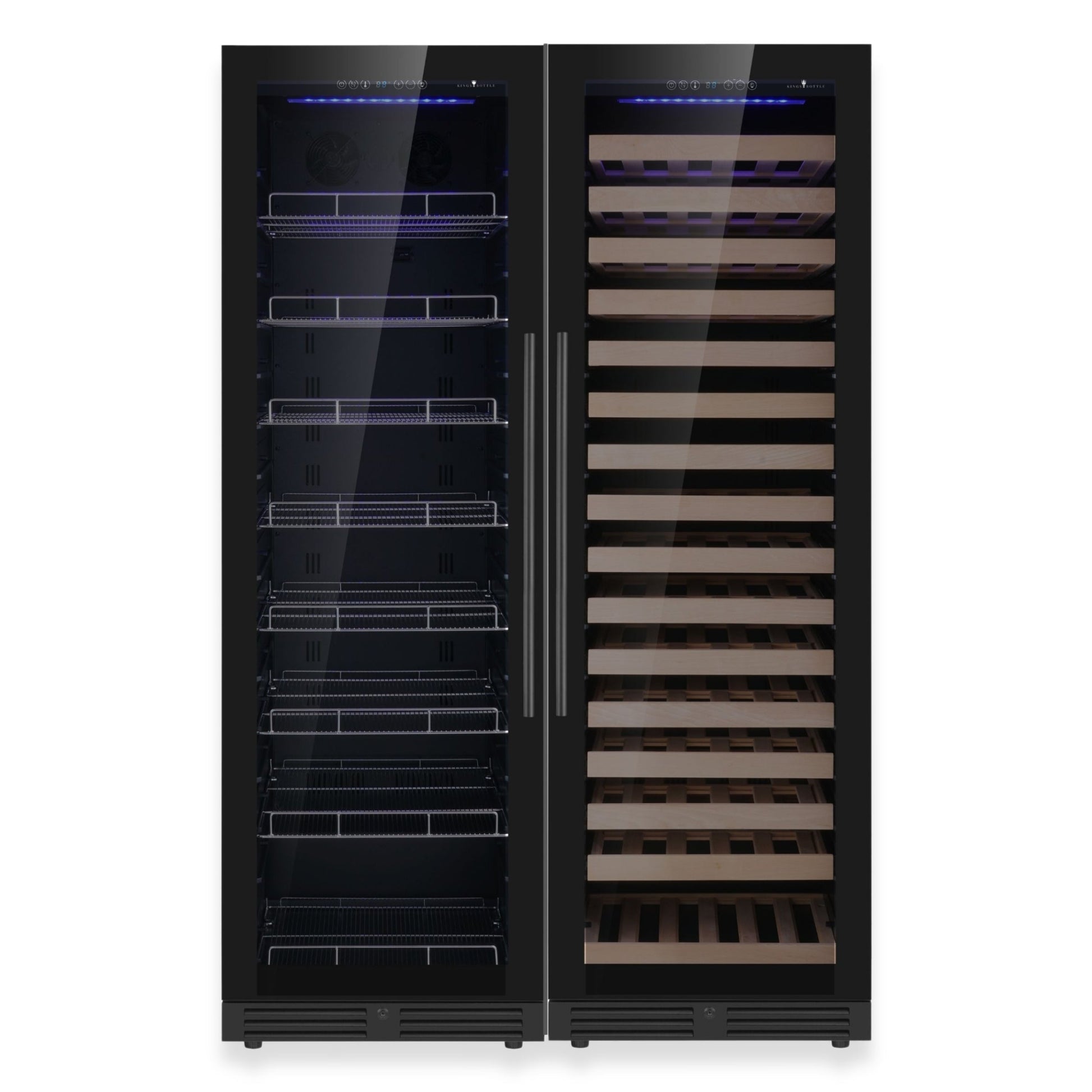

The KingsBottle Ultimate Wine & Beverage Upright Refrigerator Combo delivers efficient, elegant storage tailored for wines and beverages. Featuring two separate cooling zones, it maintains optimal temperatures—ideal wine storage in the upper section and chilled beverages in the lower. Equipped with an Embraco Inverter Compressor, it operates quietly while reducing energy usage by up to 40% versus standard compressors. The sleek Low-E glass door shields contents from UV light, preserving quality. Adjustable shelves accommodate various bottle and can sizes, and its sophisticated design suits both freestanding and built-in setups.
Key Features

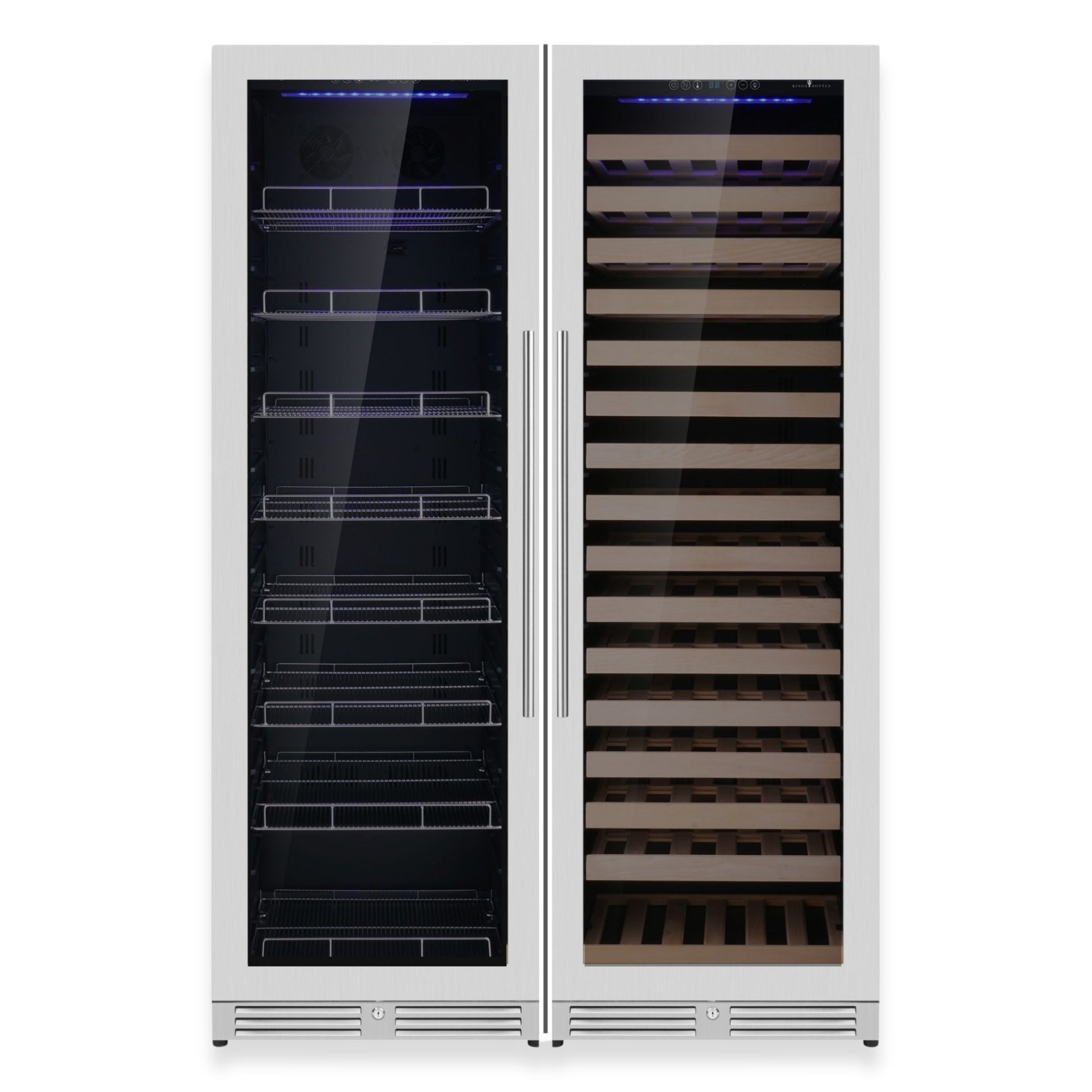

- Combo Storage Solution: Set of 2 units combining wine and beverage refrigeration in an upright design.
- Dual-Zone Capability: Optimizes temperature settings to preserve both wines and beverages.
- Low‑E Glass Door: Minimizes condensation and blocks UV rays for a clear, attractive display.
- Energy-Efficient Inverter Compressor: Delivers ultra-quiet, reliable cooling with precise temperature control.
-
Elegant Upright Design: Provides a modern, space-saving solution for upscale commercial or residential settings.
Specifications
Volume: | 30 CF (850 Liters) Total, 15 CF (425 Liters) Each |

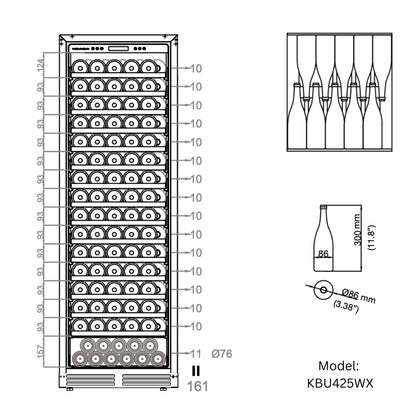

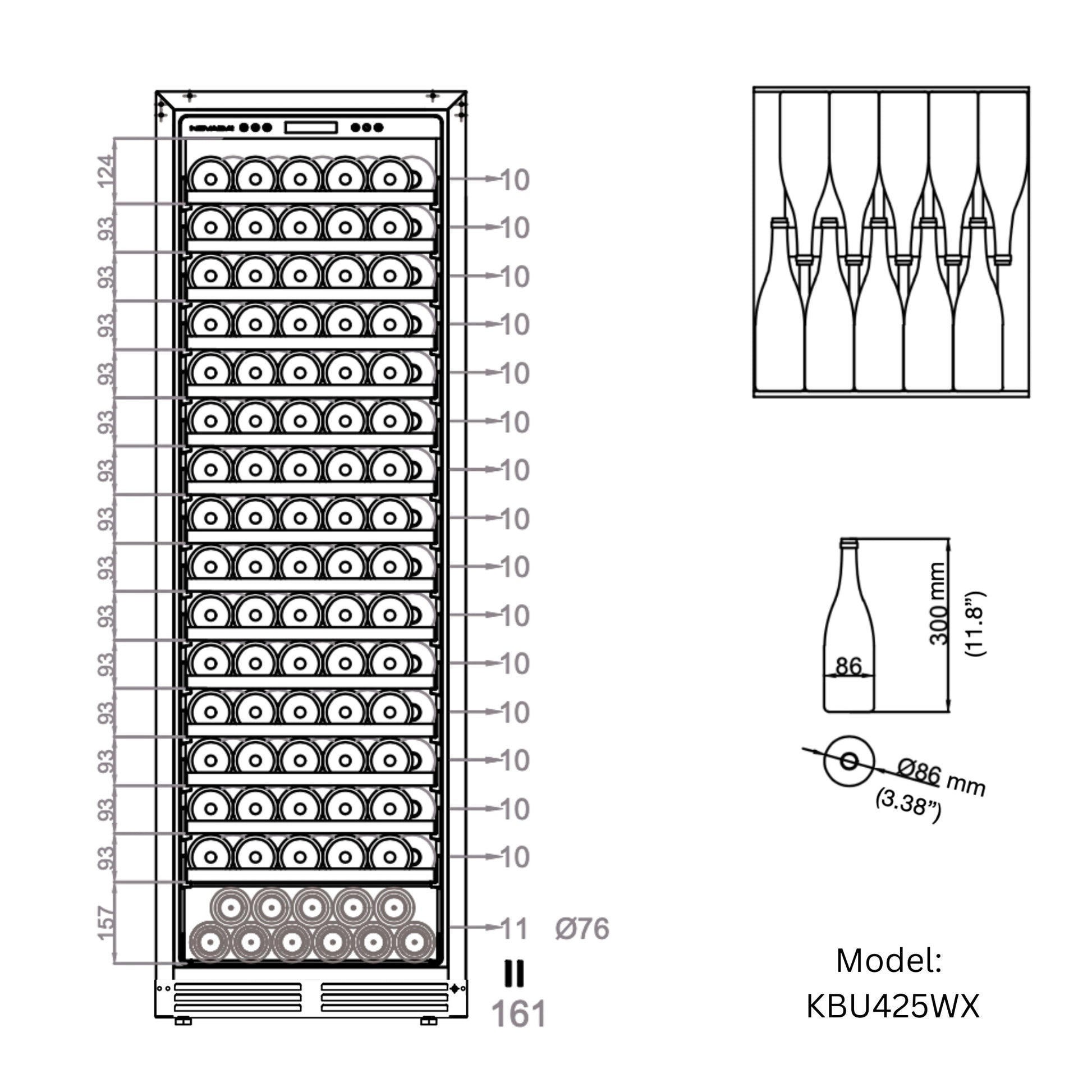

Capacity (by bottles): | 161 bottles |

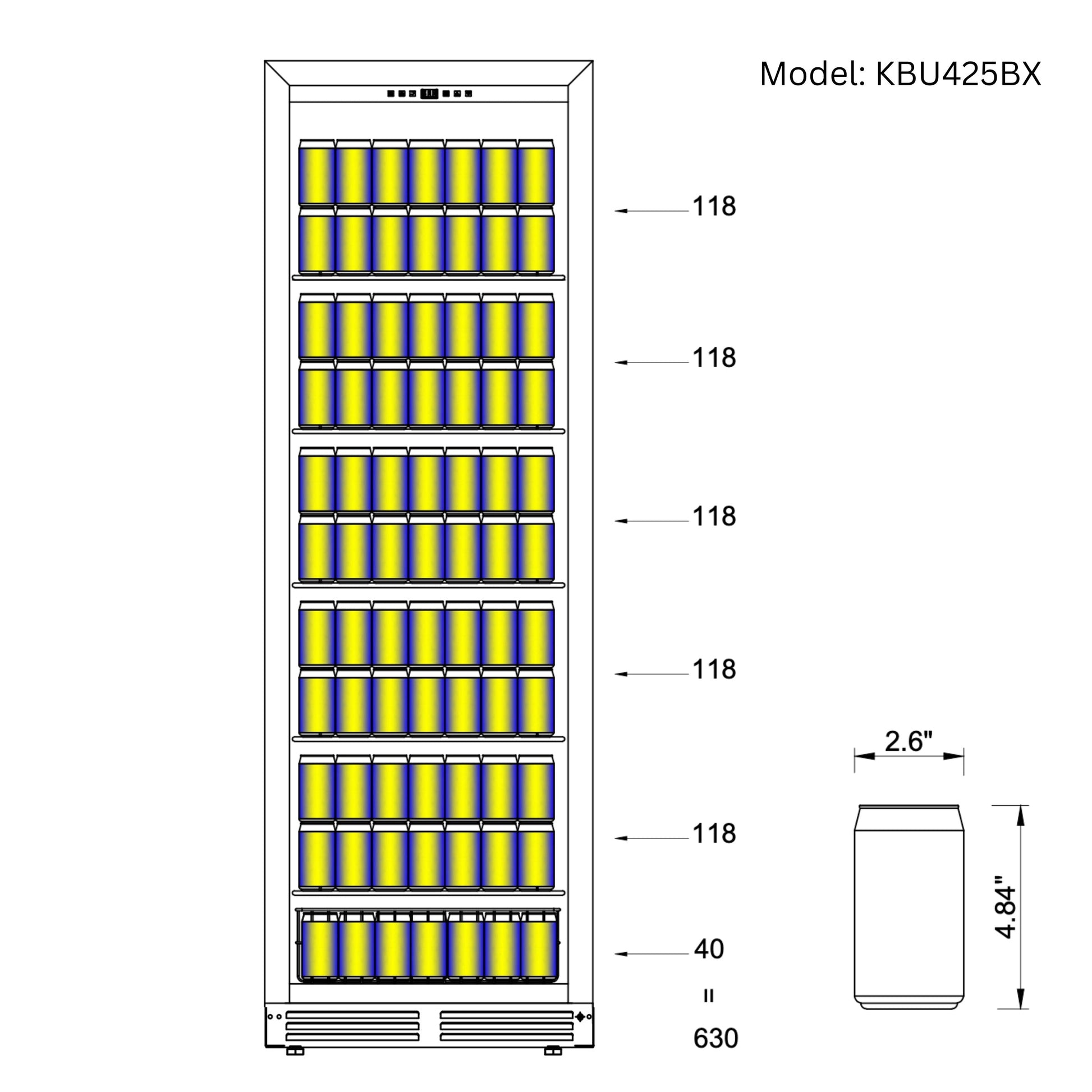

Capacity (by cans): | 630 cans |
Installation Type: | Built-In or Freestanding |
Climate Type: | N |
Temperature Zones: | Dual Zone |
Adjustable Temperature Range: |
|
Operating Room Temperature: | 32-100°F (0-38°C) |

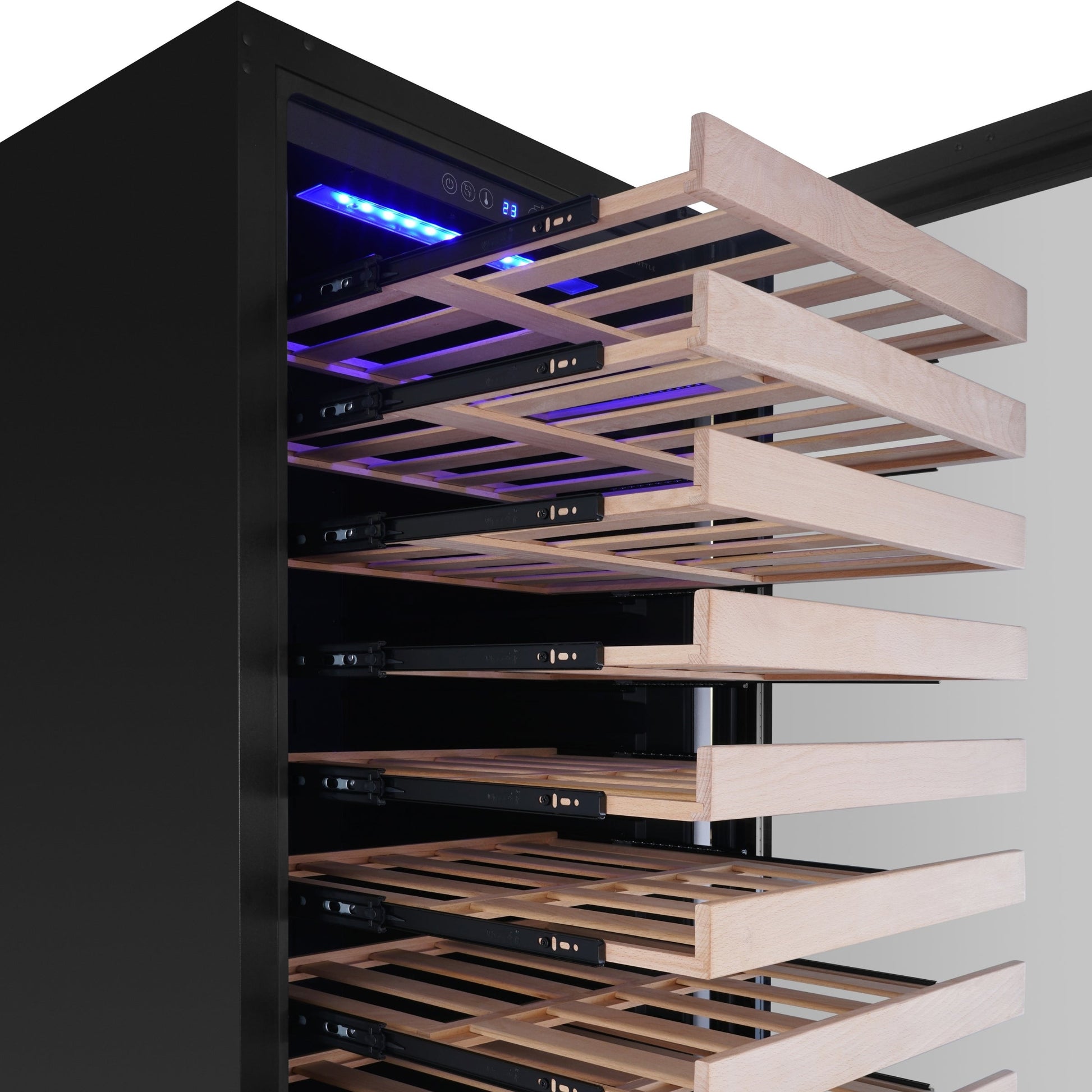

Shelf Configuration: | 8 Chromed Steel Shelves + 16 Beech Wooden Shelves |

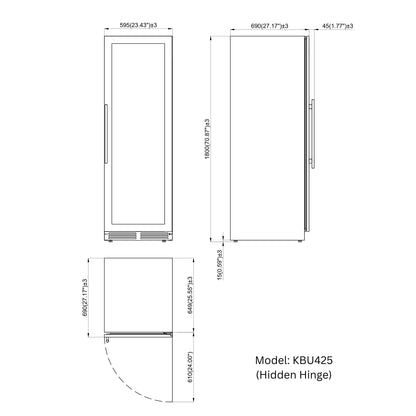

Dimensions: | 46.84” W x 27.36” D x 70.86” H, included stand height 0.59” |
Electrical
Compressor: | Embraco Inverter Compressors |
Power Supply: | 110-115V/60HZ |
Rated Power Input (W): | 330W (165W per unit) |
Rated Current: | 3.4A (1.7A per unit) |
Refrigerant: | R600A / 52g per unit |
Technical Features

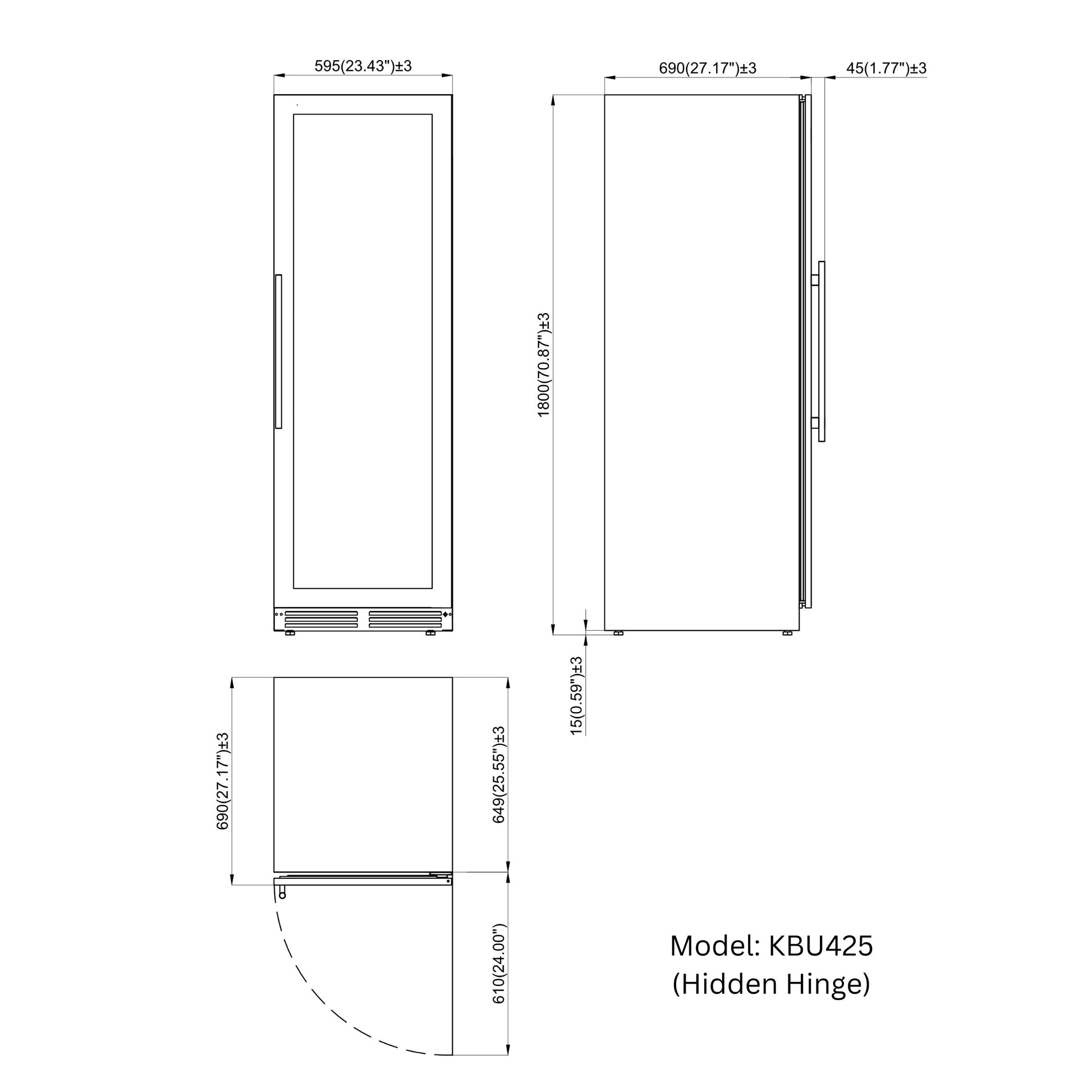

Dimensions & Diagrams

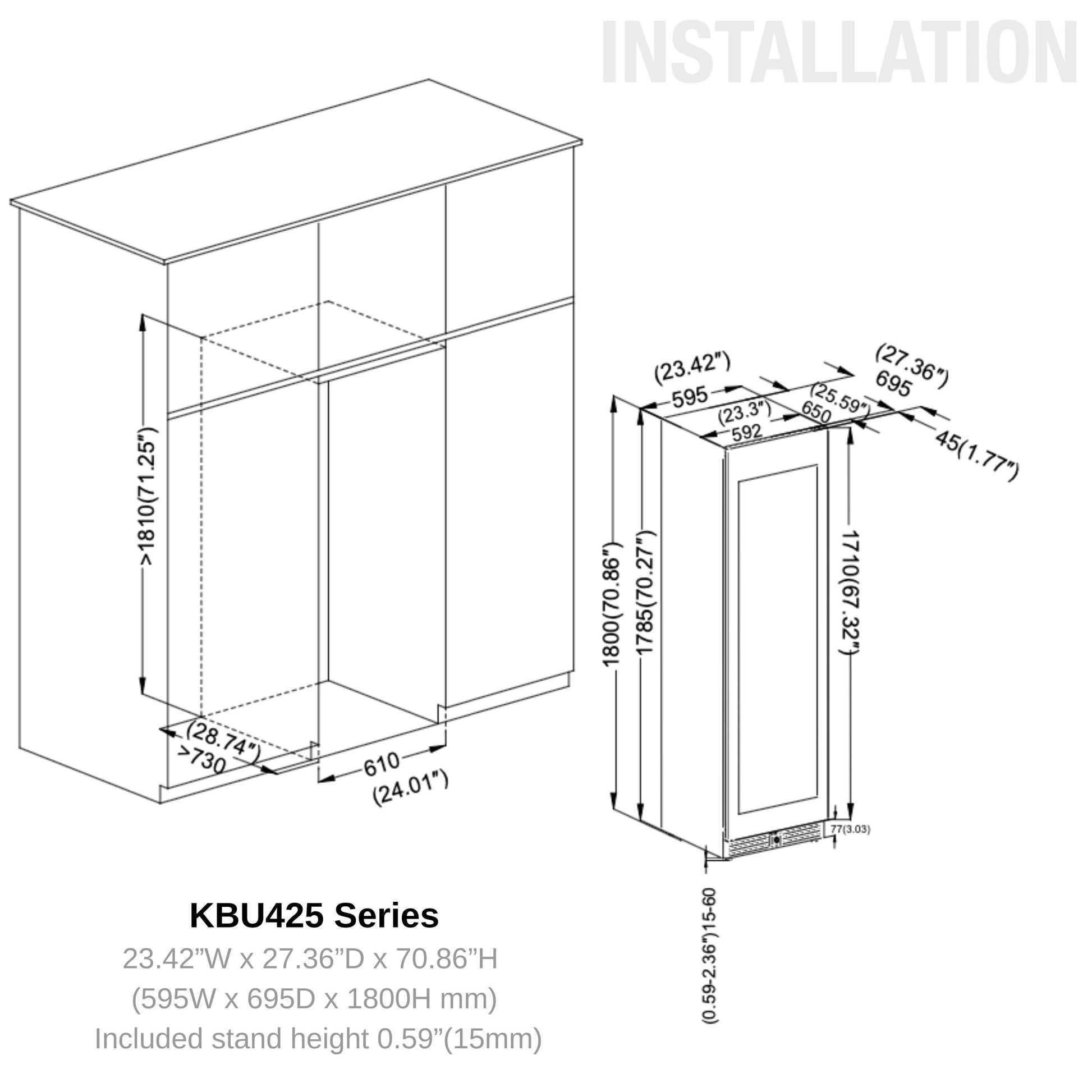

Installation Diagrams
User Instruction
This manual covers a combo set of two units: a Beverage Cooler and a Single Zone Wine Cooler.
- Download the Beverage Cooler User Manual (KBU145BX/KBU265BX/KBU425BX)
-
Download the Single Zone Wine Cooler User Manual (KBU145WX/KBU265WX/KBU425WX)
