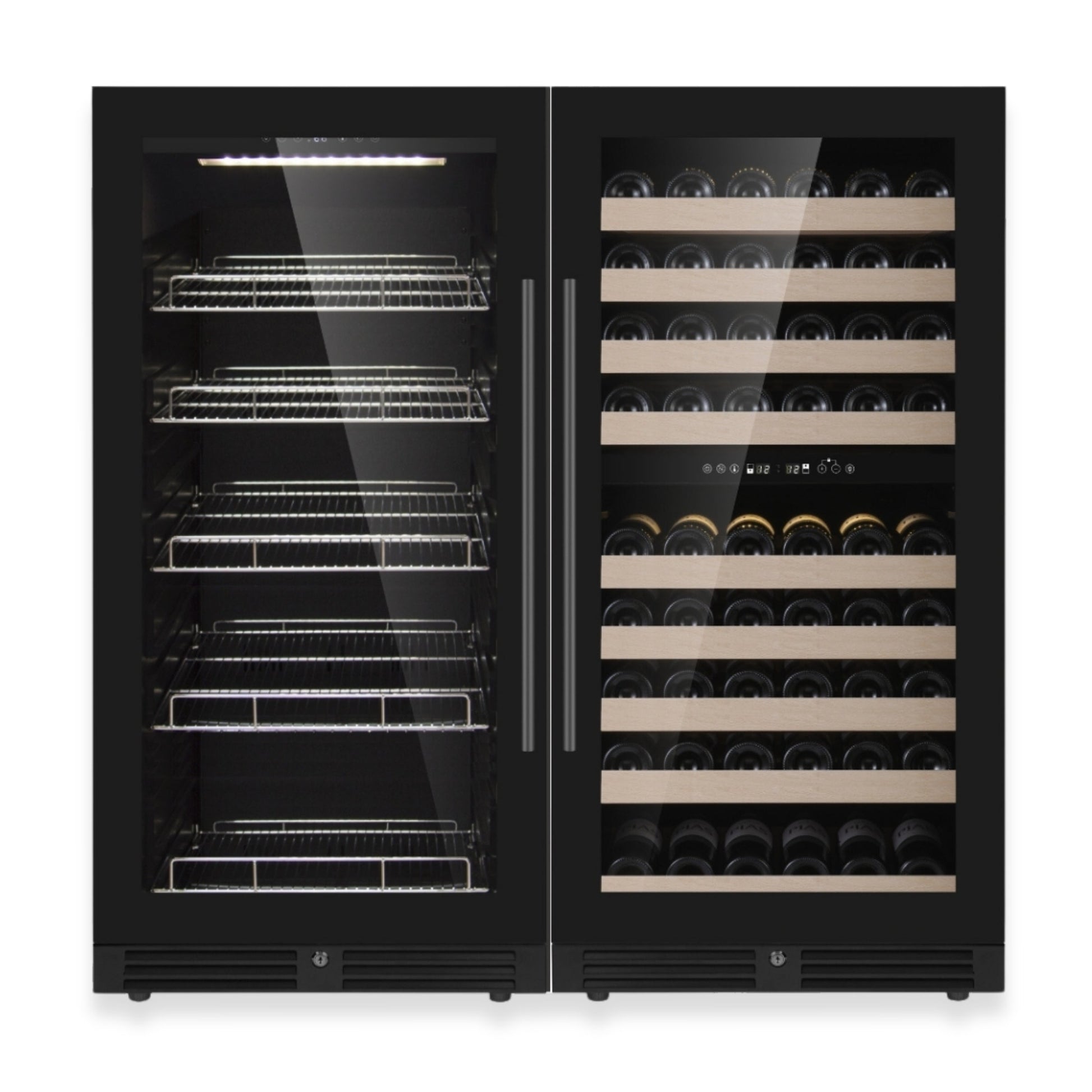

KingsBottle 47" High Wine & Beverage Refrigerator Combo with Triple Temp. Zones Glass Door With Stainless Steel Trim
KingsBottle 47" High Wine & Beverage Refrigerator Combo with Triple Temp. Zones Glass Door With Stainless Steel Trim
Couldn't load pickup availability

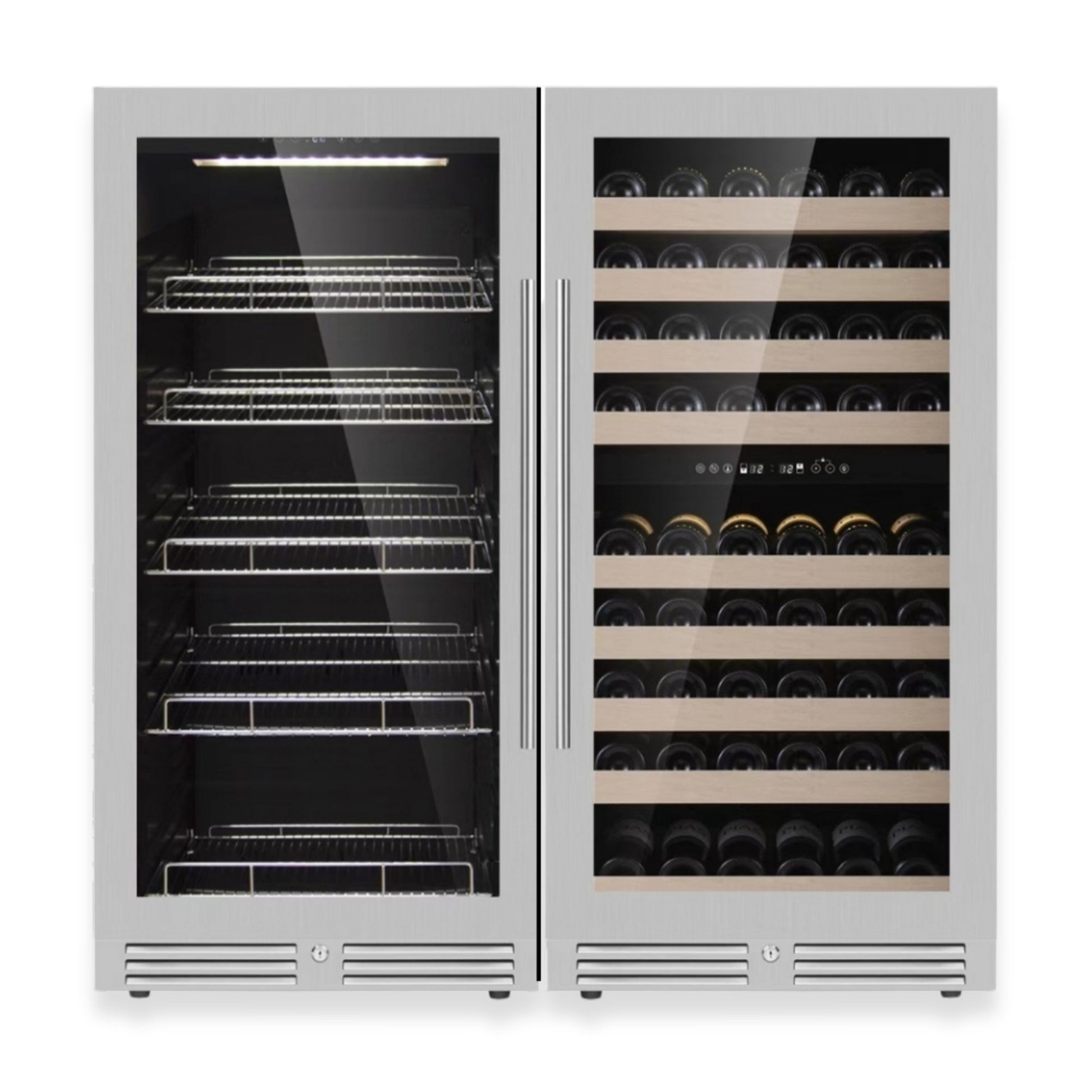

Designed for those seeking precise storage for both wine and beverages, this unit combines a dual-zone wine cooler with a dedicated beverage section. It offers two temperature zones: the upper zone ranges from 41°F to 54°F (5°C to 12°C) for white wines, while the lower zone maintains 54°F to 68°F (12°C to 20°C) for reds. The beverage compartment accommodates up to 389 twelve-ounce cans at optimal serving temperatures. Equipped with an Embraco Inverter Compressor, it delivers quiet, energy-efficient performance and accurate temperature control. A Low-E glass door provides UV protection and energy savings. Adjustable shelves and flexible installation options make it adaptable to any space.
Key Features
- Triple-Zone Storage Combo: A set of 2 units delivers three independent zones—one dedicated for beer and two zones in the wine cooler for white and red wines, ensuring each is stored at its optimal serving condition.
- Low‑E Glass Door: Minimizes condensation and blocks harmful UV rays to protect and showcase your beverages with a crystal-clear display.
- Embraco Inverter Compressor: Ensures ultra-quiet, energy-efficient cooling with precise temperature management across all zones.
-
Elegant 47-Inch Design: A sleek, space-saving solution that enhances upscale commercial and residential environments.
Specifications
| Volume: | 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each |
| Capacity (by bottles): | 91 bottles |

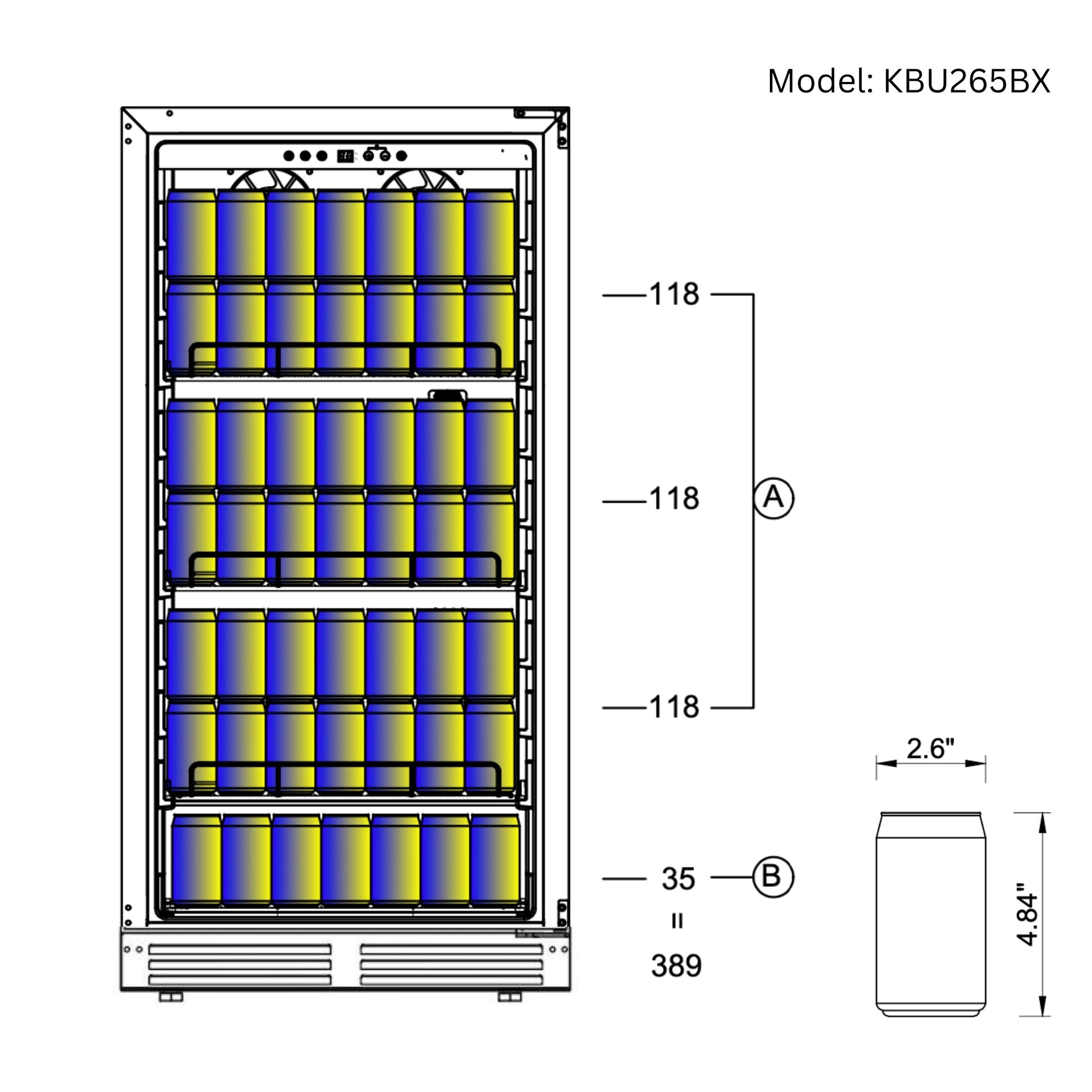

| Capacity (by cans): | 389 cans |
| Installation Type: | Built-In or Freestanding |
| Climate Type: | N |
| Temperature Zones: | Triple Zone |
| Adjustable Temperature Range: |
|
| Operating Room Temperature: | 32-100°F (0-38°C) |
| Shelf Configuration: | 5 Chromed Steel Shelves + 8 Beech Wooden Shelves |
| Dimensions: | 46.84” W x 27.55” D x 47.24” H, included stand height 0.59” |
Electrical
| Compressor: | Embraco Inverter Compressors |
| Power Supply: | 110-115V/60HZ |
| Rated Power Input (W): | 330W (165W per unit) |
| Rated Current: | 3.4A (1.7A per unit) |
| Refrigerant: | R600A / 45g per unit |
Technical Features
 |
Inverter Compressor Top brand Embraco Inverter Compressor; Super quiet and reduces energy consumptions by 40%. |
 |
Patented sink of compressor Increases the air circulation space around the compressor; Better cooling performance, less vibration, less noise. |
 |
45mm Thickness C-Pantane Thicker foam helps save energy consumption and optimize cooling performance |
 |
Fan Circulated Air-Cooling System
Ensure temperature uniformity in the cabinet;
Compensates for air humidity |
 |
Activated Carbon Filter Effectively filters impurities in the air while keeping the air in the cabinet fresh |
 |
Low-E Glass* Reduce energy consumption; Less condensation on the glass door. |
 |

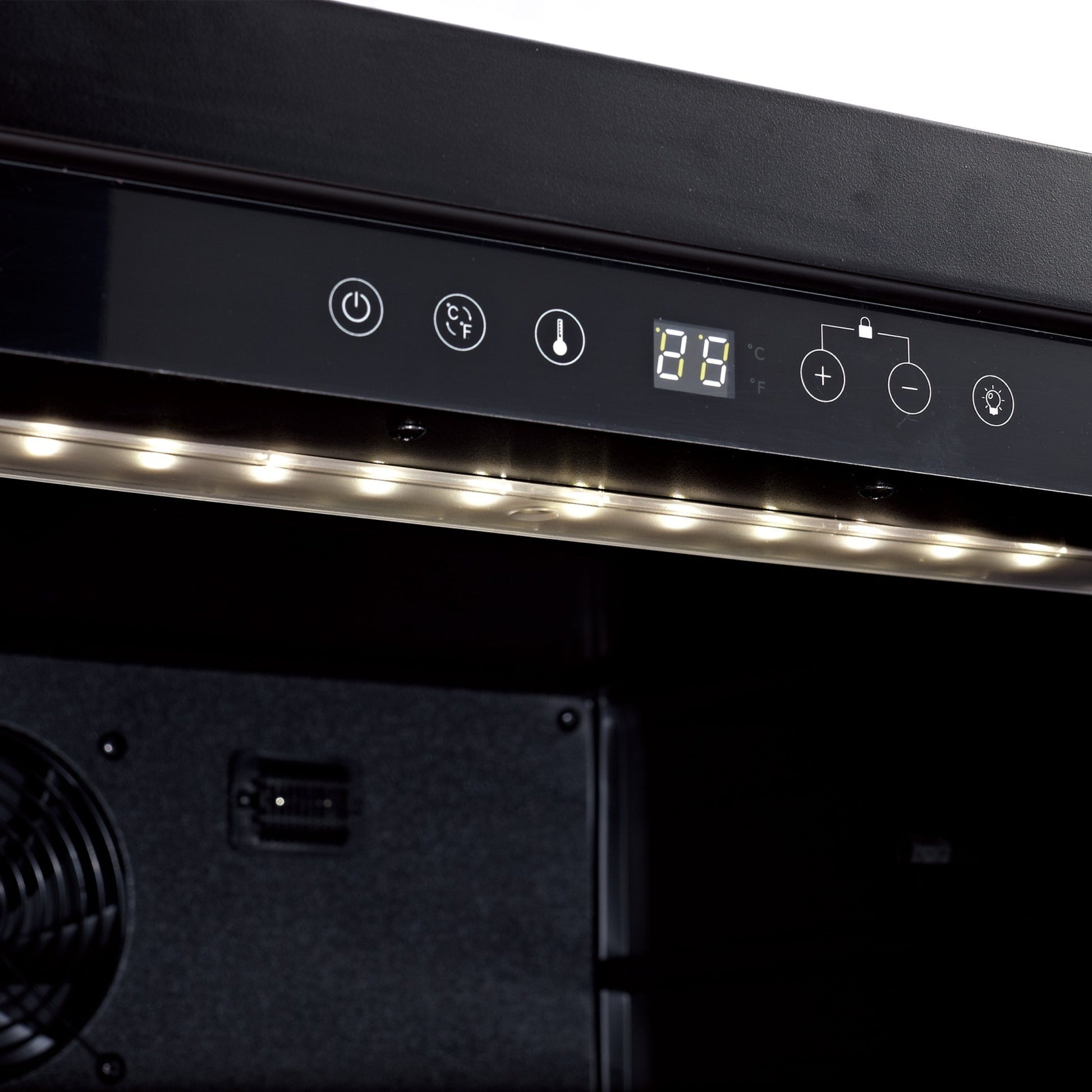

LED Display Digital Touchpad Control Simple and easy to operate; Clear and accurate. |
 |
Magnetic Switch Aggressive light control 2 minutes door open alarm |
 |
Hidden Door Hinge
Laminated steel plate, integrated molding; Full Built-in Design.
|
 |

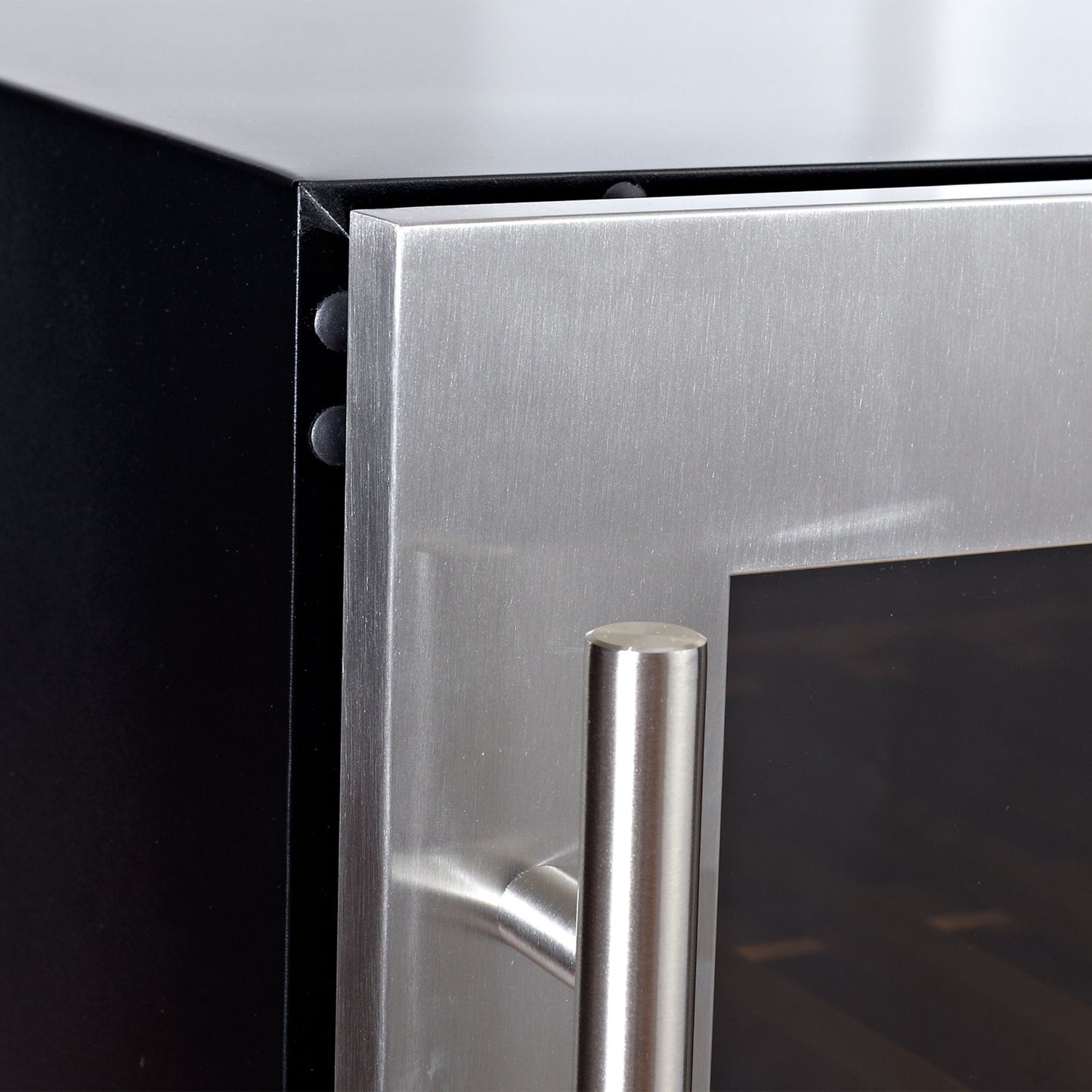

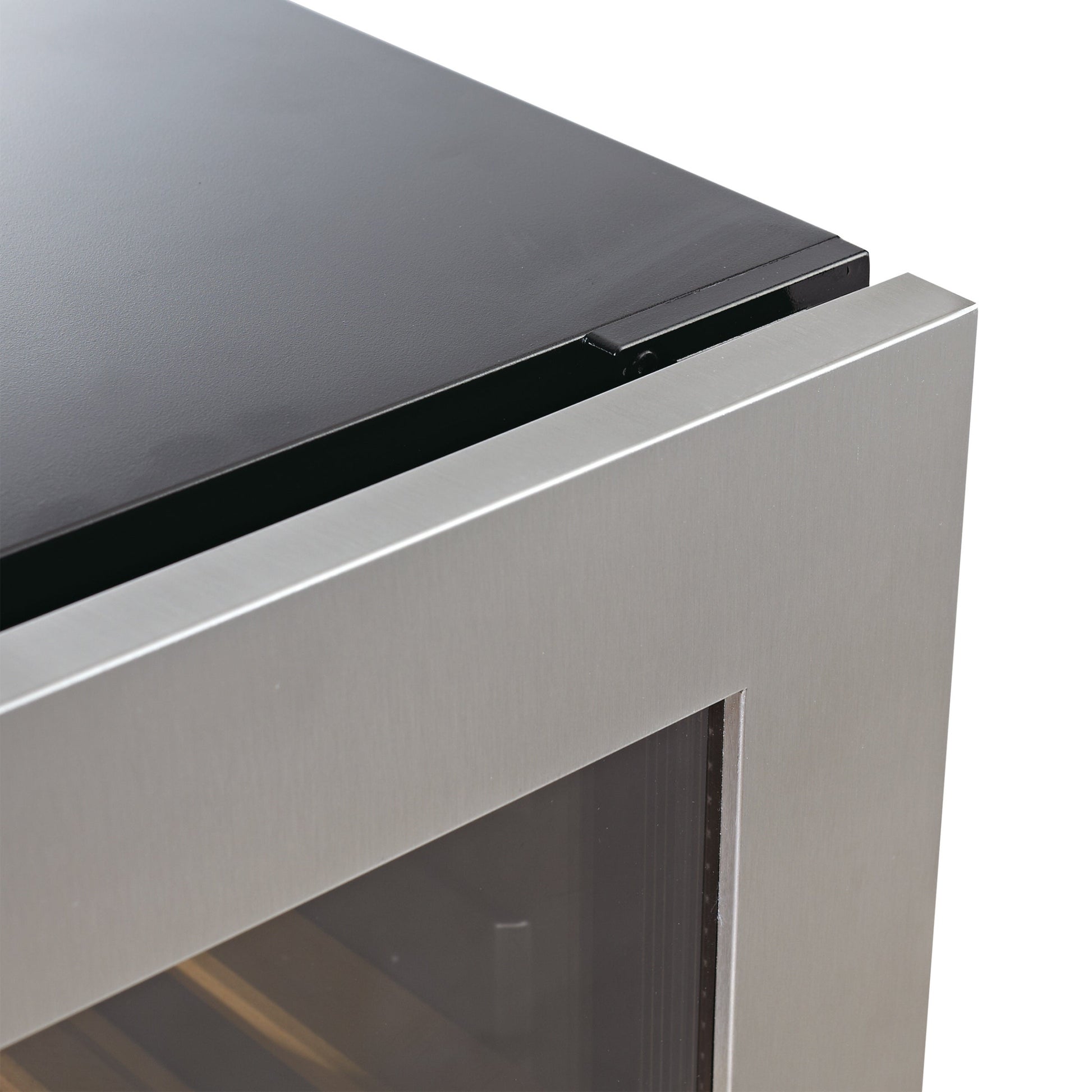

Seamless S/S Door Frame
Artistic appearance; Thin door design |
|

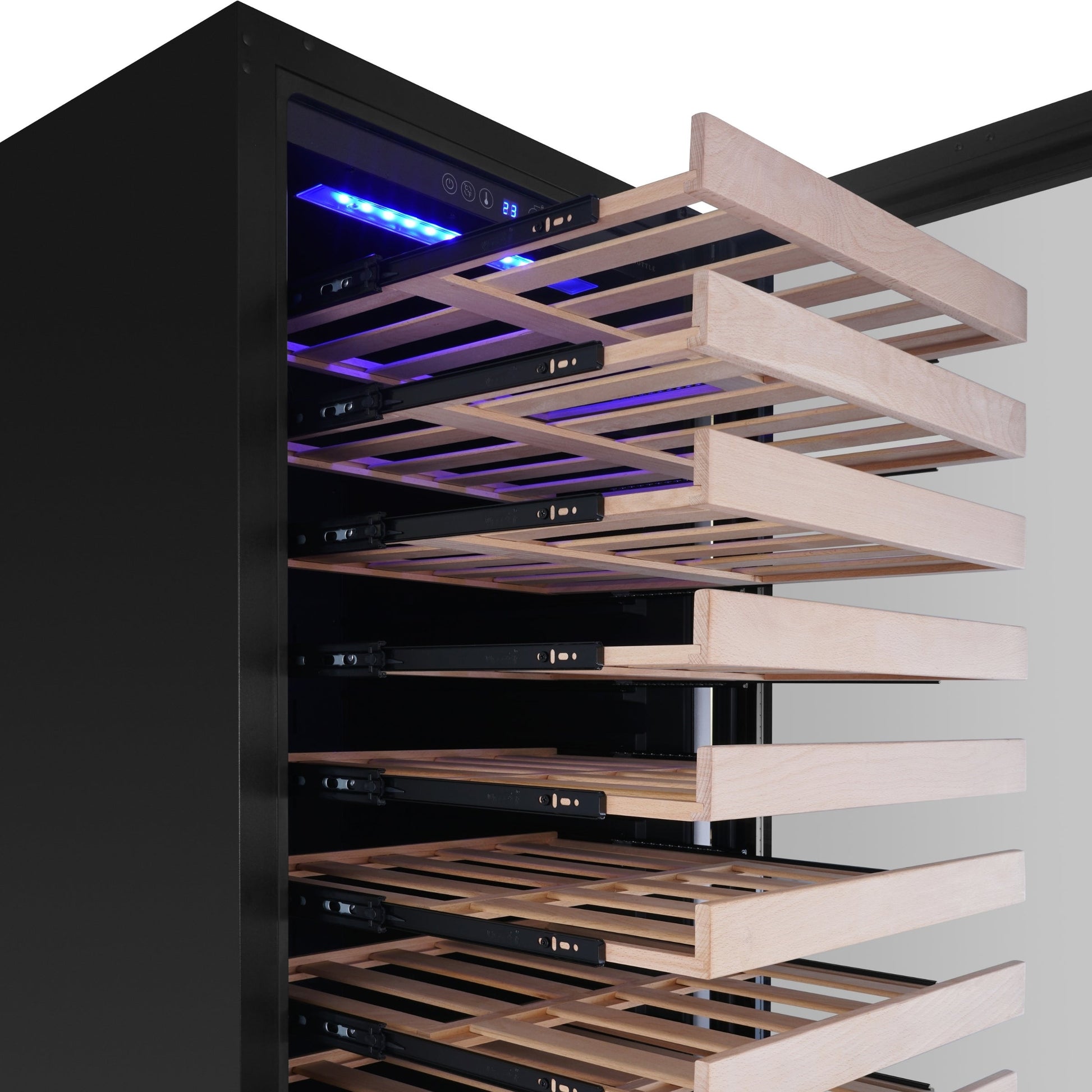

Beech Wooden Shelf
Wine friendly beech wooden shelves; Cleverly spaced to fit regular and larger bottles. |

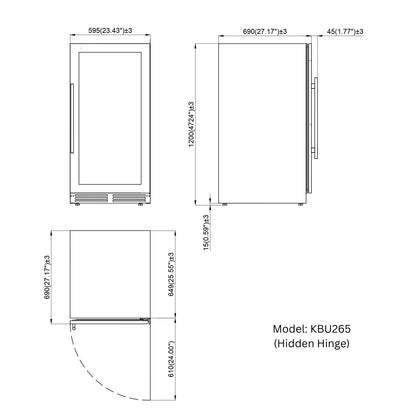

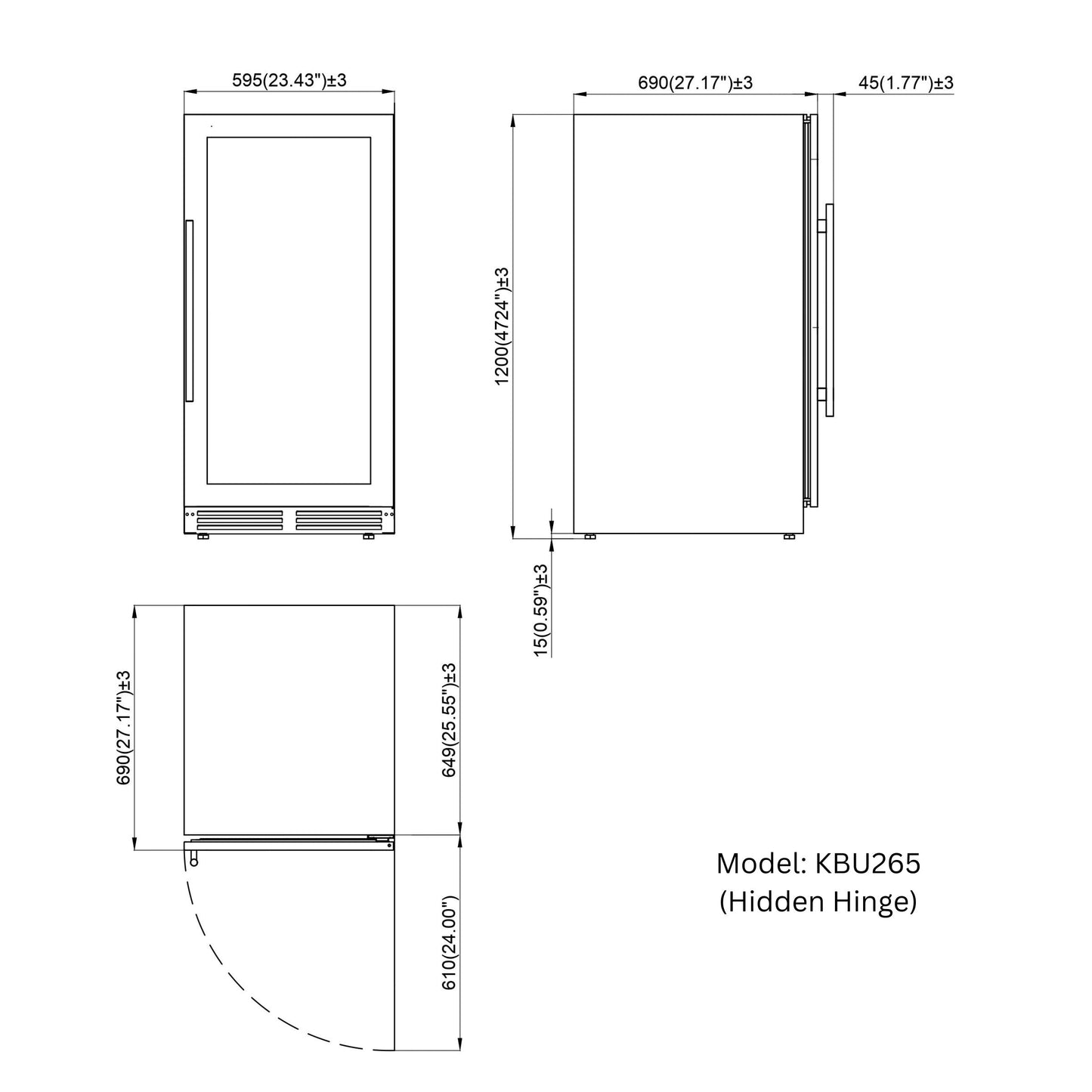

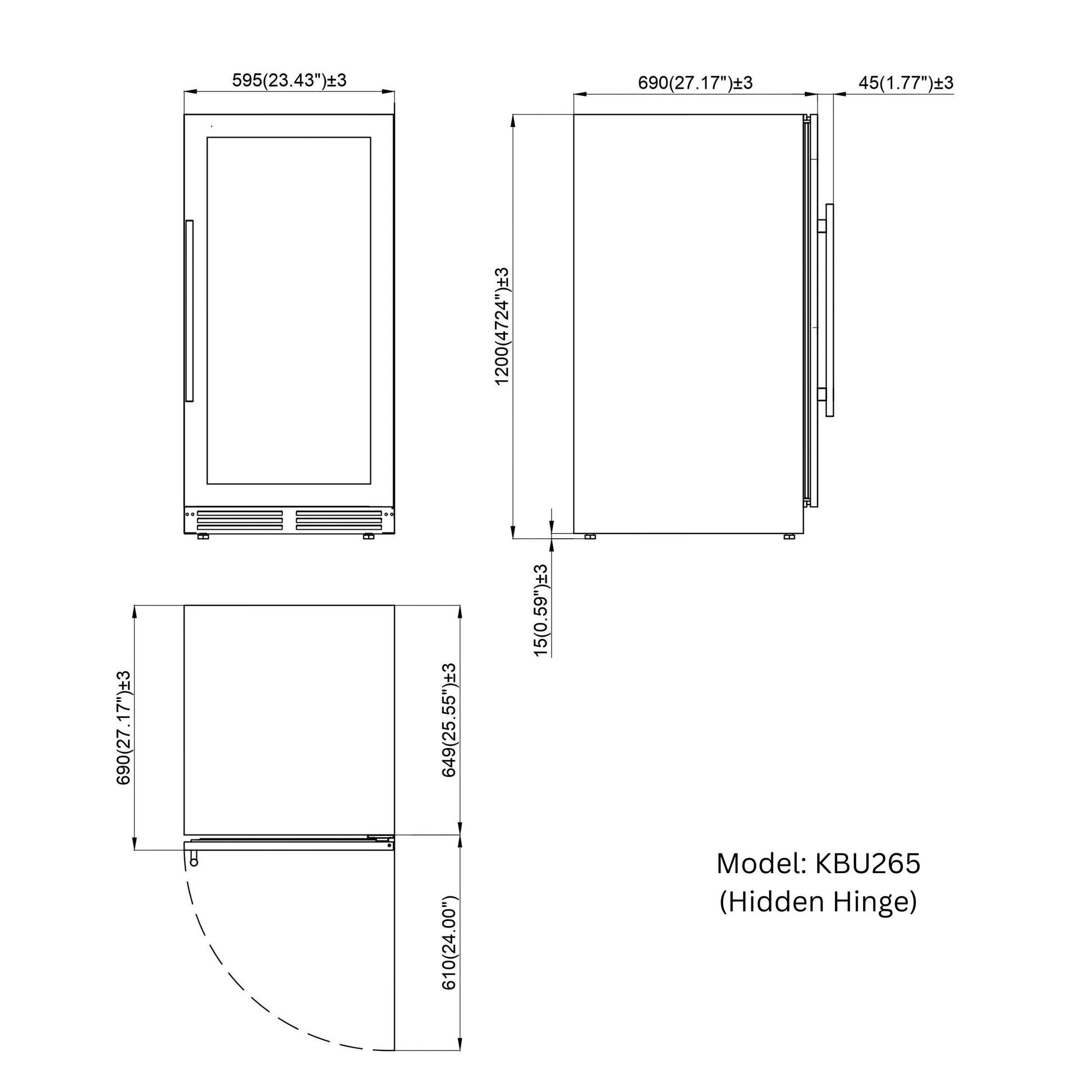

Dimensions & Diagrams

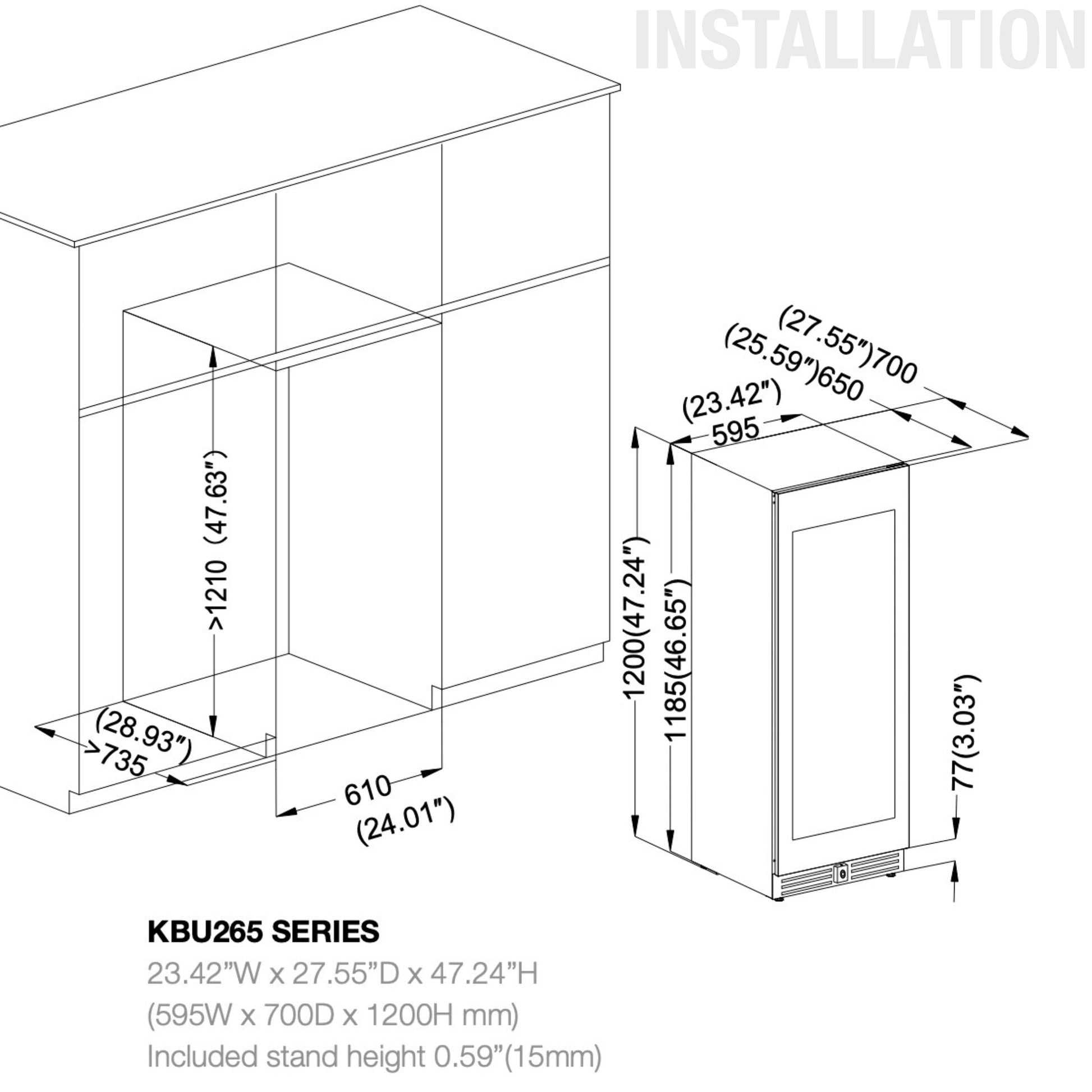

Installation Diagrams
User Instruction
This manual covers a combo set of two units: a Beverage Cooler and a Dual Zone Wine Cooler.
