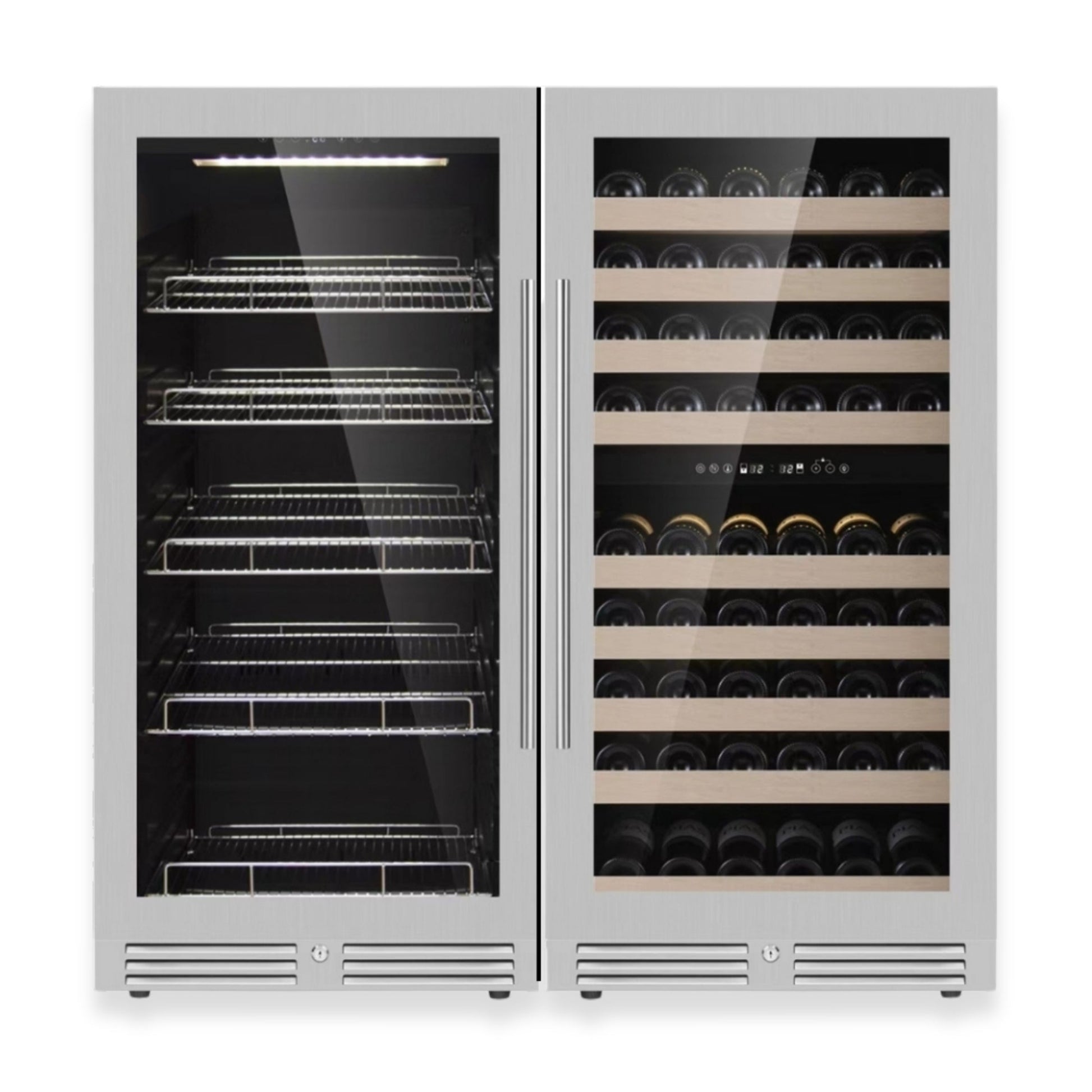

KingsBottle 47" High Wine & Beverage Refrigerator Combo with Triple Temp. Zones Glass Door With Stainless Steel Trim
KingsBottle 47" High Wine & Beverage Refrigerator Combo with Triple Temp. Zones Glass Door With Stainless Steel Trim
Couldn't load pickup availability
The 47" High Triple-Zone Wine & Beverage Refrigerator Combo is crafted for connoisseurs seeking precise storage for both wines and beverages. It includes a dual-zone wine cooler with adjustable temperatures: the upper zone ranges from 41°F to 54°F (5°C to 12°C) for white wines, while the lower zone maintains 54°F to 68°F (12°C to 20°C) for red wines. A separate beverage compartment holds up to 389 (12 oz) cans at the perfect serving temperature. Equipped with an Embraco Inverter Compressor, it ensures quiet, energy-efficient, and accurate temperature regulation. The Low-E glass door protects against UV rays and enhances energy savings, complemented by premium adjustable shelves. Designed for built-in or freestanding installation, it seamlessly integrates into any setting.
Key Features
- Triple-Zone Storage Combo: A set of 2 units delivers three independent zones—one dedicated for beer and two zones in the wine cooler for white and red wines, ensuring each is stored at its optimal serving condition.
- Low‑E Glass Door: Minimizes condensation and blocks harmful UV rays to protect and showcase your beverages with a crystal-clear display.
- Embraco Inverter Compressor: Ensures ultra-quiet, energy-efficient cooling with precise temperature management across all zones.
-
Elegant 47-Inch Design: A sleek, space-saving solution that enhances upscale commercial and residential environments.
Specifications
Volume: | 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each |
Capacity (by bottles): | 91 bottles |

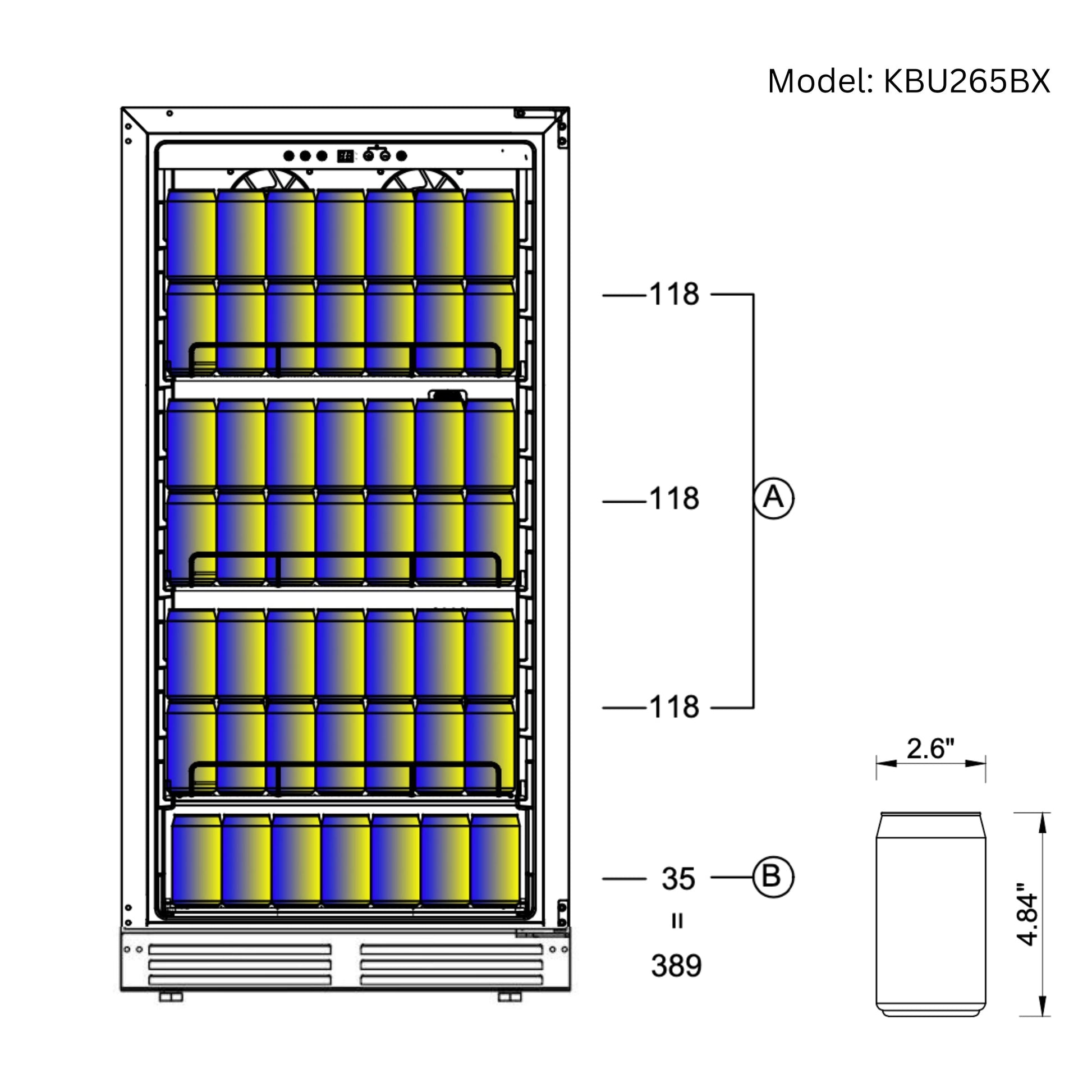

Capacity (by cans): | 389 cans |
Installation Type: | Built-In or Freestanding |
Climate Type: | N |
Temperature Zones: | Triple Zone |
Adjustable Temperature Range: |
|
Operating Room Temperature: | 32-100°F (0-38°C) |

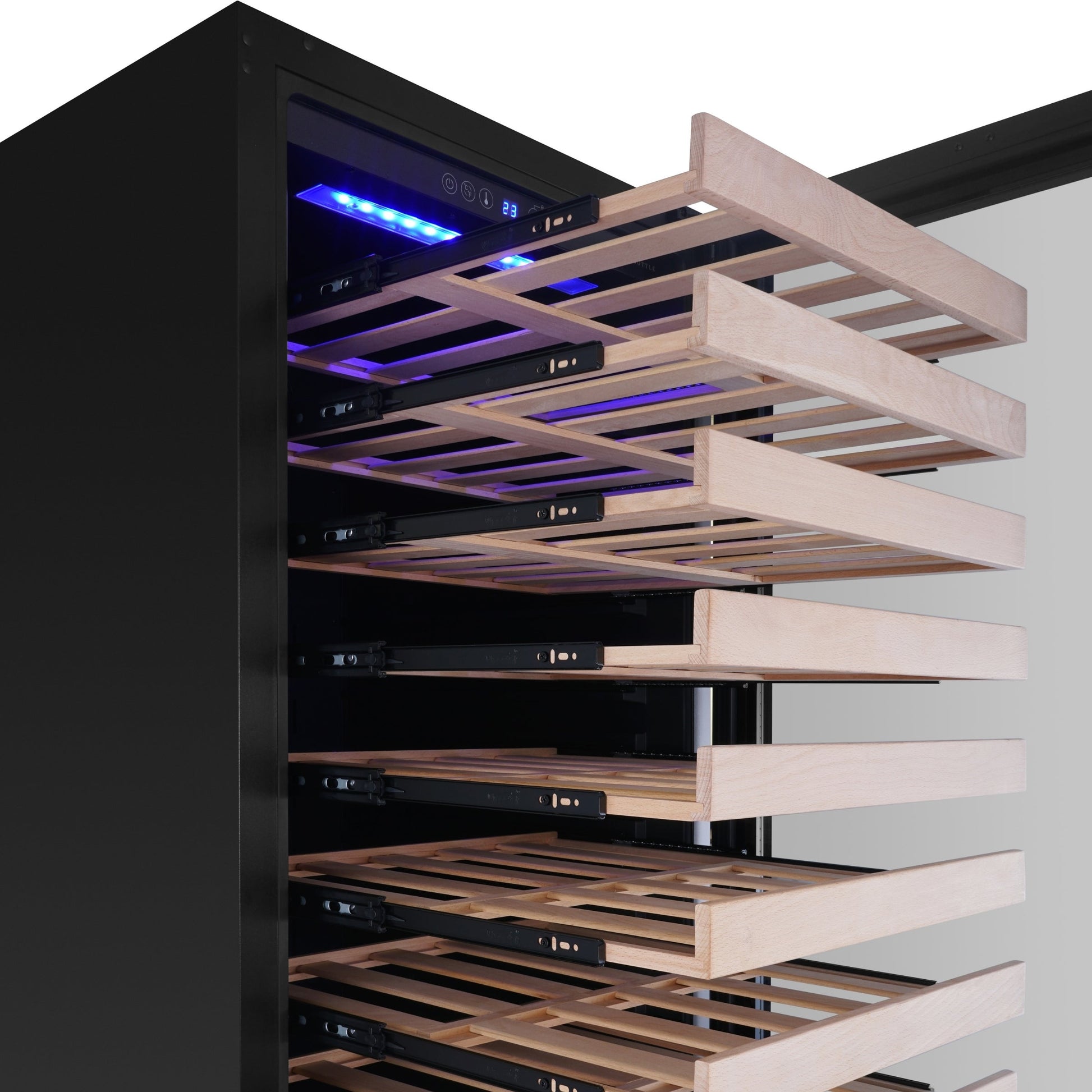

Shelf Configuration: | 5 Chromed Steel Shelves + 8 Beech Wooden Shelves |
Dimensions: | 46.84” W x 27.55” D x 47.24” H, included stand height 0.59” |
Electrical
Compressor: | Embraco Inverter Compressors |
Power Supply: | 110-115V/60HZ |
Rated Power Input (W): | 330W (165W per unit) |
Rated Current: | 3.4A (1.7A per unit) |
Refrigerant: | R600A / 45g per unit |
Technical Features

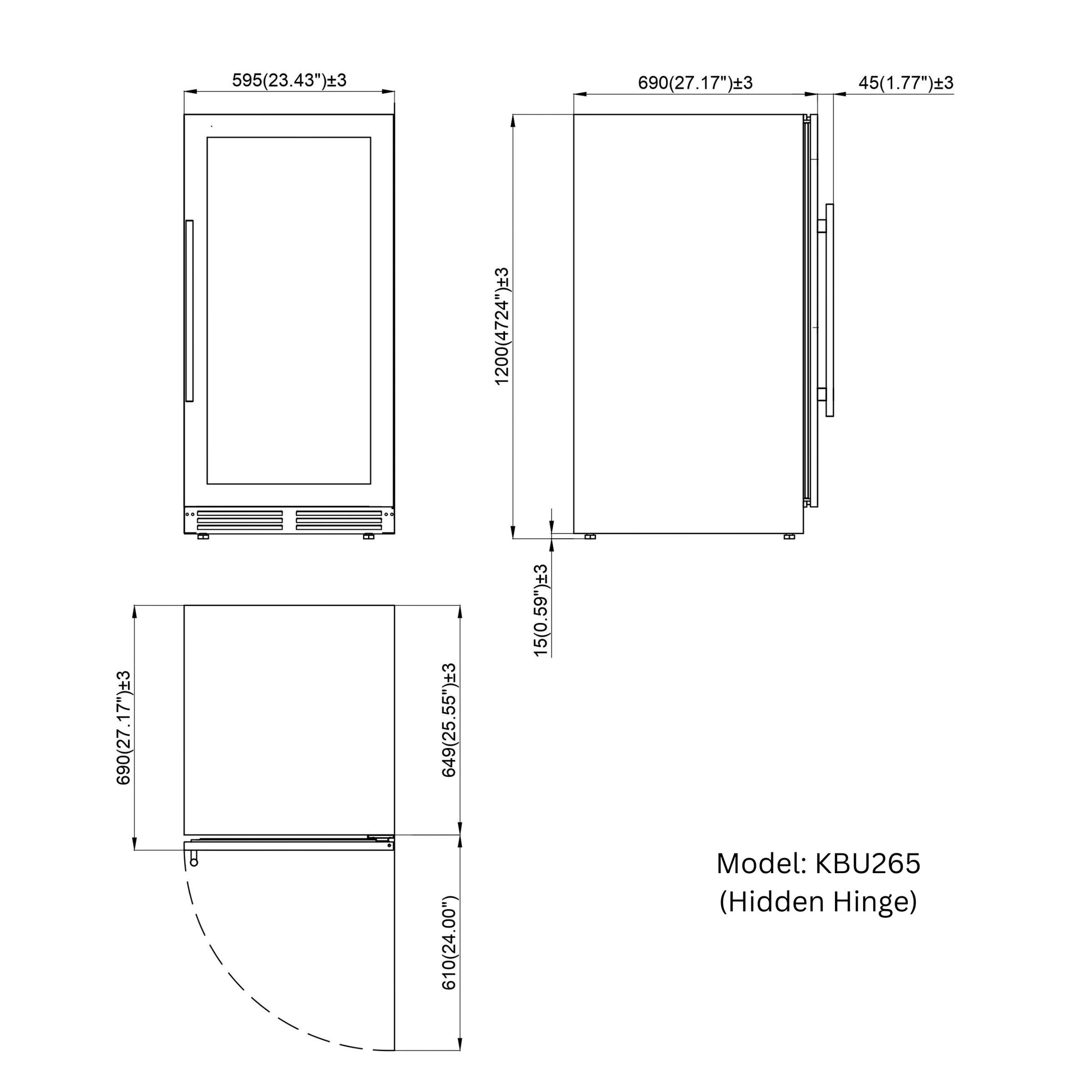

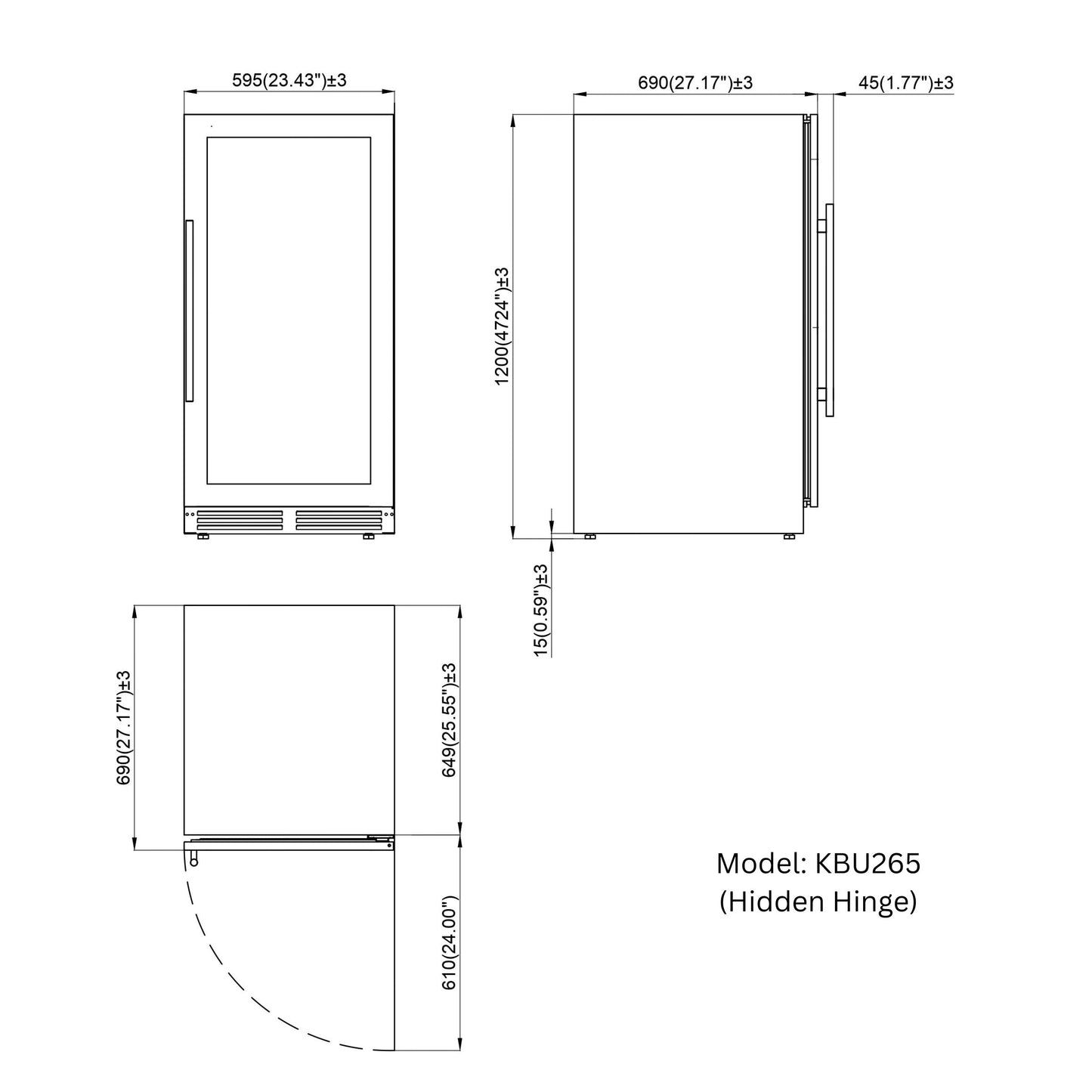

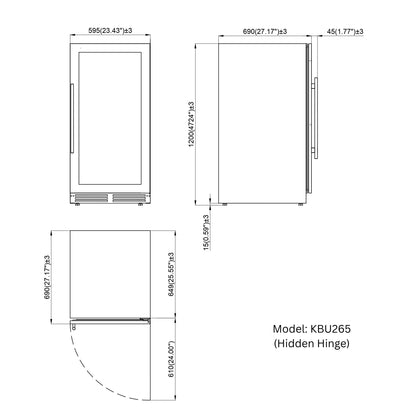

Dimensions & Diagrams

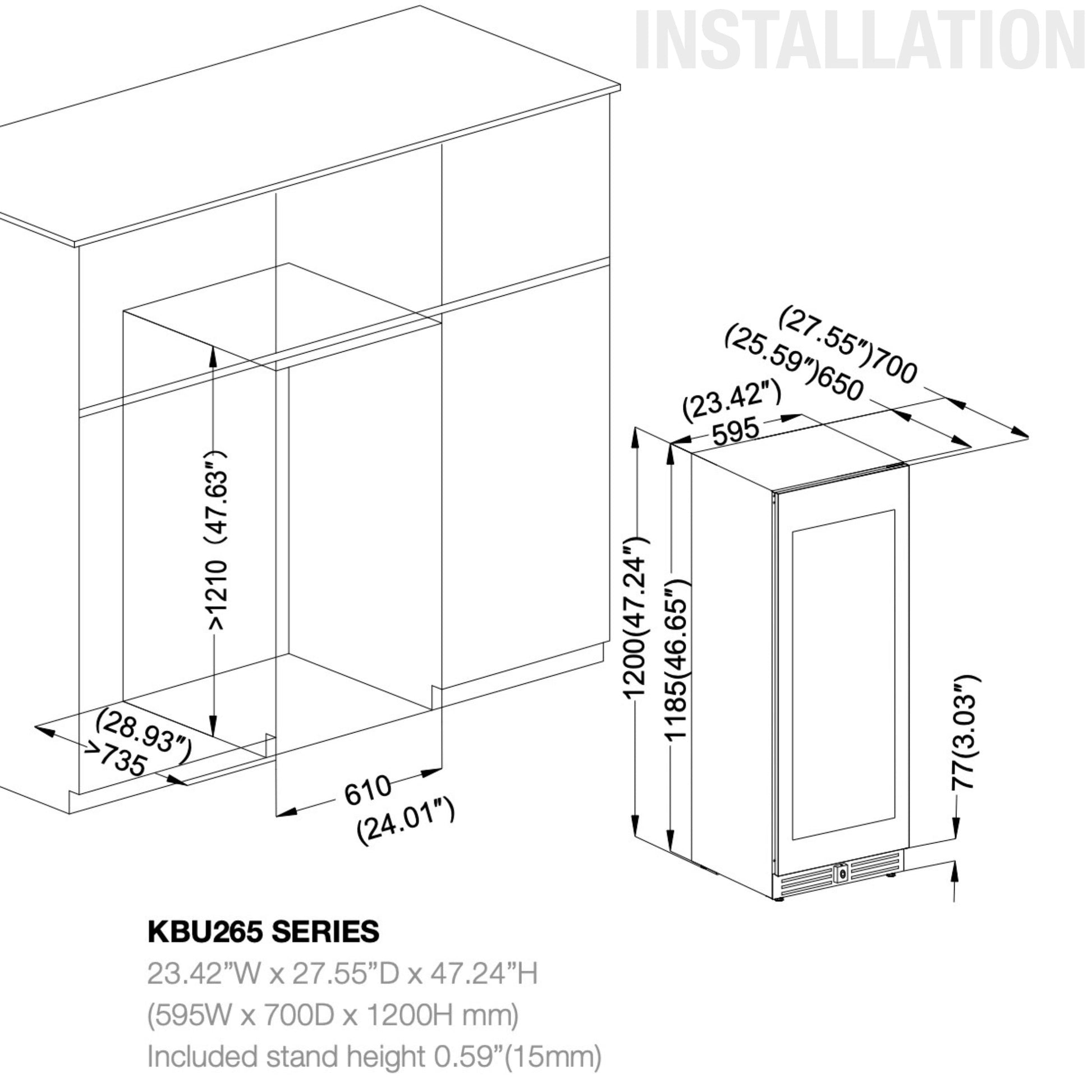

Installation Diagrams
User Instruction
This manual covers a combo set of two units: a Beverage Cooler and a Dual Zone Wine Cooler.
- Download the Beverage Cooler User Manual (KBU145BX/KBU265BX/KBU425BX)
-
Download the Dual Zone Wine Cooler User Manual (KBU145DX/KBU265DX/KBU425DX)
