KingsBottle

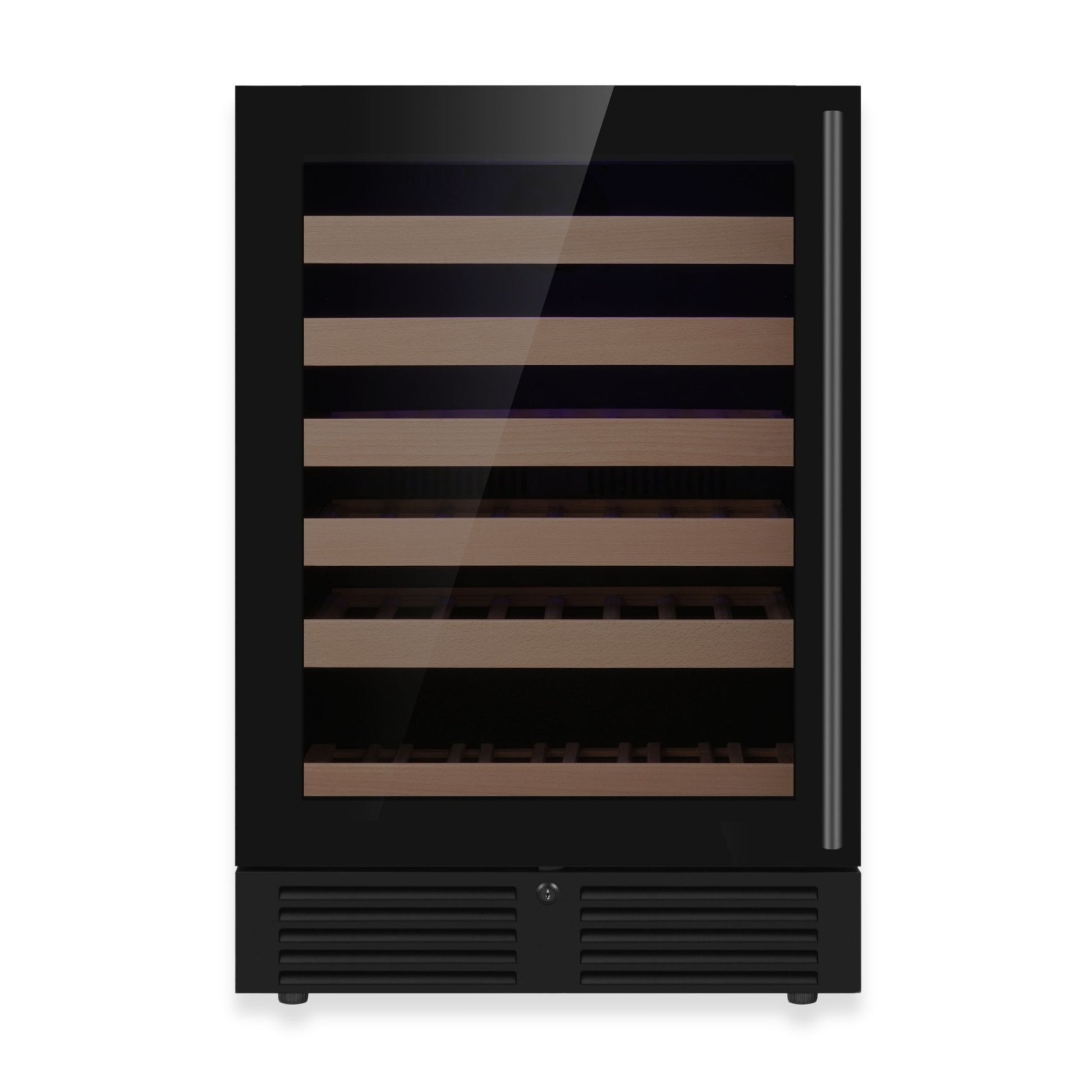

KingsBottle 24-Inch Under-Counter Single Zone Wine Cooler with Low-E Borderless Black Glass Door Right Hand Hinge

KingsBottle 24-Inch Under-Counter Single Zone Wine Cooler with Low-E Borderless Black Glass Door Right Hand Hinge

Door Style
Door Direction
Regular price $2,199.00 USD
Regular price $0.00 USD Sale price $2,199.00 USD
Sale Sold out
Shipping calculated at checkout.

The 24-Inch Under-Counter Wine Cooler with Low-E Glass Door features a single-zone design to maintain your wine at the ideal temperature. Powered by an Embraco Inverter Compressor, it operates quietly and efficiently. Its Low-E Glass Door offers strong UV protection while reducing condensation, preserving the integrity of your collection. The unit’s adjustable shelves accommodate various bottle sizes, and its sleek under-counter build integrates effortlessly into kitchens or bars. For enhanced versatility, consider our same-size dual-zone wine cooler or pair this model with the 24-Inch Low-E Glass Door Beer Fridge for complementary storage.

Key Features

  • Single-Zone Cooling: Maintains one consistent temperature setting across the entire storage area.
  • Under-Counter Design: Ideal for seamless built-in integration, saving precious counter space.
  • Low‑E Glass Door: Dual-layer tempered glass with a low emissivity coating reduces condensation and blocks harmful UV rays.
  • Energy Efficient: Equipped with an inverter compressor that delivers quiet operation and reduces energy consumption.
  • Customizable Storage: Features adjustable beech wooden shelves designed to accommodate various bottle shapes and sizes.

Specifications

Volume: 5.12CF (145 Liters)
Capacity (by bottles): 46 bottles
Installation Type: Built-In or Freestanding
Climate Type: N
Temperature Zones: Dual Zone
Adjustable Temperature Range:
  • Upper Zone 35°F to 54°F (2°C to 12°C)
  • Lower Zone 54°F to 68°F (12°C to 20°C)
Operating Room Temperature: 32-100°F (0-38°C)
Shelf Configuration: 6 Beech Wooden Shelves
Dimensions: 23.42”W x 22.75”D x 33.99”H, included stand height 0.59”

Electrical

Compressor: Embraco Inverter Compressor
Defrost Type: Automatic defrost
Power Supply: 110-115V/60HZ
Rated Power Input (W): 100W
Rated Current: 1.2A
Refrigerant: R600A / 25g
Power Lamp: 0.7Wx2
Energy Efficiency Standard Compliance: ETL/DOE

Technical Features

Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet and reduces energy consumptions by 40%.
Patented sink of compressor
Increases the air circulation space around the compressor; Better cooling performance, less vibration, less noise.
45mm Thickness C-Pantane
Thicker foam helps save energy consumption and optimize cooling performance
Fan Circulated Air-Cooling System
Ensure temperature uniformity in the cabinet;
Compensates for air humidity
Activated Carbon Filter
Effectively filters impurities in the air while keeping the air in the cabinet fresh
Low-E Glass*
Reduce energy consumption;
Less condensation on the glass door.
LED Display Digital Touchpad Control
Simple and easy to operate;
Clear and accurate.
Magnetic Switch
Aggressive light control
2 minutes door open alarm
Hidden Door Hinge
Laminated steel plate, integrated molding;
Full Built-in Design.
Seamless S/S Door Frame
Artistic appearance;
Thin door design
Beech Wooden Shelf
Wine friendly beech wooden shelves;
Cleverly spaced to fit regular and larger bottles.

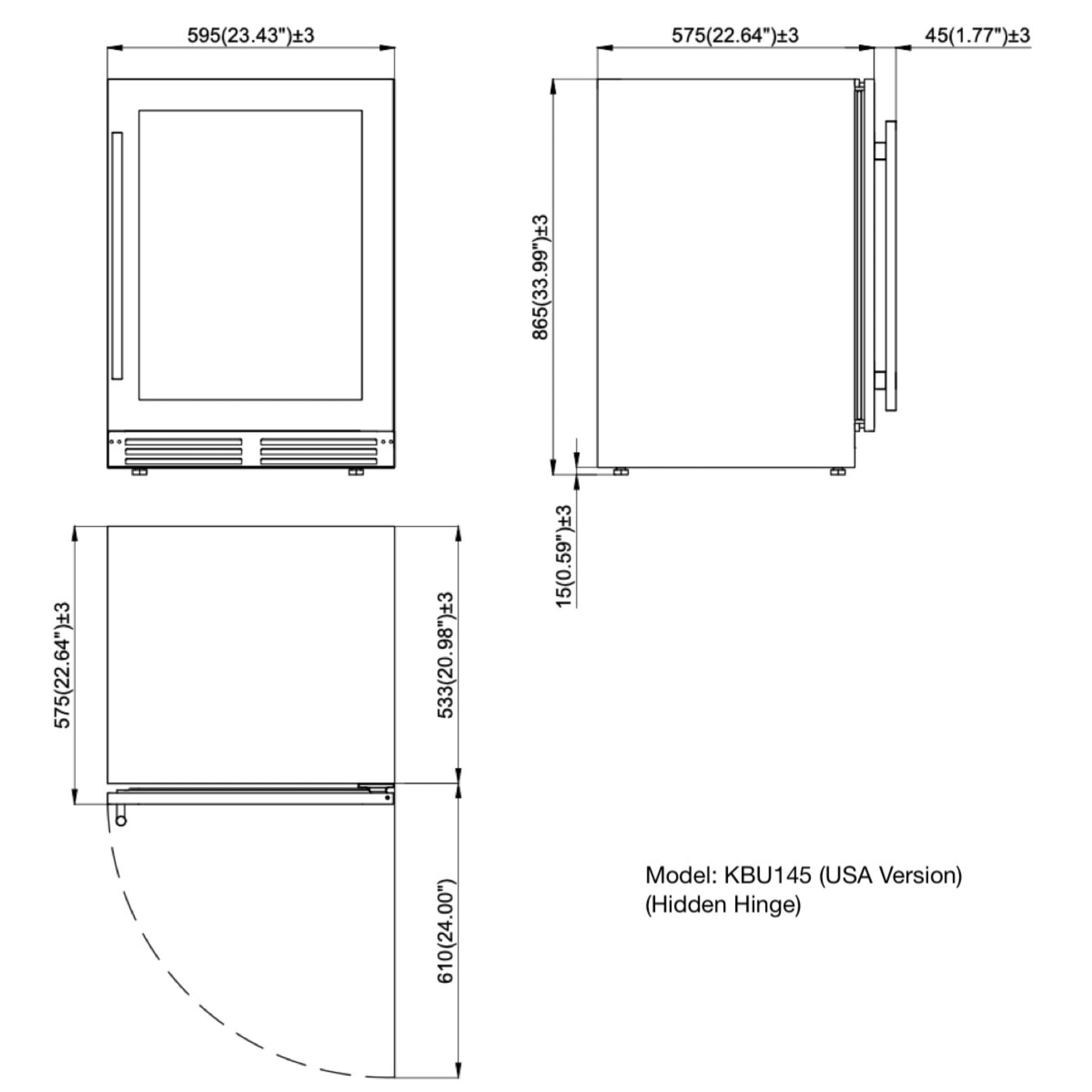

Dimensions & Diagrams

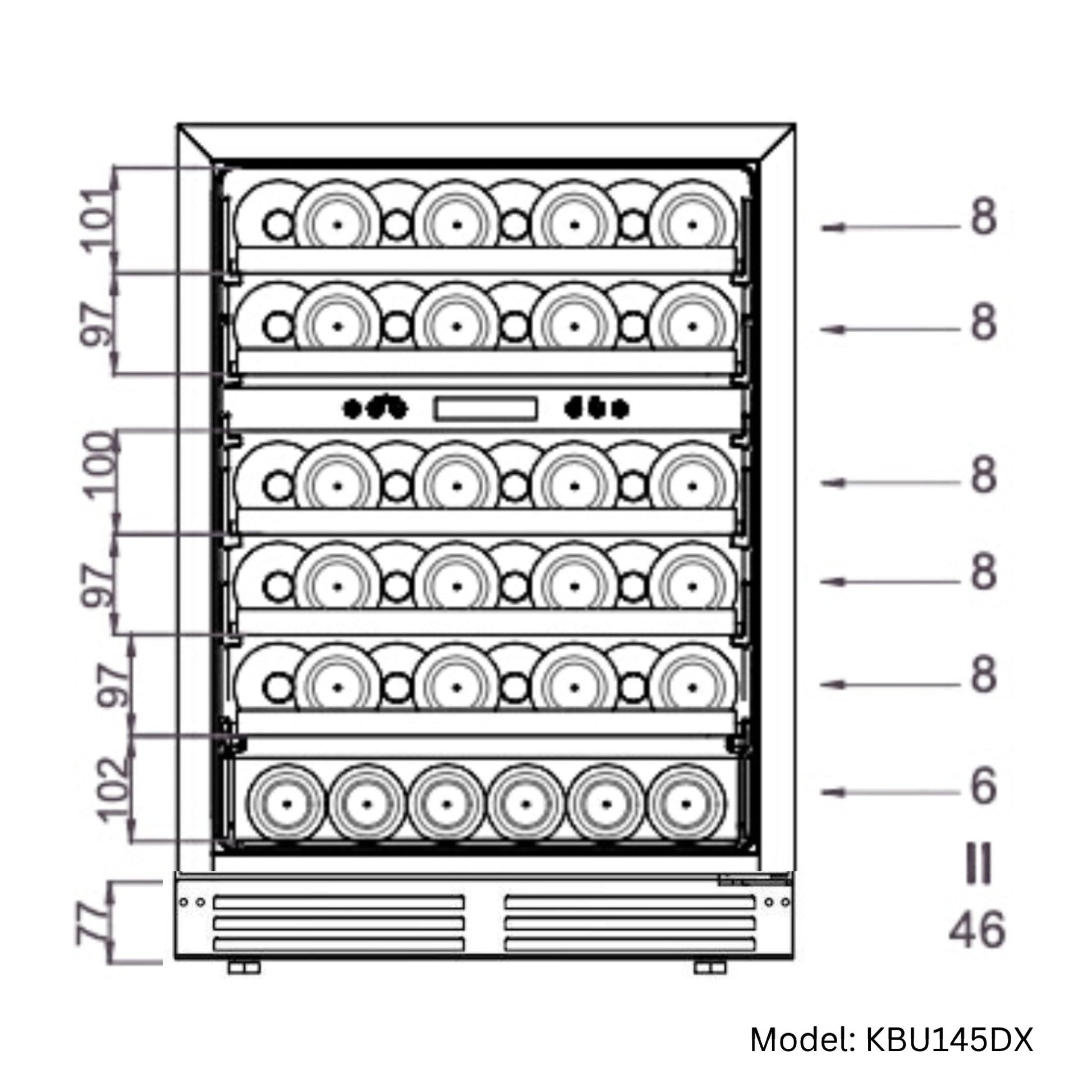

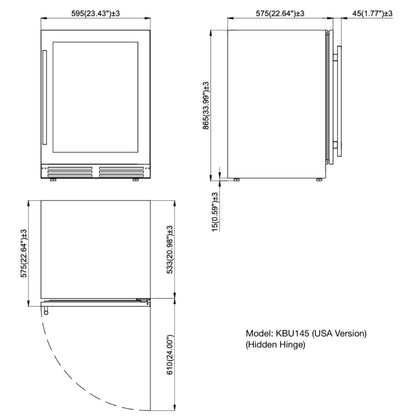

Technical Dimensions 1

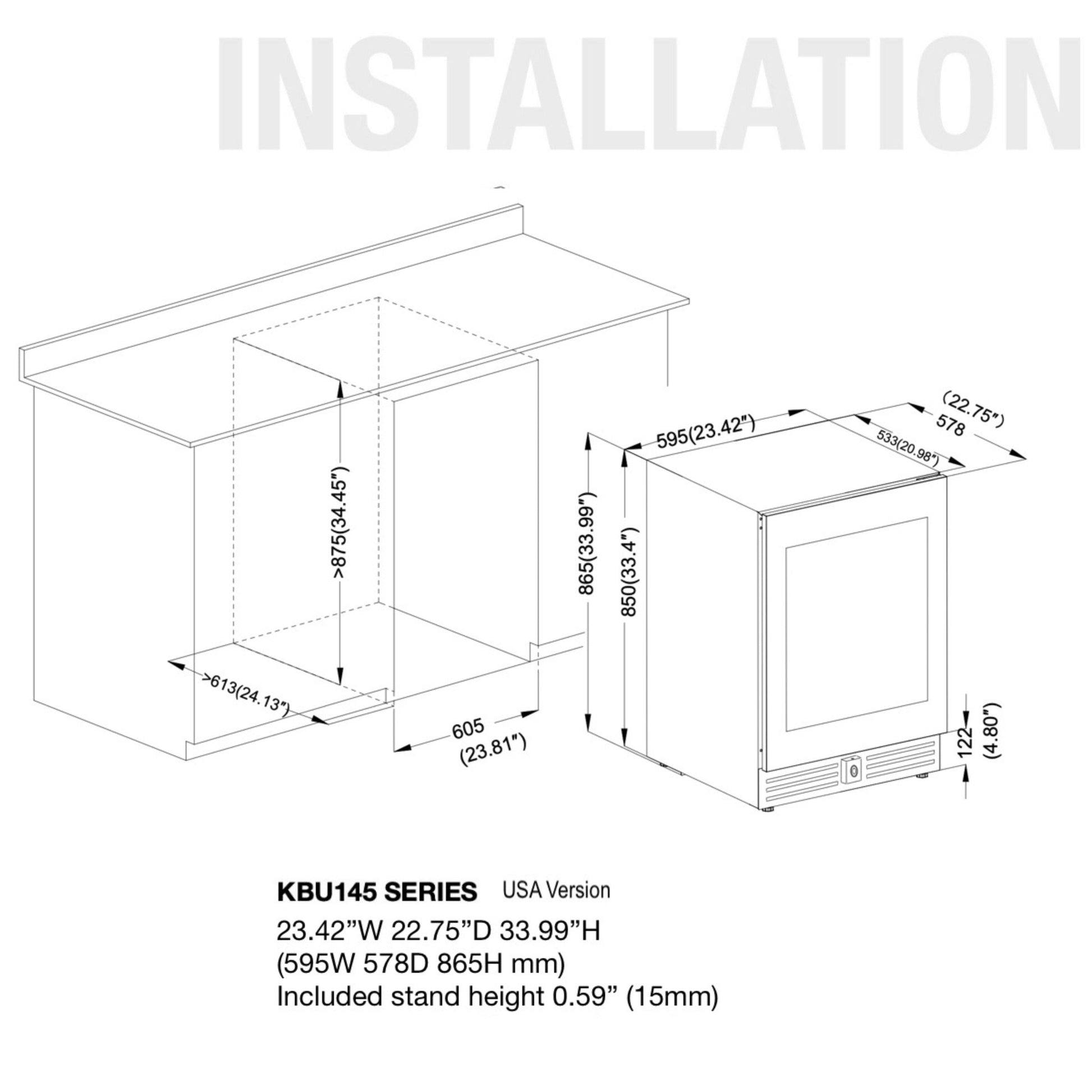

Installation Diagrams

Installation Diagram 1

User Instruction

Download the Dual Zone Wine Cooler User Manual (KBU145DX/KBU265DX/KBU425DX)
