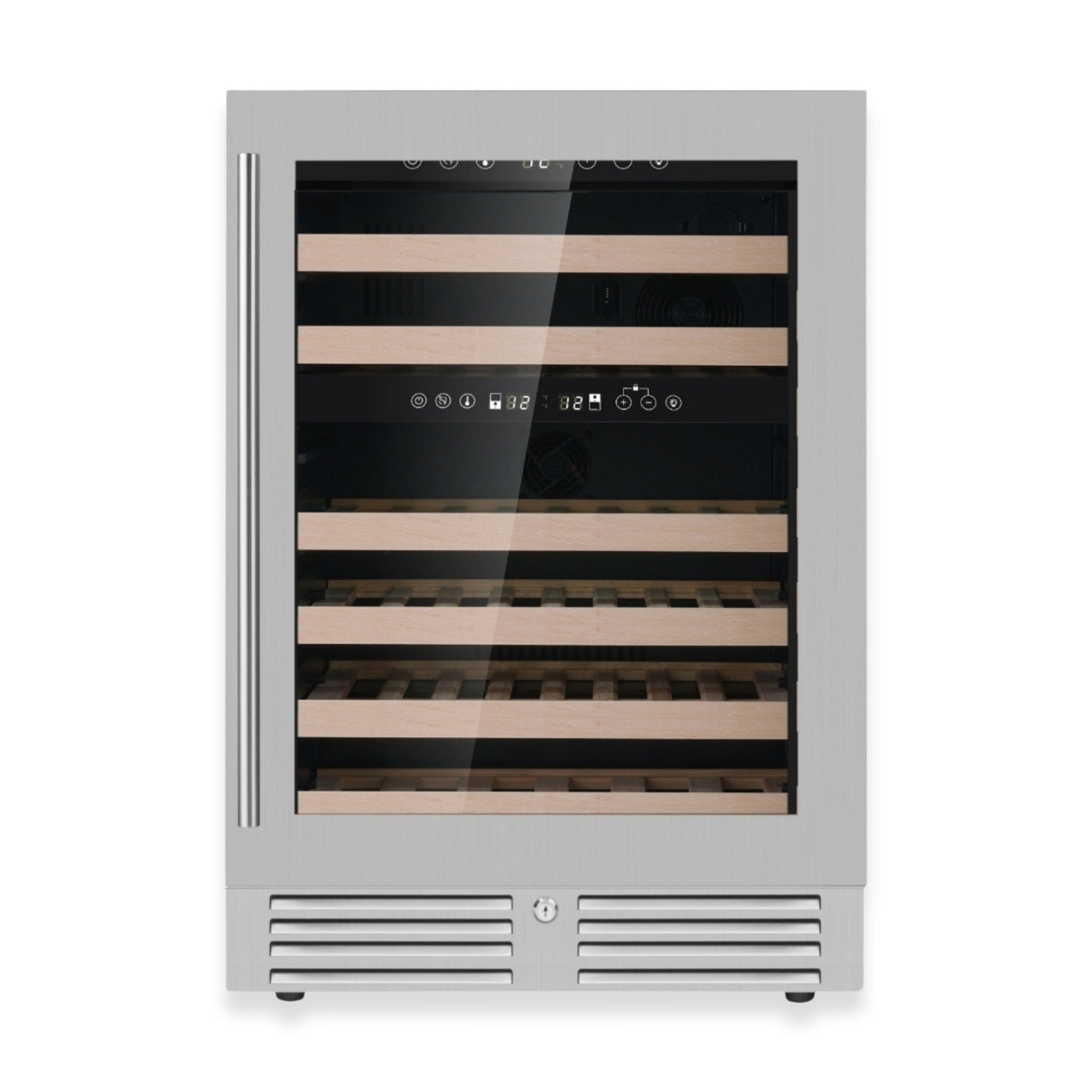

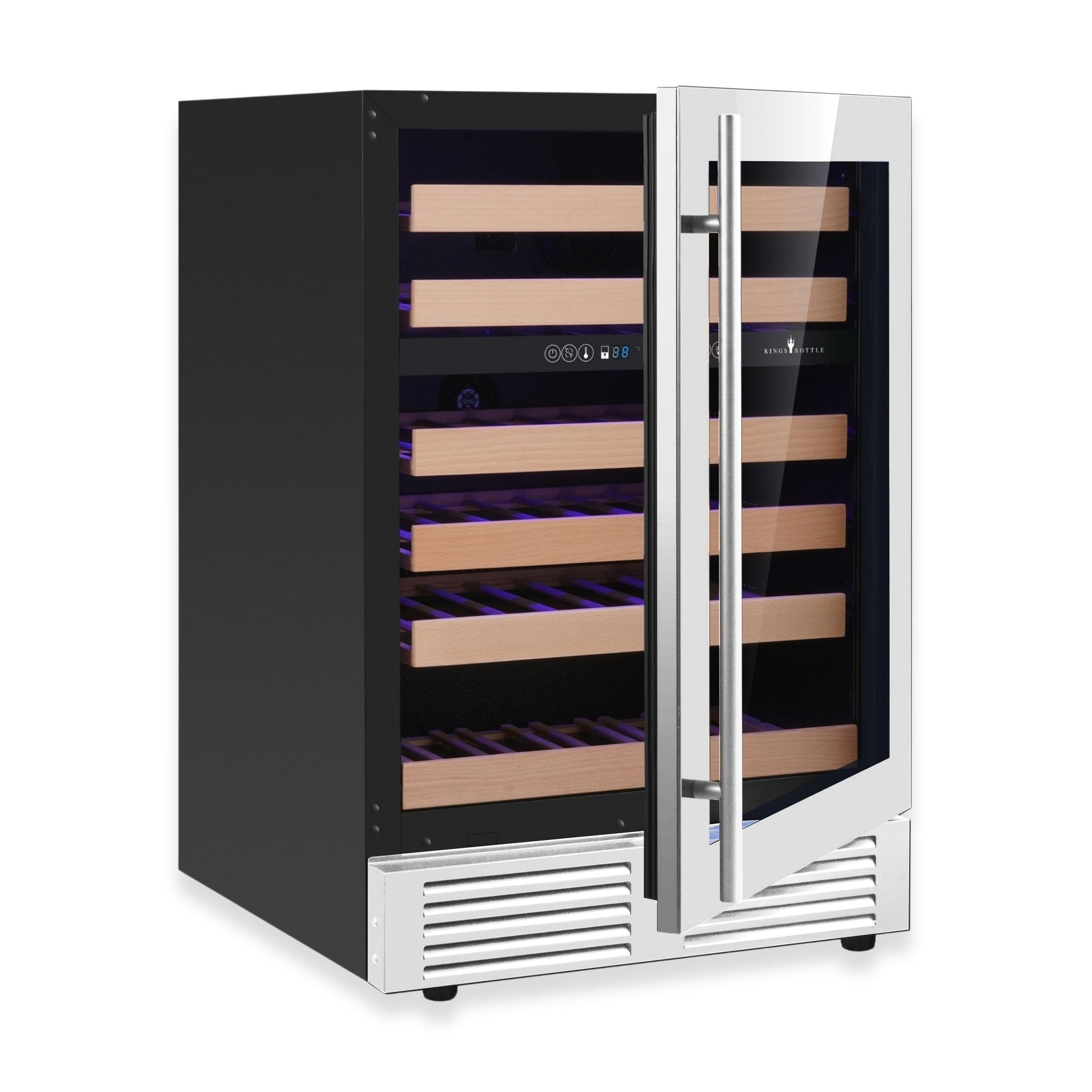

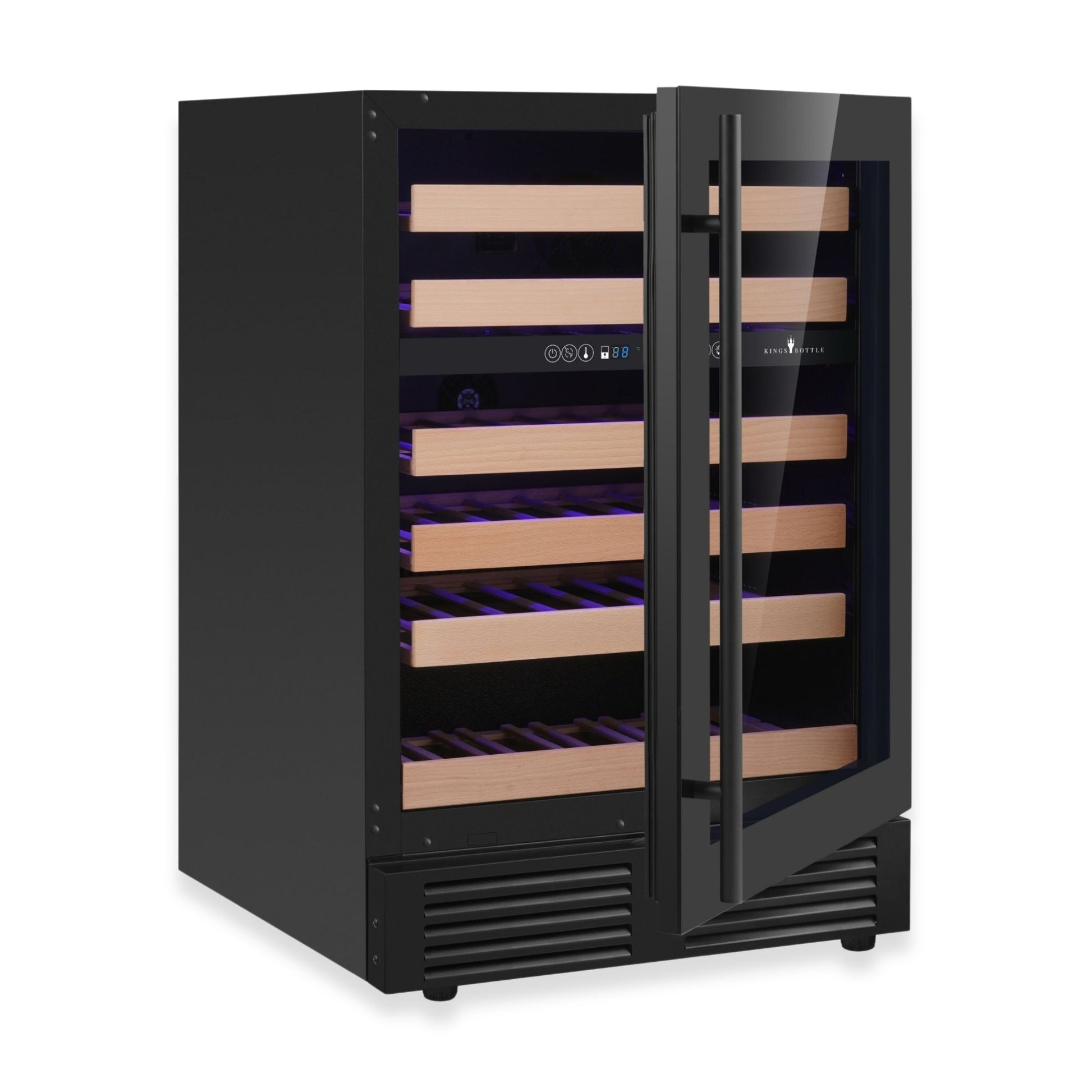

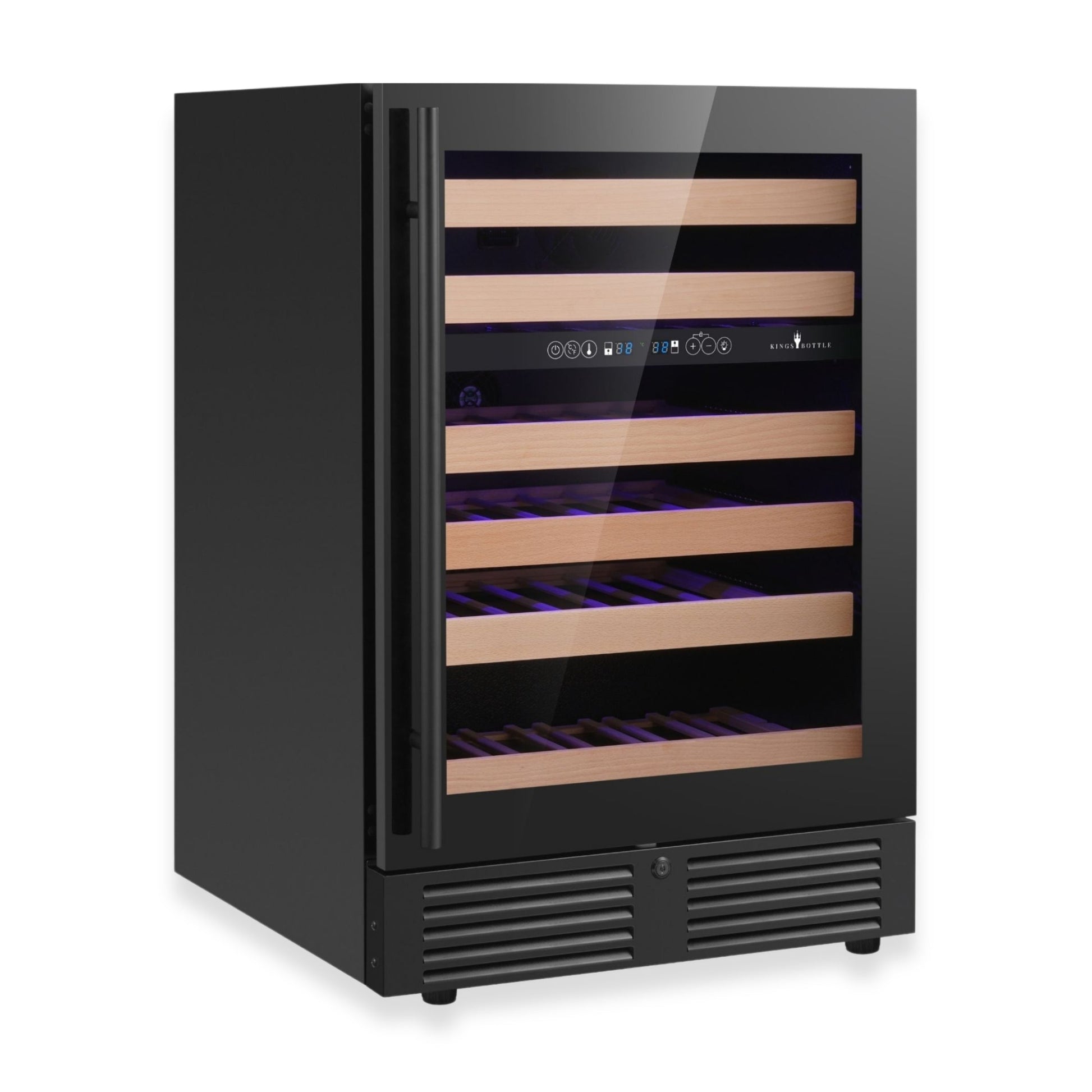

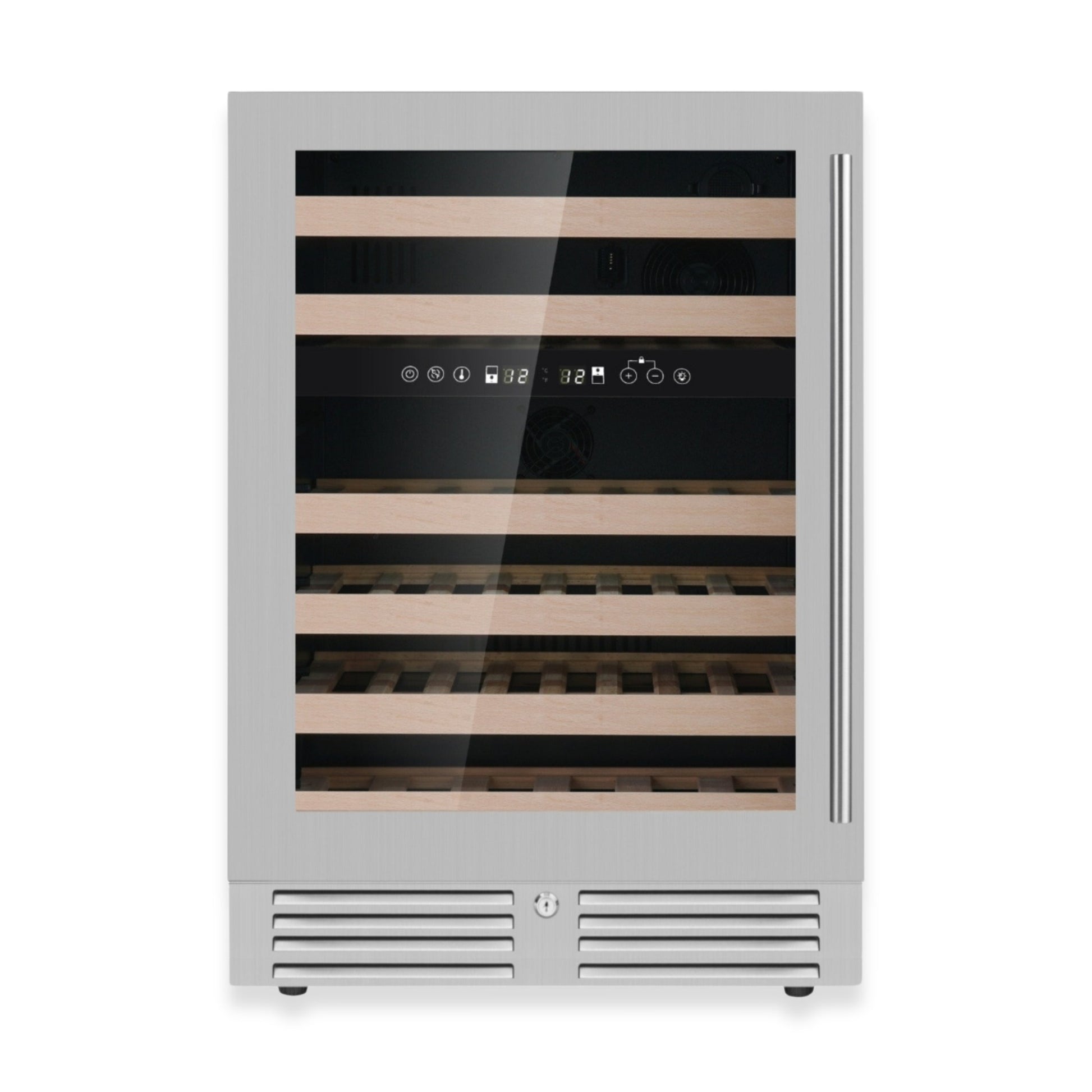

KingsBottle 24-Inch Under-Counter Dual Zone Wine Cooler with Low-E Glass Door With Stainless Steel Trim Right Hand Hinge

KingsBottle 24-Inch Under-Counter Dual Zone Wine Cooler with Low-E Glass Door With Stainless Steel Trim Right Hand Hinge

Door Style
Door Direction
Regular price $2,199.00 USD
Regular price $0.00 USD Sale price $2,199.00 USD
Sale Sold out
Shipping calculated at checkout.

This 24-inch dual-zone wine cooler offers advanced features for optimal wine preservation. Powered by a whisper-quiet Embraco Inverter Compressor, it delivers stable, energy-efficient cooling to maintain perfect temperatures. Its dual compartments let you store reds and whites at their ideal settings, preserving the integrity of your collection. The low-E glass door blocks UV rays to protect wine while adding a sleek, modern aesthetic. Inside, premium beechwood full-extension shelves accommodate larger bottles up to 3.39" (86mm) in diameter for easy access. For expanded storage, combine it with our 24-inch under-counter beverage cooler.

Key Features

  • Dual-Zone Cooling: Independent temperature zones with ranges of 35°F–54°F (upper) and 54°F–68°F (lower)
  • Under-Counter Design: Compact 24-inch wide unit perfect for built-in installations
  • Premium Capacity: Stores up to 46 bottles (145 L volume)
  • Quiet & Energy Efficient: Embraco Inverter Compressor reduces energy use by 40% and operates quietly
  • Sleek Aesthetics: Features a LOW‑E glass door for enhanced UV protection and a modern look
  • Full-extension wood shelves: accommodate larger bottles up to 3.39" (86mm) in diameter

Specifications

Volume: 5.12CF (145 Liters)
Capacity (by bottles): 46 bottles
Installation Type: Built-In or Freestanding
Climate Type: N
Temperature Zones: Dual Zone
Adjustable Temperature Range:
  • Upper Zone 35°F to 54°F (2°C to 12°C)
  • Lower Zone 54°F to 68°F (12°C to 20°C)
Operating Room Temperature: 32-100°F (0-38°C)
Shelf Configuration: 6 Beech Wooden Shelves
Dimensions: 23.42”W x 22.75”D x 33.99”H, included stand height 0.59”

Electrical

Compressor: Embraco Inverter Compressor
Defrost Type: Automatic defrost
Power Supply: 110-115V/60HZ
Rated Power Input (W): 100W
Rated Current: 1.2A
Refrigerant: R600A / 25g
Power Lamp: 0.7Wx2
Energy Efficiency Standard Compliance: ETL/DOE

Technical Features

Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet and reduces energy consumptions by 40%.
Patented sink of compressor
Increases the air circulation space around the compressor; Better cooling performance, less vibration, less noise.
45mm Thickness C-Pantane
Thicker foam helps save energy consumption and optimize cooling performance
Fan Circulated Air-Cooling System
Ensure temperature uniformity in the cabinet;
Compensates for air humidity
Activated Carbon Filter
Effectively filters impurities in the air while keeping the air in the cabinet fresh
Low-E Glass*
Reduce energy consumption;
Less condensation on the glass door.
LED Display Digital Touchpad Control
Simple and easy to operate;
Clear and accurate.
Magnetic Switch
Aggressive light control
2 minutes door open alarm
Hidden Door Hinge
Laminated steel plate, integrated molding;
Full Built-in Design.
Seamless S/S Door Frame
Artistic appearance;
Thin door design
Beech Wooden Shelf
Wine friendly beech wooden shelves;
Cleverly spaced to fit regular and larger bottles.

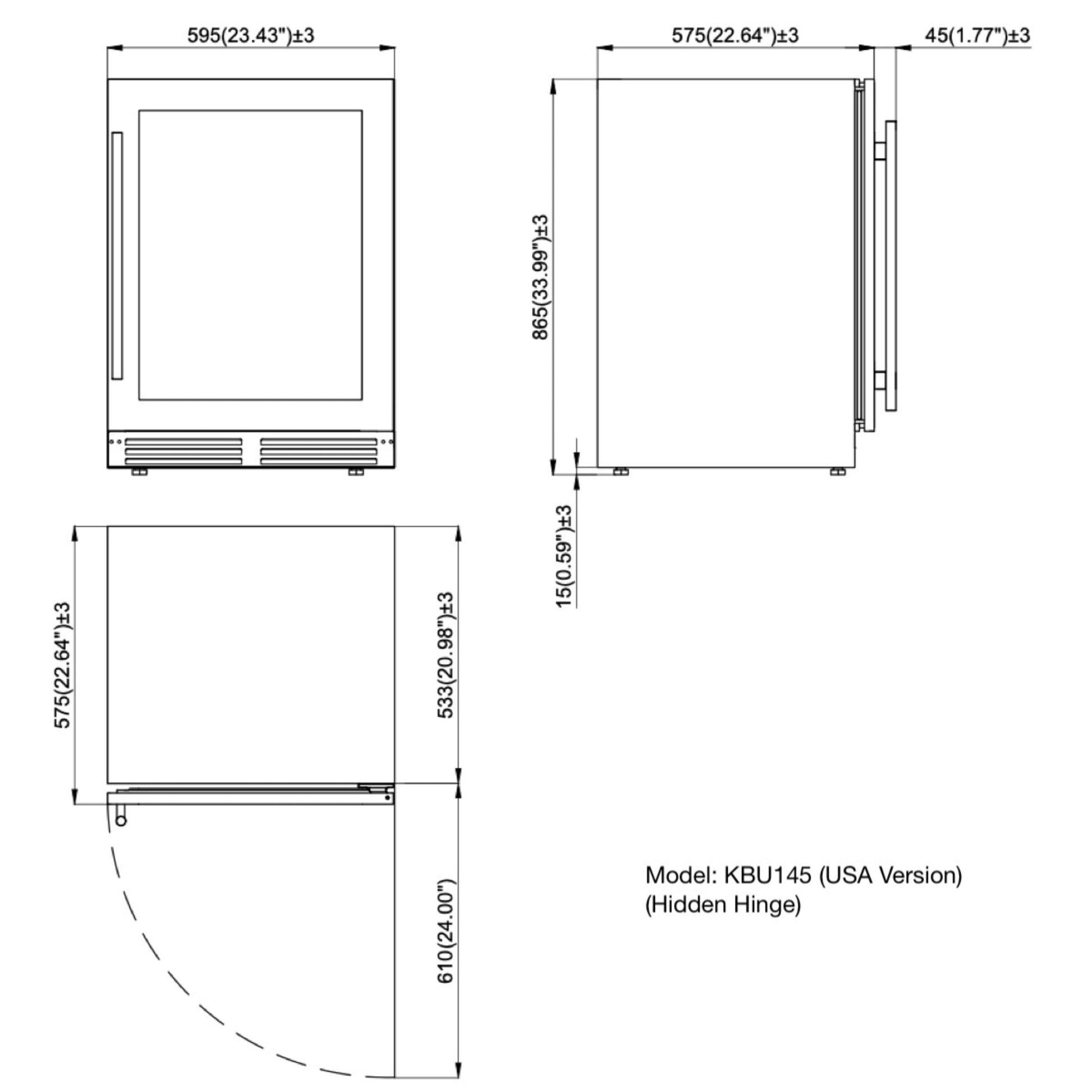

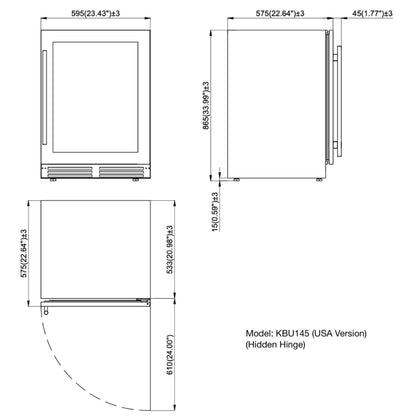

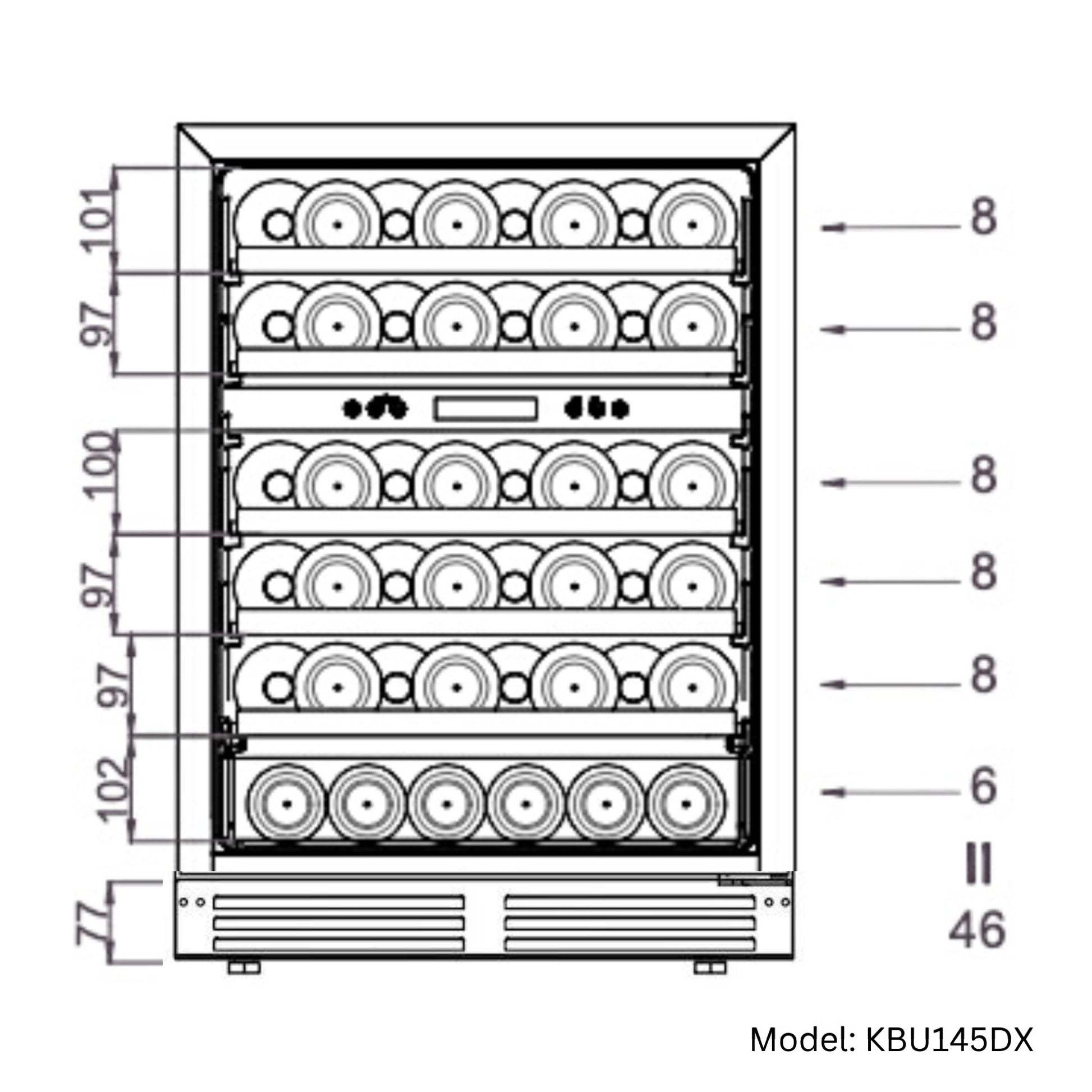

Dimensions & DiagramsTechnical Dimensions 1

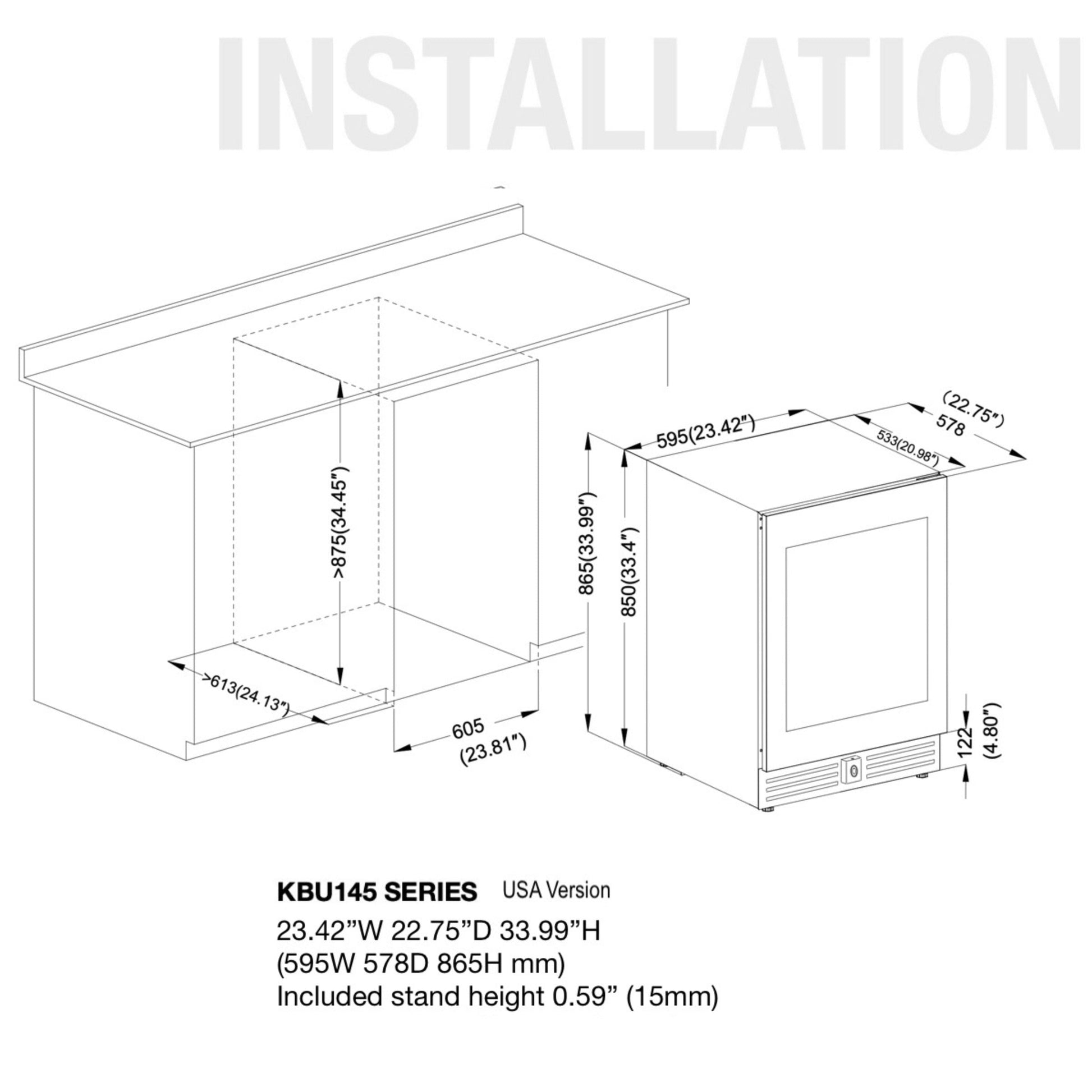

Installation Diagrams

Installation Diagram 1

User Instruction

Download the Dual Zone Wine Cooler User Manual (KBU145DX/KBU265DX/KBU425DX)
