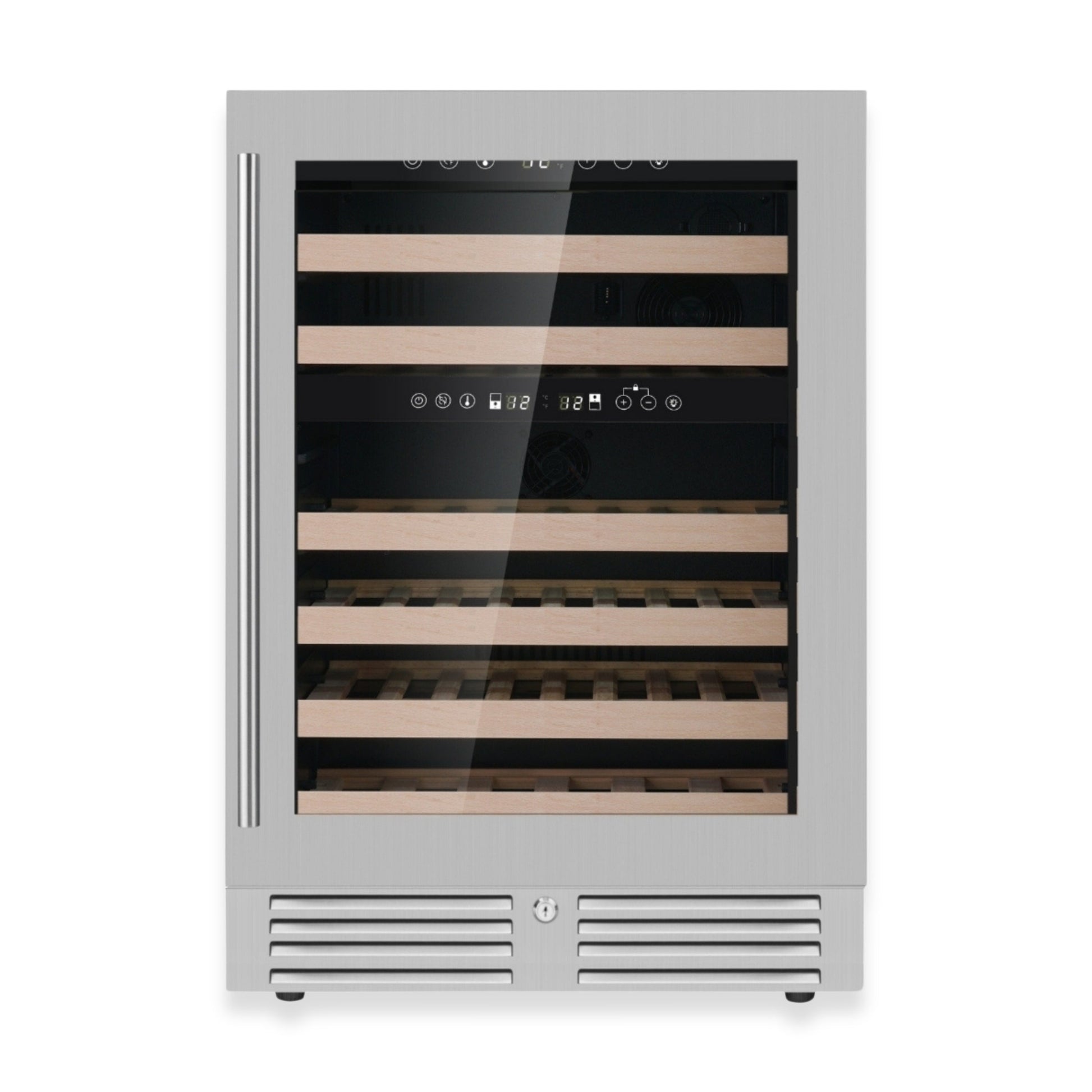

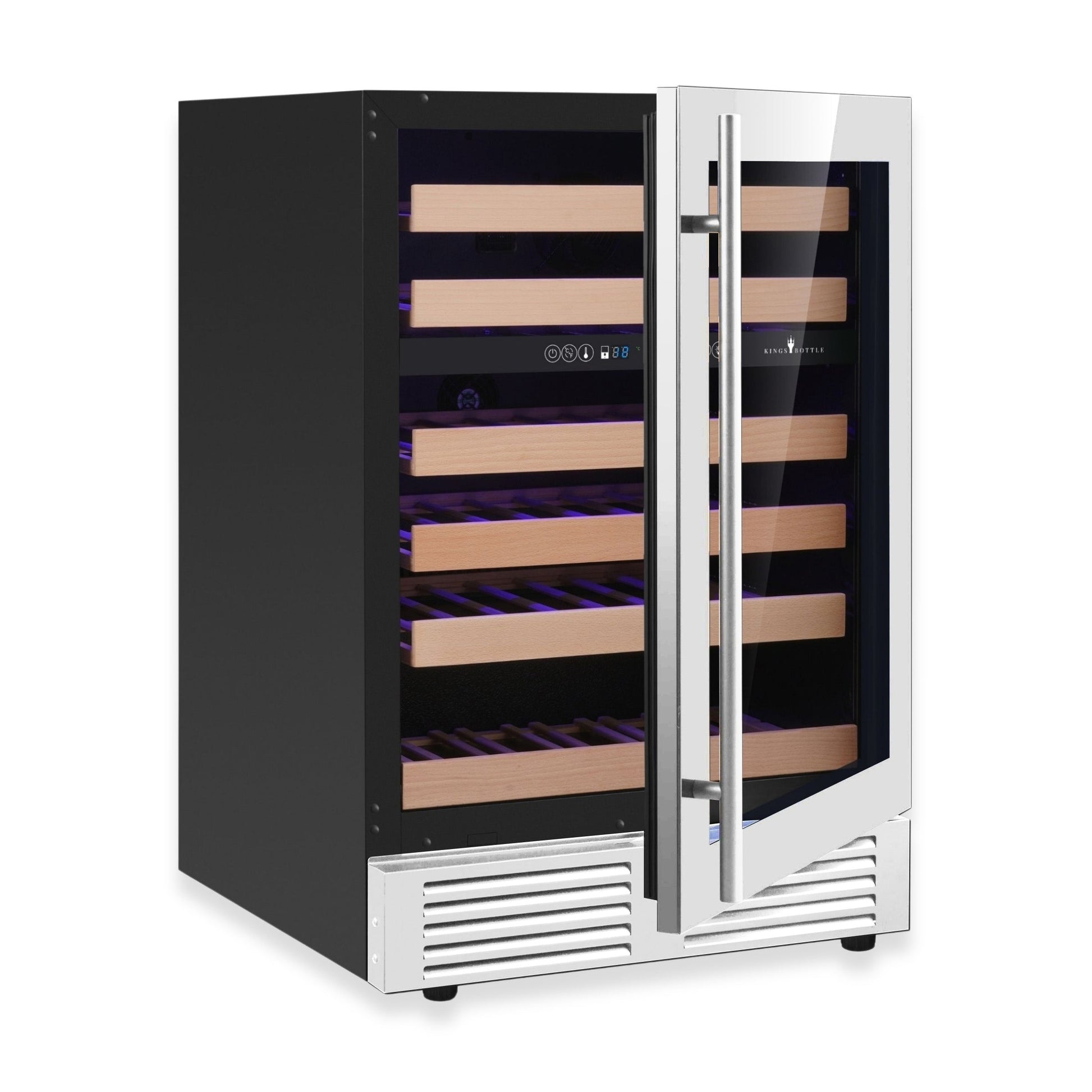

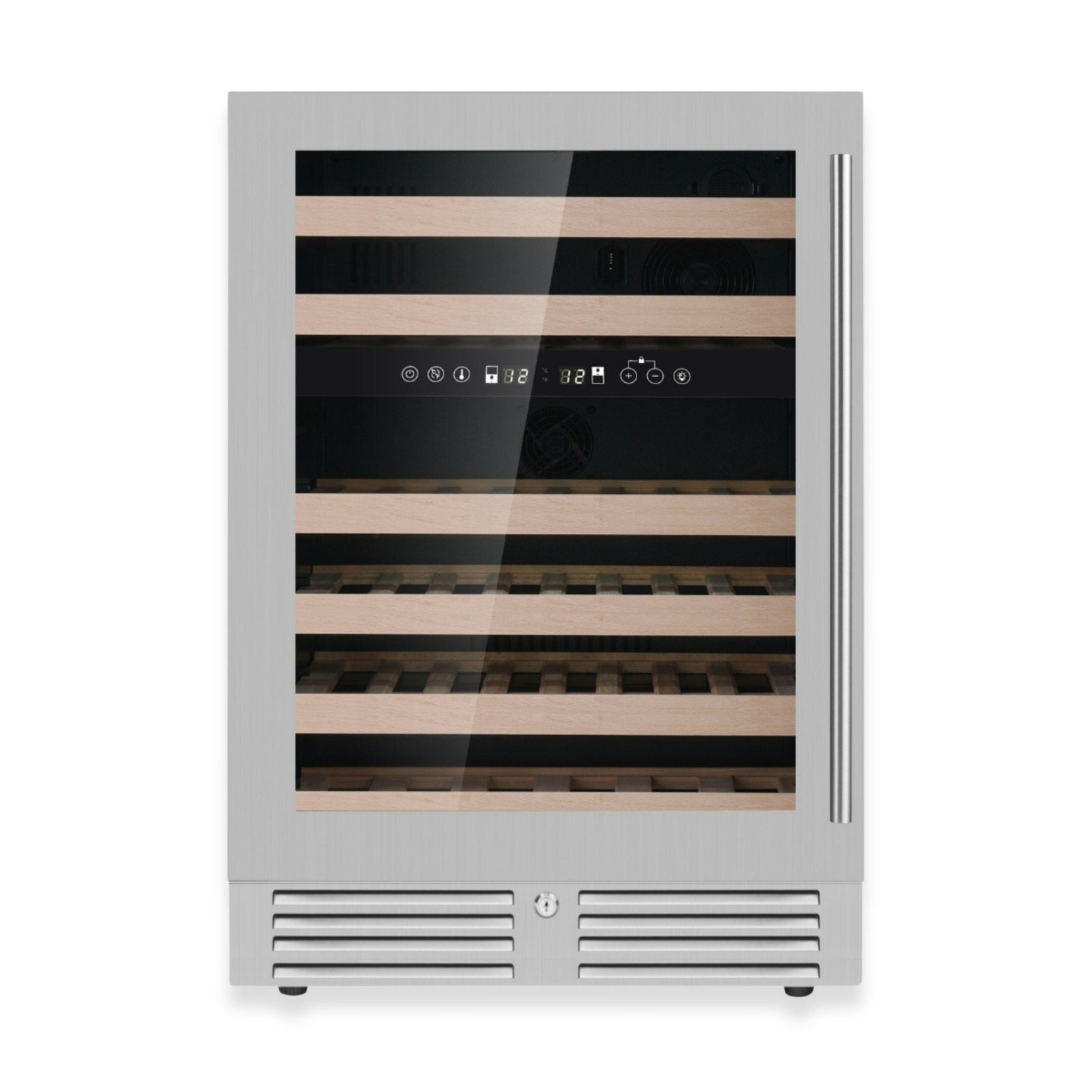

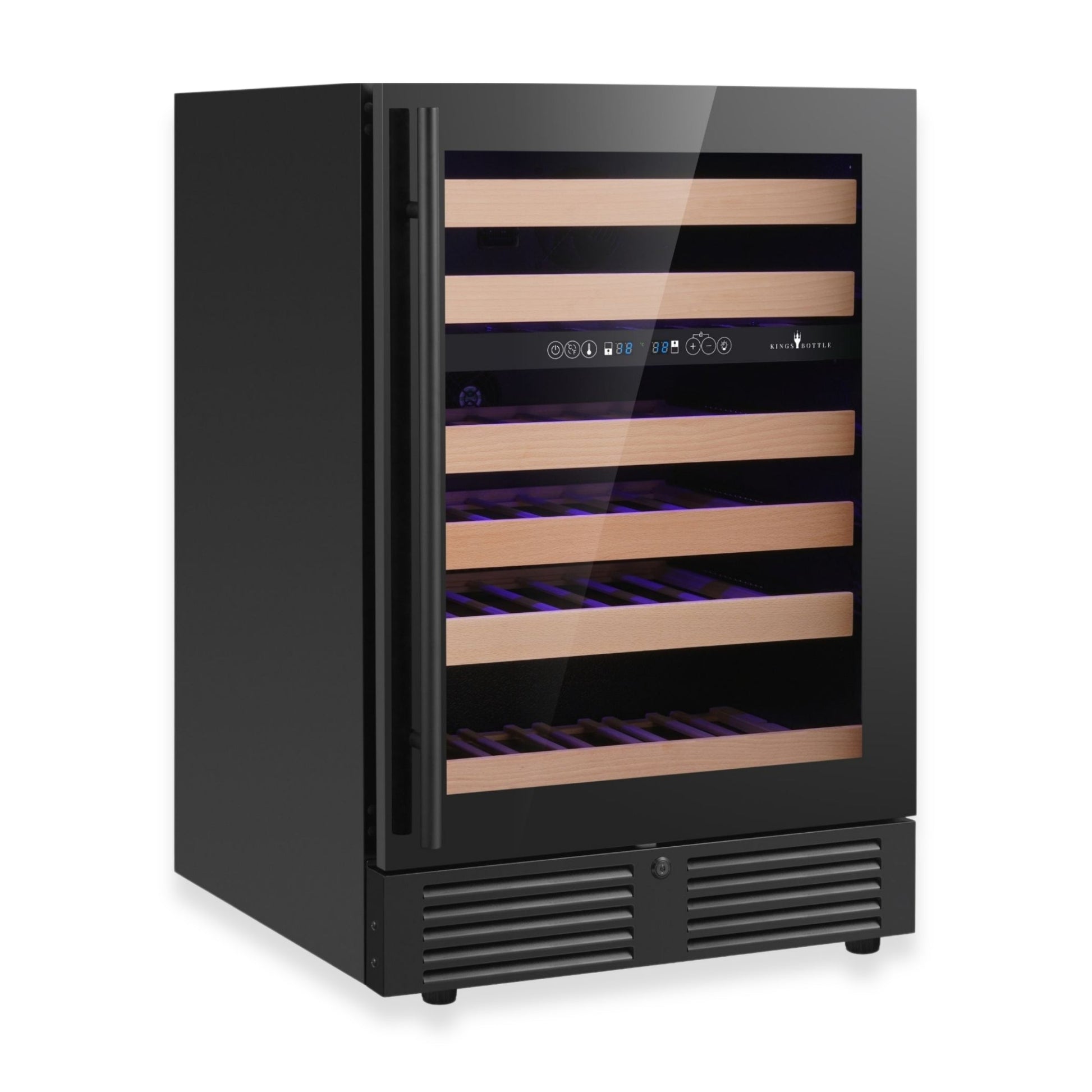

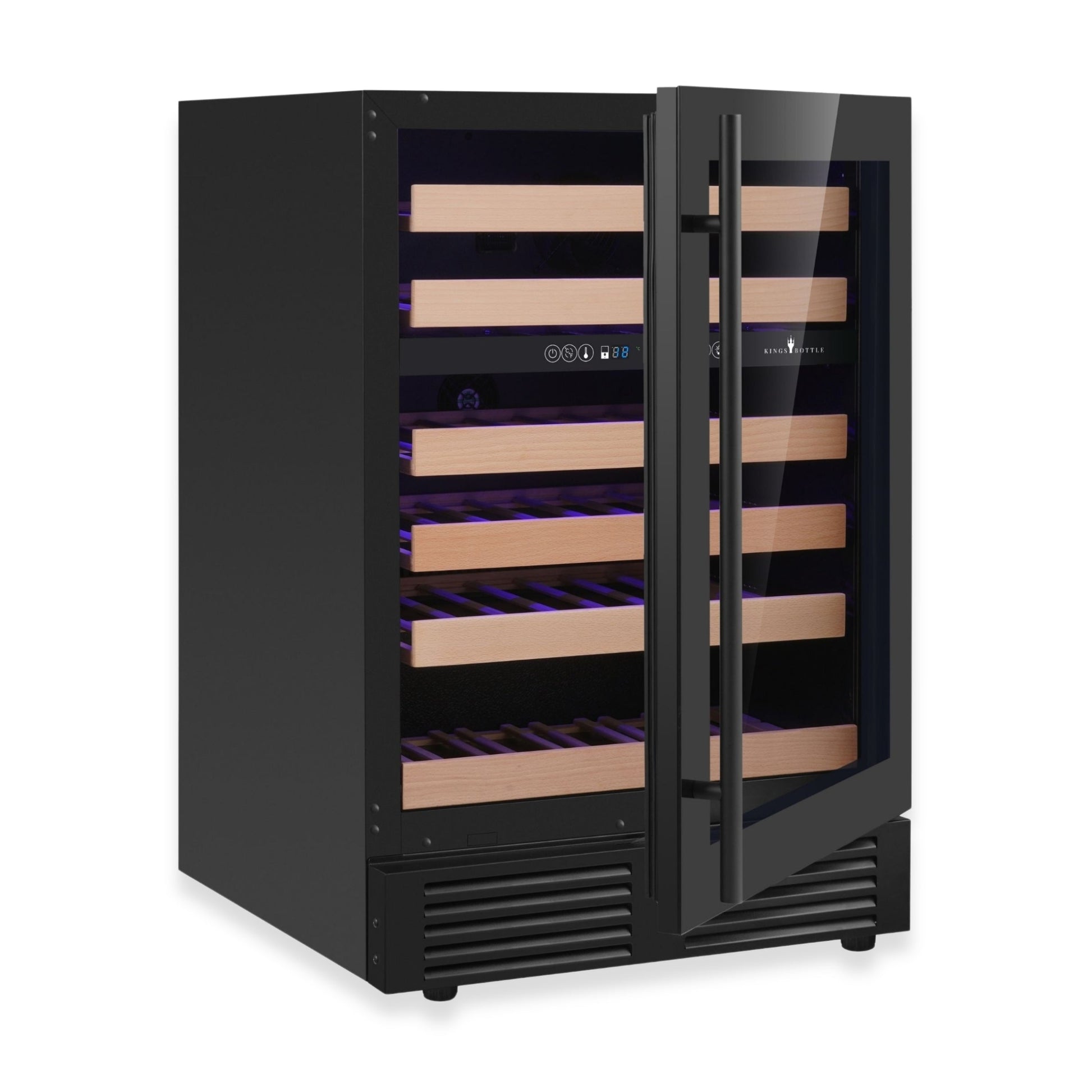

KingsBottle 24-Inch Under-Counter Dual Zone Wine Cooler with Low-E Glass Door With Stainless Steel Trim Left Hand Hinge
KingsBottle 24-Inch Under-Counter Dual Zone Wine Cooler with Low-E Glass Door With Stainless Steel Trim Left Hand Hinge
Couldn't load pickup availability
This 24-inch dual zone wine cooler offers advanced features for ideal wine preservation. Its whisper-quiet Embraco inverter compressor delivers stable, energy-efficient cooling to maintain optimal temperatures. The dual zones let you store red and white wines separately at their preferred conditions. The low-E glass door protects your collection from UV rays while adding a sleek, contemporary appearance. Inside, full-extension beechwood shelves accommodate larger bottles up to 3.39" (86mm) in diameter, allowing effortless access. For a complete setup, consider pairing it with our 24-inch under-counter beverage cooler
Key Features
- Dual-Zone Cooling: Independent temperature zones with ranges of 35°F–54°F (upper) and 54°F–68°F (lower)
- Under-Counter Design: Compact 24-inch wide unit perfect for built-in installations

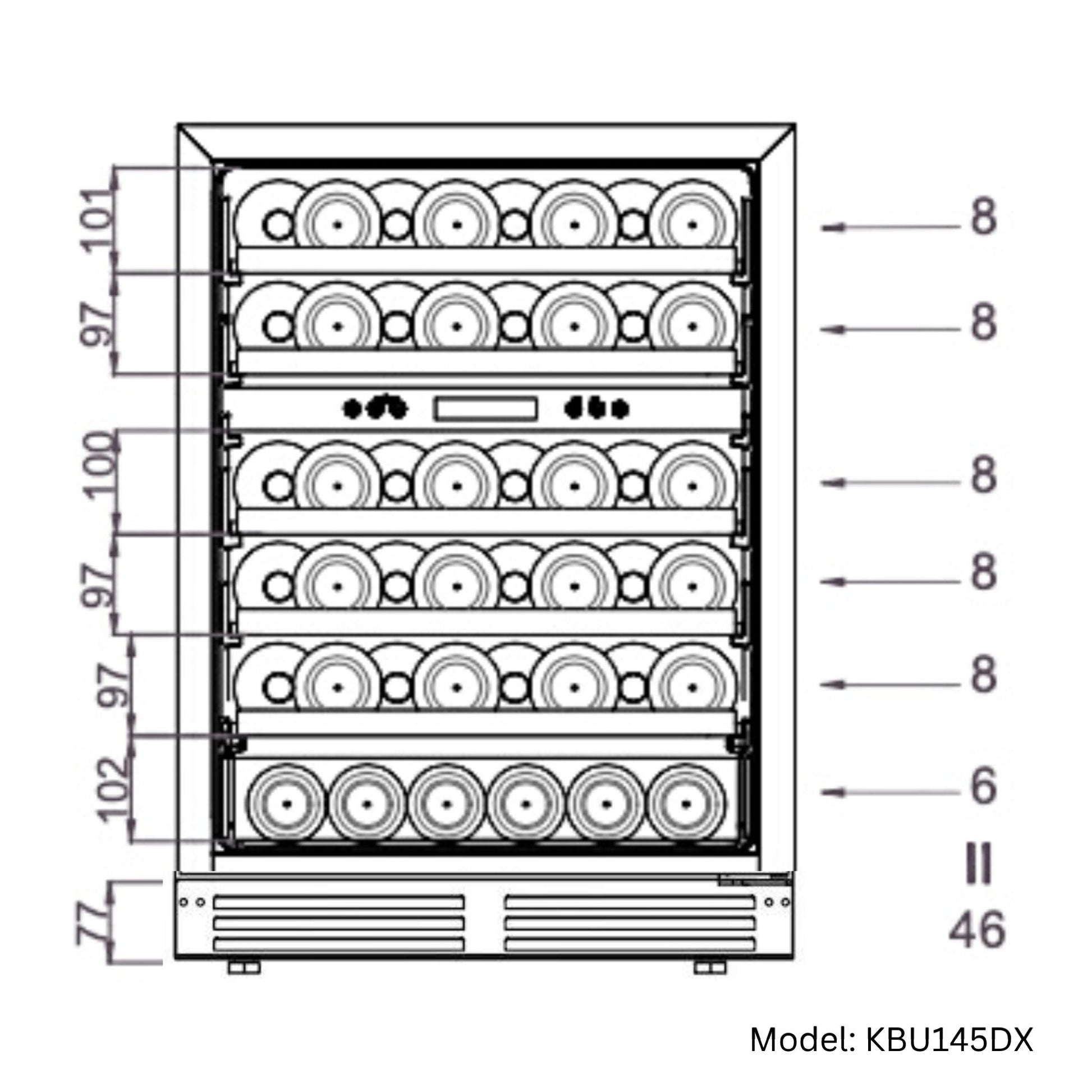

- Premium Capacity: Stores up to 46 bottles (145 L volume)
- Quiet & Energy Efficient: Embraco Inverter Compressor reduces energy use by 40% and operates quietly
- Sleek Aesthetics: Features a LOW‑E glass door for enhanced UV protection and a modern look
-
Full-extension wood shelves: accommodate larger bottles up to 3.39" (86mm) in diameter
Specifications
Volume: | 5.12CF (145 Liters) |
Capacity (by bottles): | 46 bottles |
Installation Type: | Built-In or Freestanding |
Climate Type: | N |
Temperature Zones: | Dual Zone |
Adjustable Temperature Range: |
|
Operating Room Temperature: | 32-100°F (0-38°C) |
Shelf Configuration: | 6 Beech Wooden Shelves |
Dimensions: | 23.42”W x 22.75”D x 33.99”H, included stand height 0.59” |
Electrical
Compressor: | Embraco Inverter Compressor |
Defrost Type: | Automatic defrost |
Power Supply: | 110-115V/60HZ |
Rated Power Input (W): | 100W |
Rated Current: | 1.2A |
Refrigerant: | R600A / 25g |
Power Lamp: | 0.7Wx2 |
Energy Efficiency Standard Compliance: | ETL/DOE |
Technical Features

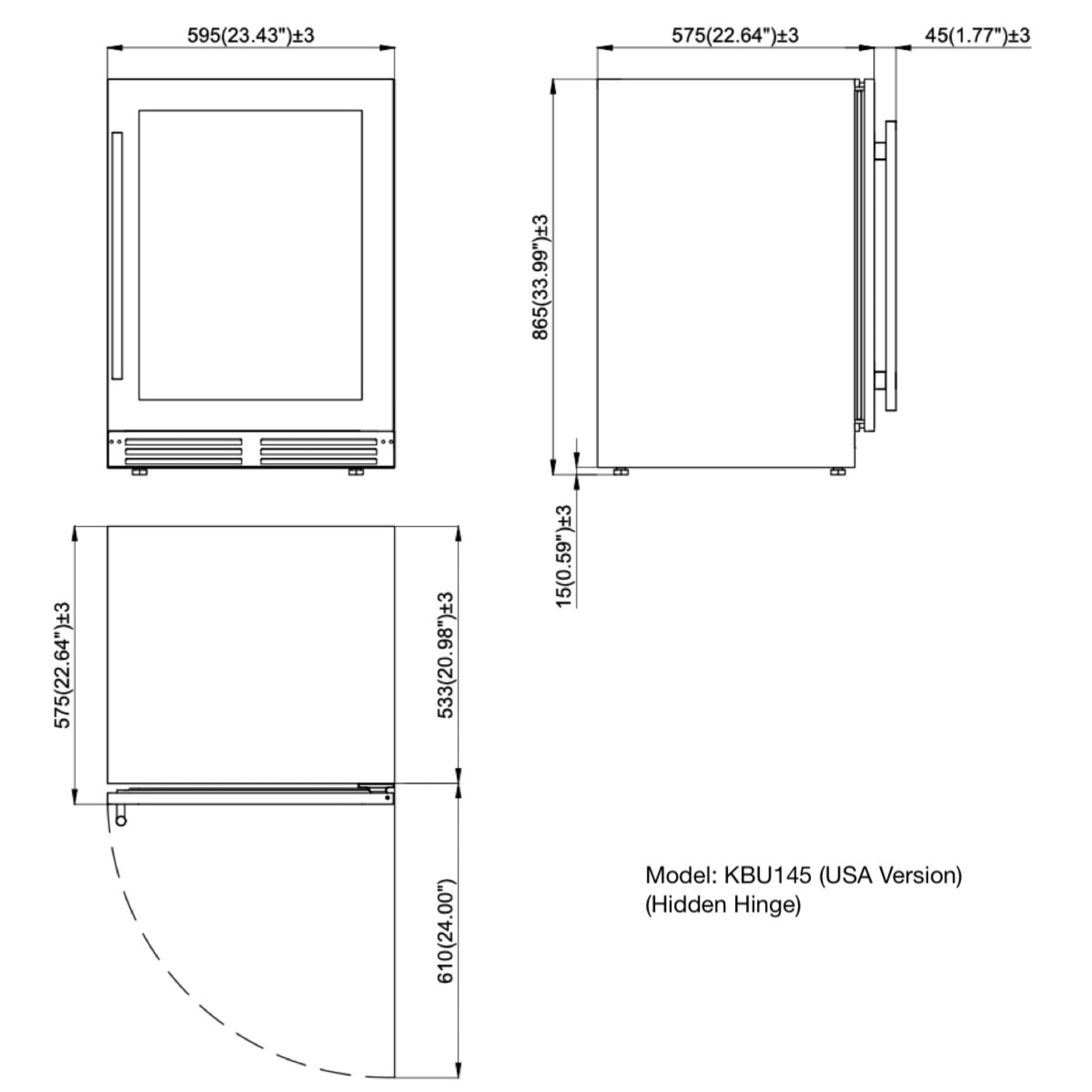

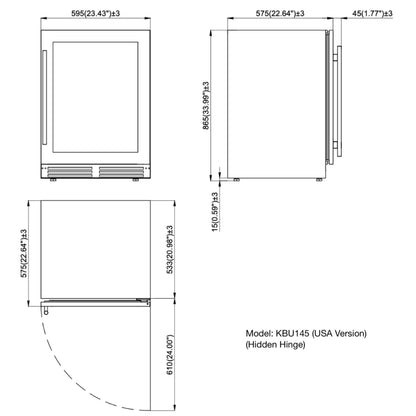

Dimensions & Diagrams

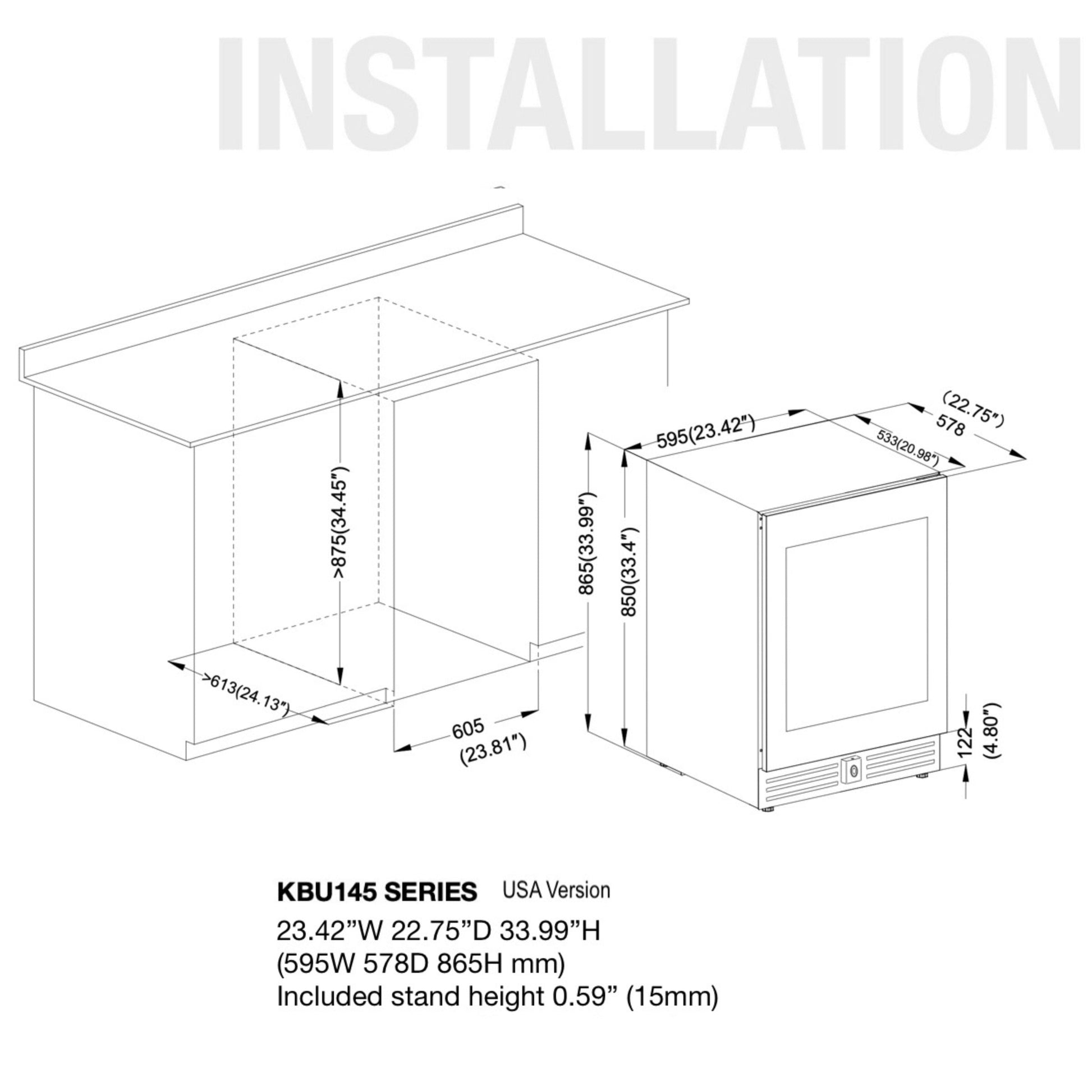

Installation Diagrams
User Instruction
Download the Dual Zone Wine Cooler User Manual (KBU145DX/KBU265DX/KBU425DX)
