Product Details
| Product Status | Active |
| Brand | Zephyr |
| Model # | PRW24C02AG-ADA |
| MSRP ($) | $1899 |
| Short Description | Presrv ADA Wine Cooler, 24in Compact, SS+Glass, Reversible Door + Lock, 2 zones |
| Collection | Presrv |
| UPC | 646328010118 |
| Category | Wine Cooler |

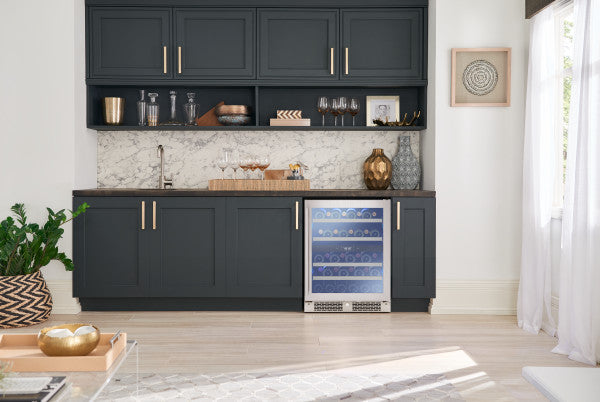

| Installation Type | Built-In or Freestanding |
| Refrigerant Type | R600a |
| Bottle Capacity (750 ml) | 37 |
| Can Capacity (12 oz) | 0 |
| Cooling Zones | 2 |
| Maximum Temperature (°F) | 65 |
| Minimum Temperature (°F) | 40 |
| For Outdoor Use | No |
| Door Finish | Stainless Steel + Glass |
| Cabinet Finish | Black |
| Interior Finish | Black |
| Number Of Shelves | 4 |
| Shelf Material Type | Wood |

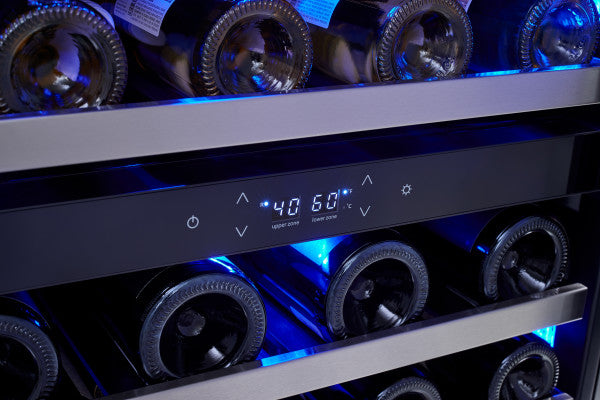

| Controls Type | Capacitive Touch |
| Lighting Type | LED |
| Lights Quantity | 5 |
| Sound Level (dBA) | 40 |
| Voltage | 115 |
| Maximum Amperage | 1 |
| Color | Stainless Steel + Glass |
| Watts Per Bulb | 3 |
| Lights Levels | 1 |
| Compatible Appliances | PRHAN-C001, PRHAN-C102, PRHAN-C104, Z0F-C004, PRHAN-C004, PRHAN-C003 |
| Country of Origin | China |
| CEC Title 20 Compliant | Yes |
| ADA Compliant | Yes |
Product Dimensions
| Maximum Height (IN) | 32.625 |
| Minimum Height (IN) | 31.625 |
| Depth; Door Open 90 Degrees (IN) | 46.125 |
| Depth; Excluding Door (IN) | 21.625 |
| Depth; Excluding Handle (IN) | 23.125 |
| Depth; Including Handle (IN) | 25.125 |
| Net Height (IN) | 31.625 |
| Net Width (IN) | 23.875 |
| Nominal Width (IN) | 24 |
| Net Depth (IN) | 23.125 |
| Volume (Cu/Ft) | 4.75 |
| Interior Height (IN) | 26.5 |
| Interior Width (IN) | 20.875 |
| Weight (LBS) | 110 |
| Cutout Depth (IN) | 24.125 |
| Cutout Height (IN) | 34 |
| Cutout Width (IN) | 24 |
Features
|
Feature 1
|
PreciseTemp™
|
|
Feature 1 Definition
|
Multiple internal sensors help maintain accurate temperatures and increase overall performance.
|
|
Feature 2
|
Active Cooling Technology
|
|
Feature 2 Definition
|
An on-board computer controls an active cooling fan to provide temperature stability and even cooling.
|
|
Feature 3
|
Vibration Dampening System
|
|
Feature 3 Definition
|
Enhanced technology ensures noise and vibration is reduced to minimize wine disturbance.
|
|
Feature 4
|
Dual-Pane, Low-e Argon-Filled Glass Door
|
|
Feature 4 Definition
|
Dual-pane, argon-filled glass improves insulation to minimize heat exchange and increases sound proofing soundproofing characteristics. The Low-E coating helps minimize the amount of UV and infrared light that passes through the glass door.
|
|
Feature 5
|

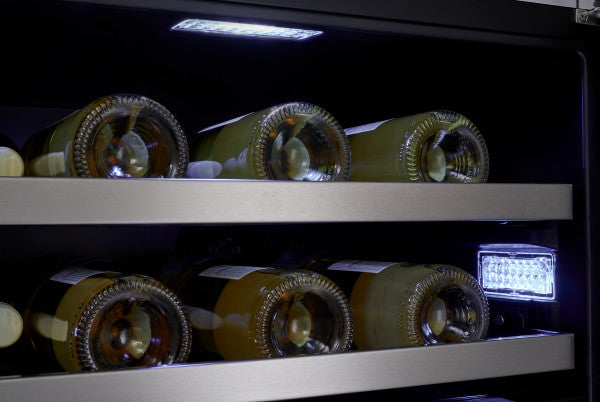

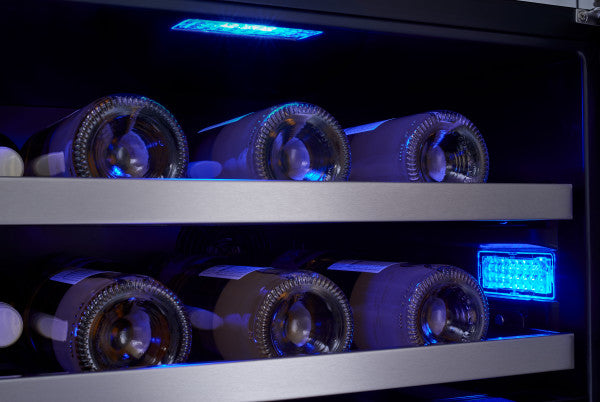

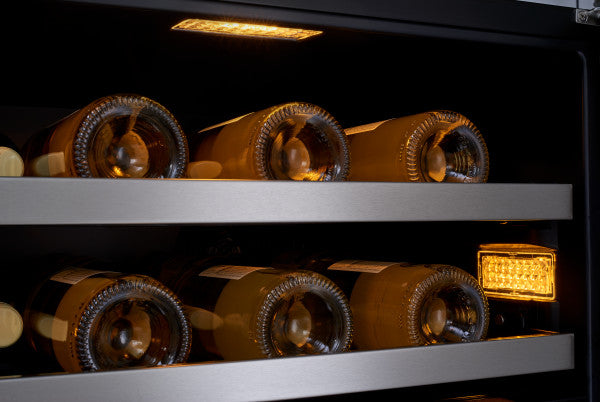

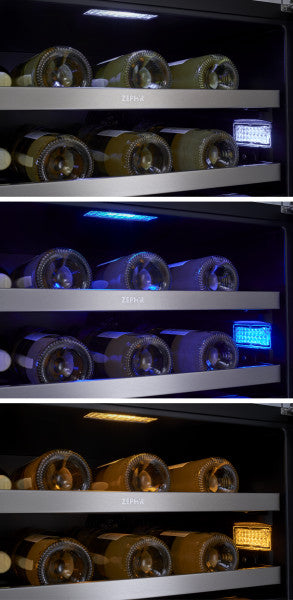

3 Color LED Lighting
|
|
Feature 5 Definition
|
LED strip lighting in Cloud White, Deep Blue and Amber.
|
|
Feature 6
|

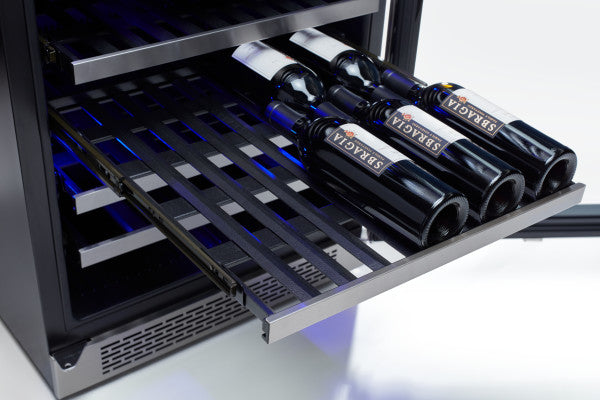

Full-Extension Black Wood Racks
|
|
Feature 6 Definition
|
Full-Extension Black Wood Racks are thoughtfully designed to effortlessly glide out, clearing way to every bottle even those nestled in the back.
|
|
Feature 7
|
ADA Compliant
|
|
Feature 7 Definition
|
Cooler height can be adjusted below 32 inches to meet ADA standards.
|
|
Door Open Alarm
|
Yes
|
|
Sabbath Mode
|
Yes |
|
Zero Clearance Door Hinge
|
Yes |
|
Reversible Door
|
Yes |
|
Air Filtration
|
Yes |
|
Adjustable Racks
|
No |
|
Energy Star Certified
|
No |
|
Star-K Certified
|
Yes |
Warranty
| Warranty Parts / Labor | 5 Years Compressor, 2 Years Parts, 2 Years Labor |
Shipping Dimensions
| Shipping Height; IN | 44 |
| Shipping Length; IN | 28 |
| Shipping Width; IN | 31 |
| Shipping Weight; LBS | 177 |
Optional Accessories
| Optional Accessory 1 |
Presrv Pro Handle Kit x1, Stainless Steel
|
| Optional Accessory 2 |
Presrv Contemporary Handle x1, Brushed Gold
|
| Optional Accessory 3 |
Presrv Contemporary Handle x1, Matte Black
|
| Optional Accessory 4 |
Presrv™ Charcoal Filter Replacement
|
| Optional Accessory 5 |
Presrv Pro Handle x1, Brushed Gold, Compact
|
| Optional Accessory 6 |
Presrv Pro Handle x1, Matte Black, Compact
|
