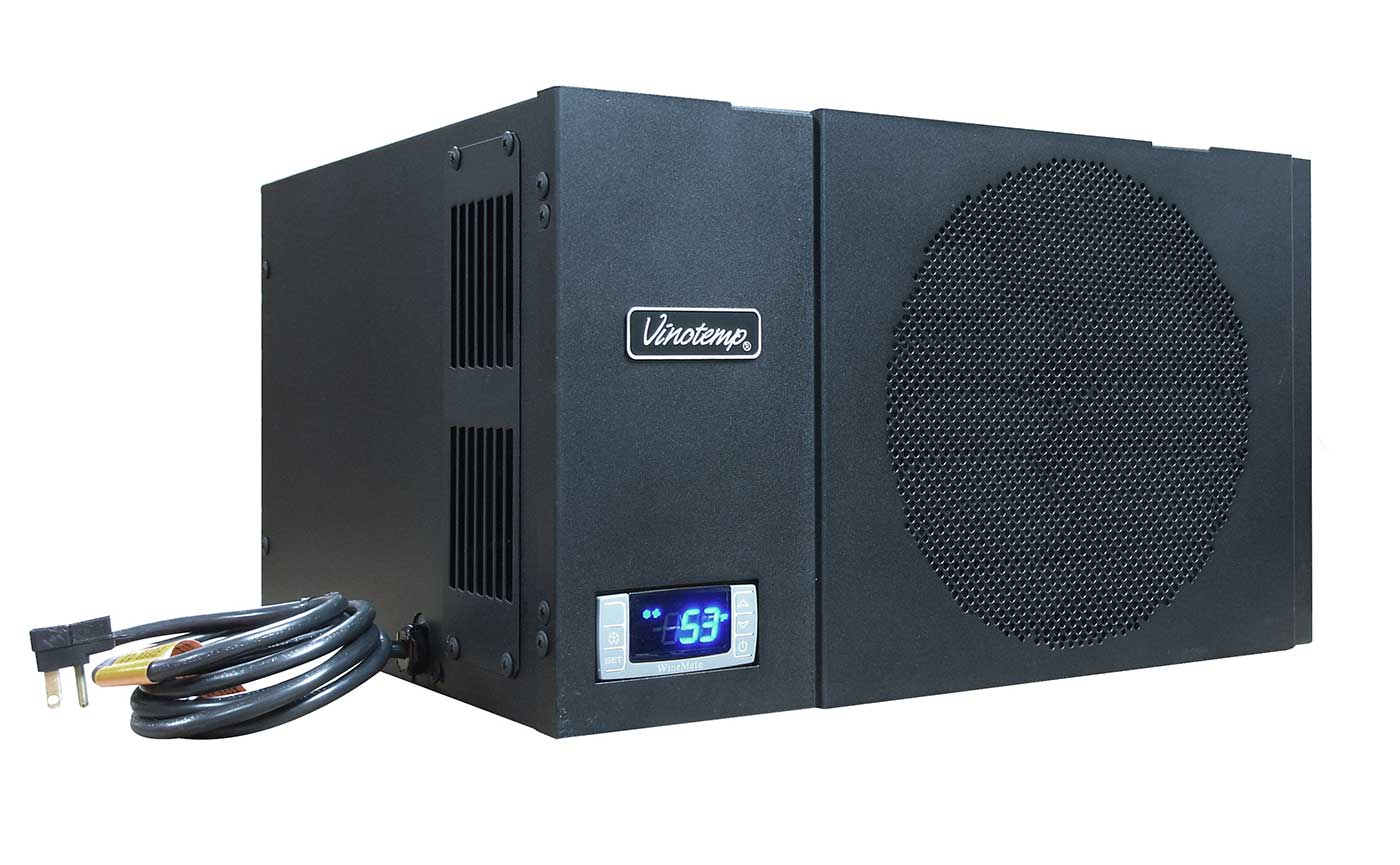

The Wine-Mate WM-1500HTD Cooling system is the latest advancement in climate control with a cooling capacity of 90 cubic feet. This self-contained unit not only regulates the temperature in your wine cellar, but also moderates humidity to a higher level compared to previous models. Distributing cool air more effectively, its innovative design is assembled to the highest standards for long-lasting and dependable performance. With advanced digital temperature and humidity control, an oversized evaporator offers delicate cooling while tube-axial fans handle both the condenser and evaporator. Increased insulation provides thermal and noise isolation for optimal operation. Additionally, the HTD evaporator units have a unique coil coating and offer two-way air supply for optimized performance. The 1500HTD boasts a sturdy housing and a grill size that ensures safety and ease of cleaning. This all-in-one cooling system is easy to install, offering multiple exhaust options for either top or rear hot air exhaust.
Detail:
- SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
- EXHAUST: Rear (standard) or top
- VENTING: When installed into a wine cabinet, this unit must vent outside the wine cabinet.
- TEMPERATURE: The WM-1500-HTD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
- AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-1500-HTD should not be higher than 78°F or lower than 50°F in order to operate properly.
- If the exhaust ambient temperature exceeds 78°F, one size larger unit must be used.
- HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
- WM-1500-HTD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
- REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
- DISPLAY: Digital display with easy push-button controls
- NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
- CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
- HTD evaporators have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.
- Exchangeable supply grille can be used for front, back, and down cold air distribution.
- Extra insulations are used for both thermal and noise isolation.
- Condensate tray is used for humidity adjustment.
- The lower the BTU of the unit, the lower the decibel or the quieter it is. It is important to know the balance of noise vs the power needed to keep the wine at the perfect temperature.
- Our 1500-HTD is actually a 1700 BTU unit. This unit has a decibel of 41 DB at 9FT, its both the strongest and quietest on the market in its class.
- WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.
NOTE: Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.
SPECS:
- DIMENSIONS: 18” W x 16 1/2” D x 10 1/2” H
- COVERAGE SIZE: 90 Cubic Feet
- ELECTRICAL REQUIREMENTS: 115V 60Hz 4A
- WEIGHT: 55 lbs
- NOISE: 49 dBA for cooling unit, 46 dBA for cabinet
- CFM: 120
- BTU/h: 1500
